Description

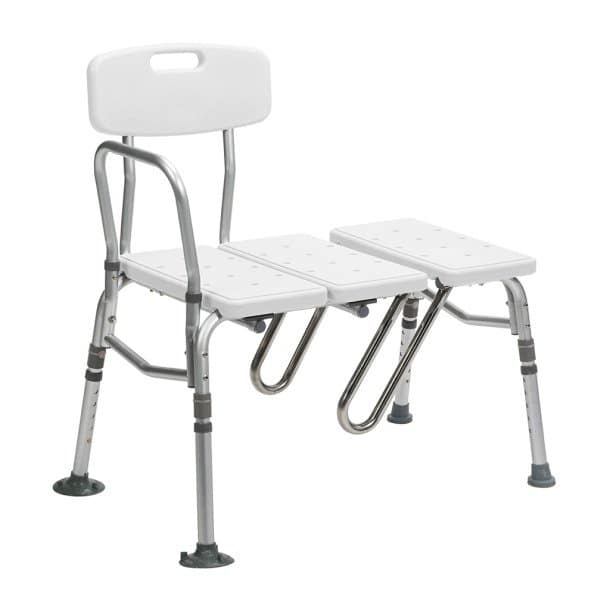

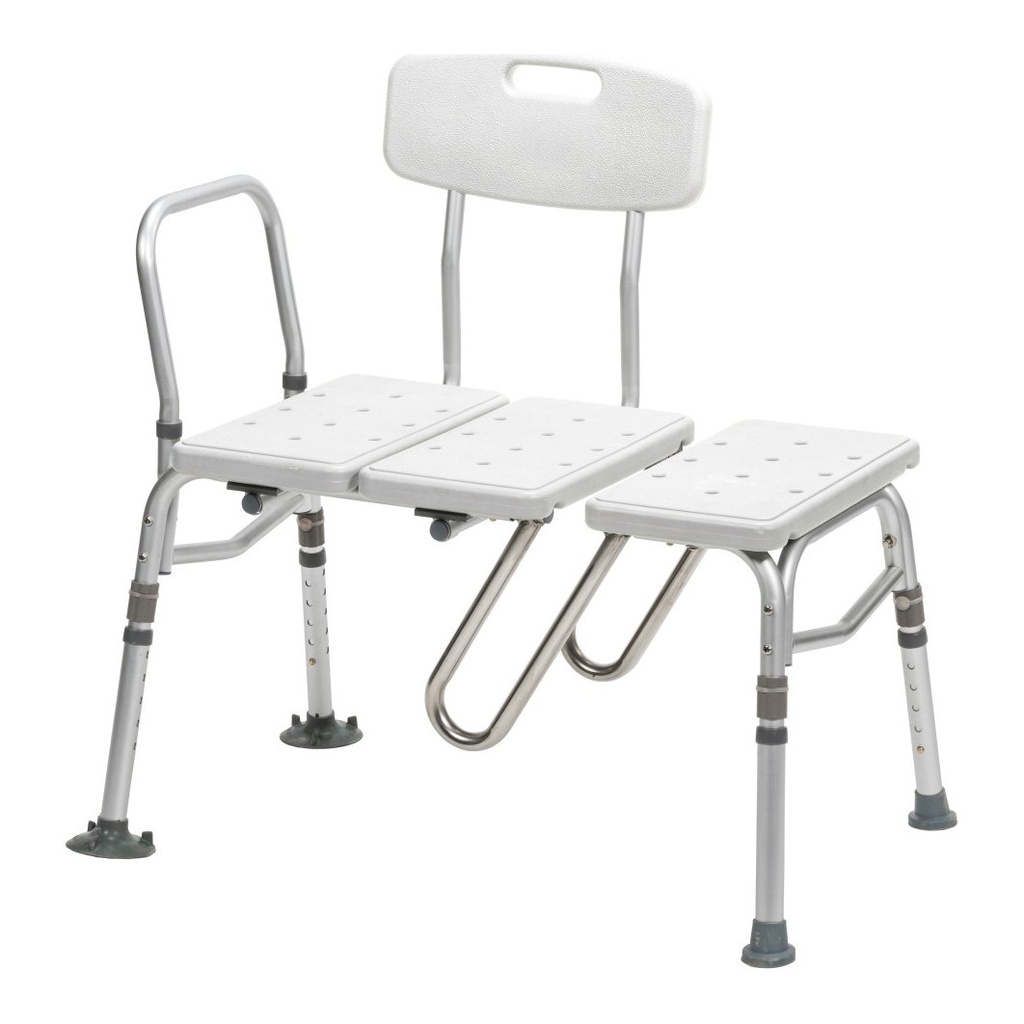

The Drive Splash Defense Transfer Bench, part RTL12032KDR, spans a bathtub so a person can sit on it and move into the tub without standing. A U-shaped gap between the seat boards lets the shower curtain liner stay in the tub. It carries 400 lb (181 kg), and Drive says not to stand on it.
What does it do and how does it work?
- Seat: blow-moulded plastic boards with a U-shaped cut-out for the curtain liner, made with recycled materials.
- Height: 17.5 to 22.5 in (44.5 to 57.2 cm) in half-inch steps on dual-column legs.

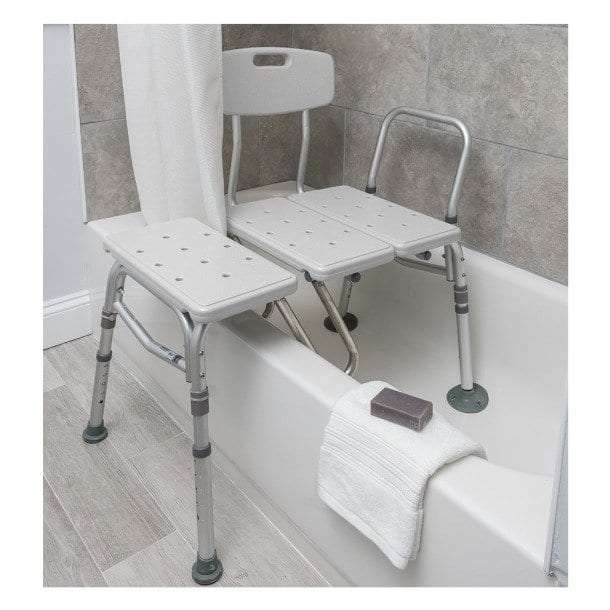

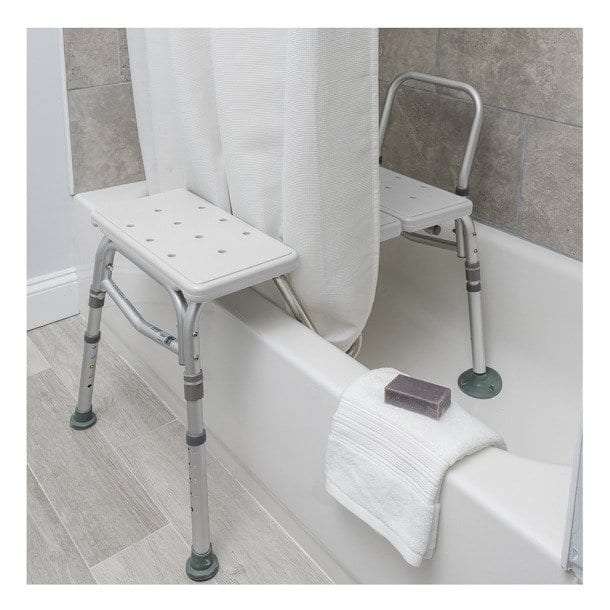

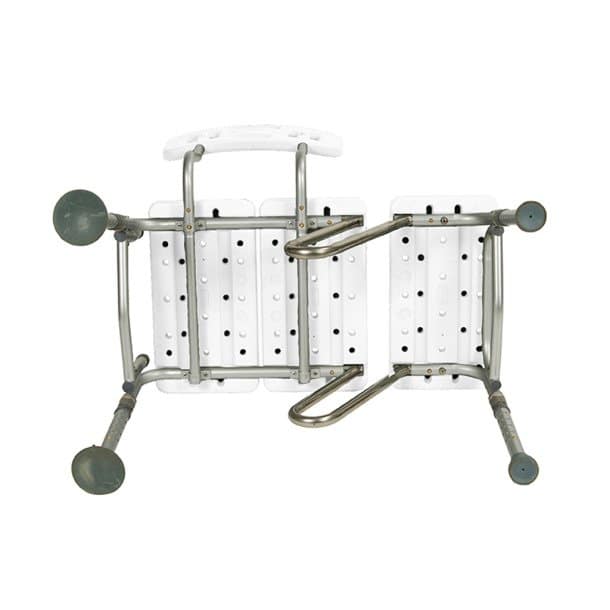

- Legs: two large suction cups marked A for inside the tub, and two small rubber tips marked B for outside.
- Back: reversible for a left or right entry, with the tubes through both receptacles.
- Arm: one arm, which must arc outward rather than inward.
- Seat depth: adjusts by sliding the seat tubes until their pins lock.
- Capacity: 400 lb (181 kg).
Who is it for, and who should choose something else?

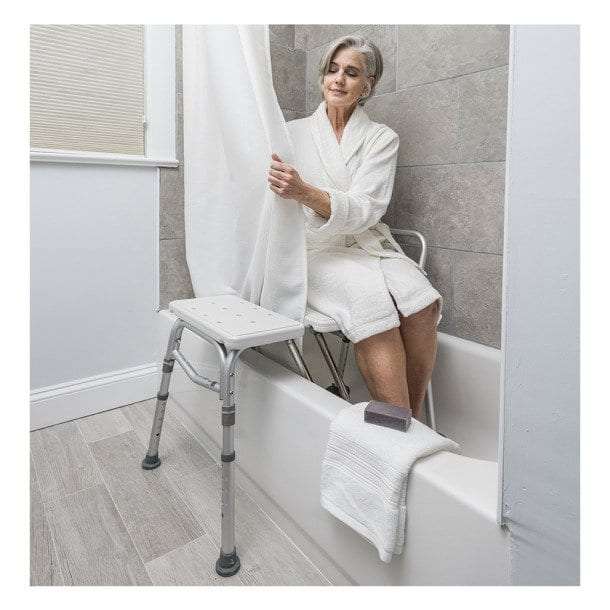

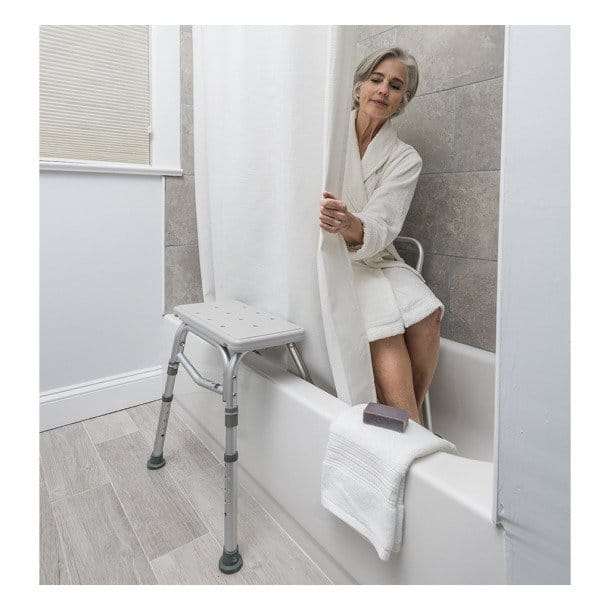

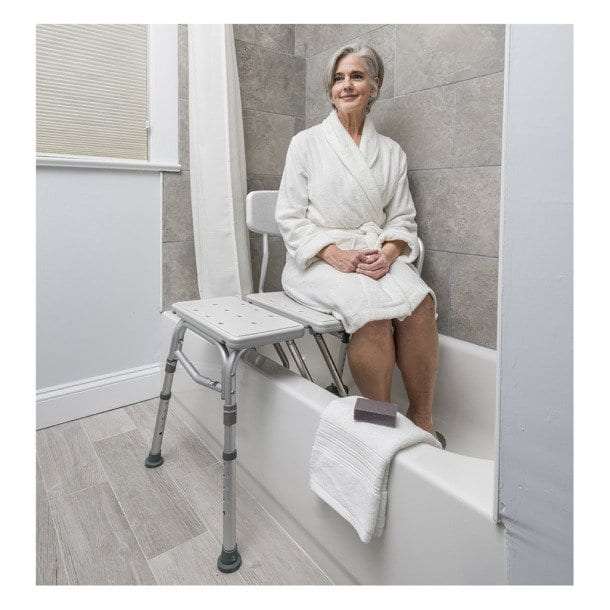

- For a seated transfer across the tub wall when the shower curtain liner has to stay inside the tub.
- For a plain bench without the cut-out, choose the Drive 12011KD-1.
- For a seat that slides along the bench, choose the Drive RTL12075.
- For a commode opening and pail, choose the Drive 12005KDC-1.
Will it fit?
- The tub wall must be no higher than 15.5 in (39.4 cm), with a bottom width of at least 18.5 in (47 cm).
- The tub top must be at least 23 in (58.4 cm) wide, and the edge no thicker than 5.5 in (14 cm).
- Set all four legs to the same height, with every tip touching the floor at once.
- Bring the tub measurements to a free home assessment and we check them with you.
Using it day to day

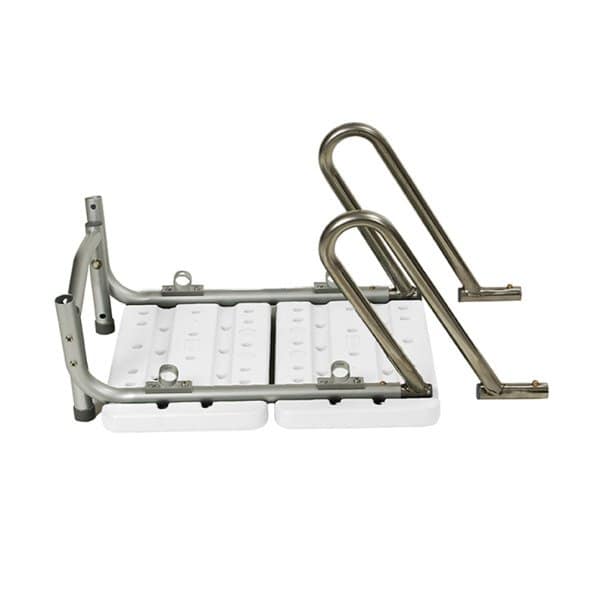

- Join the two seat sections with the U-brackets, facing the legs marked A, and fit the back through both sets of receptacles.
- Push each leg and the arm in until the pins lock; the arm must arc outward.
- Set the height in half-inch steps with all four legs level, then check every pin is through.
- Slide the seat tubes to change the depth and let the pins lock again.
What does it work with, and what are its limits?
- It carries 400 lb (181 kg); do not stand on the bench.
- It ships in sections rather than folding flat, and no commode pail or shower curtain comes with it.
- Limited lifetime warranty; see the Warranty tab.
- Bathroom safety items are non-returnable under our return policy, so measure first.
How does it compare?
The 12011KD-1 is the plain bench; the RTL12075 slides. The rest are under transfer benches.
Frequently asked questions
Does the cut-out hold the curtain rod?
No. It is a gap for the liner already hanging in the tub; the rod stays where it is.
Can the seat depth change?
Yes. The seat tubes slide and lock at a new depth, though no depth range is published.
Which legs go inside the tub?
The legs marked A, which have the large suction cups; the B legs with small rubber tips stay outside.
Does it fold for storage?
It comes apart into sections with push pins, but it does not fold flat as one piece.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 400 lb (181 kg). Do not stand on the bench
- Assembly
- Tool-free push pins for the back, legs and arm
- Leg tips
- Large suction cups (marked A) in the tub; small rubber tips (marked B) outside
- Seat depth
- Adjustable by sliding the seat tubes. No range is printed
- Armrests
- One arm; it must arc outward, not inward
- Backrest
- Reversible for left or right entry; must pass through both receptacles
- Seat height
- 17.5" to 22.5" (44.5 to 57.2 cm), seat to floor
- Height adjustment
- 1/2" (1.3 cm) steps; all four legs at the same height
- Seat opening
- U-shaped cut-out so the shower curtain liner stays in the tub
- Folding
- Ships in sections. Not described as folding flat
- Uses
- Seated transfer into the tub, with the curtain liner in the cut-out
- Material
- Blow-moulded plastic seat and back; recycled materials; alloy not named
- Tub fit
- Max tub height 15.5" (39.4 cm); min bottom width 18.5" (47.0 cm); min top width 23" (58.4 cm); max edge 5.5" (14.0 cm)
- Warranty
- Limited lifetime for the original purchaser; rubber parts excluded
- Product type
- Transfer Bench
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Splash Defense Transfer Bench with Curtain Guard (RTL12032KDR) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
- Term: limited lifetime.
- Covers the original consumer purchaser only.
- Excludes failure from owner misuse or negligence, and normal wear and tear.
- Excludes non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
