Description

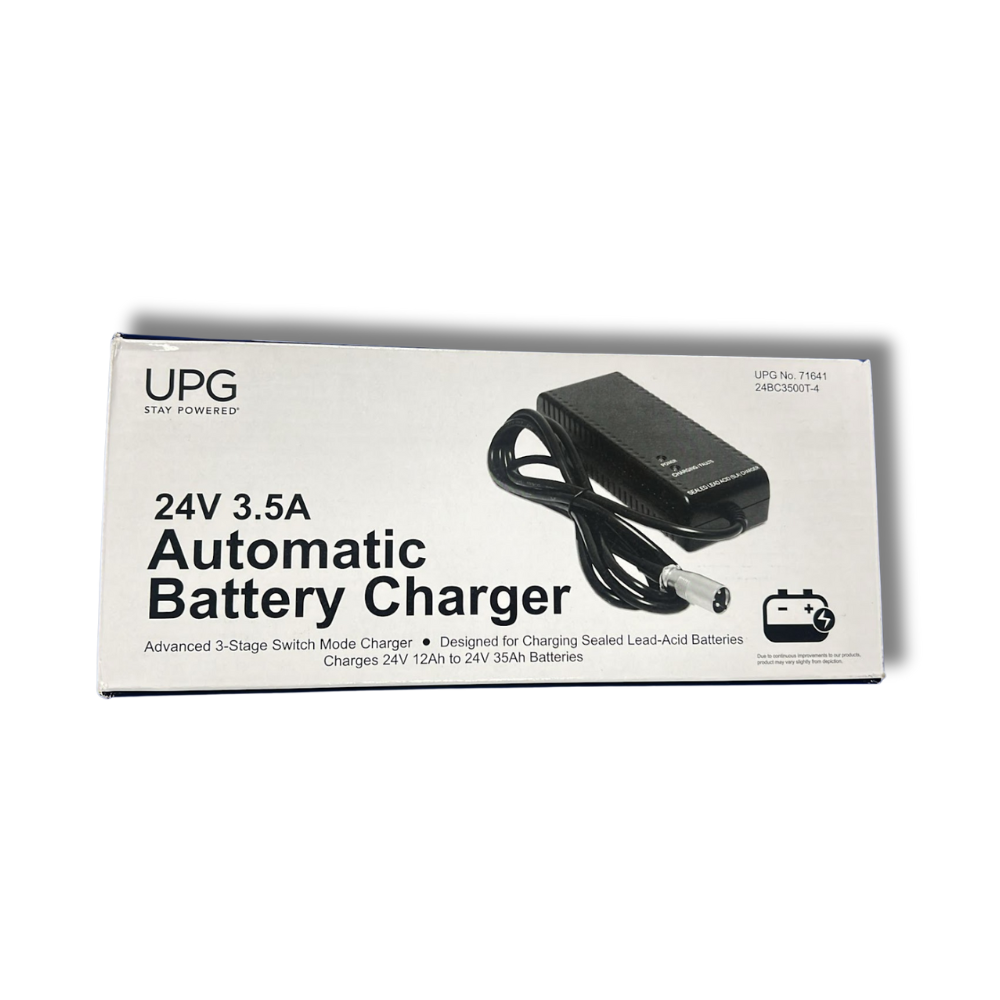

The Universal Power Group 24BC3500T-4 is a 24 V 3.5 A off-board charger with a 3-pin XLR lead, for AGM or gel sealed lead-acid packs of 12 to 35 Ah. It charges in three stages and has an AGM or gel switch. It is one charger; the scooter and batteries are separate.
Which scooter can use this charger?
Any 24 V scooter or power chair whose manual allows a 3.5 A charger and whose pack is 12 to 35 Ah, provided the output lead matches the charge port. Check the old charger's label and the device manual. The 2 A model, 24BC2000T-4, is a different charger with a 7 to 18 Ah range.
What must match the old charger?
- The battery system: 24 V, AGM or gel. This charger is not for lithium packs.
- The current: 3.5 A. A scooter that specifies a 2 A charger takes the smaller model.
- The pack size: 12 to 35 Ah.
- The output plug: a 3-pin XLR. Pin 1 is positive, pin 2 is negative and pin 3 is ground.
How does it charge?
Set the switch to AGM or gel. The default is AGM. Connect the output lead to the scooter, then the AC cord, then the wall outlet. The power LED is red; the charge LED is red while fast charging, flashing green in float, and steady green when the charge is finished. A flashing red light is a fault.
If the battery is under 14 V, the charger will not start. It cuts off after 20 hours and then restarts on its own.
Use it indoors, in a ventilated place, and never charge a frozen battery.
Can Mobility test it?
Our technicians can test the scooter battery and the charger. Use the battery replacement form to book.
What warranty comes with it?
Universal Power Group gives one year from the date of sale to the original purchaser; the full terms are in the Warranty tab.
Funding may help: see who may help pay. Related: scooter batteries and battery range.
Frequently asked questions
Does the plug alone prove compatibility?
No. A 3-pin XLR still has to match 24 V AGM or gel, the 3.5 A current, the 12 to 35 Ah pack and the device manual.
Is this the same as the 2 A model?
No. The 2 A model is 24BC2000T-4, with a 7 to 18 Ah range.
Can I use it on a lithium pack?
No. It charges AGM or gel sealed lead-acid batteries only.
Specifications
- Installation
- Our technicians can test the scooter battery and charger
- Battery capacity
- Suggested 12 to 35 Ah pack
- Battery voltage
- 24 V battery system
- Sold as
- One charger
- Compatible with
- 24 V AGM or gel pack, 12 to 35 Ah, 3-pin XLR (pin 1 positive, pin 2 negative, pin 3 ground)
- Battery charger
- 3.5 A three-stage AGM or gel charger with an AGM/GEL switch
- Warranty
- UPG: 1 year to the original purchaser, proof of purchase required, not transferable
- Product type
- Off-board scooter battery charger
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Universal Power Group (UPG) warrants the 24V 3.5A charger (24BC3500T-4) to be free from defects in material and workmanship for one year from the date of sale, and will repair or replace a unit that fails from a defect in that time.
- Charger: 1 year.
- Covers the original user or purchaser only; not transferable; proof of purchase is required.
- A replacement may be new or re-manufactured, or a similar product of equal or greater value.
- Excludes repairs by an unauthorized person, mishandling, modifications, normal wear, unreasonable use and damage.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
