Description

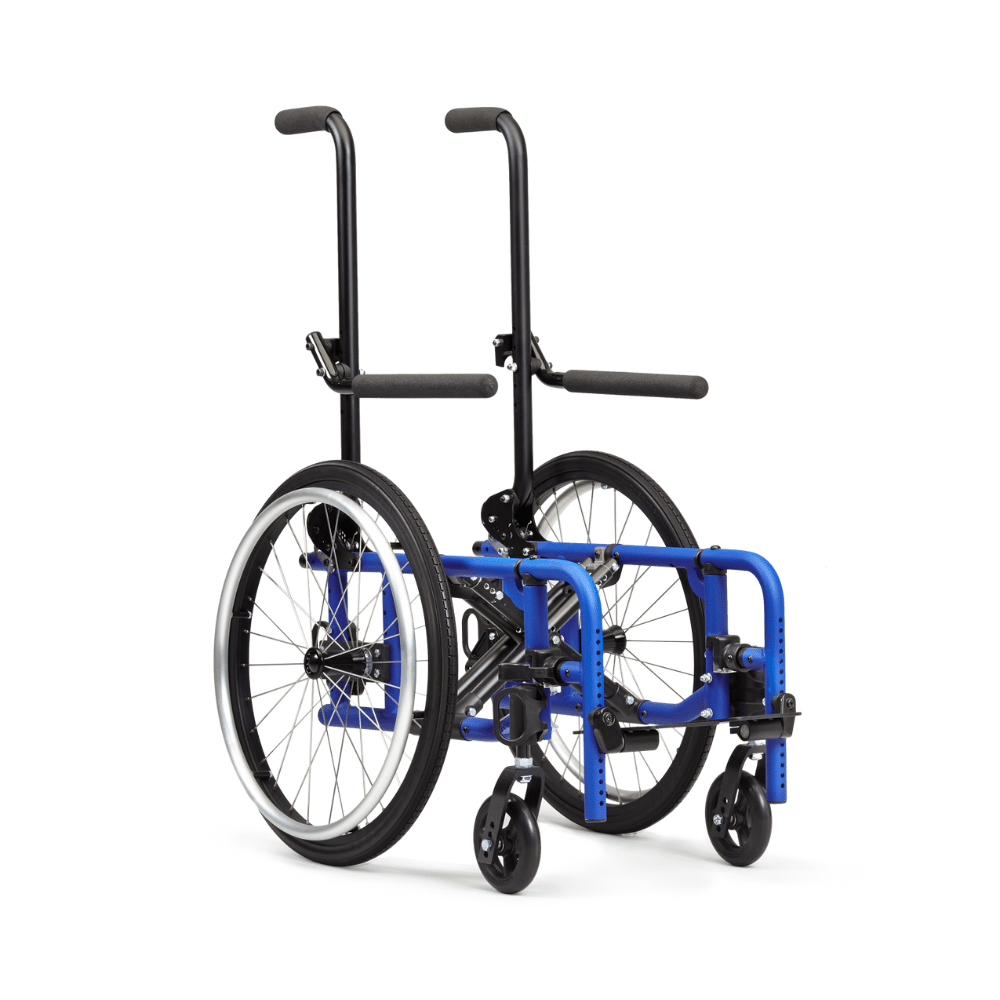

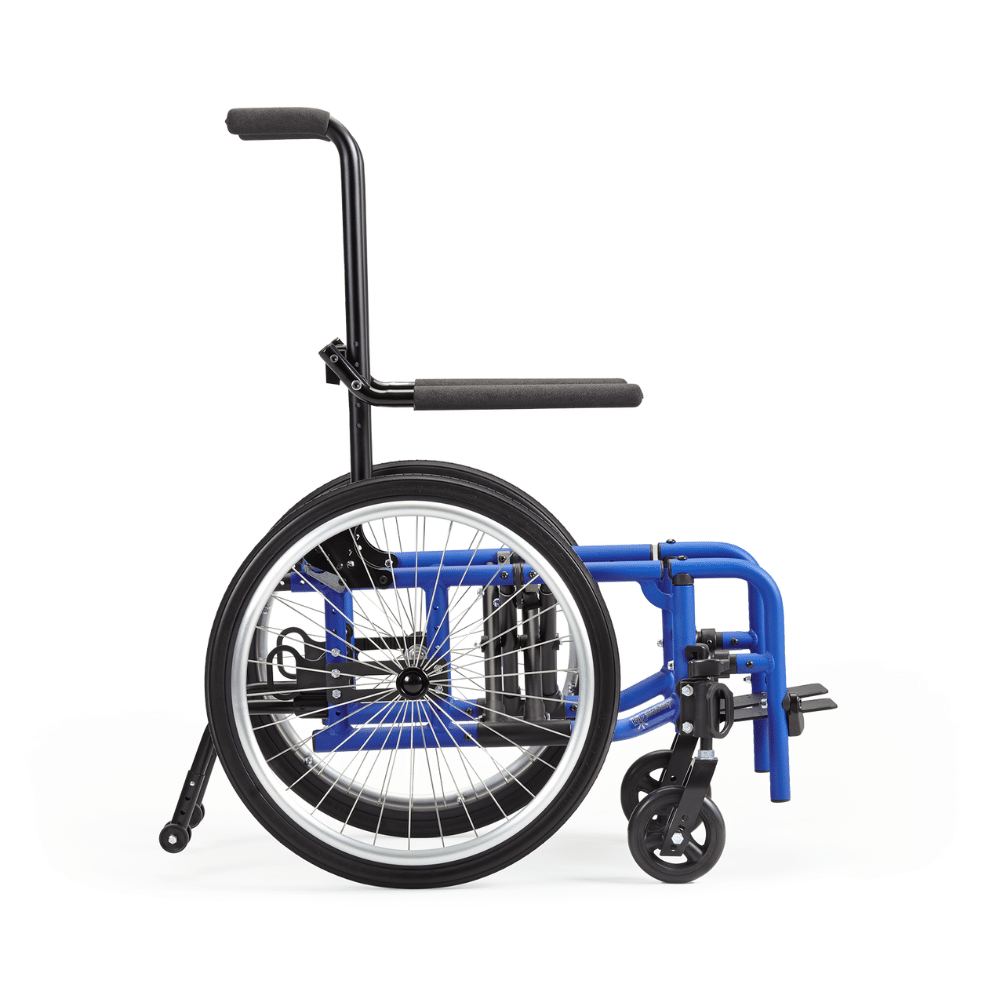

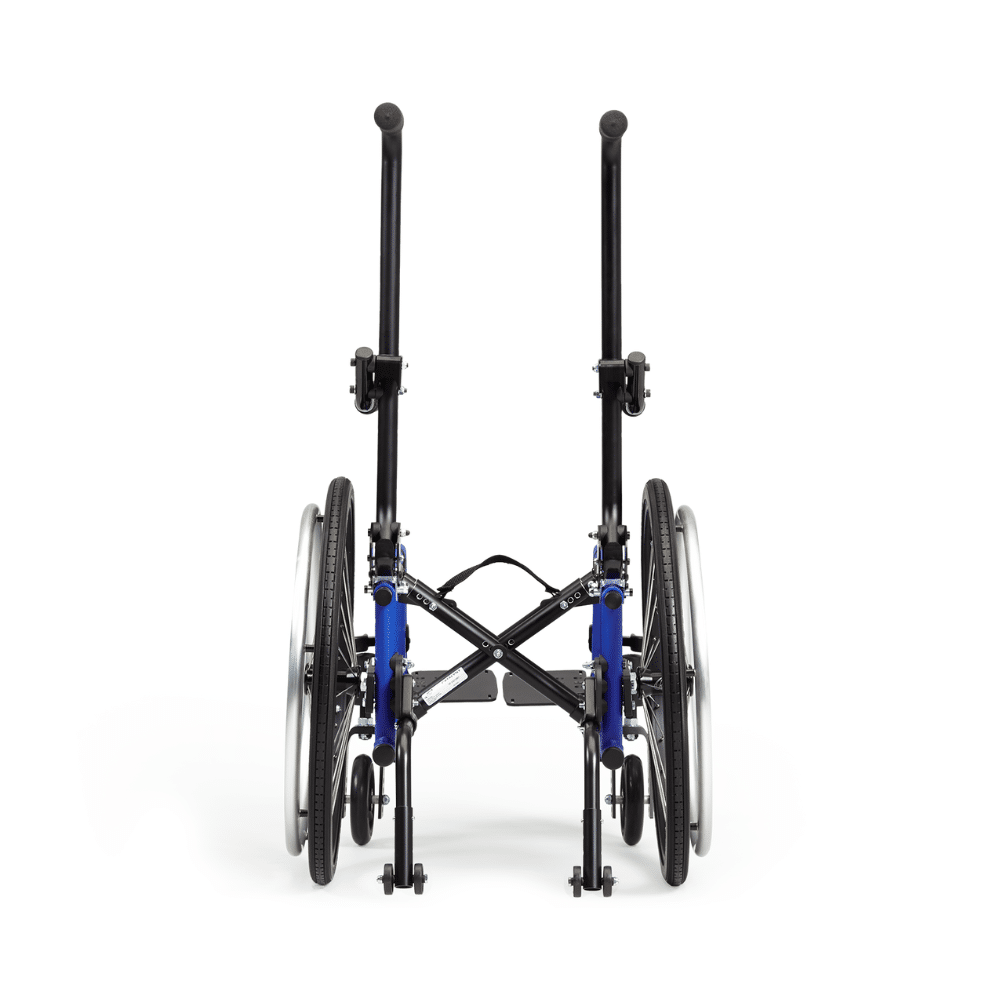

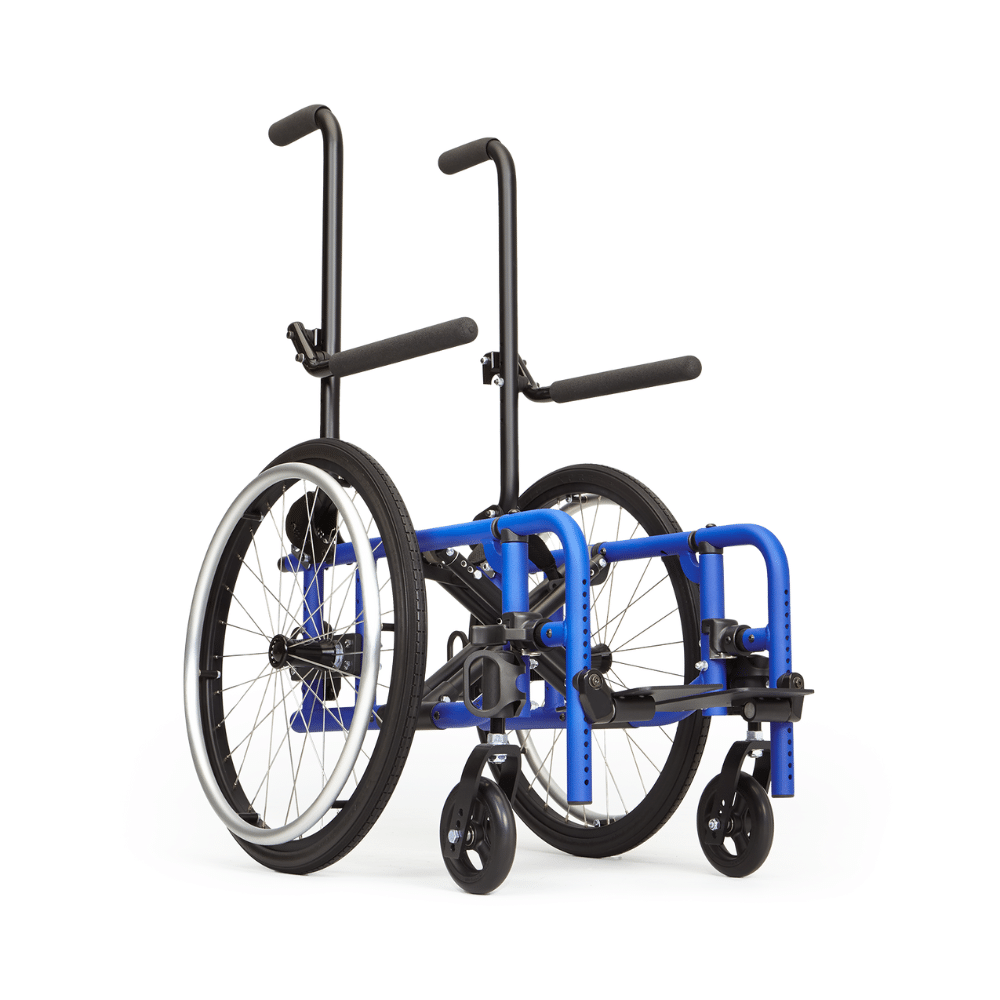

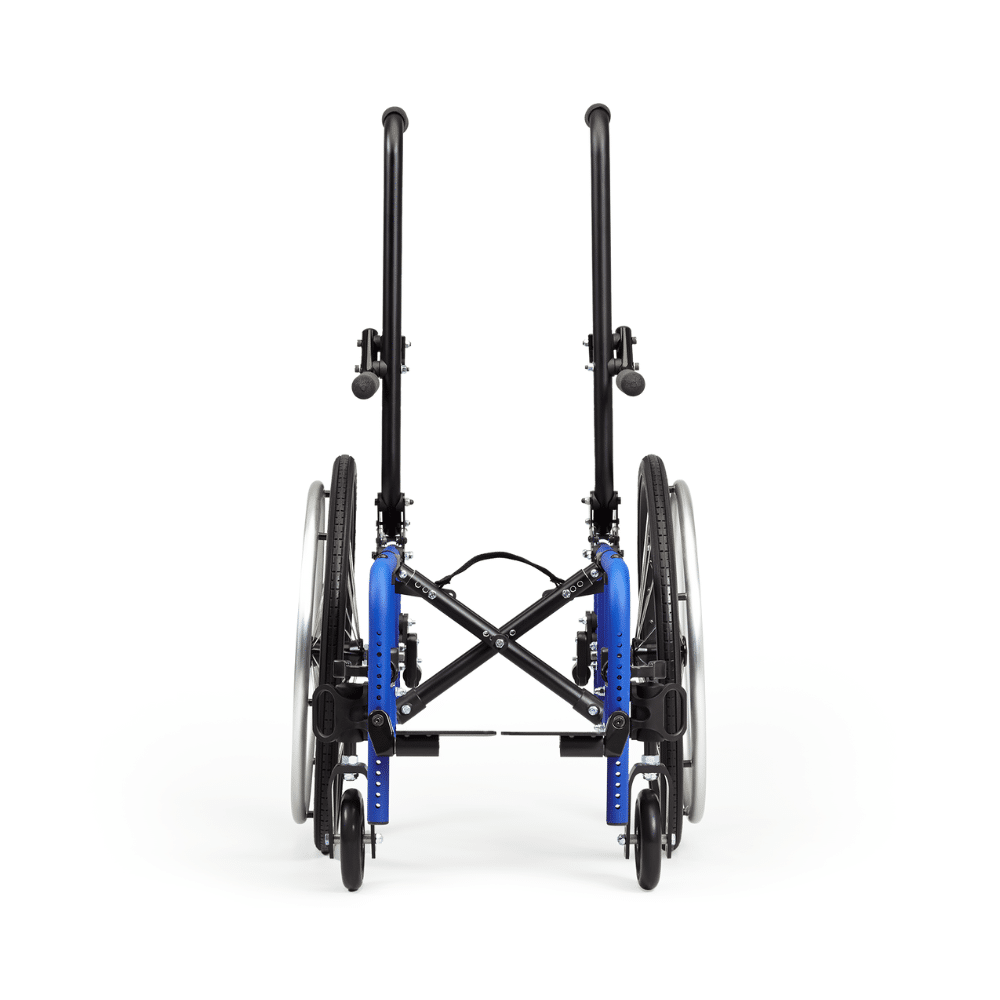

The Ki Mobility Spark is a paediatric folding manual wheelchair built to order for a young rider whose seating is chosen with a clinician.
What does it do and how does it work?
- A contoured backrest adds 2 in (5 cm) of usable depth and adjusts through 32 degrees.
- Seat depth changes by 4 in (10 cm) in 1 in steps; a frame extender keeps the frame shorter.
- The front is a swing-away end with patented footrests, or a fixed 70 or 80 degree frame; hangers come in 60, 70, 80 and 90 degree bends.
- The flip-up armrest adjusts for angle, height and length.
- Weight capacity is 165 lb (75 kg); transport weight is 17.5 lb (8 kg) on a 12 by 12 in frame with stroller handle posts and 5 in casters, after armrests, footrest and wheels come off.
Who is it for, and who should choose something else?
- A young rider up to 165 lb (75 kg) whose seating is set individually and whose frame should fold.
- An adult, or a seat wider than 16 in: an adult folding wheelchair such as the Quickie QXi.
- A rigid frame instead of a fold: rigid wheelchairs.
Will it fit?
- Seat width 10 to 16 in (25 to 41 cm); seat depth 12 to 18 in (31 to 46 cm).
- Front seat height 13 to 21 in (33 to 53 cm); rear seat height 11 to 18.5 in (28 to 47 cm).
- Measure the child seated: hip width, hips to knee, and knee to heel with shoes on. A therapist or our free home assessment sets the order.
Using it day to day

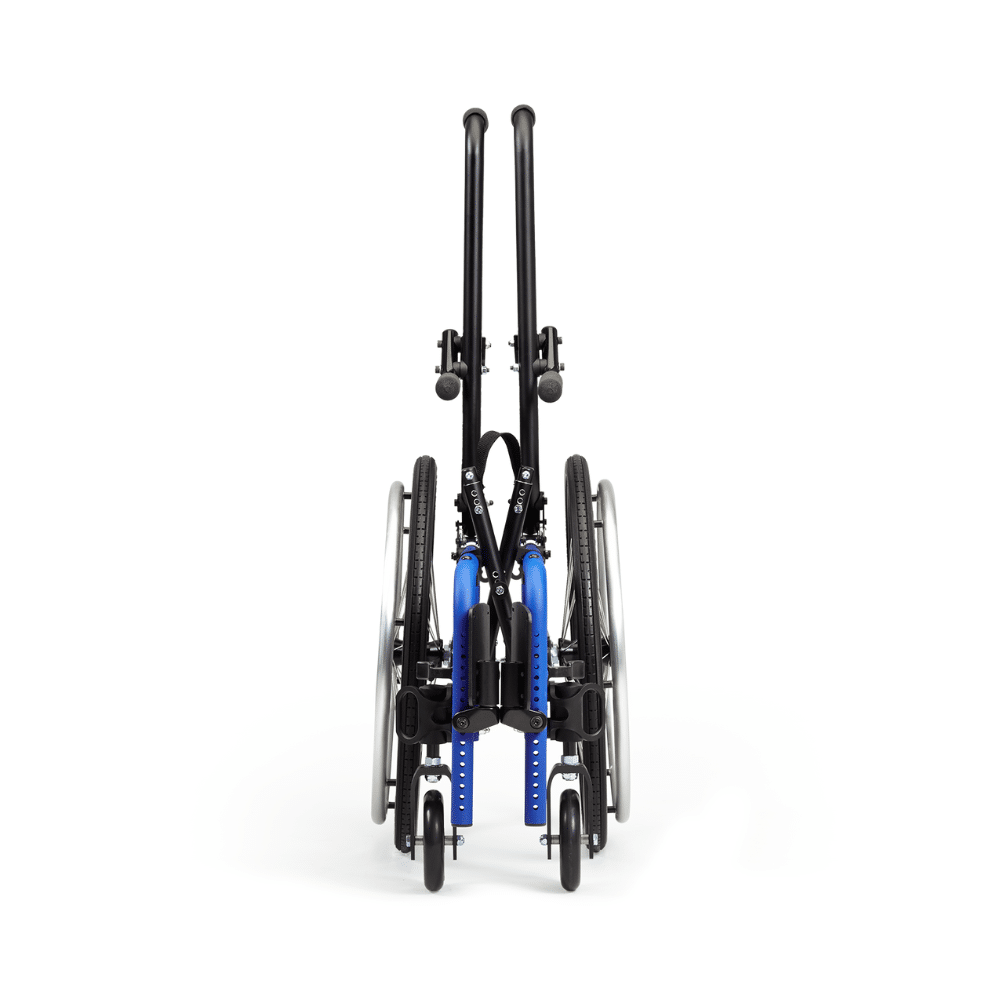

- Before folding, remove the seating and flip up the footplates; lift the strap to release the cross brace supports.
- Push down on a cross brace to reopen the frame, then check the supports are seated.
- Set the wheel locks so they compress the tire and the wheel cannot move, and test them on a level surface.
What does it work with, and what are its limits?
- The rider and anything carried must total no more than 165 lb (75 kg), including in transit.
- Use it as a vehicle seat only with the WC-19 transit option.
- The chair is designed around a clinically prescribed seating system.
- Warranty: frame and quick-release axles for life; other Ki-made parts 1 year; wear items excluded. See the Warranty tab.
Which version should I choose?
- Front: swing-away with footrests, or a fixed 70 or 80 degree frame.
- Camber: 0, 2 or 4 degrees. Colours: gloss, matte and hydrographic finishes.
How does it compare?
- Quickie QXi: an adult folding chair.
- Helio A7: an adult ultralight folding frame.
- Type 3 wheelchairs: the full range.
Frequently asked questions
Is 17.5 lb the whole chair?
No. It is a 12 by 12 in frame after armrests, footrest and wheels come off.
How much does the seat grow?
The seat depth changes 4 in (10 cm) in 1 in steps; the contoured back adds 2 in.
Can the child ride in it in a vehicle?
Only with the WC-19 transit option, within the 165 lb (75 kg) limit.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 165 lbs (75 kg)
- Product weight
- 19 lbs (8.6 kg) maker reference build
- Transport weight
- 17.5 lbs (8 kg), 12 x 12 in reference without arms, footrest and rear wheels
- Seat width
- 10-16 in (25-41 cm)
- Seat depth
- 12-18 in (31-46 cm)
- Armrests
- Flip-up, adjustable for angle, height and length
- Legrests
- Swing-away front with patented footrests, or a fixed 70 or 80 degree frame; hangers in 60, 70, 80 and 90 degree bends
- Seat height
- 13-21 in front; 11-18.5 in rear
- Caster size
- 5 in (12.7 cm) poly in the reference build
- Folding
- Side-to-side folding latch
- Available colours
- Gloss, matte and hydrographic finishes; accent package on forks and axle plate
- Transit
- WC-19 transit option, rated to 165 lbs (75 kg)
- Camber
- 0, 2 or 4 degrees
- Warranty
- Frame and quick-release axles for life; other Ki-made parts 1 year; wear items excluded
- Product type
- Paediatric folding manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Kimobility Spark Pediatrics Folding Category 3 Wheelchair brochure
- User Manual Kimobility Spark Pediatrics Folding Category 3 Wheelchair user manual
- User Manual Kimobility Spark Pediatrics Folding Category 3 Wheelchair technical manual
- Order Form Kimobility Spark Pediatrics Folding Category 3 Wheelchair order form
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Spark paediatric folding wheelchair against defects in materials and workmanship, in North America. Ki Mobility repairs or replaces covered parts at its discretion; claims go through an authorized supplier.
- Frame and quick-release axles: life of the original purchaser.
- All other Ki Mobility-made parts: 1 year from the first consumer purchase.
- Labour to repair or install parts is paid by the owner.
- Not covered: upholstery, tires, tubes, armrests, armrest pads and push-handle grips, and damage from neglect, misuse, improper installation or repair, or exceeding the weight limit.
- Void if the serial number tag is removed or altered.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
