Description

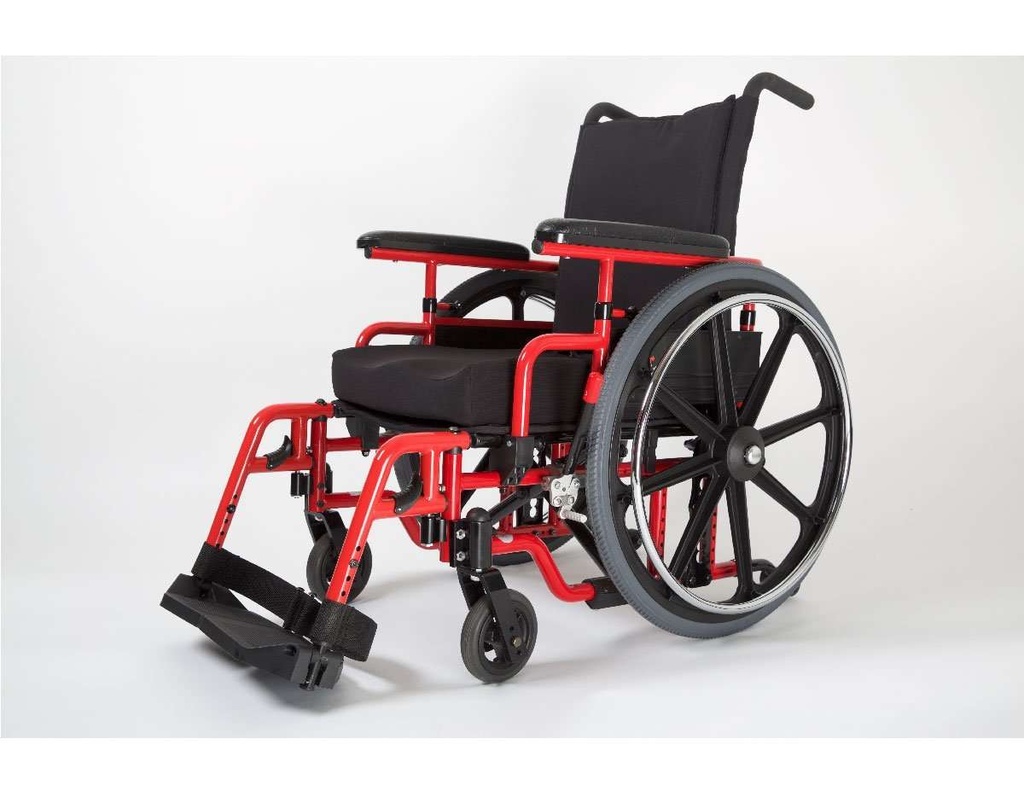

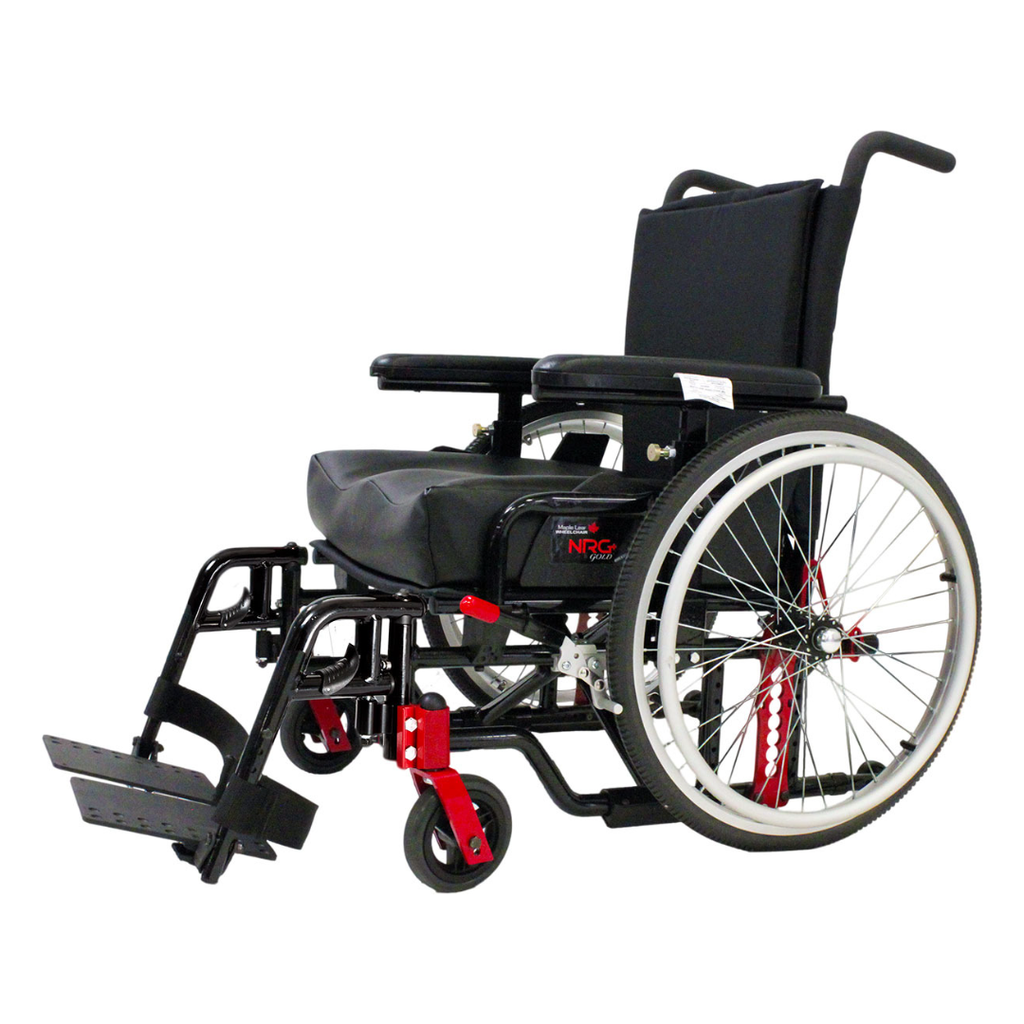

The Maple Leaf NRG+ Gold is an aluminum folding wheelchair made in Mississauga for an adult who self-propels, and it is not the steel NRG+.
What does it do and how does it work?

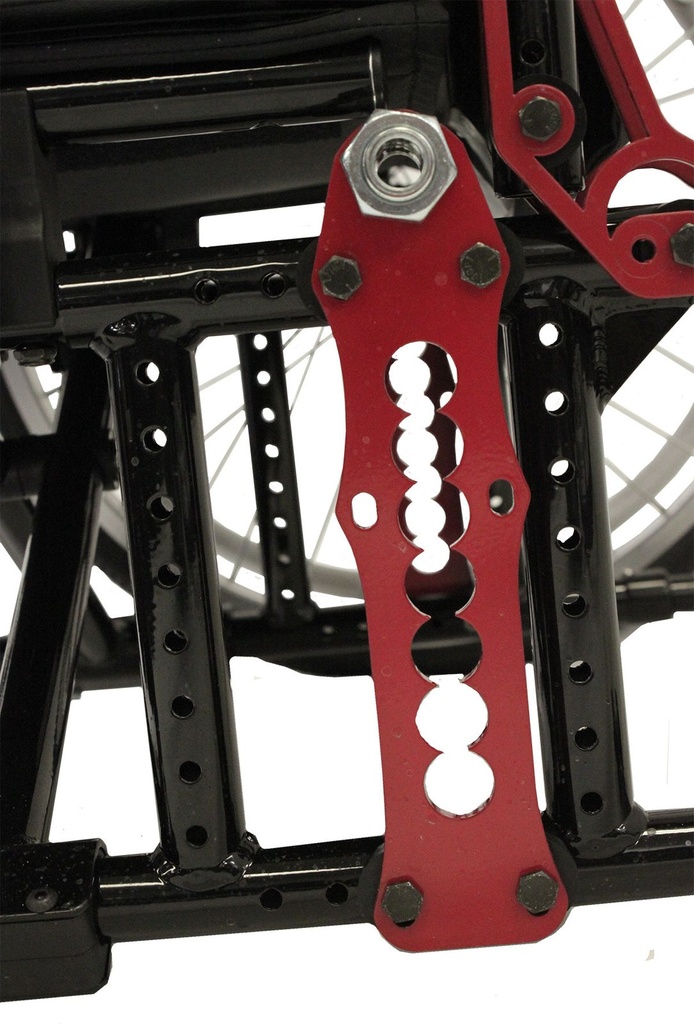

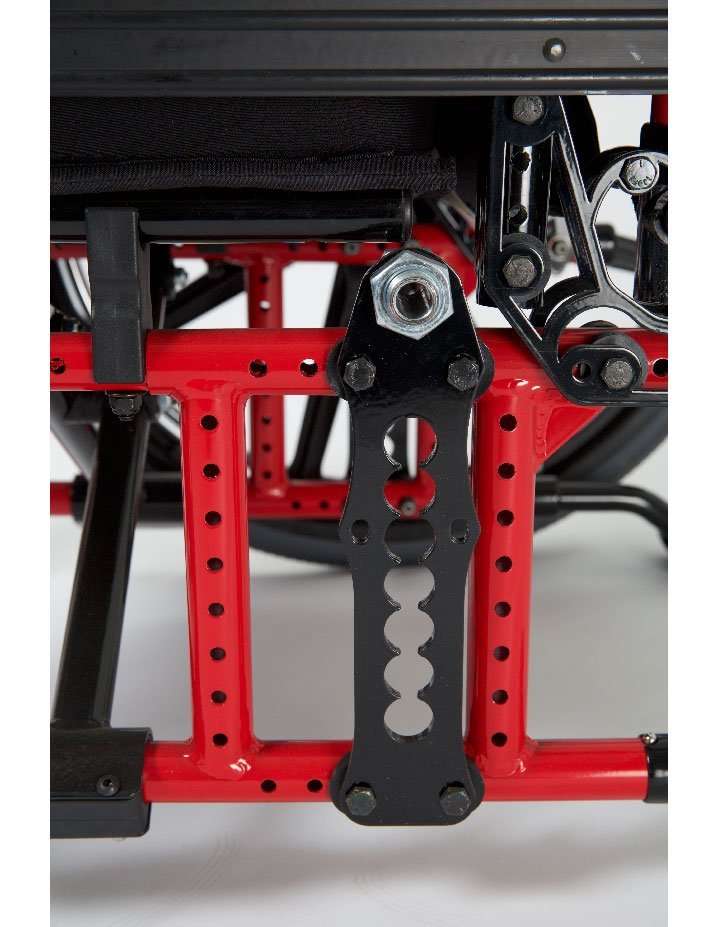

It folds side to side on a cross brace. An axle plate on each side moves the rear wheels up, down, forward or back.
- The hemi frame sets the front of the seat, at the seat rail, from 12.5" to 17" (31.8 to 43.2 cm), so feet can reach the floor.
- The standard frame sets that height from 16.25" to 19" (41.3 to 48.3 cm).
- With armrests, footrests and wheels the chair is 32 lbs (14.5 kg). The limit is 250 lbs (113 kg).
- Anti-tippers stay on in use, at most 2" (5 cm) off the ground, and they are reset when the seat height changes.
- Footrests are removable swing-away hangers at 60, 70, 80 or 90 degrees.
Who is it for, and who should choose something else?
- Adults to 250 lbs (113 kg) who push with their hands or their feet.
- The plain NRG+ is the steel chair. This product is the aluminum NRG+ Gold.
- Over 250 lbs (113 kg): the Move or bariatric wheelchairs. It does not tilt: see tilt-in-space wheelchairs.
Will it fit?
- Seat width is 14" to 20" (35.6 to 50.8 cm). Depth is 14" to 20" (35.6 to 50.8 cm).
- Overall width is the seat width plus 8" (20.3 cm). An angle-adjustable back needs T-style arms.
- We confirm seat width, depth and whether you need the hemi frame or the standard frame before you order. A free home assessment measures hips, hip to knee, and knee to heel.
Using it day to day
- Lift by a seat rail and a push handle, not by removable parts.
- Do not use it on an escalator. Leave the anti-tippers down while someone is in the chair. Basic colours are black, blue and burgundy.
What does it work with, and what are its limits?
- Seat upholstery is included. Back upholstery is ordered with the chair. The cushion and a firmer back support are separate.
- One-arm drive uses 22" or 24" rear wheels. Quick-release axles are optional. Rear wheels are 20", 22" or 24".
- Tie-downs are for an unoccupied chair. To ride in a vehicle, transfer to a vehicle seat.
- The frame and cross braces are covered for 5 years for the original purchaser. Other parts are covered for 2 years. Tires, tubes, armpads and upholstery are not. See the Warranty tab.
How does it compare?
- The Move adds a heavy-duty kit above this 250 lbs (113 kg) limit.
- The Quickie QX is rated to 300 lbs (136 kg), with a fixed axle plate.
- See Type 2 wheelchairs and folding wheelchairs.
Frequently asked questions
Can I propel it with one hand?
Yes. One-arm drive uses 22" or 24" rear wheels.
Can I get elevating legrests?
The hangers are set at 60, 70, 80 or 90 degrees. They swing away, and they do not elevate.
How low can the seat go for my feet?
On the hemi frame, 12.5" (31.8 cm) at the front seat rail. The standard frame starts at 16.25" (41.3 cm).
Funding
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Specifications
- Weight capacity
- 250 lbs (113 kg)
- Product weight
- 32 lbs (14.5 kg) with armrests, footrests and wheels
- Seat width
- 14" to 18" (35.6 to 45.7 cm) in 1" steps; 19" and 20" (48.3 and 50.8 cm) on order
- Seat depth
- 16" to 18" (40.6 to 45.7 cm); 14", 15", 19" and 20" (35.6, 38.1, 48.3 and 50.8 cm) on order
- Back height
- 13" to 18.25" (33 to 46.4 cm) in 8 settings; custom 19" to 24" (48.3 to 61 cm)
- Back angle

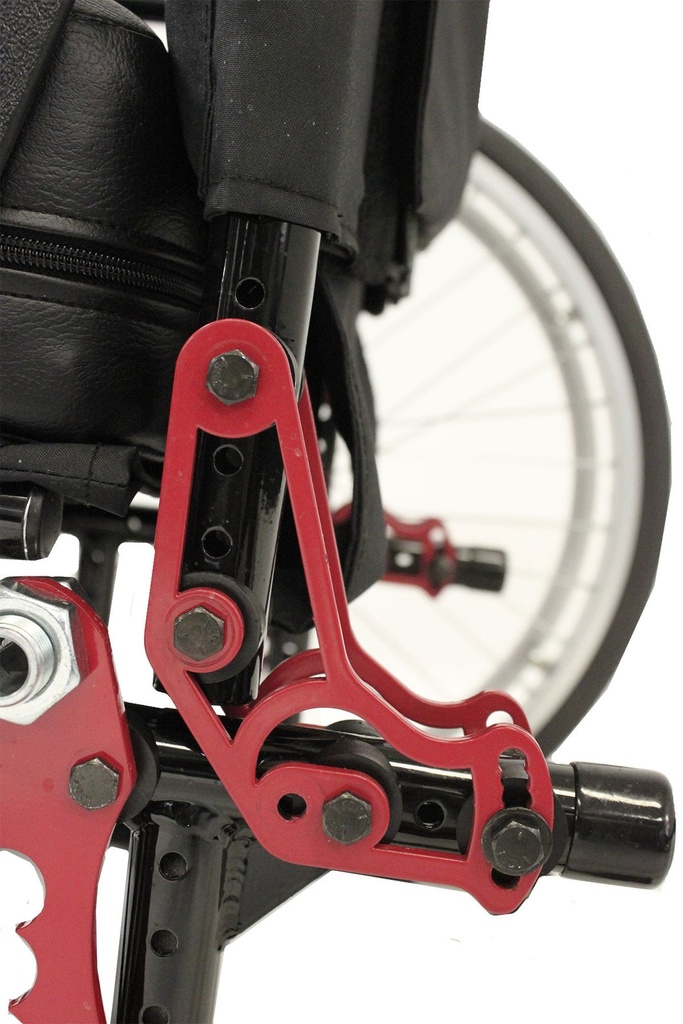

- Fixed back canes; angle-adjustable back with 7 settings on order (needs T-style arms)
- Armrests

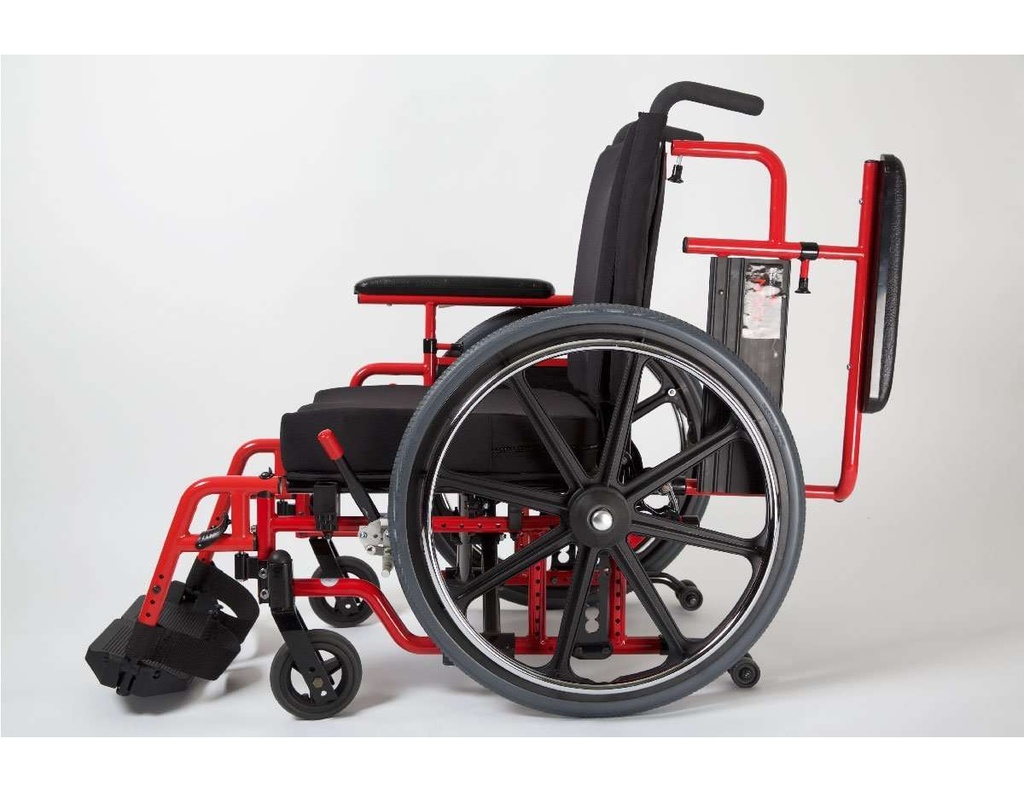

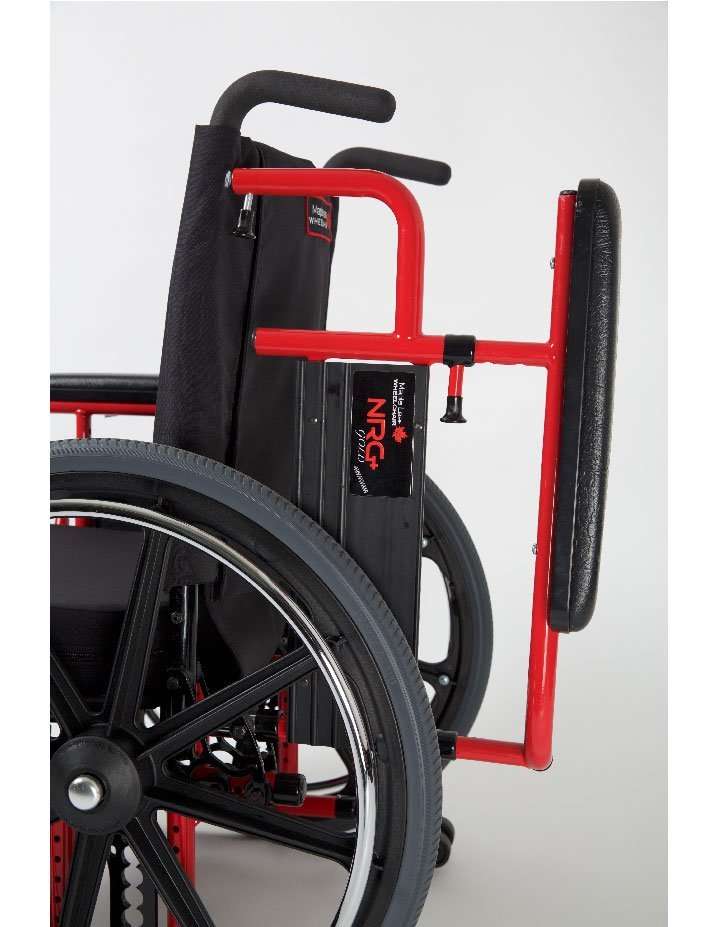

- Removable flip-back (A-style) or T-style arms, full or desk length, height adjustable or fixed height
- Legrests

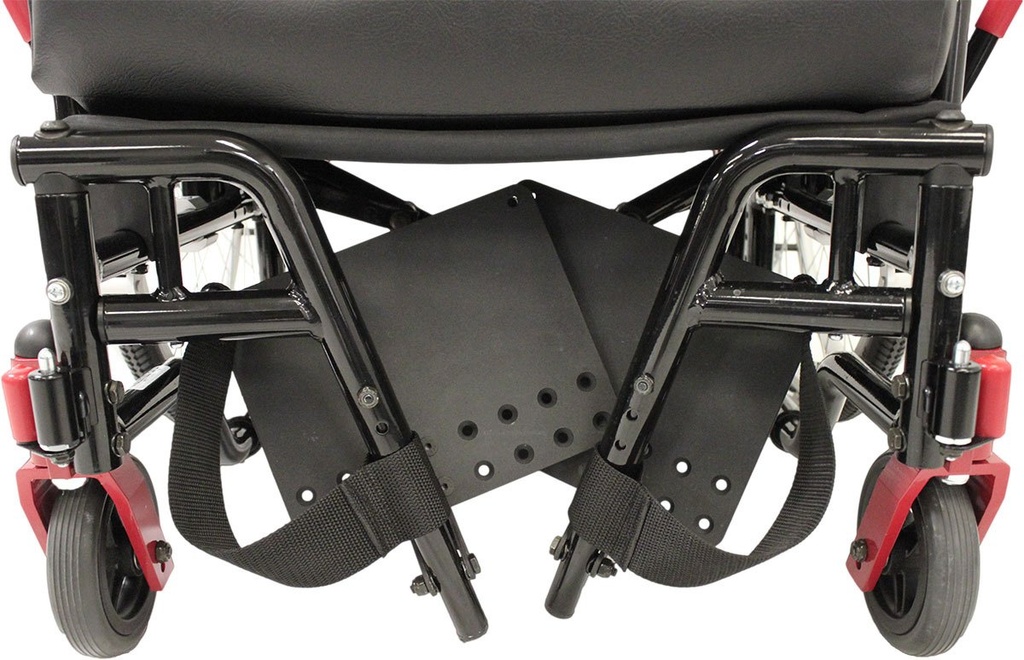

- Removable swing-away plug-in footrests at 60, 70, 80 or 90 degrees; plastic, angle-adjustable or extra-large footplates
- Seat height
- Hemi frame 12.5" to 17" (31.8 to 43.2 cm); standard frame 16.25" to 19" (41.3 to 48.3 cm), front, to the seat rail
- Rear wheel size

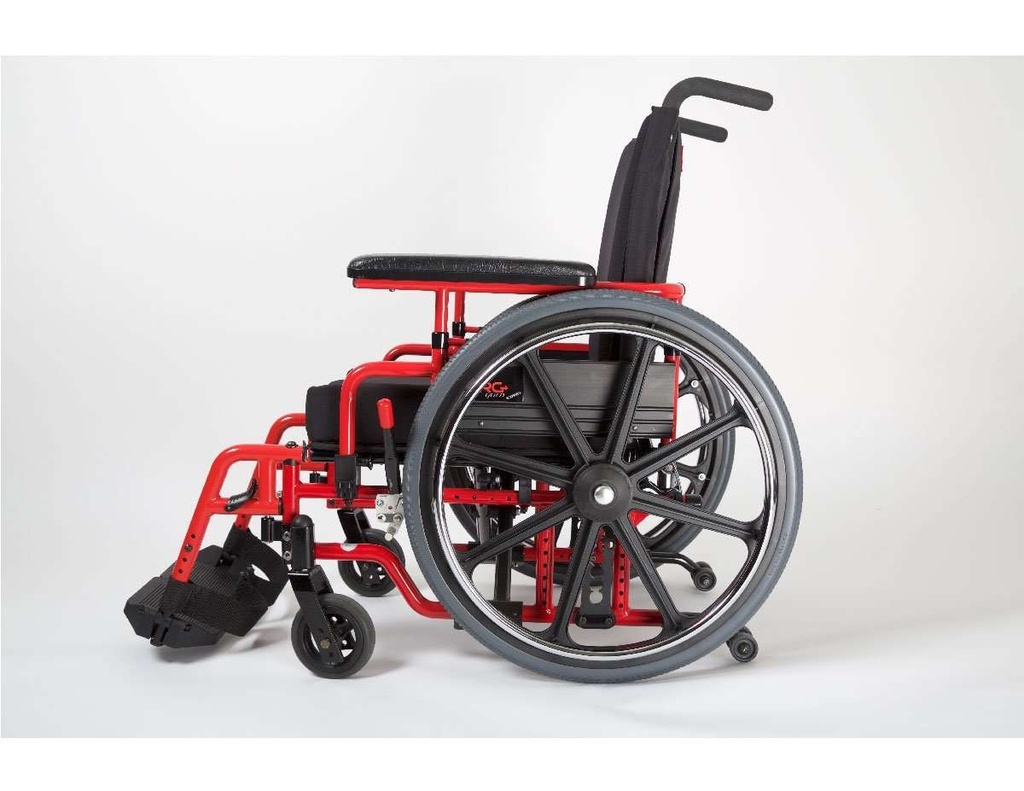

- 20", 22" or 24" x 1 3/8" spoke or mag wheels with solid urethane tires; quick-release axles on order
- Caster size

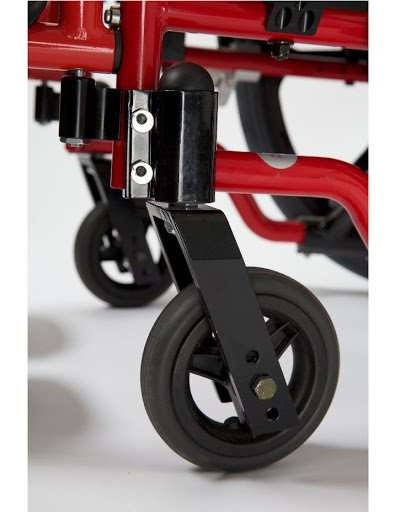

- 5", 6" or 8" (12.7, 15.2 or 20.3 cm); 1.25" wide, or 2" wide on 6" and 8" casters
- Overall width
- Seat width plus 8" (20.3 cm)
- Brakes

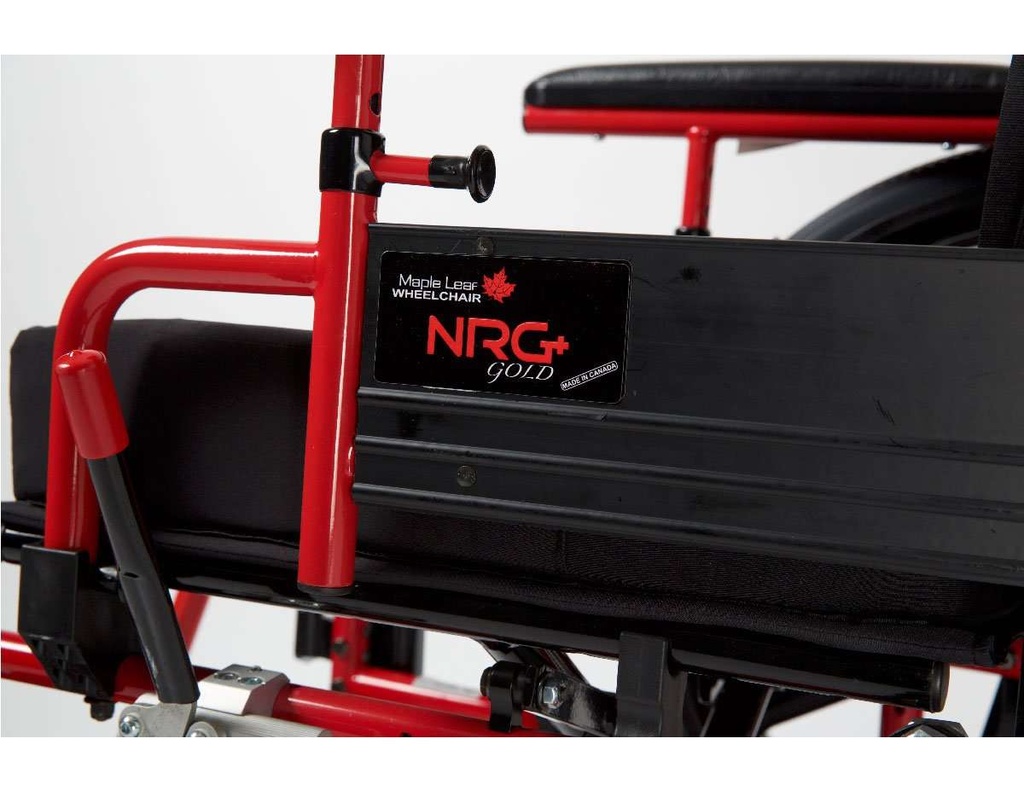

- Push-to-lock or pull-to-lock wheel locks, aluminum or steel; 6" or 9" extensions, attendant brake and one-side lock on order
- Folding
- Folds side to side on a cross brace; footrests swing away and lift off; armrests lift out; rear wheels come off with optional quick-release axles
- Frame material
- Aluminum
- Available colours
- Black, Blue, Burgundy; premium Blue, Burgundy, Green, Gunmetal, Orange, Red, Pink, Purple, Yellow; custom colour matching
- Warranty
- Frame and cross braces 5 years (original purchaser); other parts 2 years; tires, tubes, armpads and upholstery excluded
- Product type
- Folding lightweight manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Maple Leaf Wheelchair Manufacturing warrants the NRG+ Gold against defects in workmanship and materials, from the date of purchase. Maple Leaf repairs or replaces defective parts under a return authorization.
- Frame and cross braces: 5 years, original purchaser.
- All other parts: 2 years.
- Not covered: tires, tubes, armpads and upholstery.
- Labour and freight for repairs or replacements are paid by the owner.
- Void after accident, misuse, neglect, improper application, unauthorized repair or non-factory accessories.
Funding may help pay for this
Mobility Specialties is an ADP registered vendor. Funding may help: see who may help pay.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
