Description

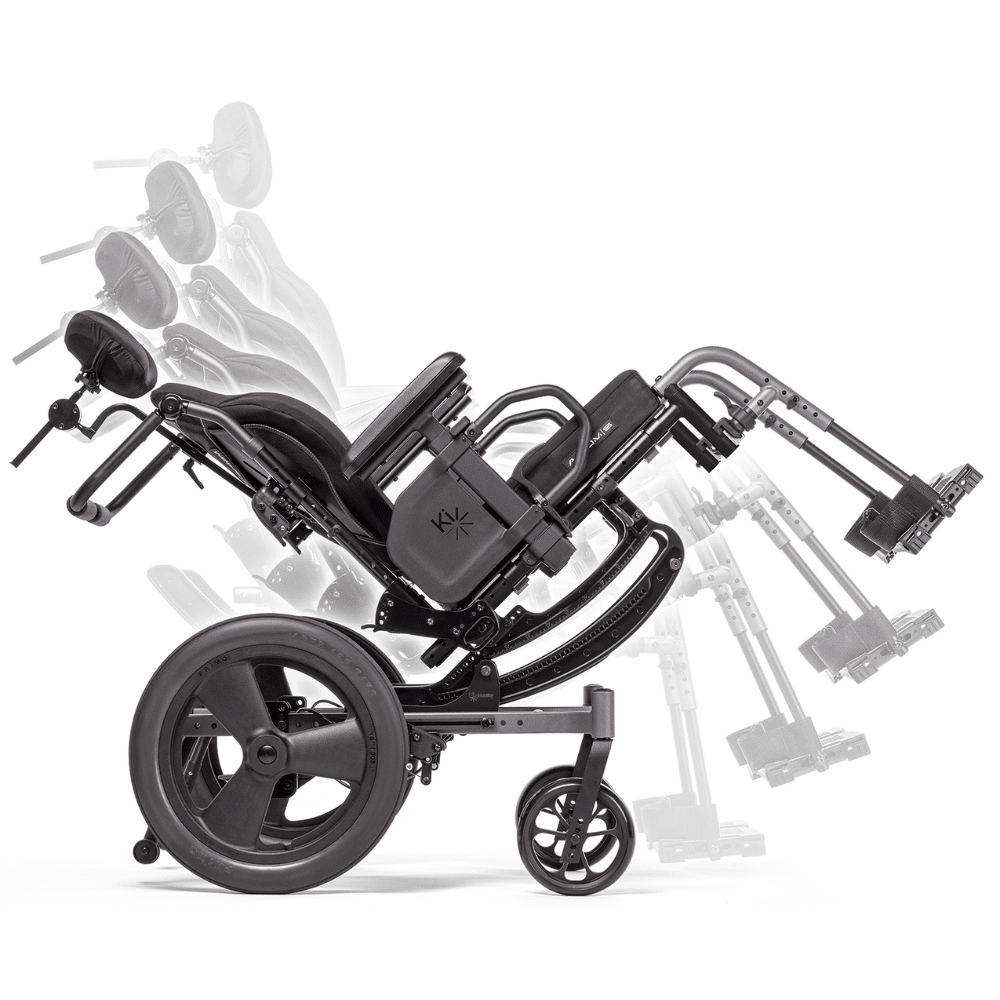

The Ki Mobility CR45 is a manual tilt-in-space wheelchair for an adult who cannot hold upright alone; a caregiver tilts the seat, back and footrests to 45 degrees back. It is on ADP's product list as an Adult Manual Dynamic Tilt Wheelchair (WM0001935).
What does it do, and how does it work?
- Dual Path tilt runs on eight sealed bearings instead of plastic rollers.
- The caregiver uses two hand triggers on the push handles or a right or left foot pedal.
- Aluminum frame; the standard back folds down, and the footrests swing away and lift off.
- Rear wheels 12, 16, 20, 22 or 24 in with poly, pneumatic or airless tires; casters 4 to 8 in.
- Wheel locks push or pull; an attendant foot lock is optional on 12 or 16 in wheels.
- Transit is included on the Canadian base (ISO 7176-19 tested).
Who is it for, and who should choose something else?
- Adults up to 300 lbs (136 kg) who need tilt through the day.
- No power tilt and no heavy-duty version; for forward tilt or 400 lbs, see the Focus CR.
Will it fit?
- Seat 14 to 22 in (36 to 56 cm) wide and deep in 1 in steps; depth can change within the short, medium or long frame.
- Front seat height 14 to 20.5 in (36 to 52 cm), set by wheel and caster size.
- Backs: stroller 20 or 24 in; fixed 22 or 26; height adjustable 18-25 or 20-27; reclining 22 or 26.
- Transport weight 38 lbs (17.2 kg), 16 by 16 in with stroller posts and 6 in casters, without arms, footrests or rear wheels. Assembled 73 lbs (33 kg), heaviest part 55 lbs (25 kg).
- Measure hip width, hip to knee and knee to heel in shoes, or book a home assessment.
Using it day to day
- Tilt with the triggers or foot pedal; do not leave an occupied chair unlocked.
- In transit, face forward, remove trays and oxygen holders, and do not recline past 30 degrees.
- Transfer to a vehicle seat where possible.
What does it work with, and what are its limits?
- Tilt is 0 to 45 degrees back only; there is no forward tilt.
- The 300 lb (136 kg) limit includes the rider and carried items.
- Handrims fit 20 to 24 in wheels only; on 12 or 16 in wheels a companion pushes.
- Armrests, anti-tips and the cushion are separate.
- Warranty terms by part are in the Warranty tab.
Which version should I choose?
- Nine frame colours, gloss or matte, including Black, Ruby Red, Deep Sapphire Blue, Tactical Green and Platinum.
- Built to the order form; timing is confirmed with you.
How does it compare?
- The Focus CR tilts from -5 to 50 degrees and takes 400 lbs.
- The Quickie SR45 tilts 45 degrees on a steel frame and takes 265 lbs.
Frequently asked questions
Can the seat depth change later?
Yes, but only within the short, medium or long frame you ordered.
What resting tilt should be set?
Ki aims for about 20 degrees with the rider seated; the technician sets it with the centre of gravity.
How is the back angle set?
Tools set the standard back from -5 to 25 degrees in 5 degree steps, separately from tilt.
Funding
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Frame, hangers, tilt assembly and axles last the original buyer's life; other parts 1 year.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- 73 lbs (33 kg) assembled; heaviest part 55 lbs (25 kg)
- Transport weight
- 38 lbs (17.2 kg), 16" x 16" with stroller handle posts and 6" casters, without armrests, footrests or rear wheels
- Seat width
- 14" to 22" (36 to 56 cm) in 1" steps
- Seat depth
- 14" to 22" (36 to 56 cm) in 1" steps; can be changed later within the short, medium or long frame range
- Back height
- Stroller handle posts 20" or 24"; fixed posts 22" or 26"; height-adjustable posts 18"-25" or 20"-27"
- Back angle
- Set with tools from -5 to 25 degrees in 5 degree steps; gas-spring reclining back optional
- Armrests
- Optional height-adjustable T-arms (6.5"-10.5", 8.5"-13.5" or 11.5"-15"), desk or full length, or angle-adjustable flip-up arms
- Legrests
- Swing-away hangers at 60, 70, 80 or 90 degrees, footrest length in 0.5" steps; elevating or Pro elevating legrests optional
- Tilt range
- 0 to 45 degrees back, set by the caregiver with dual hand triggers or a right or left foot pedal
- Seat height
- 14" to 20.5" (36 to 52 cm) front seat to floor, set by rear wheel and caster size
- Rear wheel size
- 12", 16", 20", 22" or 24" mag; poly, low poly, pneumatic or airless-insert tires; fixed or quick-release axles
- Caster size
- 4", 5", 6", 7" or 8"; 1.25" or 1.5" soft roll, or 2" poly
- Overall width
- 29.25" (743 mm); varies with the frame width ordered
- Overall length
- 44.5" (1130 mm) with footrests
- Brakes
- Push-to-lock or pull-to-lock wheel locks; attendant foot lock optional with 12" or 16" rear wheels
- Folding
- Back folds down (not the reclining back); footrests swing away and lift off; quick-release rear wheels; frame does not fold
- Frame material
- Aluminum
- Available colours
- Gloss: Black, Ruby Red, Deep Sapphire Blue. Matte: Shadow Black, Iridescent Navy, Bright Red, Tactical Green, Dry Earth Tan, Platinum
- Warranty
- Frame, hangers, tilt assembly with bearings and quick-release axles for the life of the original buyer; other Ki parts 1 year
- Product type
- Tilt-in-space manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Ki Mobility CR45 Tilt Wheelchair brochure
- User Manual Ki Mobility CR45 user instruction manual and warranty (English and Spanish, 2025)
- User Manual Ki Mobility CR45 manuel d'instructions et garantie (français, 2024)
- User Manual Ki Mobility CR45 technical manual (2024)
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the CR45 tilt wheelchair against defects in materials and workmanship, in North America. Ki Mobility repairs or replaces covered parts at its discretion; claims go through an authorized supplier.
- Frame, hangers, tilt assembly with bearings and quick-release axles: life of the original purchaser.
- All other Ki Mobility-made parts: 1 year from the first consumer purchase.
- Labour to repair or install parts is paid by the owner.
- Not covered: upholstery, tires, tubes, armrests, armrest pads and push-handle grips, and damage from neglect, misuse, improper installation or repair, or exceeding the weight limit.
- Void if the serial number tag is removed or altered.
