Description

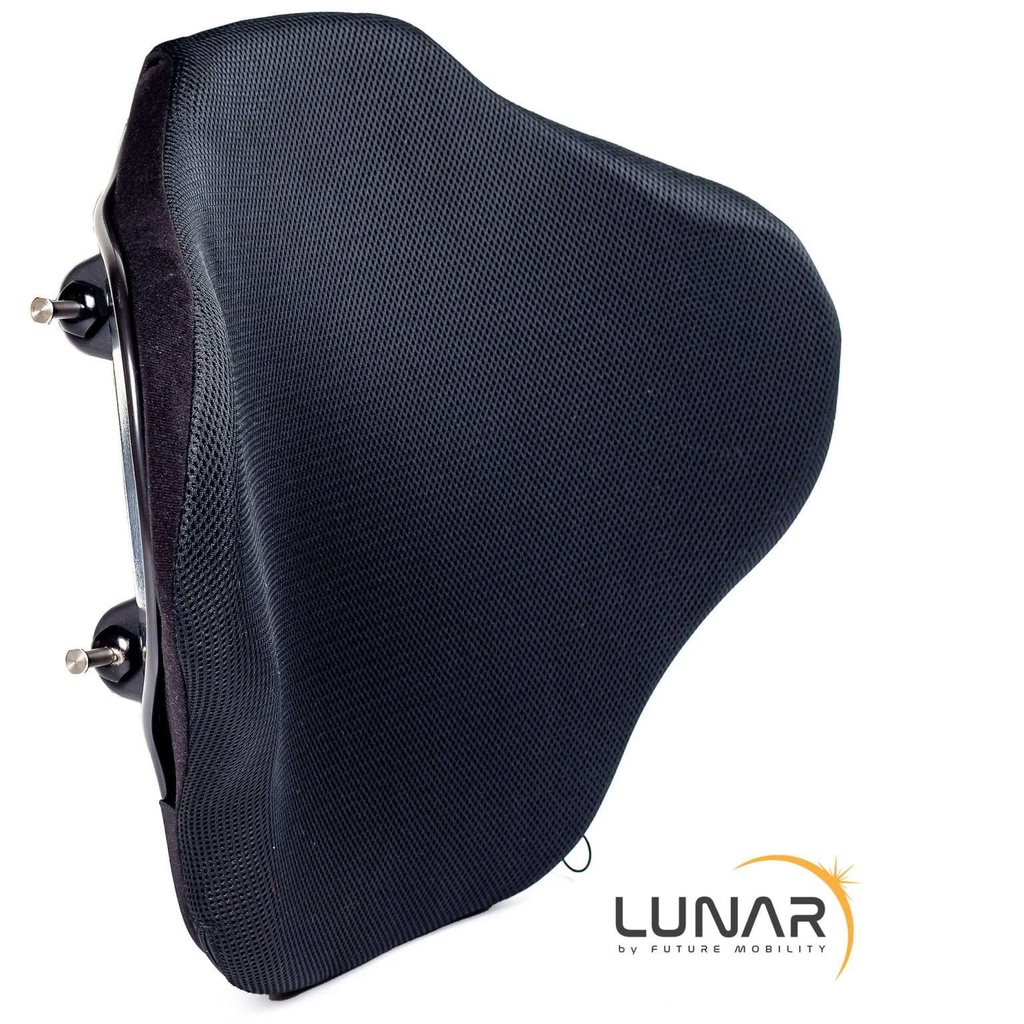

Future Mobility Healthcare of Mississauga builds the Lunar Basic Back in three heights; this is the middle one, 14 to 20 in wide and 14 to 18 in high.
What does it do and how does it work?

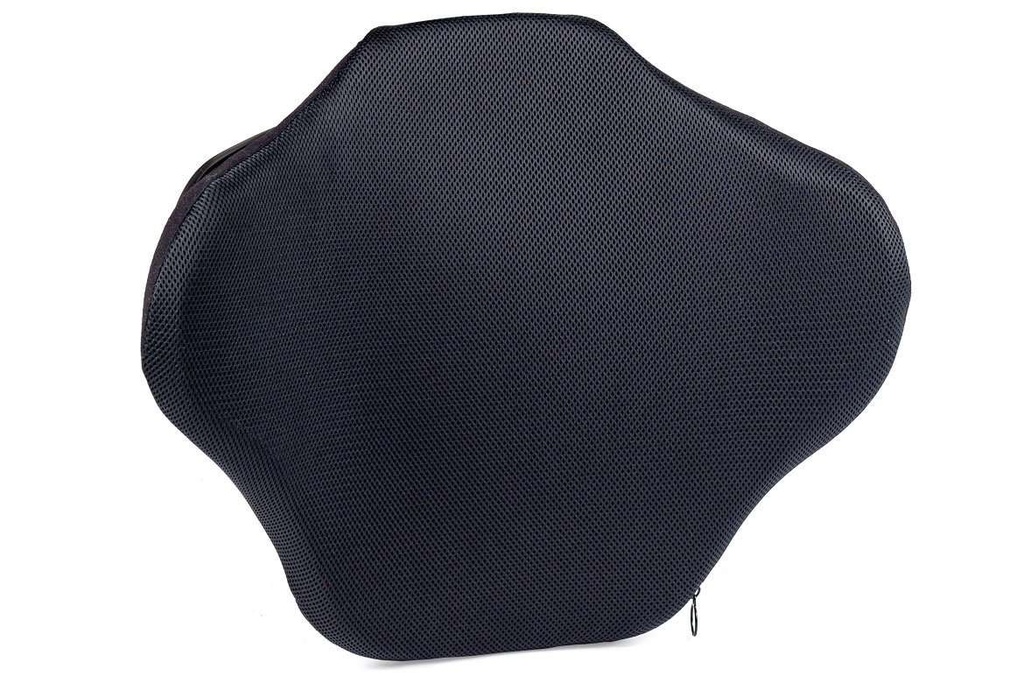

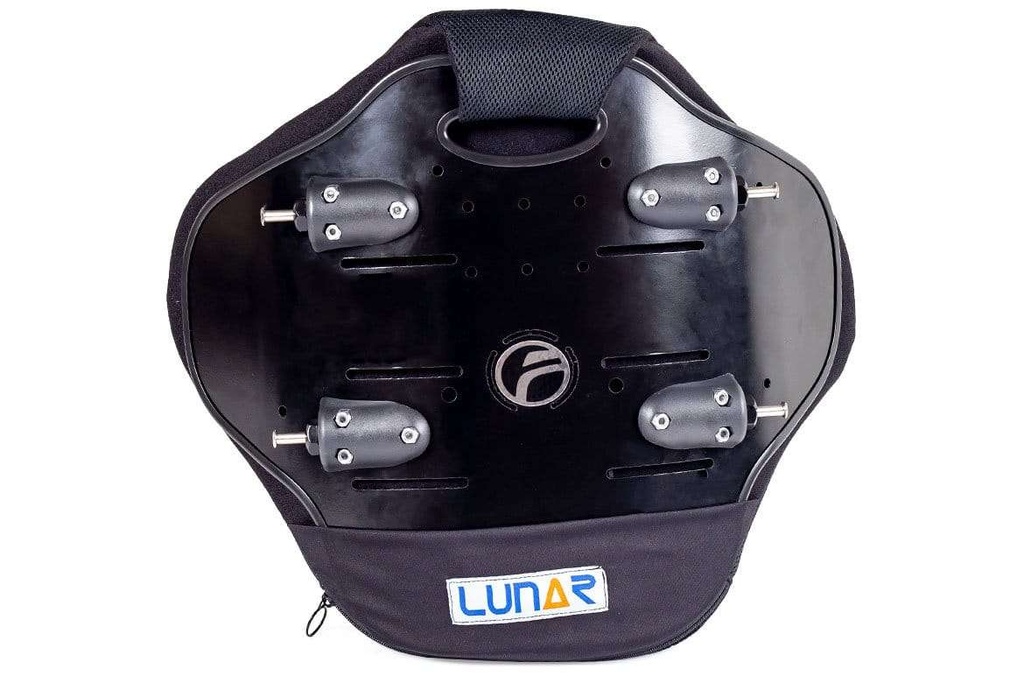

- Shell and foam: a lightweight aluminium shell with replaceable foam and a removable cover; the shell can be used as shown or upside down.
- Lateral style: the no lateral shell is 2.64 in (67 mm) deep at the side; the ultra lateral reaches 6.34 in (161 mm).

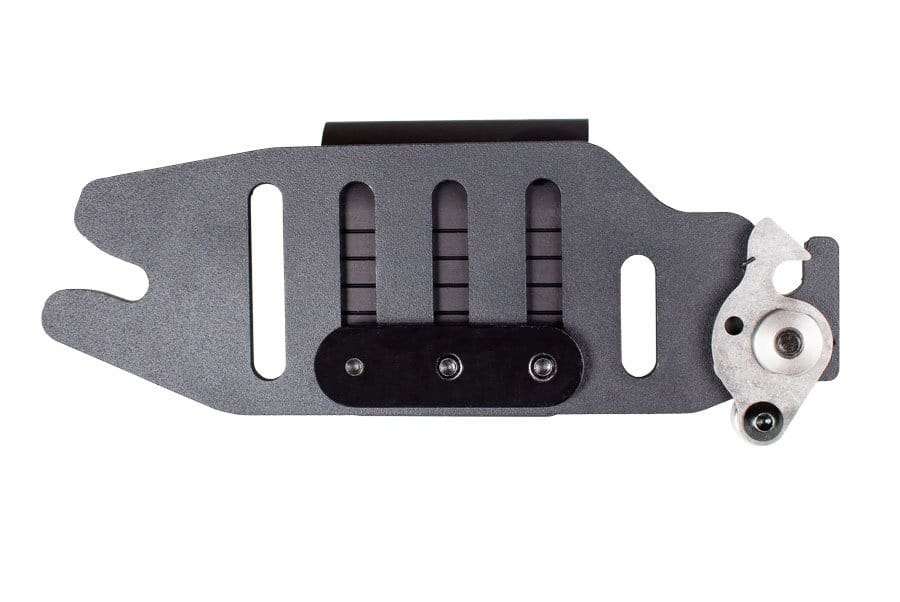

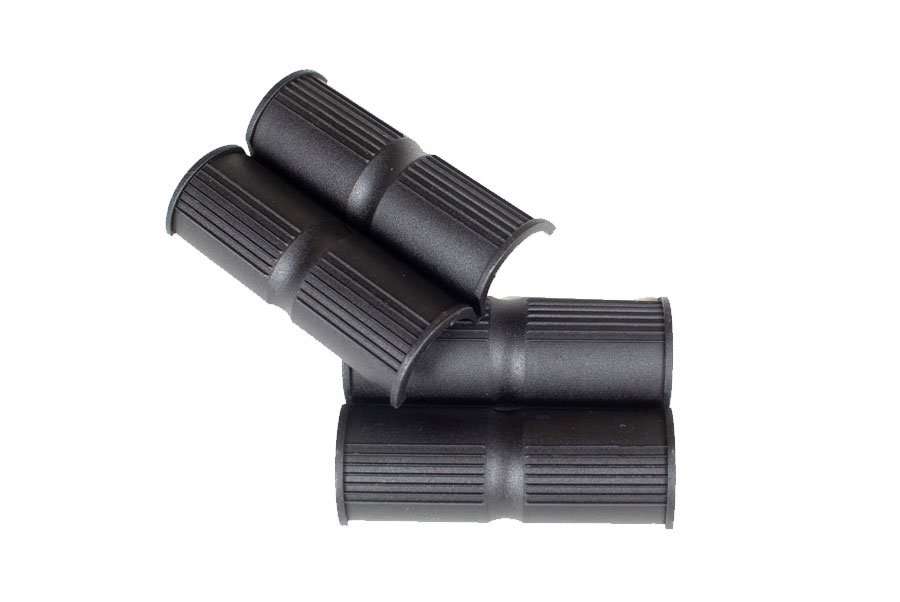

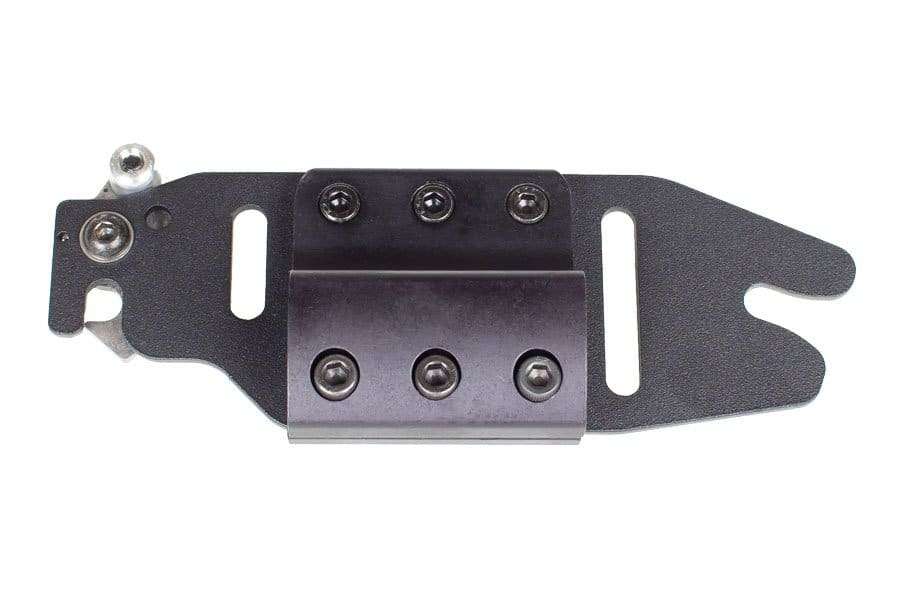

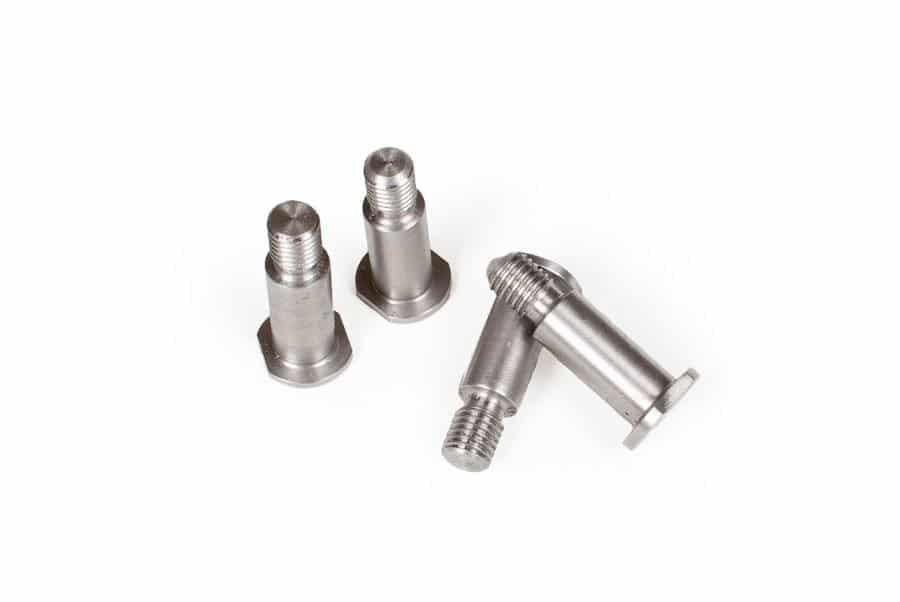

- Mounting: a cane clamp grips each back post, a plate bolts to it, and pins on the shell drop into the plates and catch on the lower latches.
- Hardware: quick release; height sets with an Allen key, and depth and angle adjust for the person.
Who is it for, and who should choose something else?
- It suits a rider who needs lateral trunk support and complex positioning at mid height.
- Choose the Lunar HD for a heavier user, or the Lunar Slim for a lighter, shallower shell.
- Low Support is 10 to 12 in; Full Support is 20 to 24 in, and the low back takes no headrest.
- An occupational therapist or physiotherapist sets the back up in a seating assessment.
Will it fit?
- Sizes: 12 pairings, 14, 16, 18 or 20 in wide by 14, 16 or 18 in high; 16 to 20 in wide are stock, 14 in wide is built to order.
- Part numbers: MBS plus the lateral style (NL, BL or UL) plus width and height, for example MBSUL1818.
- Chair width: the pins take up to 2 in (51 mm) of difference between back and frame; extension pins suit a wider chair.
- Back posts: the maker lists 3/4, 7/8 and 1 in tubing; if your posts are 3/4 in, we confirm the clamp before ordering.
Using it day to day
- Removal: press the lower latch levers and lift the back off the chair.
- Cover: a 4-Way Stretch cover or an Infection Control cover; spare covers are ordered by back size.
- Foam: the foam is replaceable, so a worn pad does not mean a new back.
- Colours: black, dark green, navy blue, royal blue or burgundy.
What does it work with, and what are its limits?
- Weight: 250 lbs (113 kg) for this back; the Lunar HD is the heavier-duty model.
- Headrest: the universal headrest mount fits the mid and full shells, not the low back.
- Warranty: 3 years on the back, 1 year on the hardware and 90 days on the cover.
- Returns: a custom or specially ordered back is not returnable.
How does it compare?
- The Lunar HD is the reinforced heavy-duty build.
- The Lunar Slim is the lighter model with a shallower shell.
Browse all wheelchair backrests.
Frequently asked questions
Which lateral style should I choose?
No lateral for a flat shell, basic for mild support, ultra for the deepest wrap at 6.34 in; the assessment decides.
Can a headrest go on the mid back?
Yes. The universal headrest mount fits the mid and full Lunar shells and is ruled out on the low shell.
Are the narrow 14 inch mid backs kept in stock?
No. The 16, 18 and 20 in wide mid backs are stocked; the 14 in column is built to order.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 250 lbs (113 kg)
- Product weight
- 5.9 lbs (2.7 kg), 18" x 18" basic back
- Sizes
- W x H in inches: 14x14, 14x16, 14x18, 16x14, 16x16, 16x18, 18x14, 18x16, 18x18, 20x14, 20x16, 20x18
- Construction
- Lightweight aluminum shell with replaceable foam; the shell can be used as shown or upside down for positioning
- Cover
- Outer cover included; choice of 4-Way Stretch outer cover or Infection Control cover in a moisture-resistant, breathable fabric
- Adjustments
- Height on the back posts with an Allen key; depth and angle of recline; set for the person
- Custom sizes
- Made to order (LUNARCUS) in a custom width and height, by quote
- Back width
- 14", 16", 18" or 20" (356 to 508 mm), mid back
- Back height
- 14", 16" or 18" (356 to 457 mm), mid back
- Contour depth
- 6.34" (161 mm) at the ultra lateral shell; 2.64" (67 mm) at the no lateral shell
- Lateral support
- No lateral, basic lateral or ultra lateral shell; removable lateral pads in 4 styles sold separately
- Mounting hardware
- Quick-release hardware with cane clamps and mounting plates; maker lists 3/4", 7/8" and 1" tubing
- Fits wheelchair widths
- Pins adjust out 1" each side, for up to 2" (51 mm) difference between back and chair; extension pins for 1" or 2" wider chairs sold separately
- Available colours
- Black, Dark Green, Navy Blue, Royal Blue, Burgundy
- Warranty
- 3 years limited on the back, 1 year on hardware, 90 days on the cover
- Product type
- Rigid wheelchair back, lightweight aluminum shell with replaceable foam
- Use category
- Positioning, with lateral trunk support
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Future Mobility Healthcare warrants the Lunar Basic back with a three year limited warranty on the back, one year on the hardware and 90 days on the cover.
- Back: 3 years limited.
- Hardware: 1 year.
- Cover: 90 days.
Compare similar products
Other models worth a look before you decide.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
