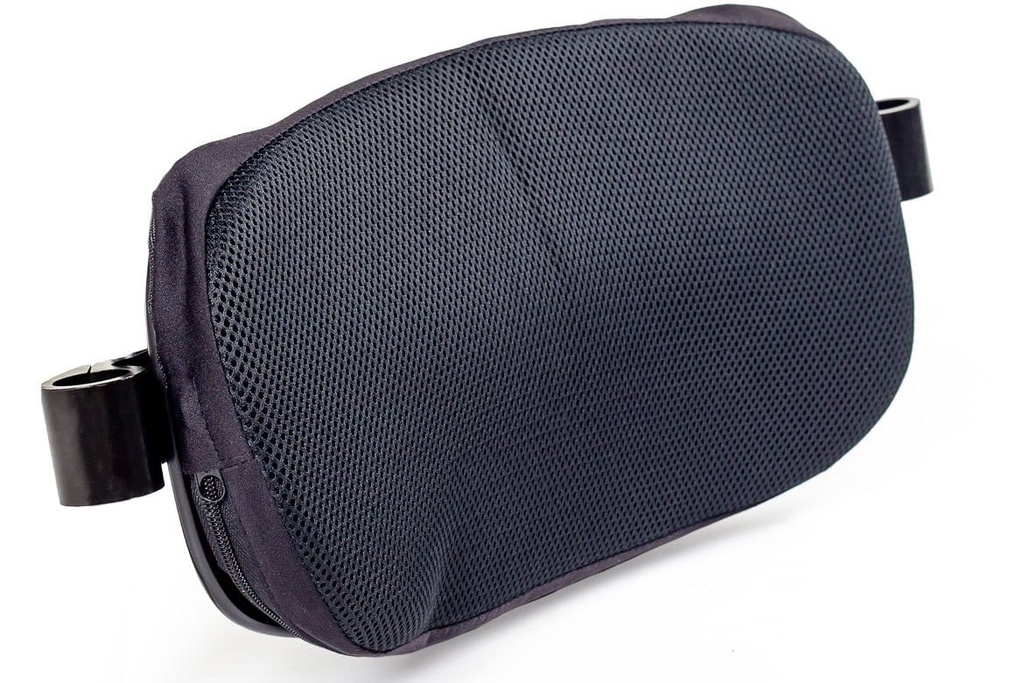

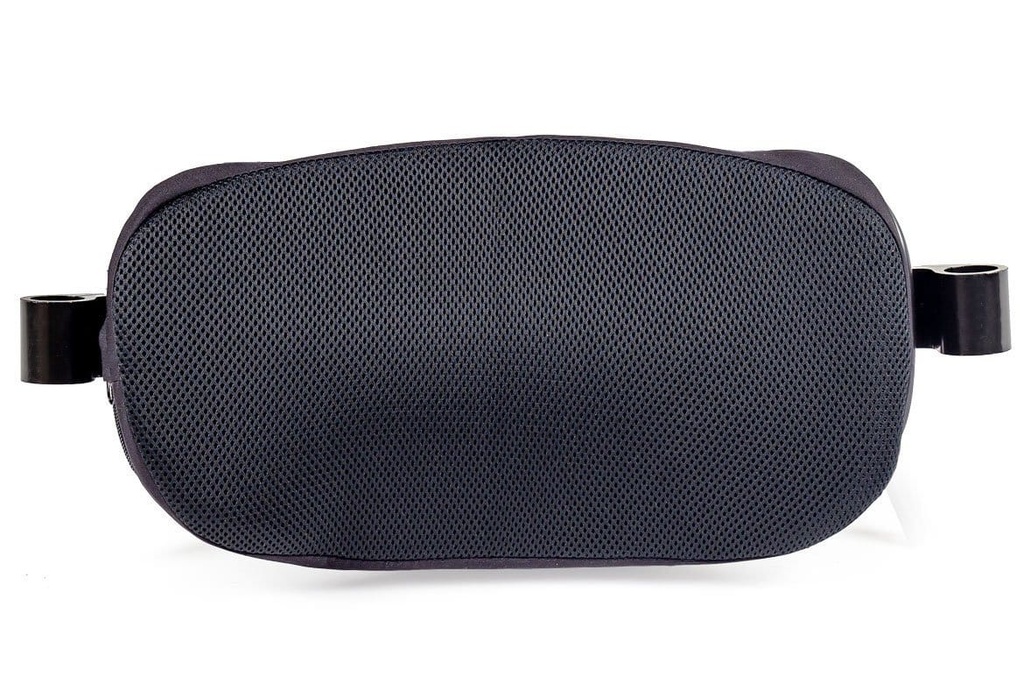

The Phantom Back is designed to target active wheelchair users, who require back support and need maximum freedom for upper body movement. It fits rigid wheelchair frames without push handles and replaces standard back support upholstery. It offers maximum seat-to-back infinite angle adjustment within the range, providing real individual fit. The well designed back support panel and cushion promote lateral and posterior postural support in pelvic region, needed for fatigue reduction, thus enhancing upper body function. The accessibility of hardware interface, the flexibility to adjust and it
FEATURES:
- Height Adjustments
Infinite adjustment along wheelchair posts. Hardware and slotted holes in the back panel provide 3” adjustment range increments of 1”, to overcome cross brace obstacle on the wheelchair posts. - Angle Adjustments
In relation to the wheelchair back support posts, the hardware accommodates up to 15 degrees anterior and up to 15 degrees of posterior infinite angle adjustment within this range - Wheelchair Posts Interface

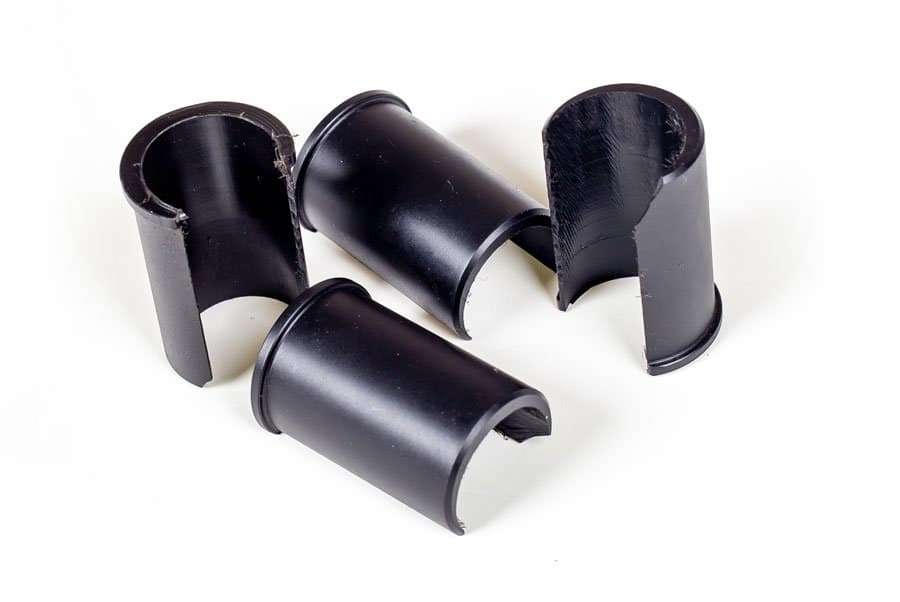

Standard clamp hardware will properly fit 1” tubing diameter. For wheelchairs with 7/8” or ¾” tubing diameter, insert spacers are included in the hardware. - Width Adjustments
Hardware allows width adjustment range of ¾”. For example 16” wide back would fit a wheelchair frame from 15-3/4” to 16-1/2”. - Seat Depth Adjustments
Optimal seat depth of 1-1/4” behind wheelchair posts available with standard posts Maximum seat depth is 2-1/2” behind the wheelchair posts, when anterior back angle is 15 degrees; minimum seat depth is 0” behind the wheelchair posts, when posterior angle is set to 15 degrees. For shorter seat depth than 0”, a custom spacer is available to set the seat depth up to 2”in front of wheelchair posts. - Space for Storage

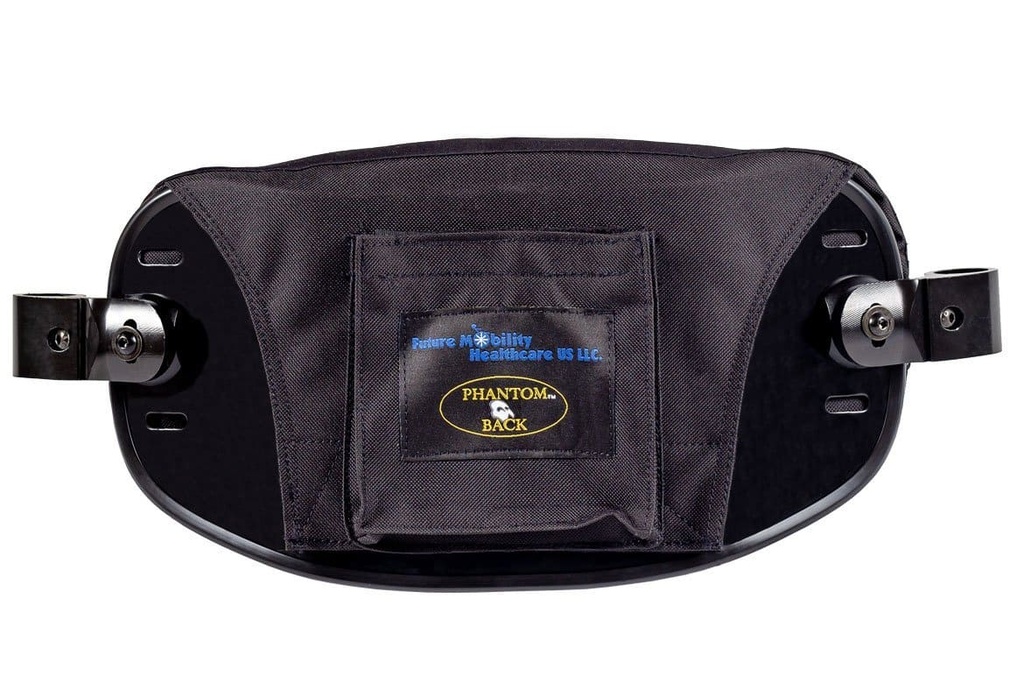

Pocket provided on back for storage of personal items
Weight Capacity | 250 lbs. |
Product Weight | 2.5 lbs. |
Width | 12″ – 18″ |
Back Height | 7″ |
