Description

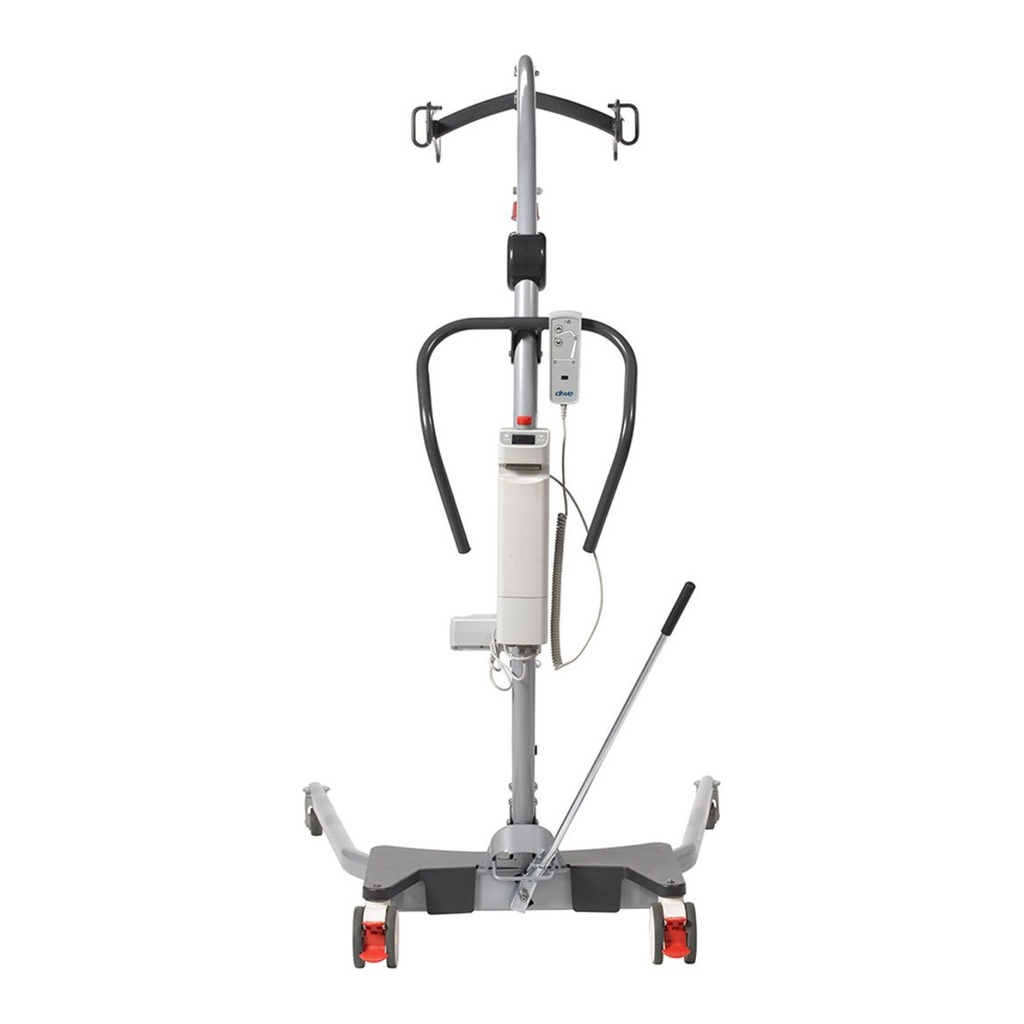

The Drive Gravis Patient Lift with Manual Base, model FLNP600, is Drive DeVilbiss Healthcare's 600 lb (272 kg) floor lift with legs that open and close by hand.
Who is this manual base patient lift for?

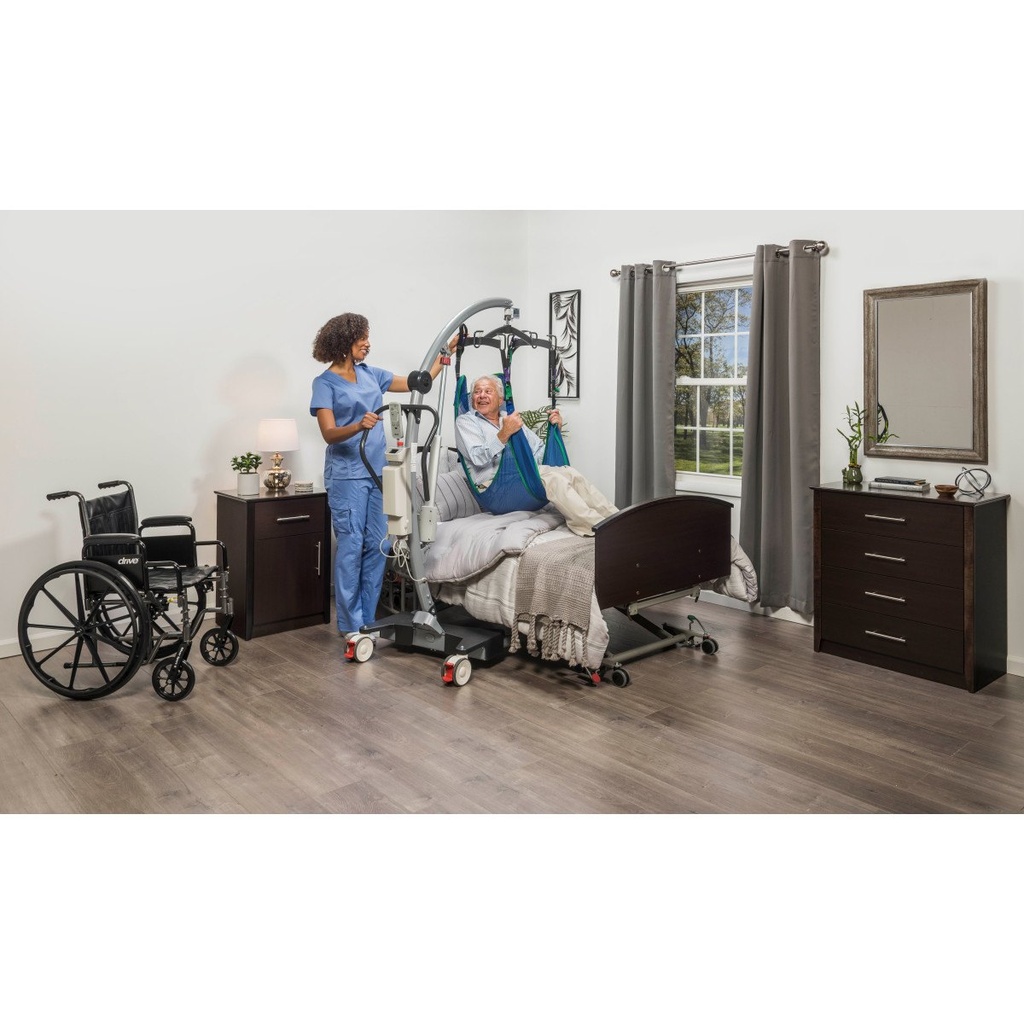

It suits one trained caregiver who moves a person between a bed, a chair, a wheelchair and the floor, in a home or a care room, over short distances.
Will the Gravis fit through your doorways and turn in your room?
- Measure the doorway and the turning space before you buy, because these are the two figures that decide whether a floor lift works in a home.

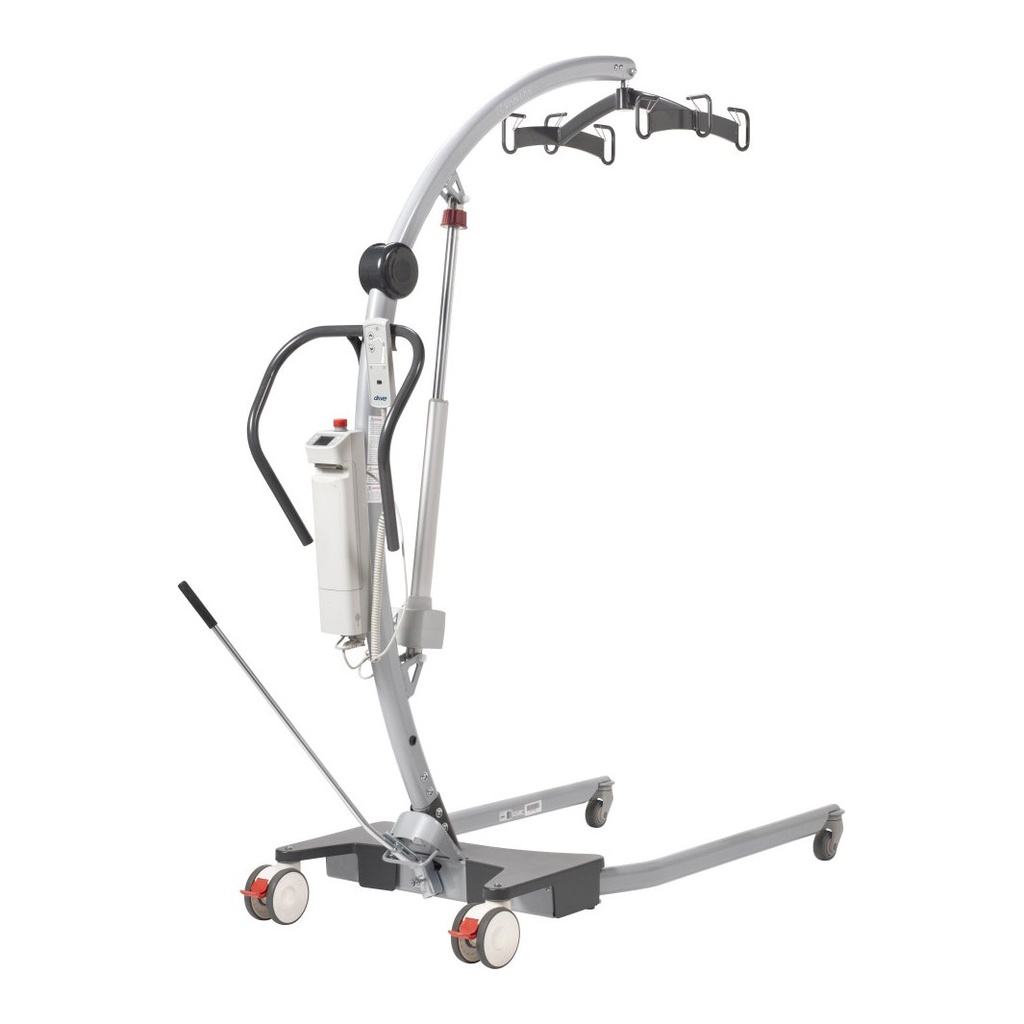

- With the legs closed the Gravis is 31.6 in (805 mm) wide outside, and with them open it is 45.8 in (1165 mm) wide, leaving a 40.3 in (1025 mm) gap between the legs when open, which is the space a wheelchair or an armchair sits inside.
- A free home assessment is the quickest way to check your own rooms.
Which slings fit the Gravis manual base lift?

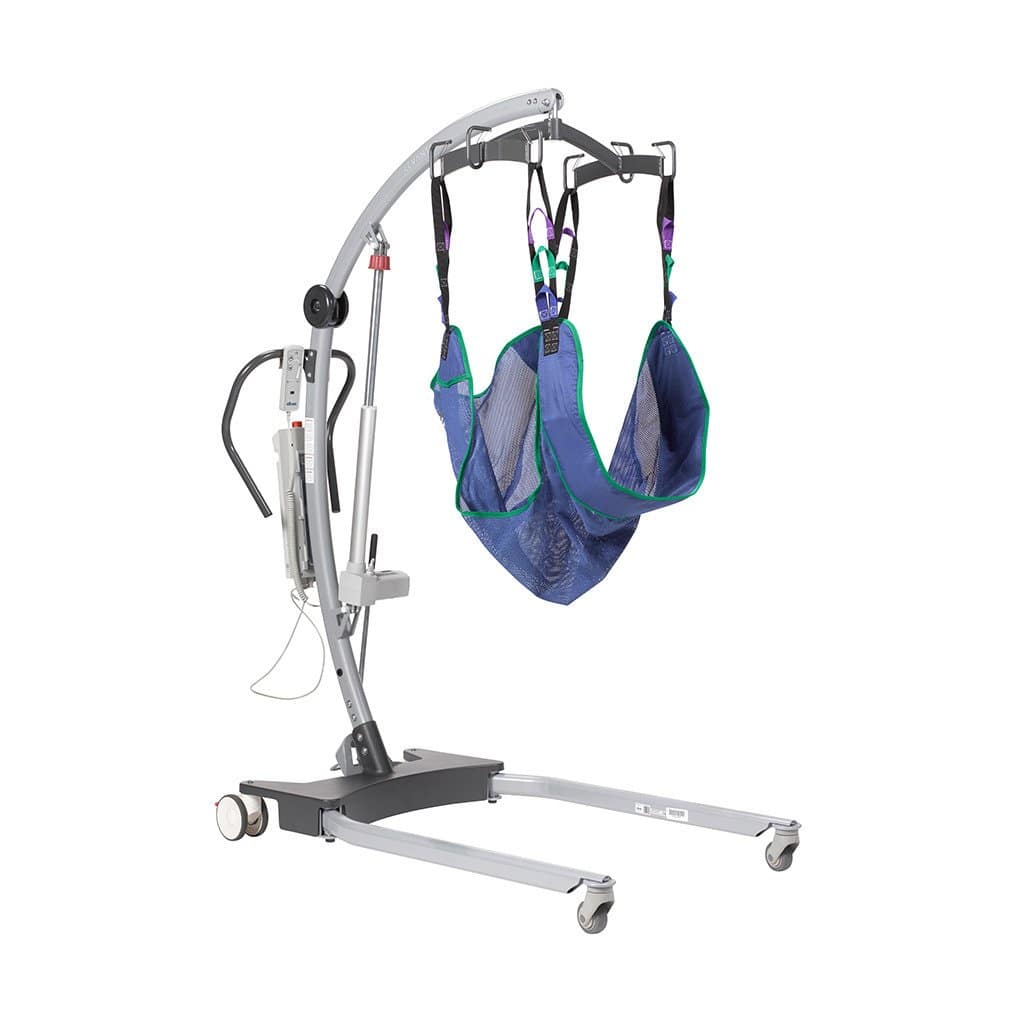

- Drive fits this lift with a six-point cradle and spring safety clips, and its manual says the lift is designed for a wide range of compatible slings: floor lift slings with loop style attachments.
- The sling and the lift ratings must match, so a sling rated below 600 lbs (272 kg) is the wrong sling for this lift even if its loops fit the clips.
What the Drive warranty covers
Drive DeVilbiss Healthcare warrants the Gravis frame for life, and defines lifetime as 15 years on this lift.
Frequently asked questions
How long does the battery take to charge, and can I charge it off the lift?
About 3 hours to a full charge, and you can charge it two ways: in place through the control box, or by lifting the pack off the lift and setting it on the supplied charging stand.
What happens if the power fails with someone in the sling?
Use the control-box buttons if the handset fails. For a total power failure, turn the actuator's mechanical lowering device by hand.
Can one person operate the Gravis manual base lift?
Drive says the lift may be safely operated by a single appropriately trained and experienced caregiver in line with ISO 10535:2006, and also notes that circumstances can require two people.
Funding
Funding may help. See our funding guide.
Related: patient lifts, Gravis power base.
Specifications
- Weight capacity
- 600 lbs (272 kg)
- Product weight
- 132.2 lbs (60 kg)
- Caster size
- 3 in (76 mm) front, 5 in (125 mm) locking rear
- Overall length
- 52 in (1320 mm)
- Sling attachment

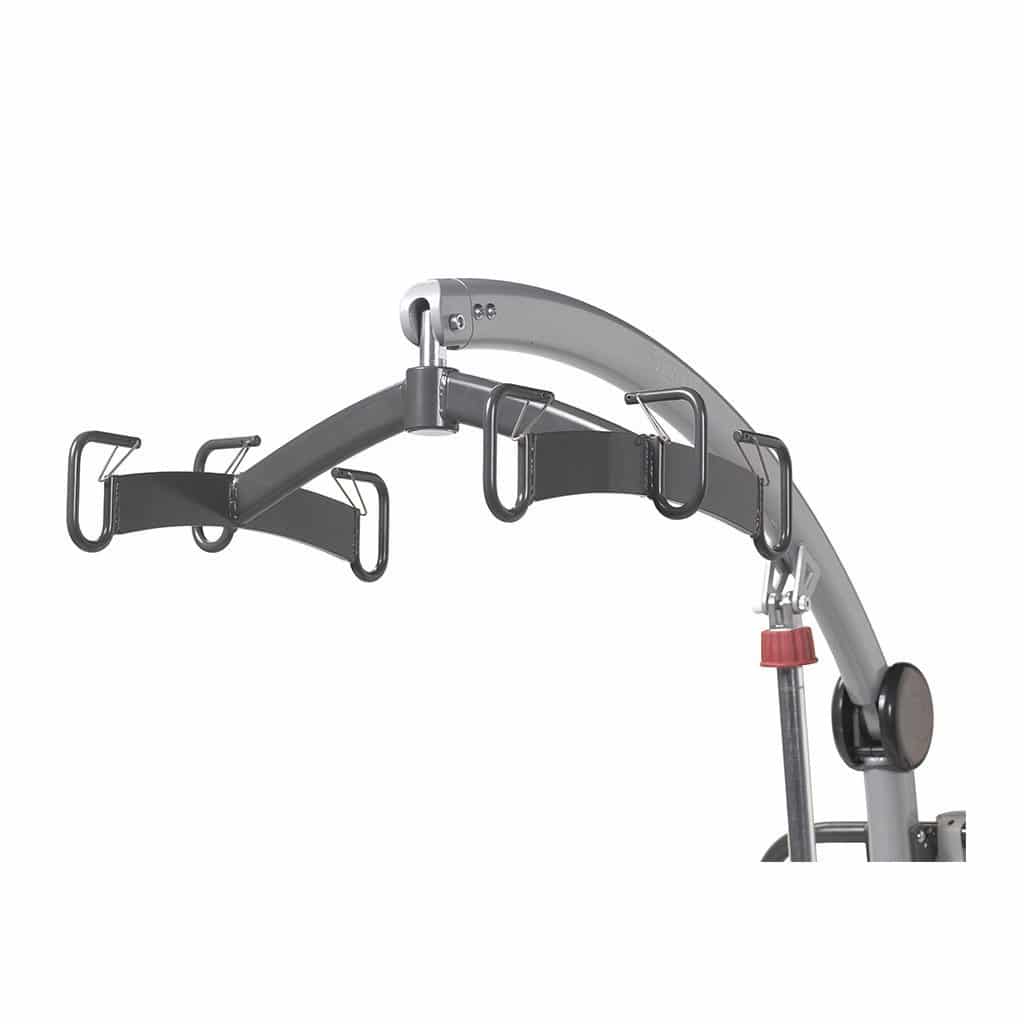

- Six-point cradle with spring safety clips
- Lifts from floor
- Yes, the hook drops to 2.1 in (55 mm) above the ground
- Controls
- Hand control raises and lowers the boom; the legs move by the handle on the base
- Emergency lowering

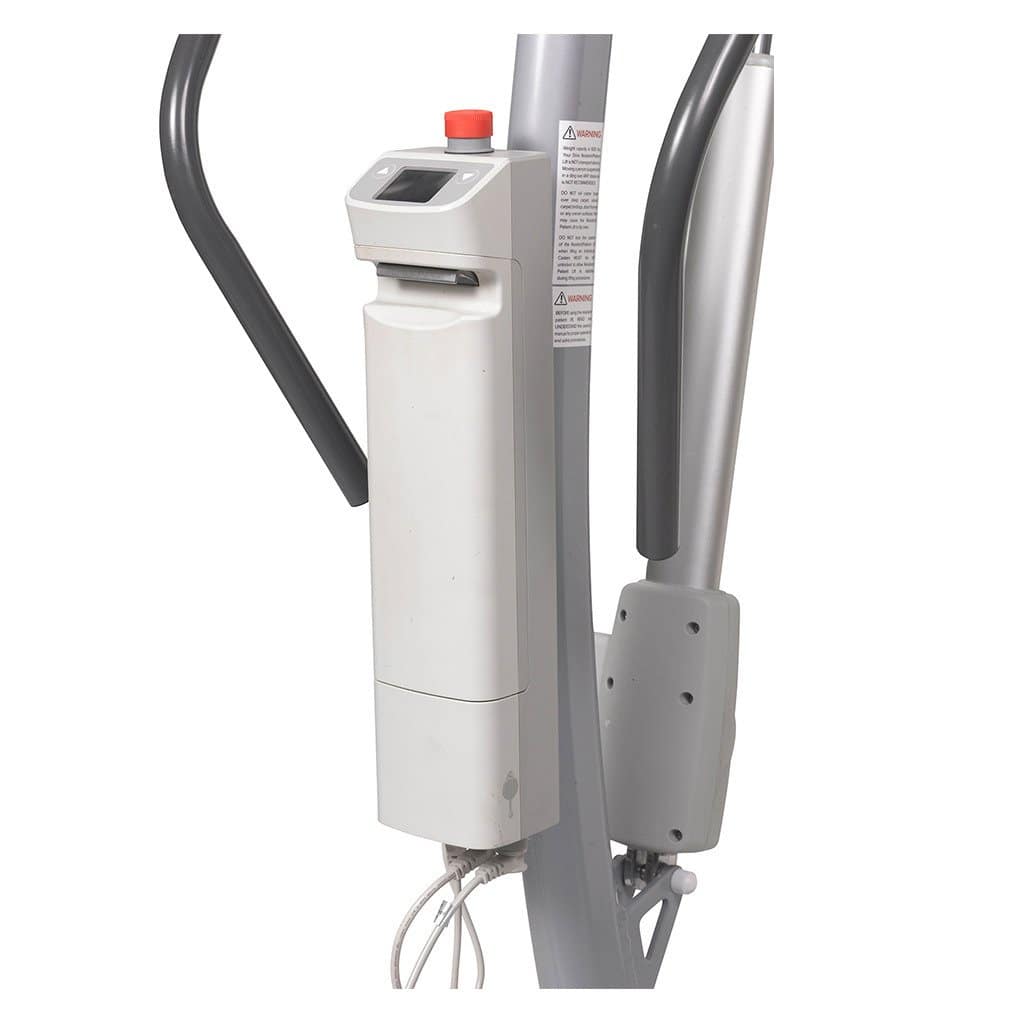

- Control box raise and lower buttons, an emergency stop button, and a hand twist release on the actuator
- Battery
- Removable battery pack, charged on the lift or off it on the charging stand
- Minimum lift height
- 26.75 in (680 mm) overall height at its lowest
- Maximum lift height
- 76.3 in (1940 mm) overall height at its highest
- Base width closed
- 31.6 in (805 mm) outside
- Base width open
- 45.8 in (1165 mm) outside
- Base height
- 5.3 in (135 mm), with 2.9 in (76 mm) ground clearance
- Base widening

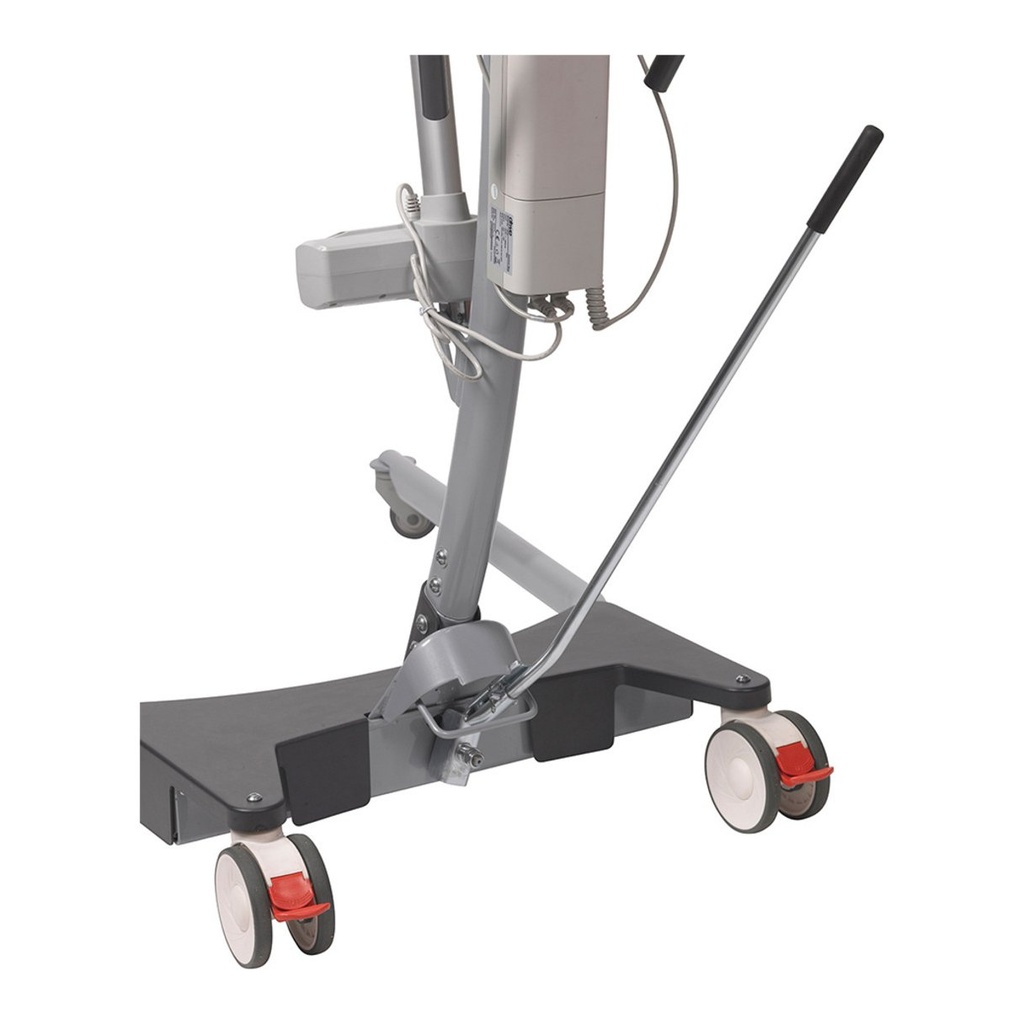

- Manual leg adjustment handle on the base, no leg motor
- Leg opening
- 40.3 in (1025 mm) between the legs when open
- Compatible with
- Loop style floor lift slings; Drive names its own sling and chain part numbers for this model
- Battery charger
- Charger built into the control box, plus a desktop charging stand
- Warranty
- Lifetime on the frame (15 years), 5 years on electronics, 1 year on the battery, 90 days on wearing parts
- Product type
- Electric floor patient lift with a manual base
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
