Description

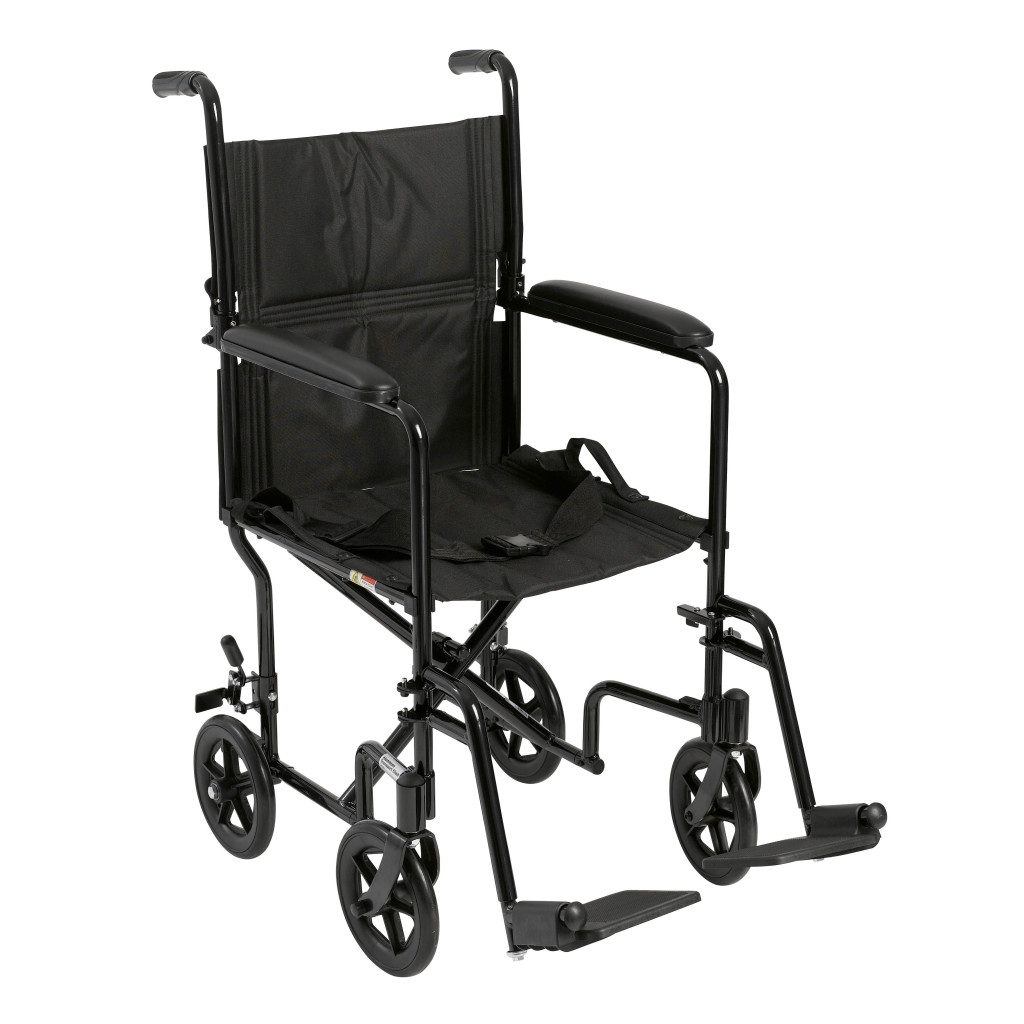

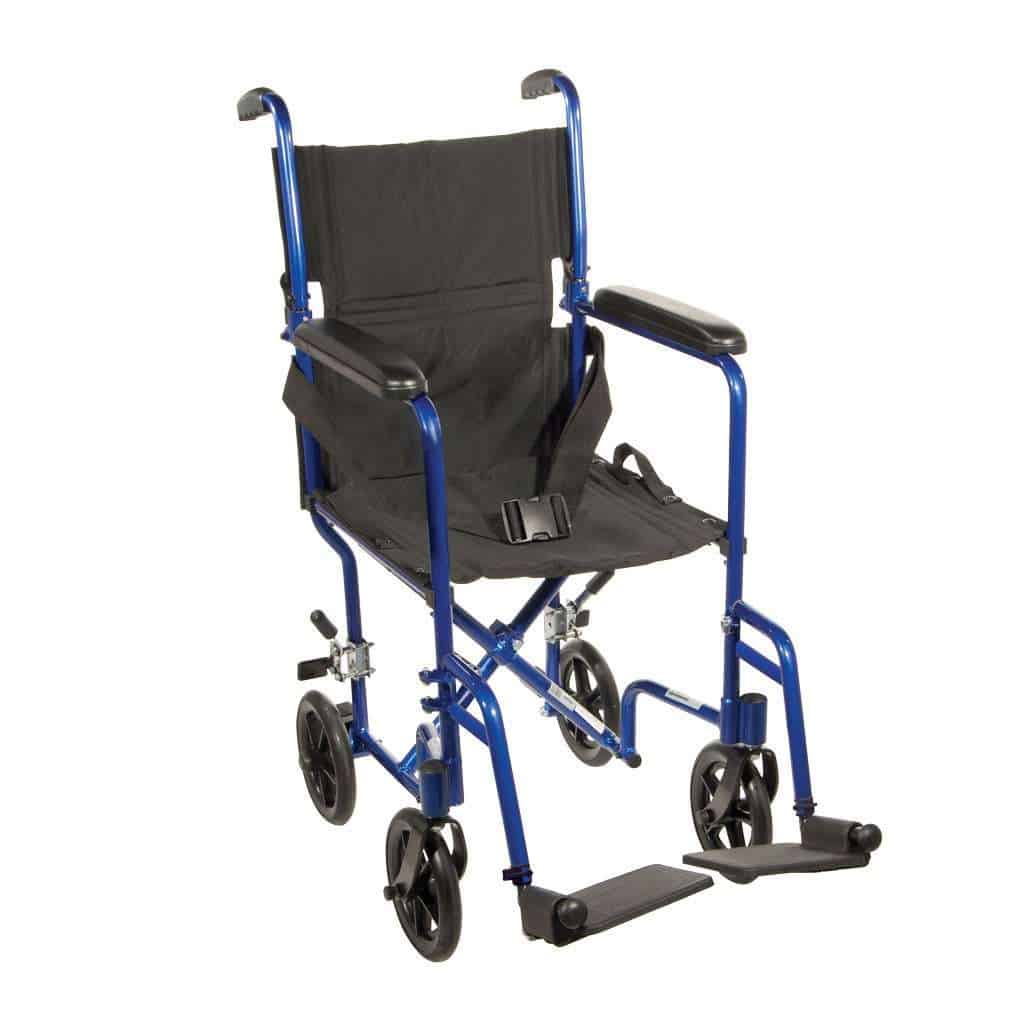

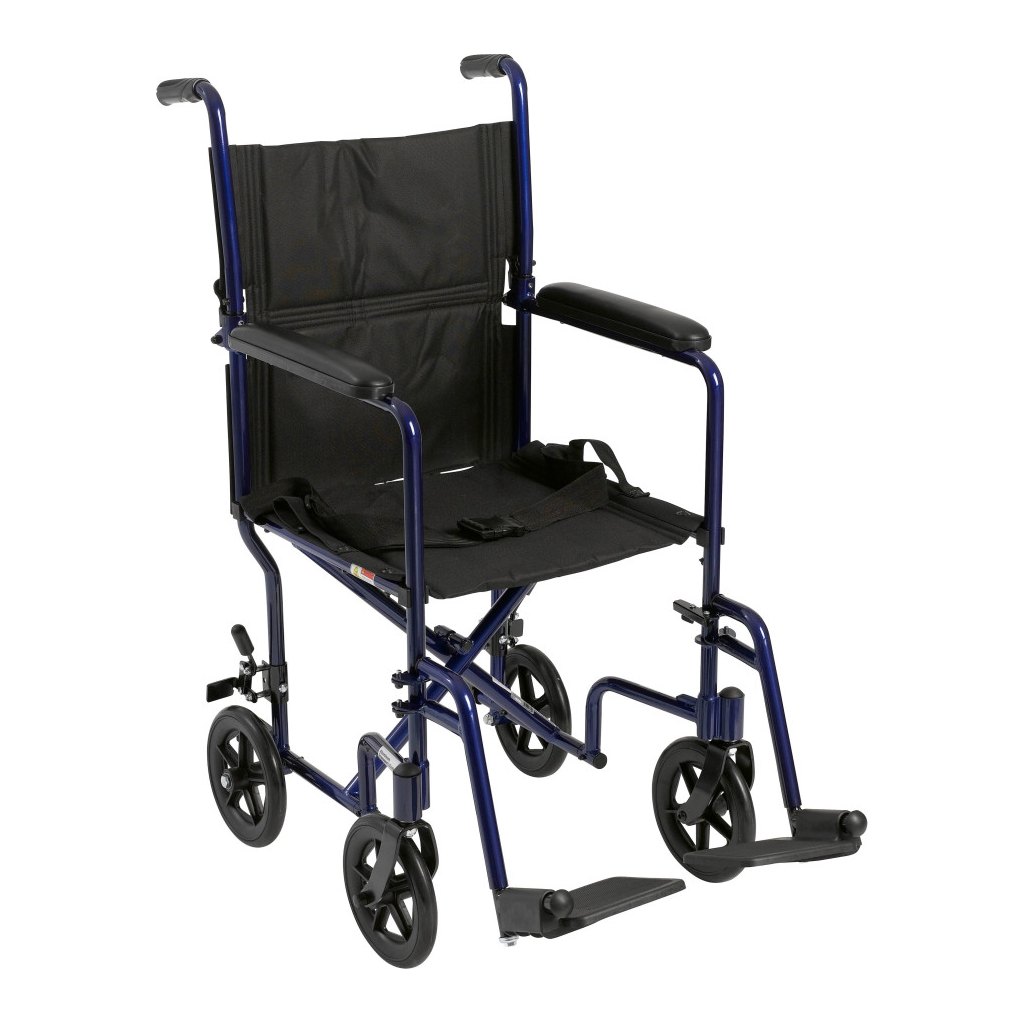

The Drive Medical ATC19 is an aluminum transport chair with a 19 inch seat (ATC19-BK, ATC19-BL, or ATC19-RD), for an adult up to 300 lb (136 kg) who sits while a companion pushes.
What does it do and how does it work?
- A companion pushes the chair. The rear wheels are 8 inch composite, so the rider does not self-propel.
- The aluminum frame folds, and the back folds down on an aluminum hinge.

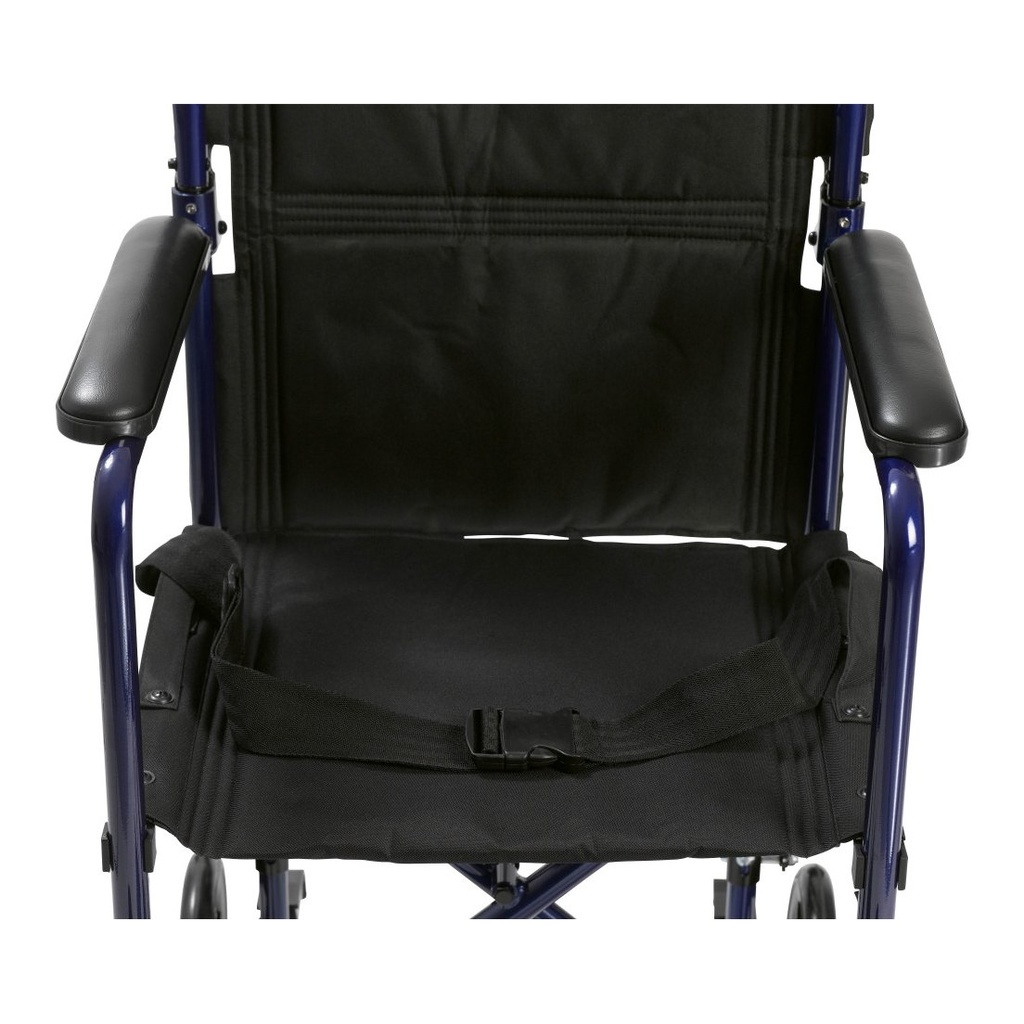

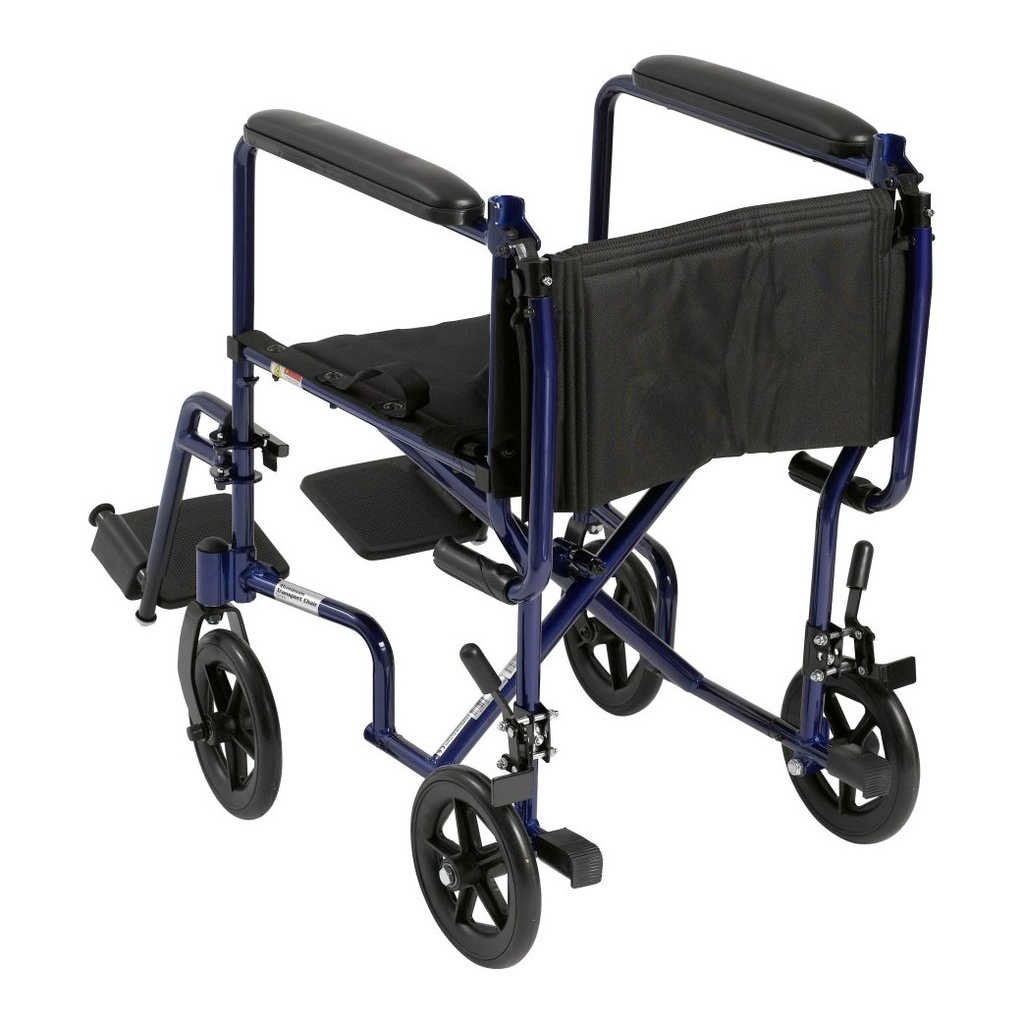

- Swing-away footrests, a seat belt, and padded armrests come with the chair.
- The seat and back are nylon. A separate cushion is not in the box.
- Colours are black, blue, or red.
Who is it for, and who should choose something else?
- An adult up to 300 lb (136 kg) who will be pushed.
- Someone who wheels their own chair needs a standard wheelchair.
- A 17 inch seat in this family is the 17 inch aluminum transport chair.
- Over 300 lb (136 kg), or a wider seat: bariatric wheelchairs.
Will it fit?
- Measure hip width, hip to the back of the knee, and knee to the heel with shoes on. Our free home assessment can check those measures.
- Seat 19 in (48 cm) wide and 16 in (41 cm) deep, 19 in (48 cm) from the floor. Width between the arms is 17 in (43 cm).
- Open width is 22 in (56 cm). Length is 33 in (84 cm) with the footrests. Overall height is 39.5 in (100 cm).
- Rear wheels and front casters are both 8 inch composite.
- Folded size is 33 x 9 x 28 in (84 x 23 x 71 cm), back down, footrests still on.
- The chair weighs 19 lb (8.6 kg). We confirm the seat width and the colour before you order.
Using it day to day
- Open the chair by tilting it and pushing the seat rails.
- Lift the back until both locks engage. Pull both locks to fold the back down.
- Lock both rear wheels before a transfer. Swing the footrests aside, and keep their lowest point at least 2.5 in (6.4 cm) off the ground.
What does it work with, and what are its limits?
- This is not a motor-vehicle seat. Transfer to a vehicle seat, and secure the empty chair.
- Elevating legrests are not offered. An optional cup holder is STDS1040S.
- The limited lifetime warranty covers the original buyer. Casters, grips, and rubber parts are excluded.
- A cushion is separate. A 19 by 16 in cushion from our wheelchair cushions matches the seat.
Which version should I choose?
Choose black, blue, or red. Silver is not a current chair colour. The 17 inch seat is a different chair.
How does it compare?
The 17 inch aluminum transport chair is the same family with a narrower seat. The Expedition is a different Drive aluminum transport, with its own frame. More companion-push frames are in transport chairs.
Frequently asked questions
How does the back fold?
Lift the back until both locks engage, and pull both locks to fold it. Open the chair by tilting it and pushing the seat rails.
Is a cushion included?
No. The seat is nylon. A separate cushion is not in the box.
Can I order a silver frame?
No. The chair colours are black, blue, and red. Silver is not a current chair colour.
Can the rider self-propel?
No. The rear wheels are 8 inch composite, so a companion pushes.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lb (136 kg)
- Product weight
- 19 lb (8.6 kg)
- Seat width
- 19" (48 cm)
- Seat depth
- 16" (41 cm)
- Armrests
- Padded
- Legrests
- Swing-away footrests, included. Not elevating
- Seat height
- 19" (48 cm) from the floor
- Width between arms
- 17" (43 cm)
- Rear wheel size
- 8" composite
- Caster size
- 8" composite
- Overall width
- 22" (56 cm) open, 19" seat
- Overall height
- 39.5" (100 cm)
- Overall length
- 33" (84 cm) with footrests
- Folded dimensions
- 33" x 9" x 28" (84 x 23 x 71 cm)
- Brakes
- Wheel lock on each rear wheel
- Folding
- Folds to 9" (23 cm) wide. Back folds down
- Frame material
- Aluminum
- Available colours
- Black, blue, or red (ATC19-BK, BL, RD)
- Warranty
- Limited lifetime for the original buyer; casters, grips, and rubber parts excluded
- Product type
- Aluminum transport chair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
