Barcode:
822383109619
Description

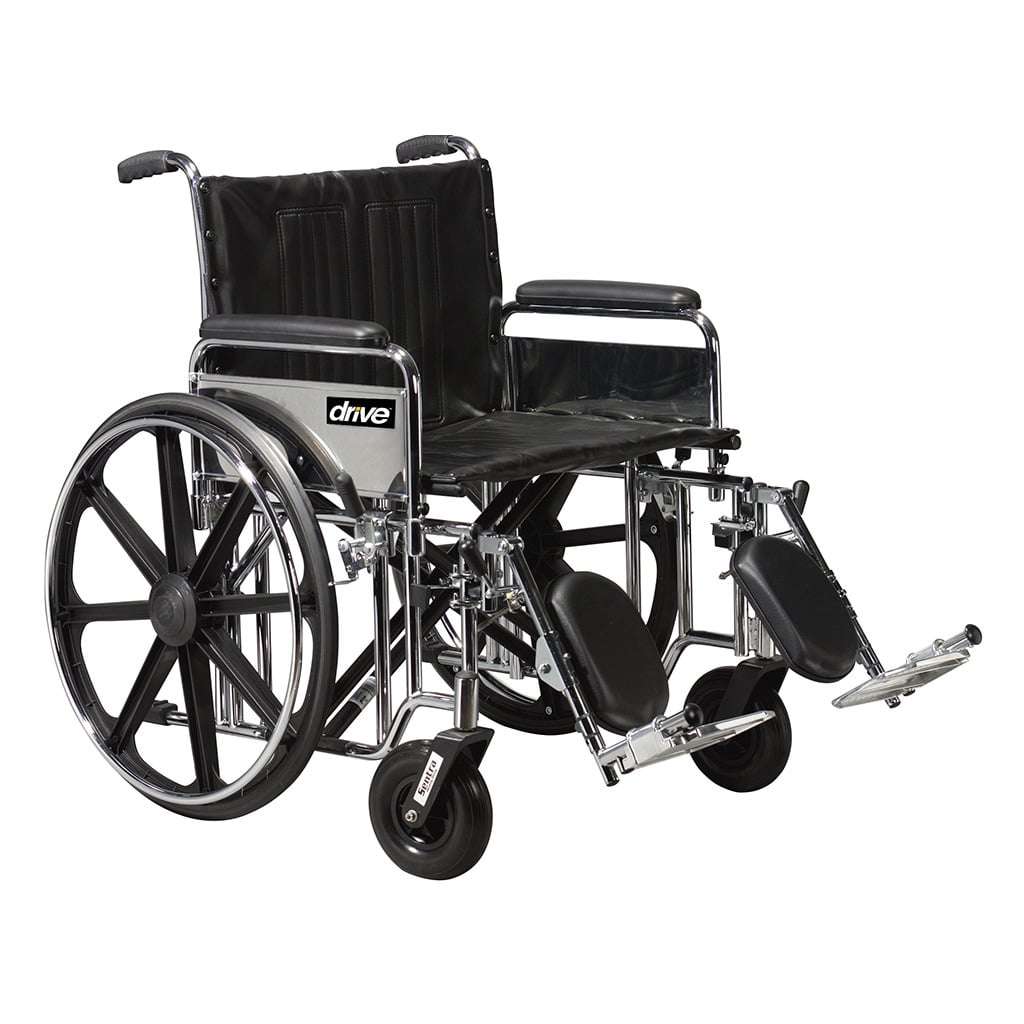

The Drive Sentra STD20DDA is a heavy-duty folding wheelchair with a 20 inch seat, rated for 500 lbs (227 kg), in 20, 22 and 24 inch widths with footrests or elevating legrests.
What does it do, and how does it work?
- Carbon steel frame in silver vein, with steel gussets at weight-bearing points and dual cross bars.
- 24 in (61 cm) composite mag wheels with sealed bearings; rear axles bolt on, not quick release.
- Heavy-gauge black naugahyde seat and back, with a carry pocket.
- Padded desk-length arms lift out on a spring button.
- Swing-away footrests with tool-free length adjustment, or elevating legrests.
- Push-to-lock wheel locks on both rear wheels; 8 in (20 cm) extensions optional.
Who is it for, and who should choose something else?
- An adult up to 500 lbs (227 kg) who wants a wider seat and can self-propel or be pushed.
- A lighter companion chair: the ATC22-R or the BTR22-R.
- Over 500 lbs or wider than 24 in: the 26 to 30 in Sentra EC in bariatric wheelchairs.
- For tilt, see tilt-in-space chairs; this one does not tilt.
Will it fit?
- Seat 20, 22 or 24 in (51, 56 or 61 cm) wide, 18 in (46 cm) deep; back 18 in; seat to floor 19 to 21 in (48 to 53 cm).
- Open 29, 31 or 32.5 in (74, 79 or 83 cm); 42 in (107 cm) long; folded 13 in (33 cm) wide.
- Chair weight 54, 56 or 66.25 lbs (24.5, 25.4 or 30.1 kg).
- Measure hip width, hip to knee and knee to heel in shoes, or book a free home assessment.
Using it day to day
- To fold, raise the footplates and lift the seat from the front and back.
- Lock both wheels before every transfer and turn the casters forward before reaching.
- Inspect the rear wheels monthly, tighten the axle bolt if loose, and lubricate the casters.
- On an incline, ask for help, keep the chair straight and do not use the locks to slow down.
What does it work with, and what are its limits?
- It is not a vehicle seat; transfer to a vehicle seat and keep it off roadways.
- Do not stand on the footrests or lean on the back.
- A cushion, seat belt and anti-tippers are not included.
- Cushions run 20, 22 or 24 in by 18 in deep.
Which version should I choose?
- The 22 and 24 in add 2 and 12.25 lbs (0.9 and 5.6 kg) to the 20 in chair.
- Swing-away footrests suit standing transfers; elevating legrests add a raised leg position.
How does it compare?
- The ATC22-R is a 33 lb (15 kg) aluminum companion chair.
- The BTR22-R is steel and narrower, at 26.5 in (67 cm) open.
- For a lower user weight, see standard wheelchairs.
Frequently asked questions
What cushion fits this chair?
One 20, 22 or 24 in wide by 18 in deep, matched to the seat.
Can the seat height be lowered?
At the front: Drive's 6 in hemi caster (STDS1074), chosen at order.
Does it arrive assembled?
We deliver and set it up across Toronto and the GTA and show you how it folds.
Funding
Funding may help: see who may help pay.
Drive's limited lifetime warranty covers the original buyer; casters, grips and rubber parts are excluded. See the Warranty tab.
Specifications
- Weight capacity
- 500 lbs (227 kg), all seat widths
- Product weight
- 54 lbs (24.5 kg) with a 20" seat; 56 lbs (25.4 kg) 22"; 66.25 lbs (30.1 kg) 24"
- Seat width
- 20" (51 cm); also made in 22" (56 cm) and 24" (61 cm)
- Seat depth
- 18" (46 cm)
- Back height
- 18" (46 cm)
- Armrests
- Padded desk-length arms, detachable (press the spring button and lift out)
- Legrests
- Swing-away removable footrests (SF models) or elevating legrests (ELR models), tool-free length adjustment
- Seat height
- 19" to 21" (48 to 53 cm) seat to floor; optional 6" hemi caster (STDS1074) for a lower front
- Rear wheel size
- 24" (61 cm) composite mag wheels with hand rims; bolted axles, not quick-release
- Overall width
- 29" (74 cm) open with a 20" seat; 31" (79 cm) 22"; 32.5" (83 cm) 24"
- Overall length
- 42" (107 cm) with front riggings
- Folded dimensions
- 13" (33 cm) wide x 42" (107 cm) long x 37" (94 cm) high, riggings on
- Brakes
- Push-to-lock wheel locks on both rear wheels; 8" extensions (STDS801) optional
- Folding
- Folds side to side on dual cross bars; footrests swing away and lift off; arms lift out
- Frame material
- Carbon steel, silver vein finish, steel gussets at weight-bearing points
- Available colours
- Silver vein frame, black naugahyde upholstery
- Warranty
- Limited lifetime for the original buyer; casters, grips and rubber parts excluded
- Product type
- Heavy-duty folding wheelchair (bariatric), self-propelled or pushed
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Sentra Heavy Duty Wheelchair (STD20DDA) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser. Drive will repair or replace a defective device at its option.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
