Description

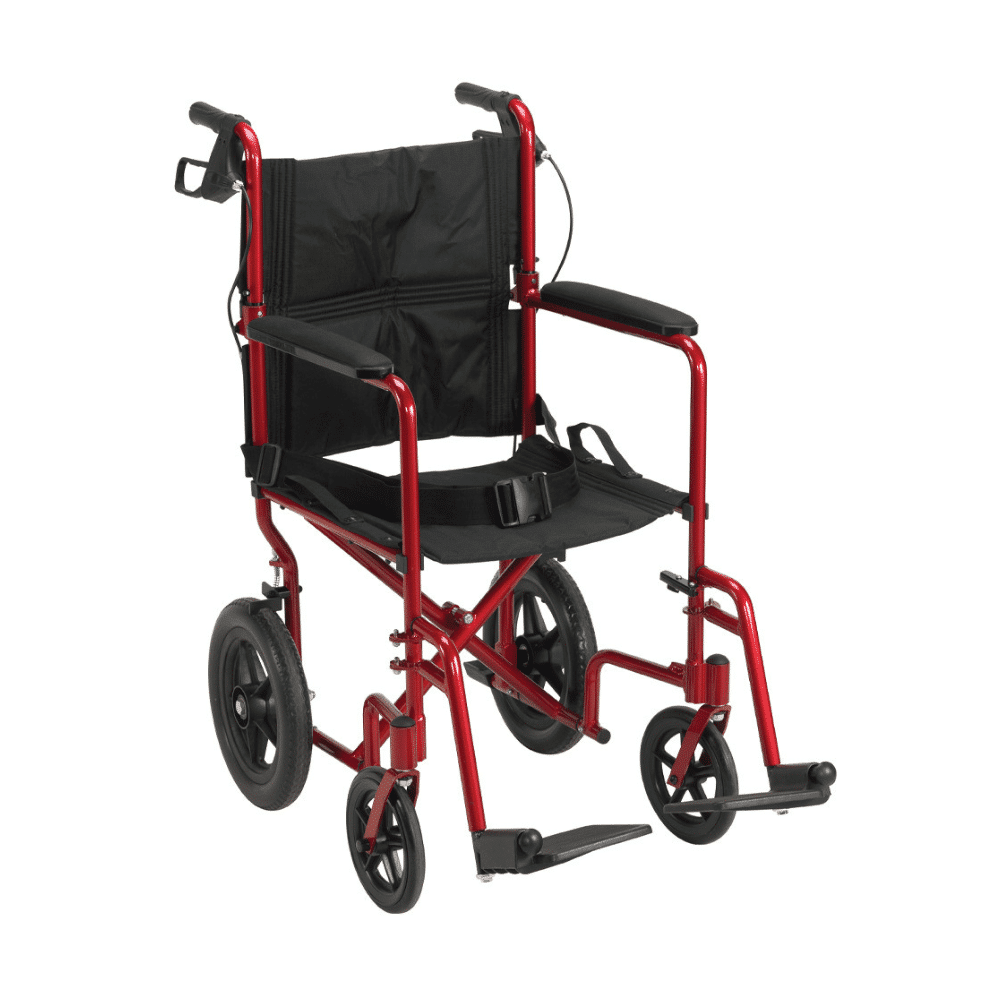

The Drive Lightweight Expedition (EXP19LT) is an aluminum transport chair with a 19 in seat, built for a companion to push.
What does it do and how does it work?
- Aluminum frame at 19 lb (8.6 kg); the back folds down on release levers and the frame folds flat.
- 12 in (30 cm) rear flat-free wheels with solid tires on bolted axles, larger than the 8 in wheels on Drive's basic transport chair.
- Loop-lock levers on both push handles, cabled to the rear wheel locks, so the companion does not bend down.
- Full-length padded armrests fixed to the frame; swing-away footrests lift off and adjust for length.
Who is it for, and who should choose something else?
- An adult up to 300 lb (136 kg) who is pushed on errands and car trips.
- Flip-back arms: the Airgo Comfort-Plus XC. Self-propelling: the Poly Fly TR18.
- A 17 in seat: the aluminum transport chair. Over 300 lb: the 22 inch bariatric aluminum transport chair.
Will it fit?
- Seat 19 in wide by 16 in deep (48 by 41 cm), 19 in (48 cm) from the floor; back 18 in (46 cm).
- Open 38 by 22 by 38 in (97 by 56 by 97 cm) with footrests; folded 38 by 10.75 by 29 in (97 by 27 by 74 cm).
- Measure hip width, hip to knee, and knee to heel in shoes.
Using it day to day
- To open, tilt the chair and push down on the seat rails; lift the back and its lock engages.

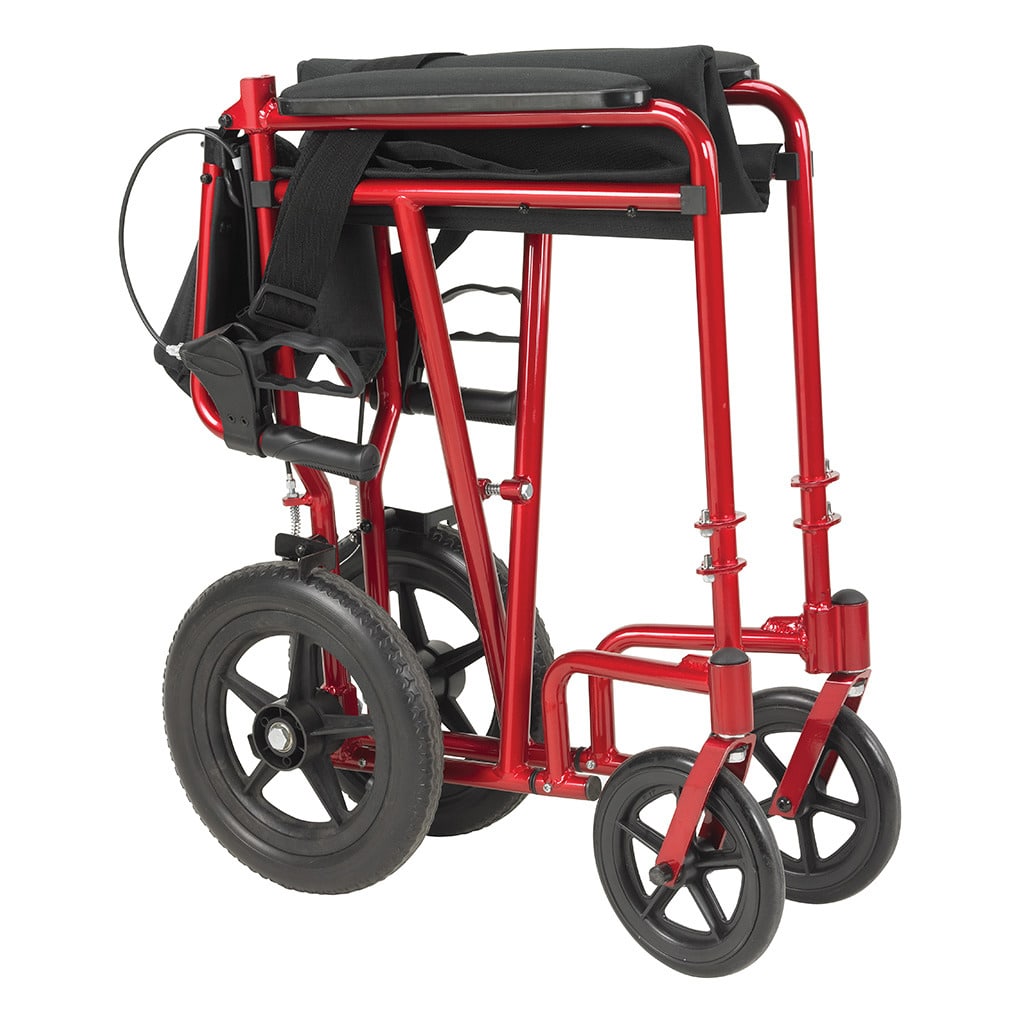

- To fold, pull up both back locks together; the footrests swing outward and lift off.
- Engage both wheel locks and turn the casters forward before a transfer; do not step on the footplates.
- Keep the footrests at least 2.5 in (6 cm) off the ground; wipe the frame weekly, dry it if wet and wax the metal monthly.
- Check the wheels monthly and remove side play at the axle lock nut.
What does it work with, and what are its limits?
- A companion must operate it. Never use it as a seat in a motor vehicle.
- The rider and anything carried must total no more than 300 lb (136 kg).
- No elevating legrests and no heel loops; the seat belt is fitted and should not be removed.
- Warranty: limited lifetime for the original buyer, excluding casters, grips and rubber parts; footrests 60 days. See the Warranty tab.
Which version should I choose?

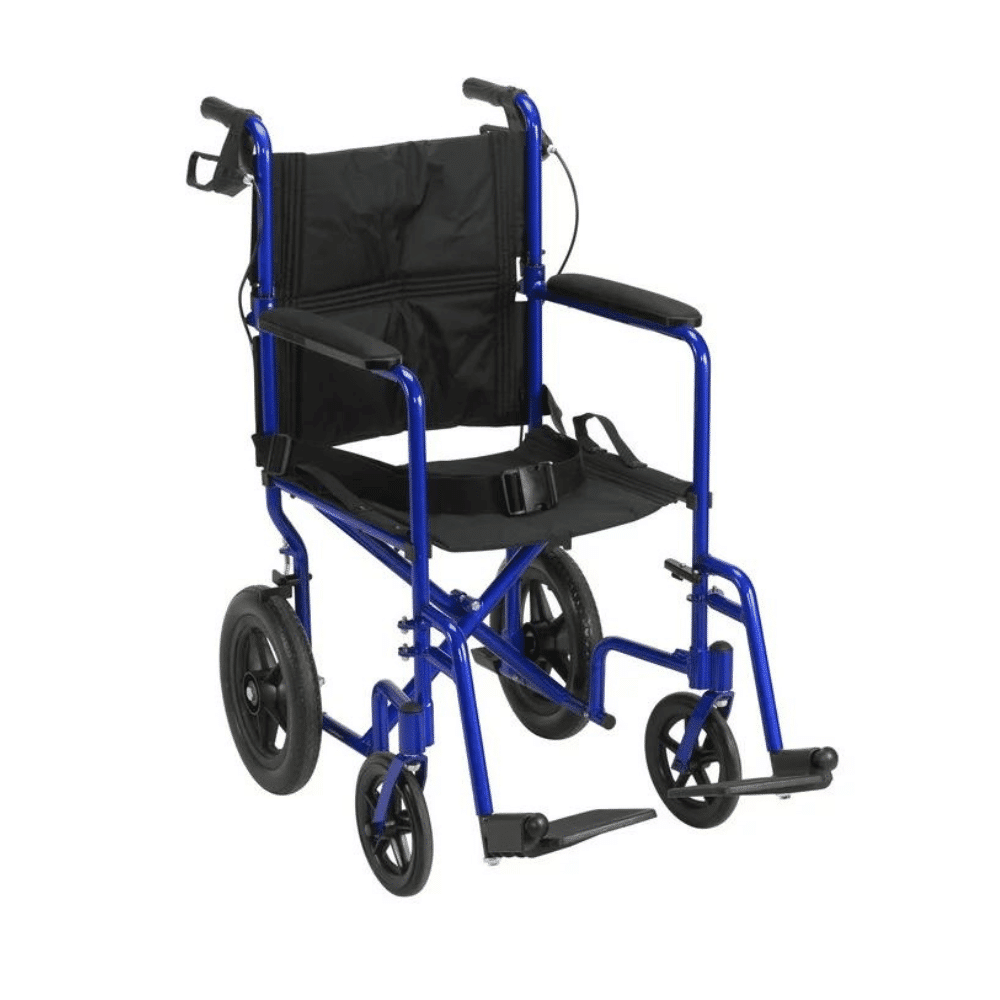

- Frame colour: blue or red, each with black upholstery.
- One seat size only: 19 in.
How does it compare?
- ATC17: 8 in wheels and a 17 in seat.
- Airgo Comfort-Plus XC: flip-back arms and hand brakes.
- Transport wheelchairs: the full range.
Frequently asked questions
Will the folded chair fit in a car boot?
Folded, it is 38 by 10.75 by 29 in (97 by 27 by 74 cm) with the back down.
Does the back recline?
No. It stays upright in use and folds down for storage.
Can the seat belt be taken off?
No. It is fitted at the factory and should stay on the chair.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- 19 lbs (8.6 kg)
- Seat width
- 19" (48 cm)
- Seat depth
- 16" (41 cm)
- Back height
- 18" (46 cm), fixed height
- Back angle
- Fixed upright; folds down for transport
- Armrests
- Full-length padded armrests, fixed to the frame
- Legrests
- Swing-away, removable footrests with telescoping length adjustment
- Seat height
- 19" (48 cm) seat to floor
- Rear wheel size
- 12" (30 cm) flat-free wheels, solid tires
- Overall width
- 22" (56 cm) open
- Overall length
- 38" (97 cm) with footrests
- Folded dimensions
- 38" L x 10.75" W x 29" H (97 x 27 x 74 cm)
- Brakes
- Loop-lock levers on both push handles, cable-linked to locks on the rear wheels, for the companion
- Folding

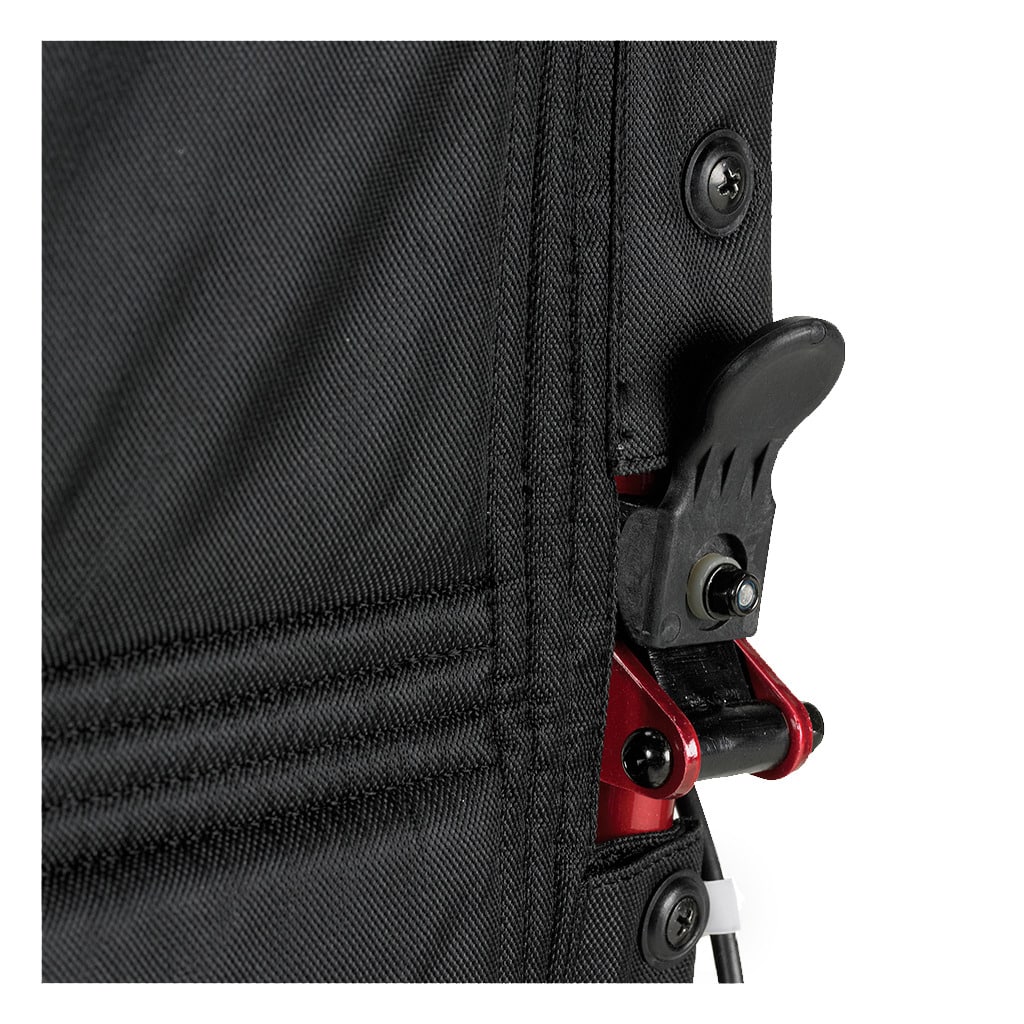

- Frame folds flat side to side; back folds down with release levers on the back posts
- Frame material
- Aluminum
- Available colours
- Blue frame or red frame, both with black upholstery
- Warranty
- Limited lifetime for the original buyer; footrests 60 days; casters, grips and rubber parts excluded
- Product type
- Transport chair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Lightweight Expedition Aluminum Transport Chair to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
