Description

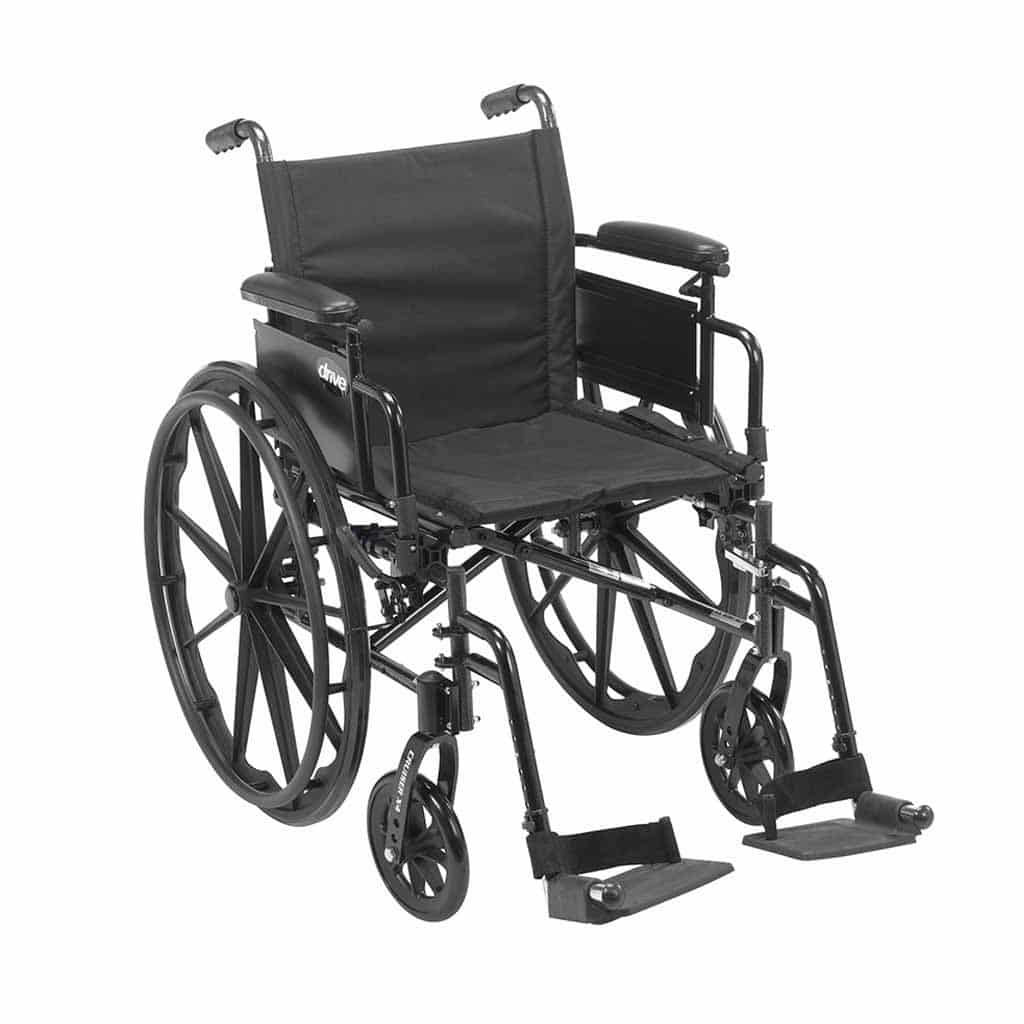

The Drive Cruiser X4 is a folding wheelchair with hand rims, so the rider or companion can push it.
Who is it for, and who should choose another chair?
- An adult up to 300 lbs (136 kg) who self-propels, foot-propels, or is pushed. It is not a transport chair.
- Wants one steel size and a fold-down back: the Drive Rebel.
- Wants anti-tippers included, or a 22" seat: the Drive Viper Plus GT. Over 300 lbs: bariatric wheelchairs.
Check the fit
- Drive measures seat width end to end across the upholstery. Also measure hip to knee and knee to heel, or book a free home assessment.
- The Super Hemi Kit lowers seat height 2" (5 cm). A 6" hemi caster is optional.
- The 2026 catalogue says 34 lbs (15.4 kg) or less without footrests or legrests. Item pages say 33.5 lbs or less, so we confirm before you order.
- Rear wheel size is not published, so we confirm before you order. The wheels are quick-release, with hand rims.
Safe use
- Set both push-to-lock wheel locks before a transfer, a forward lean, or an elevator or lift. Do not stand on the footrests or the chair, and do not use the locks to slow down.
- Not approved as a seat in any vehicle, and not for roadways. Get help on inclines of 10 degrees or more.
- Anti-tippers are not included, though Drive sells them for this frame. Footrests stay at least 2.5" (6.4 cm) off the floor, and Drive's IV pole sleeve does not fit.

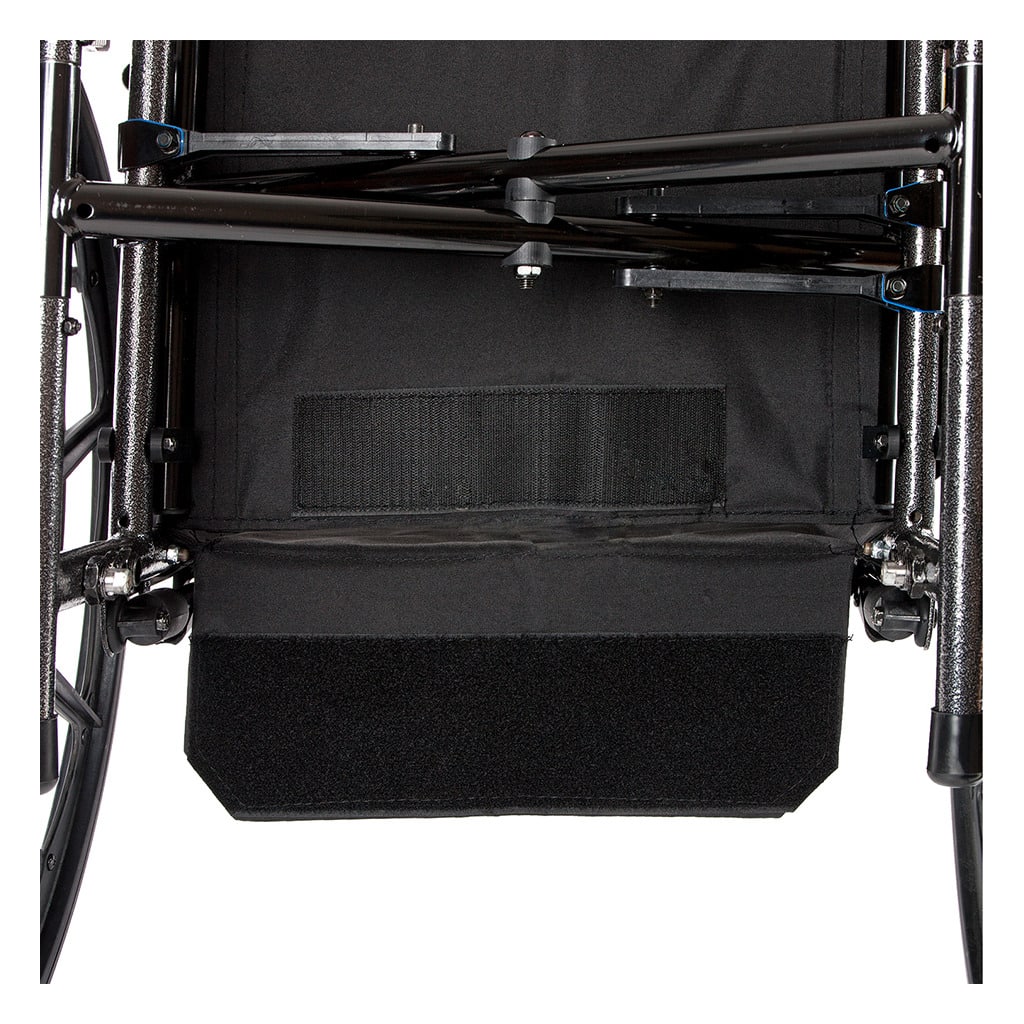

- The nylon seat is not a pressure cushion. See cushions. Drive does not say the back folds down.
Versions

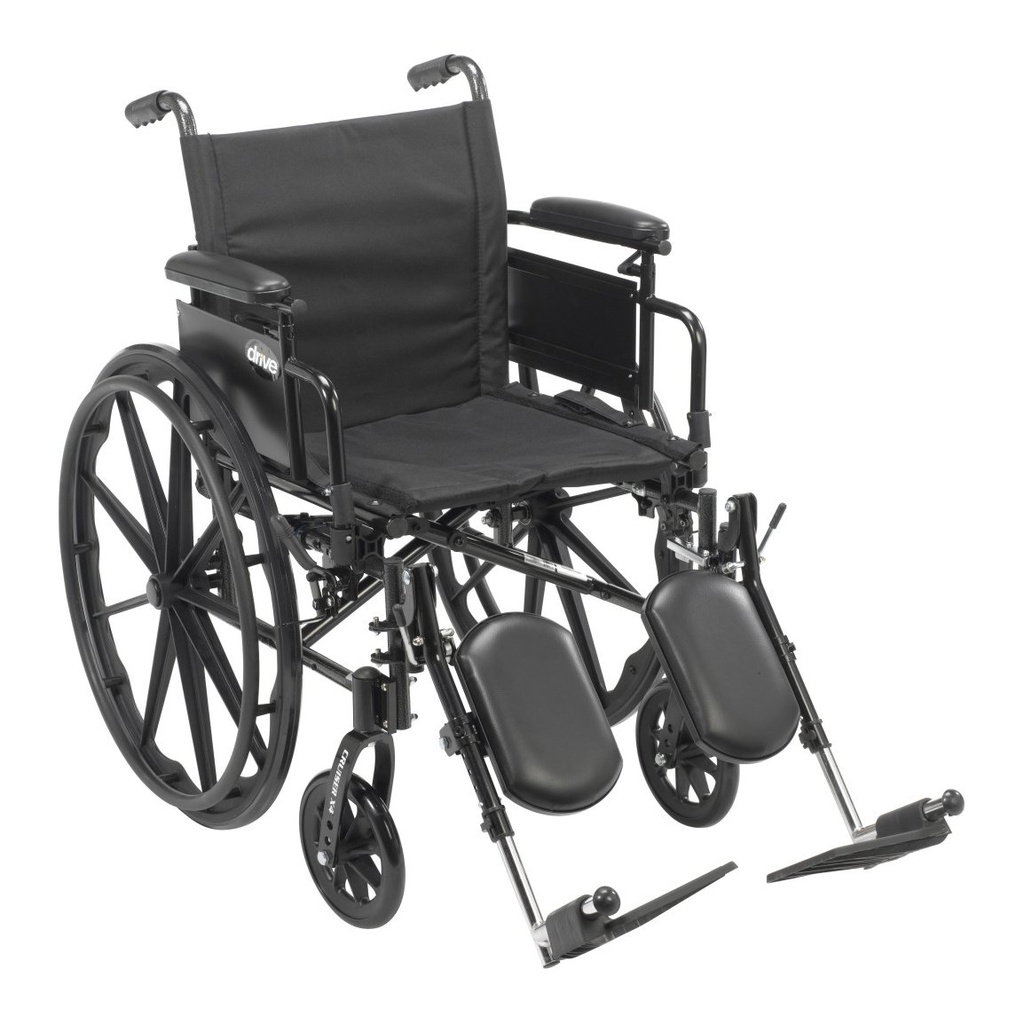

- Swing-away footrests, or elevating legrests Drive lists for this frame.
- A short-term folding wheelchair can be rented. It is not this model.
Compare
The Rebel folds its back and is one size, and the Viper Plus GT includes anti-tippers. See other standard wheelchairs.
Frequently asked questions

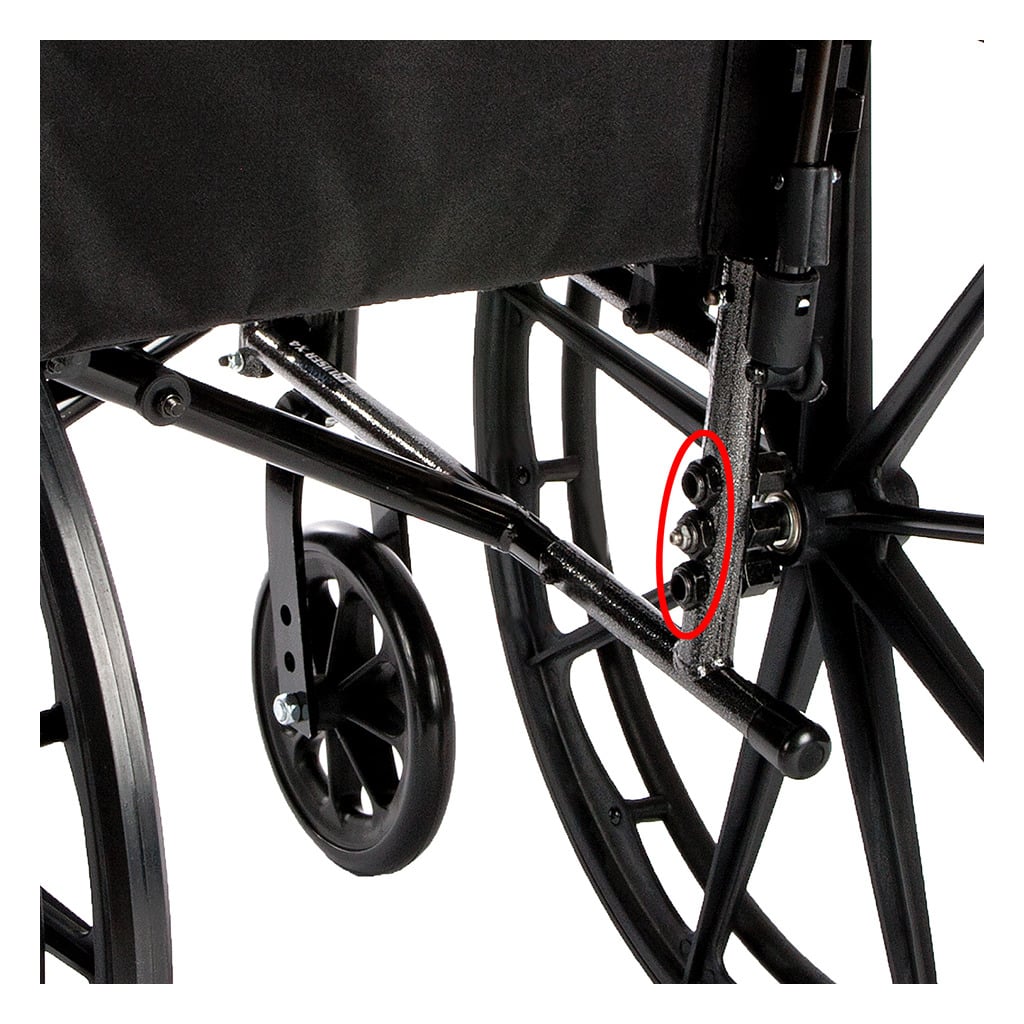

Which axle is the low seat?
Drive does not say which of the three axle positions is which seat height, so we confirm before you order.

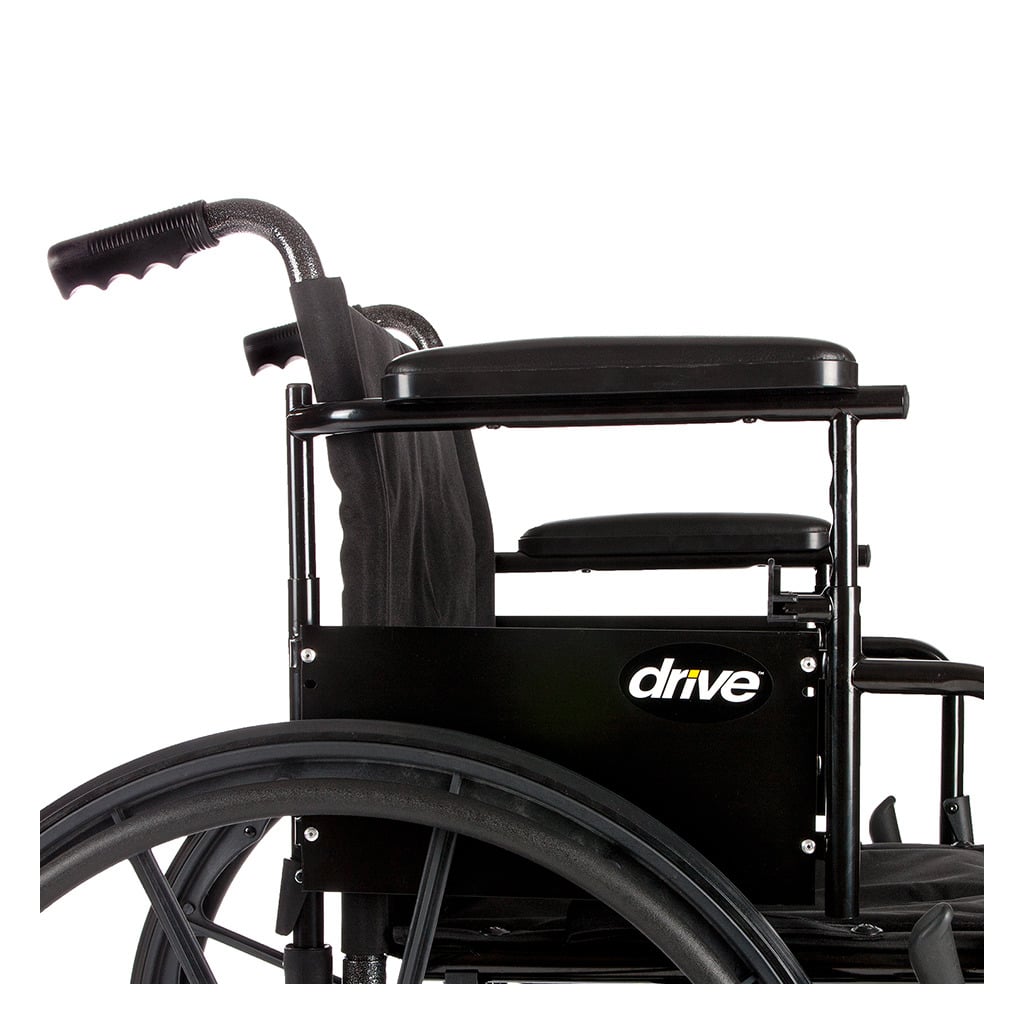

How tall are the armrests?

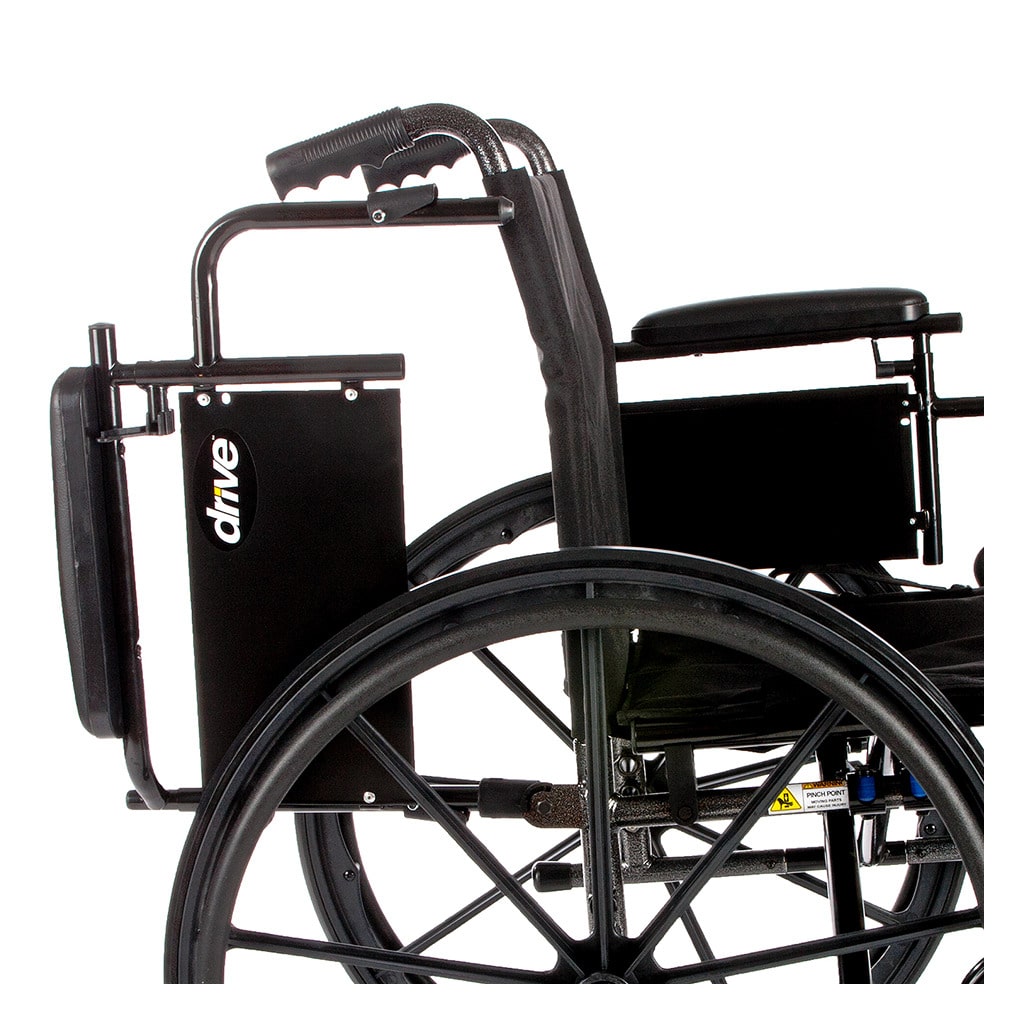

Desk or full arms flip back and lift off. Drive adjusts the height above the seat rail.
Is the open width published?
No. Drive does not publish the open width, and the folded length includes the footrests.
Funding
Funding may help: see who may help pay.
Drive prints a limited lifetime warranty for the original buyer, with footrests covered for 60 days and casters, grips and rubber parts excluded. See the Warranty tab.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- 34 lbs (15.4 kg) or less in the basic setup, without footrests or legrests
- Seat width
- 16", 18" or 20" (41, 46 or 51 cm)
- Seat depth
- Adjusts from 16" to 18" (41 to 46 cm)
- Back height
- 16" to 17.5" (41 to 44 cm), height adjustable

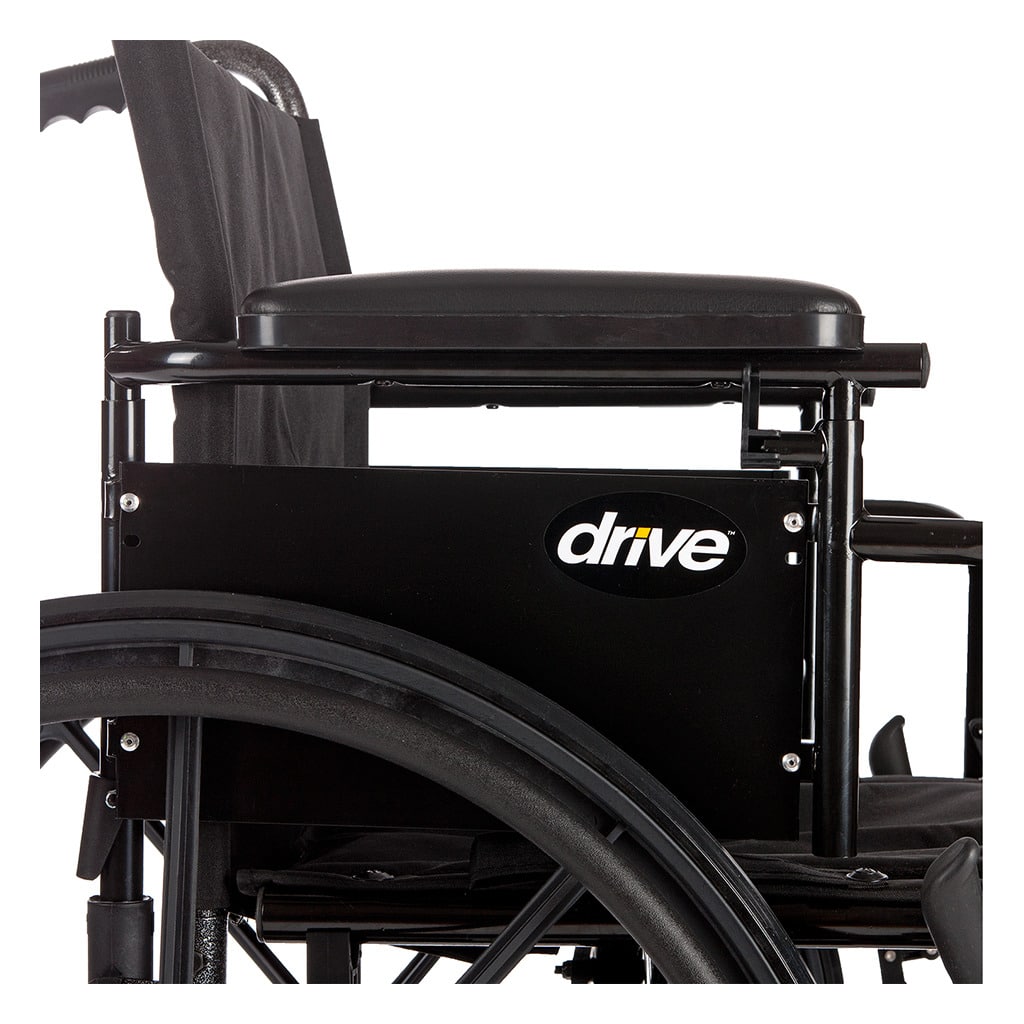

- Armrests
- Padded; flip back and lift out; height adjustable 10" to 14" (25 to 36 cm) above the seat rail; desk or full length
- Legrests
- Swing-away removable footrests or swing-away elevating legrests; tool-free length adjustment; composite footplates with heel loops
- Seat height
- 17", 18" or 19" (43, 46 or 48 cm) seat to floor; three rear axle positions, standard to hemi
- Rear wheel size
- Composite mag wheels with hand rims; solid polyurethane tires; quick-release axles

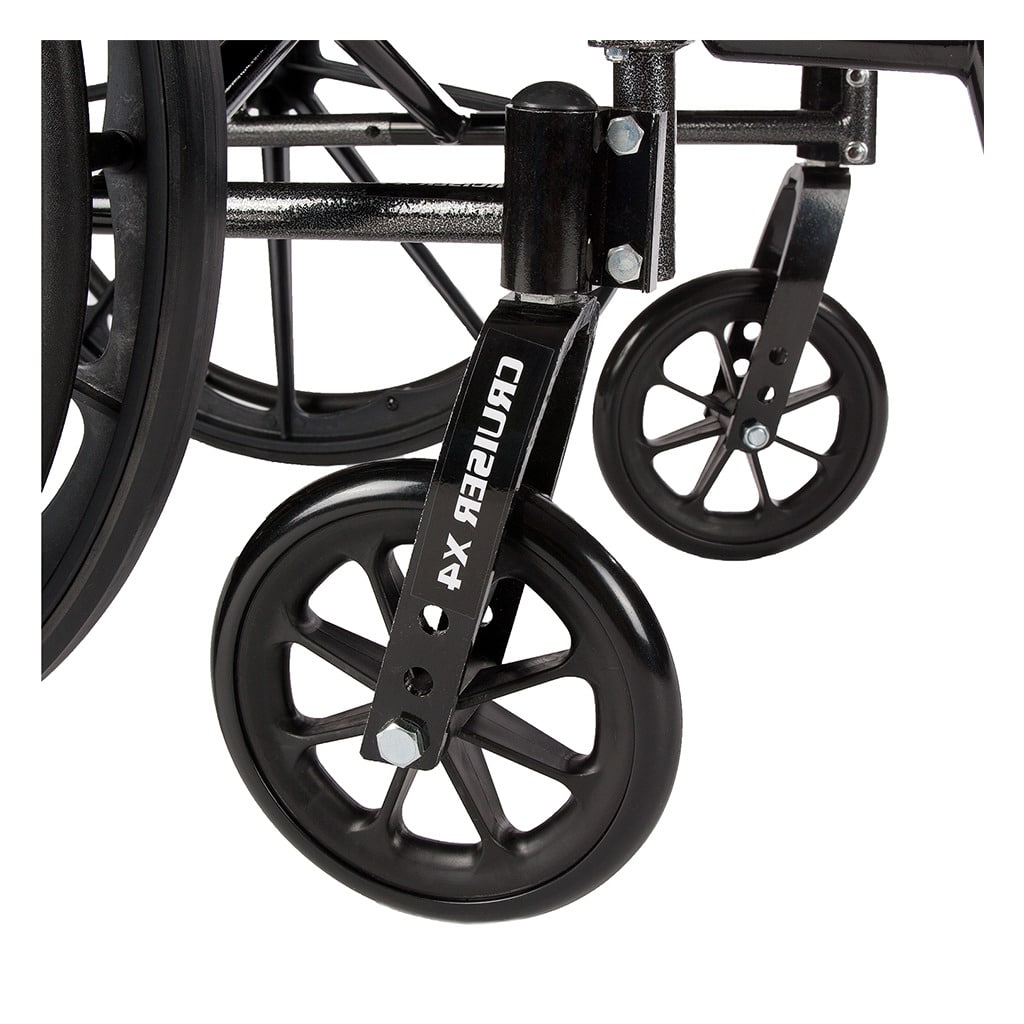

- Caster size
- 8" (20 cm); three height settings, angle adjustable
- Folded dimensions
- 43" long with footrests x 12" wide x 36" high (109 x 30 x 91 cm)
- Brakes
- Push-to-lock wheel locks
- Folding
- Folds side to side; footrests and armrests lift off; rear wheels quick release
- Frame material
- Aluminum and carbon steel
- Available colours
- Silver vein frame with black powder-coated parts; black nylon upholstery
- Warranty
- Limited lifetime for the original buyer; footrests 60 days; casters, grips and rubber parts excluded
- Product type
- Folding lightweight manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
