Description

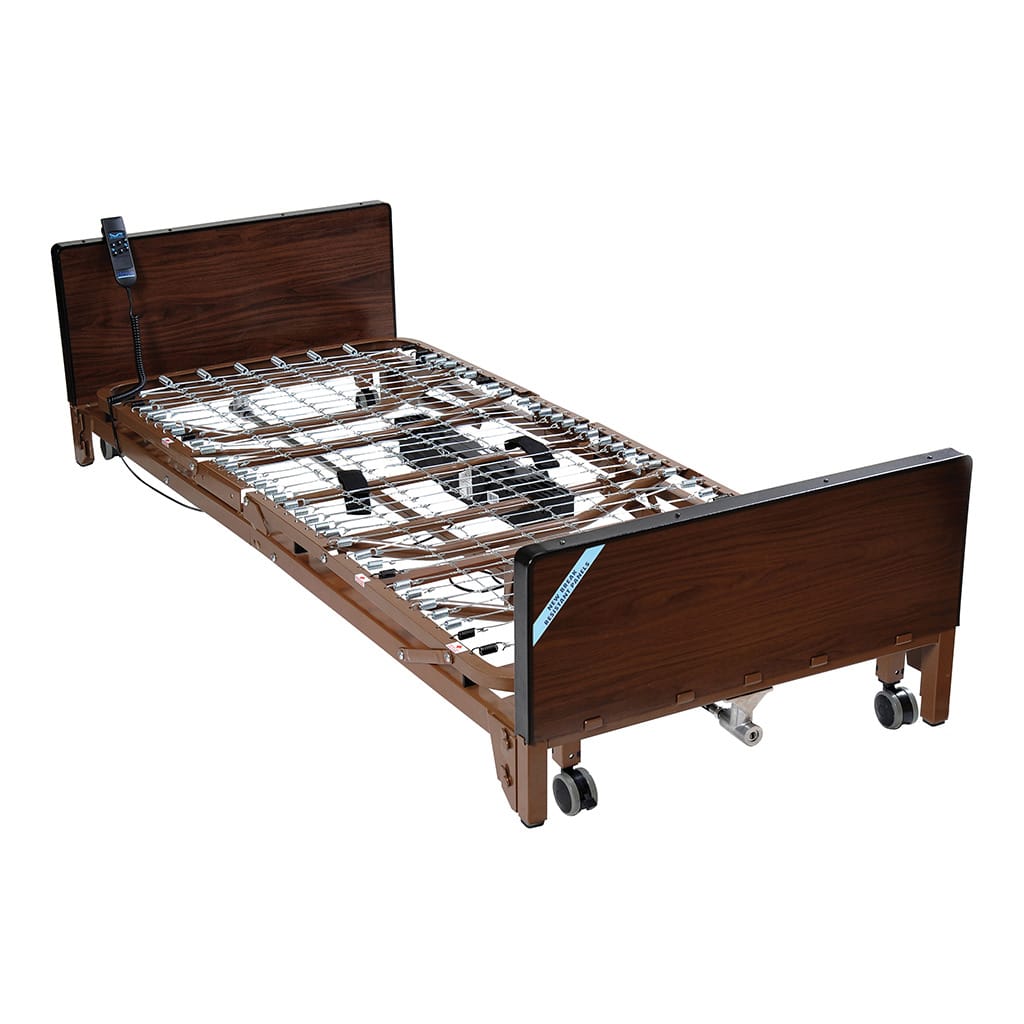

The Drive Delta Ultra-Light 1000 low bed (15235) brings the deck near the floor, in our full-electric hospital beds.
Who is it for?
- An adult up to 350 lbs (159 kg). The low deck shortens the distance to the floor.
- Total load stops at 450 lbs (204 kg), including mattress, rails and accessories.
- Not the 15033 when a low deck is unnecessary, and not the 15005LP, the 15006LP, or a bariatric frame.
Will it fit the room?
- No mattress, casters in the low position: the deck runs 9.25 to 23 inches.
- Some Drive documents give 9.5 to 22.5 or 9.5 to 23.5 inches, so we confirm the figure for the bed supplied.
- Mattress deck 79.53 by 34.65 inches. Length 87.99 inches.
- Width 36.22 inches without rails, 38.58 inches with rails.
- Two cartons, built in the room. Heaviest piece is the spring deck at 97 lbs.
- The caster position is set at delivery; check it before the first transfer.
- The 15030EXTKIT lengthens the deck to 84 inches and is not included.
Which mattress and rails are safe on it?
- Use a 36 inch mattress, 80 or 84 inches long, 5.5 to 7 inches thick.
- Outside that thickness, a gap can open beside the rail.
- Drive names the innerspring 15006 and the therapeutic mattress 15019.
- Rails: 15201BV or 15001ABV only.
- A care team decides whether rails are used. Drive's SGS test is not a promise of no gaps.
- See bed rails and Health Canada's hospital bed safety page.
Compare
- Delta 15033: same family at a standard deck height, when a low deck is not needed.
- Drive 15005LP: also lists a 9.25 inch low deck, with another motor layout and the 15005EXTKIT-L.
- Over 350 lbs (159 kg), see bariatric beds.
Frequently asked questions
What happens in a power cut?

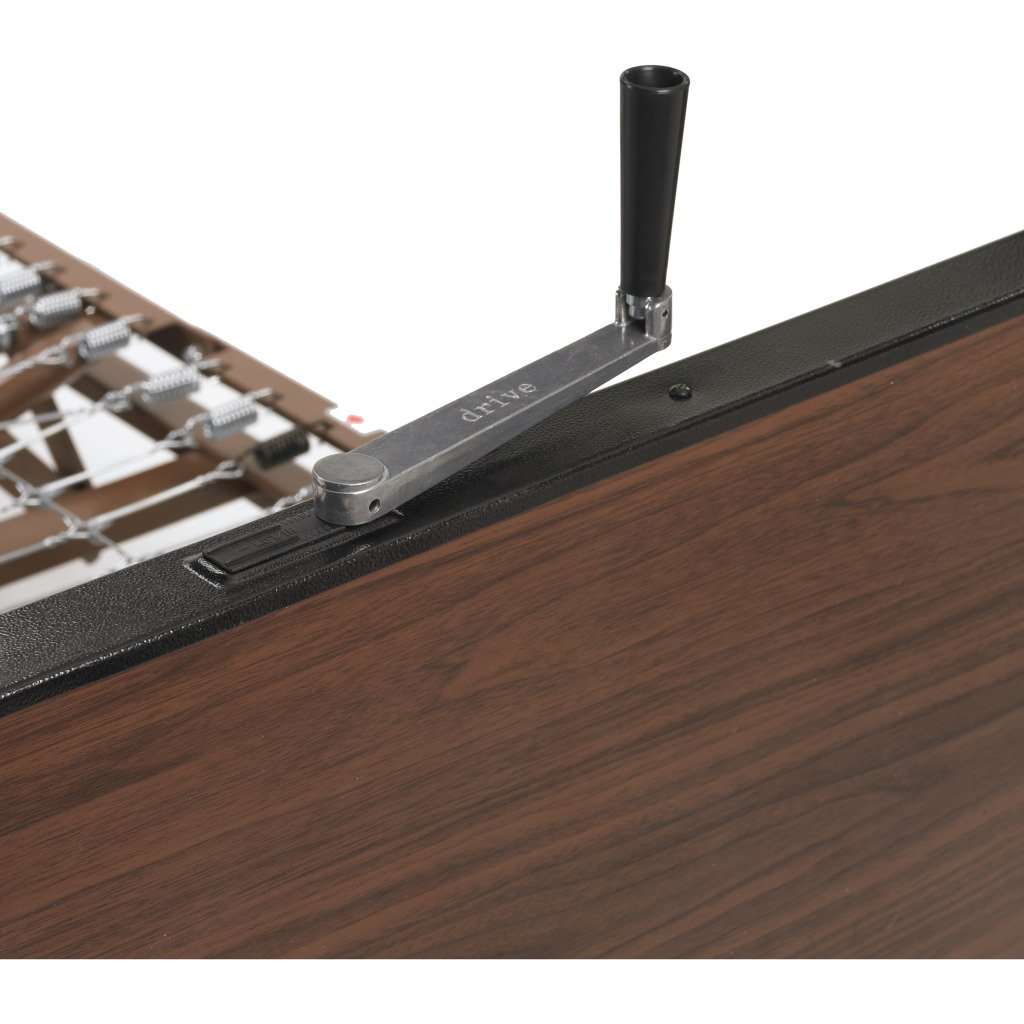

The footboard crank moves the height with no power. A separate 9 volt battery lowers the head and foot nine times, not the height.
What is not in the carton?
No mattress and no rails: 15235 is the frame, pendant and crank. Do not use it without a mattress that fits.
Should I buy or rent?
For a short stay, see hospital bed rental. We do not claim this model is in the rental fleet.
Funding may help: see who may help pay.
The warranty gives lifetime cover on the welds, 5 years on the frame and motor, and 1 year on other parts.
Specifications
- Weight capacity
- 450 lbs (204 kg) total, including the mattress, rails, accessories and the person
- Maximum user weight
- 350 lbs (159 kg) person weight; the rest of the 450 lbs is mattress and accessories
- Product weight
- 175 lbs (79 kg) without mattress or rails
- Assembly
- Ships in two cartons; the motors come fitted to the foot section and the frame assembles with locking pins and spring clips
- Safety standard
- Drive states the bed, side rails and mattress were safety tested together by SGS; motors are UL approved
- Heaviest section
- Head and foot spring deck, 97 lbs (44 kg); the two cartons together ship at 191 lbs (87 kg)
- Caster locks
- 4 casters, 2 locking and 2 non-locking, one of each on each bed end
- Overall width
- 38.58" (98 cm) with side rails fitted; 36.22" (92 cm) without
- Overall length
- 87.99" (223 cm) with the head and foot ends fitted
- Mattress fit
- 36" wide mattress, 80" or 84" long, 5.5" to 7" (14 to 18 cm) thick; mattress deck is 79.53" x 34.65"
- Package contents
- Frame only, in two cartons: spring decks, head and foot boards with motors, hand crank, pendant, hi/lo shaft, 4 casters, spring clips. No mattress or rails

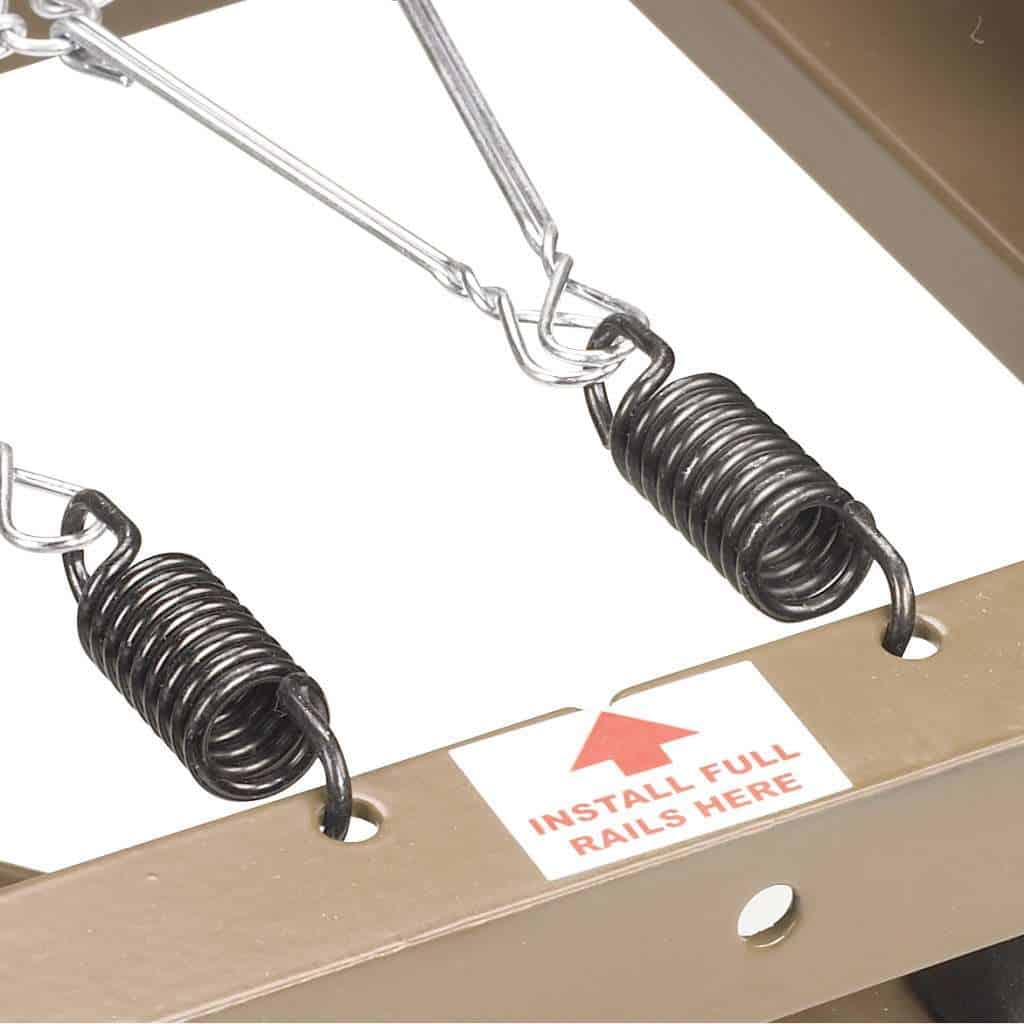

- Compatible rails
- Drive half rails 15201BV and full-length telescoping rails 15001ABV; the frame has labels and colour-coded springs for fitting them

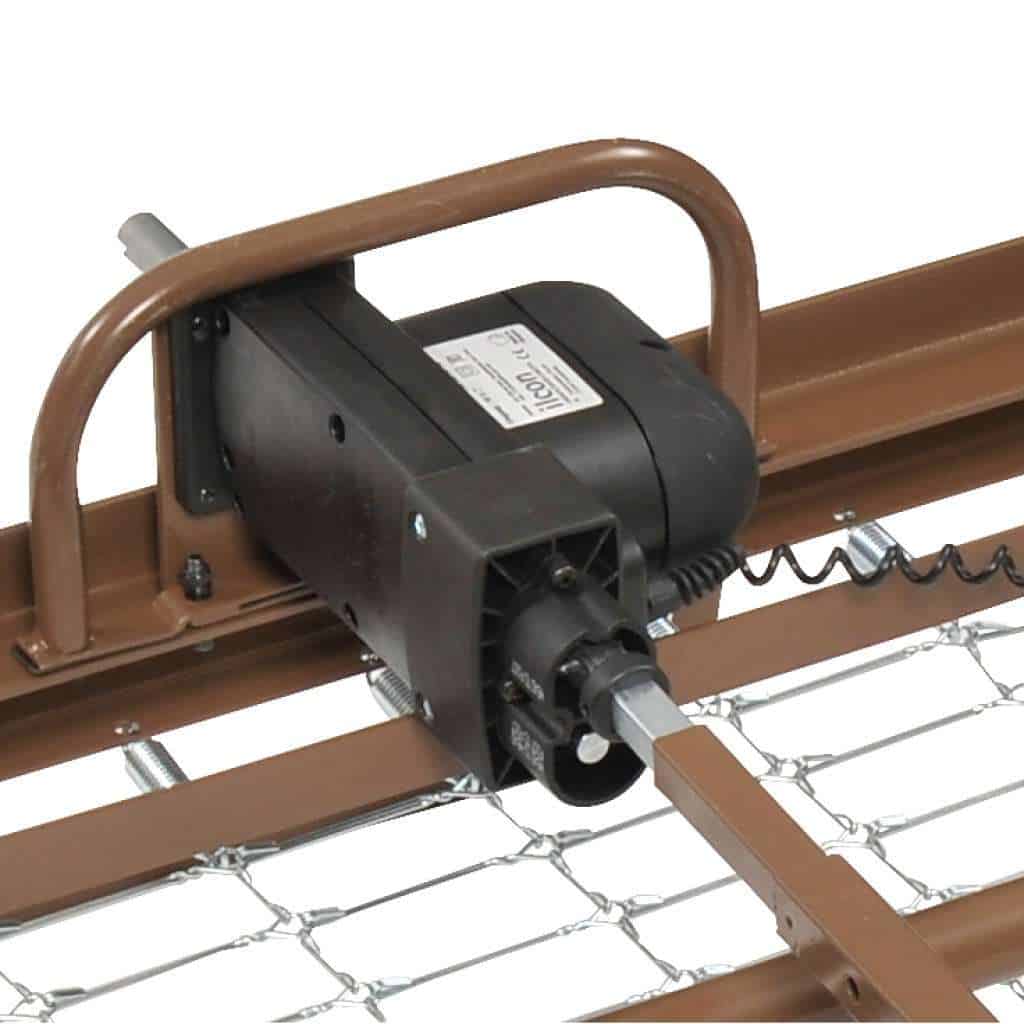

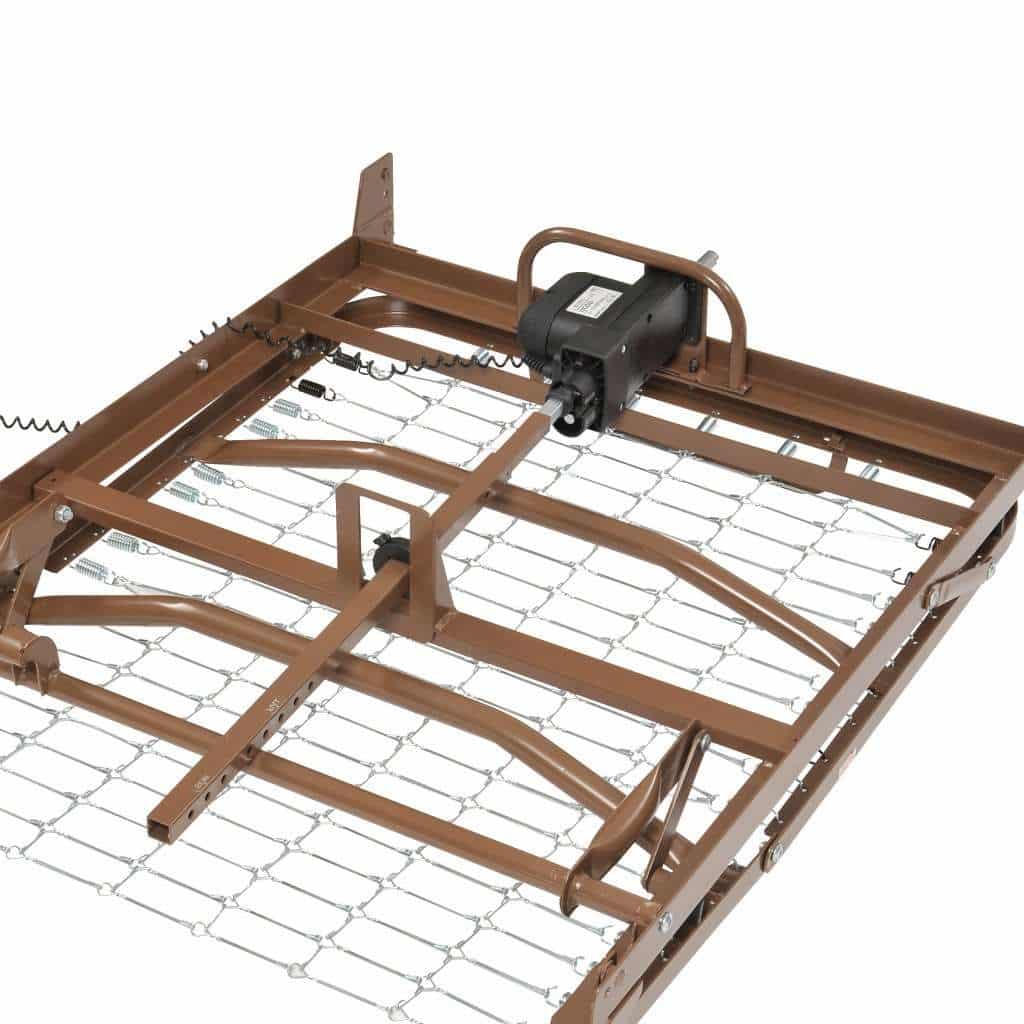

- Motors
- Powered head, foot and hi/lo height; the motor units are UL approved and pre-fitted to the foot section
- Battery backup
- 9 volt battery, sold separately, lowers the head and foot sections up to nine times in a power failure

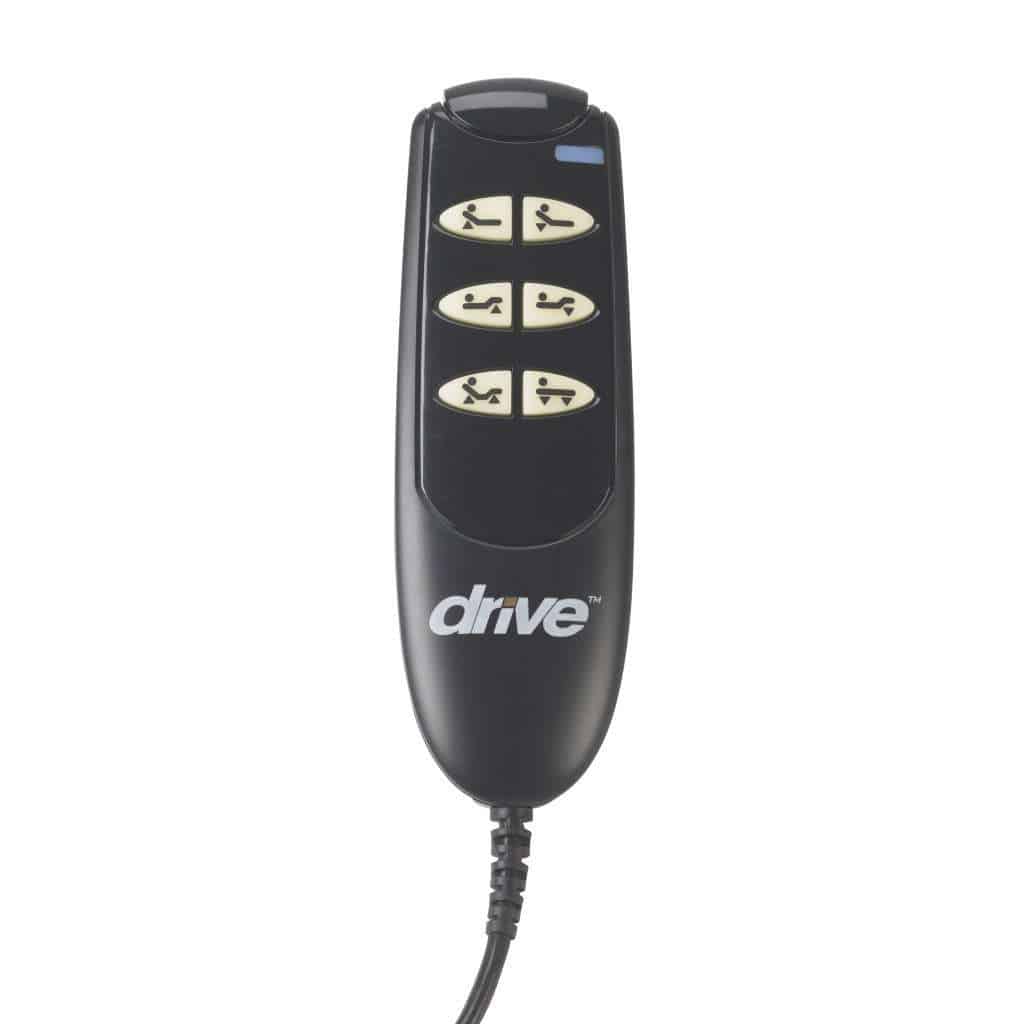

- Hand pendant
- Wired pendant with large, easy-to-use controls for head, foot and height
- Bed width
- 36" (91 cm) sleep deck
- Bed length
- 80" (203 cm) sleep deck; 84" (213 cm) with the extension kit
- Size options
- One deck size, 36" x 80" (91 x 203 cm); the extension kit lengthens it to 84" (213 cm)
- Minimum bed height
- 9.25" (23.5 cm) deck height with the casters in the low position, measured without a mattress
- Maximum bed height
- 23" (58 cm) deck height at the top of the range, measured without a mattress
- Deck sections
- Two zinc-coated spring deck sections, head and foot, both articulating
- Bed positions
- Head up or down, foot up or down, and the whole deck up or down, all from the hand pendant
- Section angles
- Head 0 to 70 degrees, foot 0 to 46 degrees
- Bed accessories
- Extension kit 15030EXTKIT, bed linen kit 15030HBL, bedding in a box 15030HBC, Drive mattresses 15006 and 15019

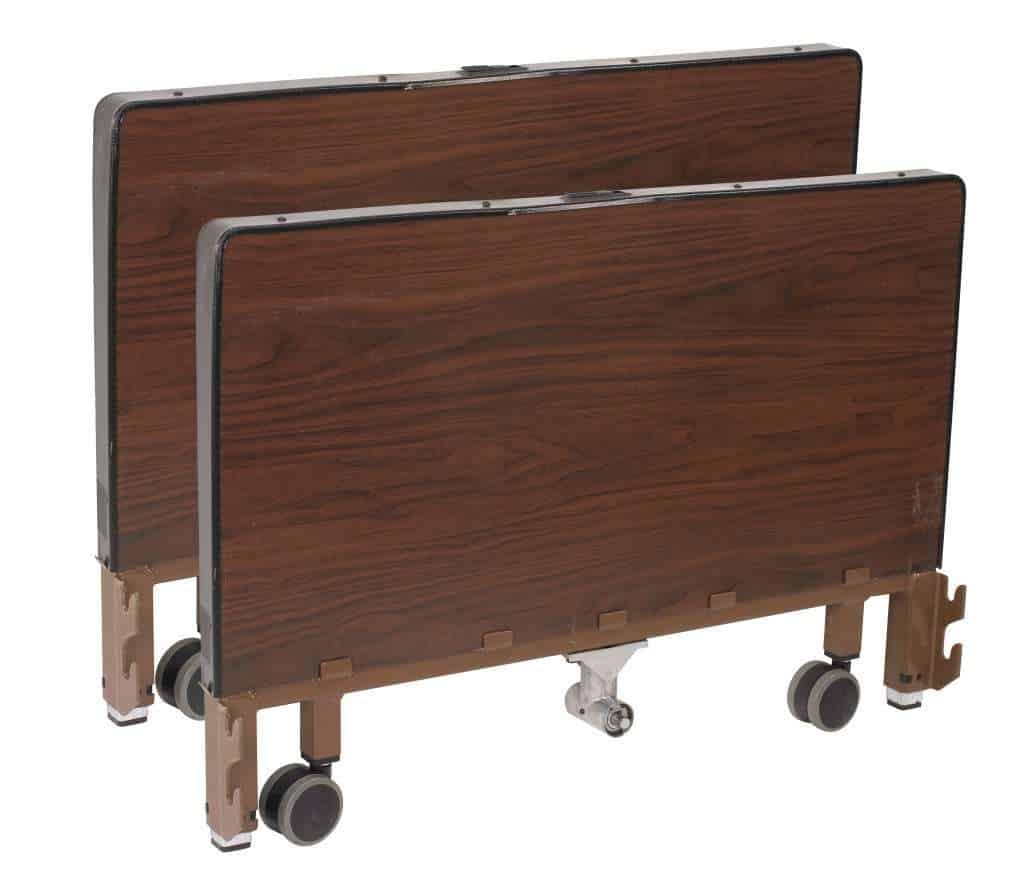

- Head and footboards
- Wood grain laminate panels that resist breaking and scratching; the headboard is taller than the footboard
- Heat and massage
- Not available on this model
- Warranty
- Lifetime welds; 5 years frame and motor; 1 year other parts
- Product type
- Full-Electric Bed, Home Care Bed
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Delta Ultra-Light 1000 full electric low bed (15235). During the warranty period, Drive repairs or replaces defective items at its option at no charge.
- Welds: lifetime.
- Frame: 5 years.
- Motor: 5 years.
- All other parts and components: 1 year.
- Void after unauthorized service or modification, work by unqualified people, or use of parts or accessories other than authorized Drive Medical replacements.
