Description

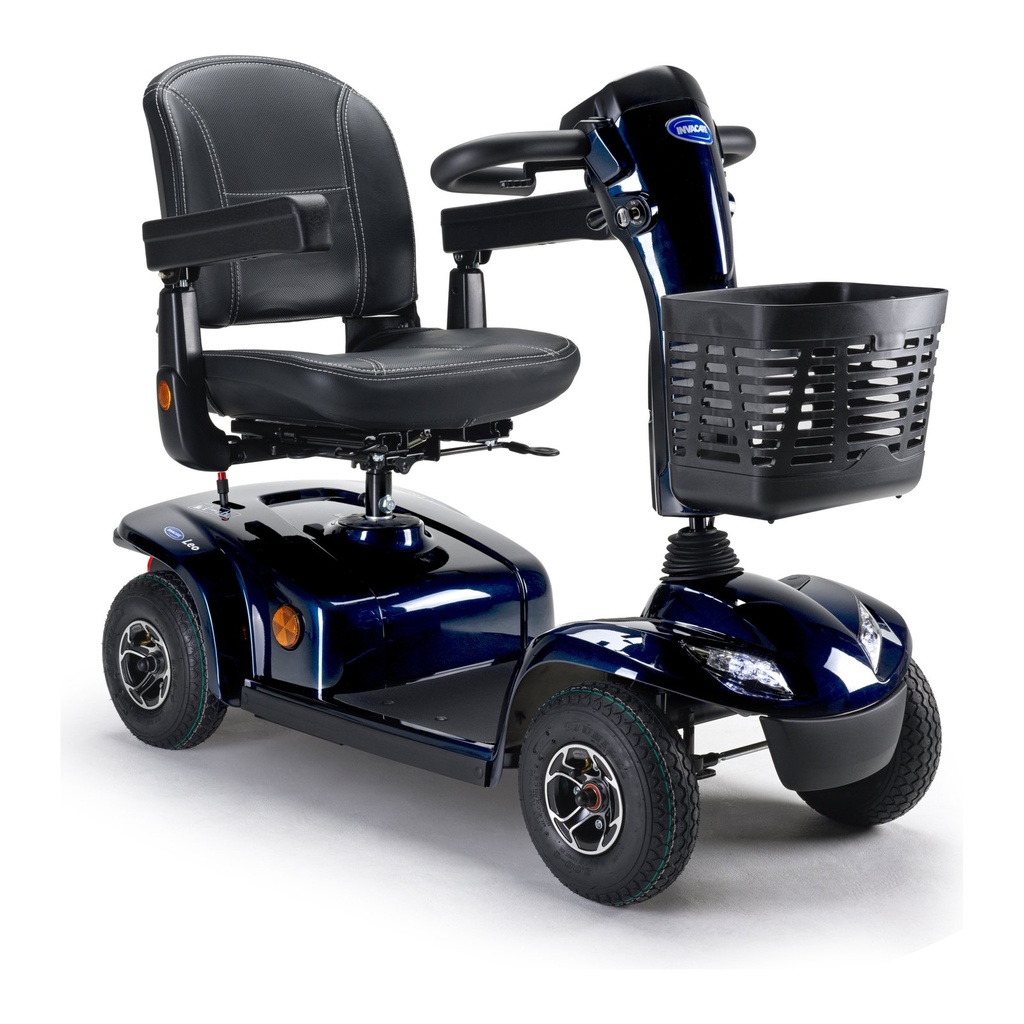

The Invacare Leo is the compact four-wheel Invacare scooter, with two 36 Ah batteries included and a 300 lb (136 kg) limit.
Who it suits, and who should choose something else
- A rider up to 300 lbs (136 kg), including anything carried. Older Canadian sheets say 350 lbs (159 kg); we use the current Canadian page and confirm before you order.
- It comes apart, but the two frame sections together weigh about 101 lbs (46 kg). Lifting that alone is a poor plan. Compare piece weights on our travel scooters.
- If you need a cushion or back support for posture, ask your therapist about a power wheelchair.
Check the fit
- Length 47.5 in (121 cm). Base width 23.6 in (60 cm).
- Turning radius 52 in (132 cm).
- Slopes up to 8 degrees on the North American figure. European sheets say 10 degrees. Drive straight up and down, never turn on a slope, and come down at no more than two thirds of top speed.
- Obstacles up to 2.4 in (60 mm), square on, never at an angle.

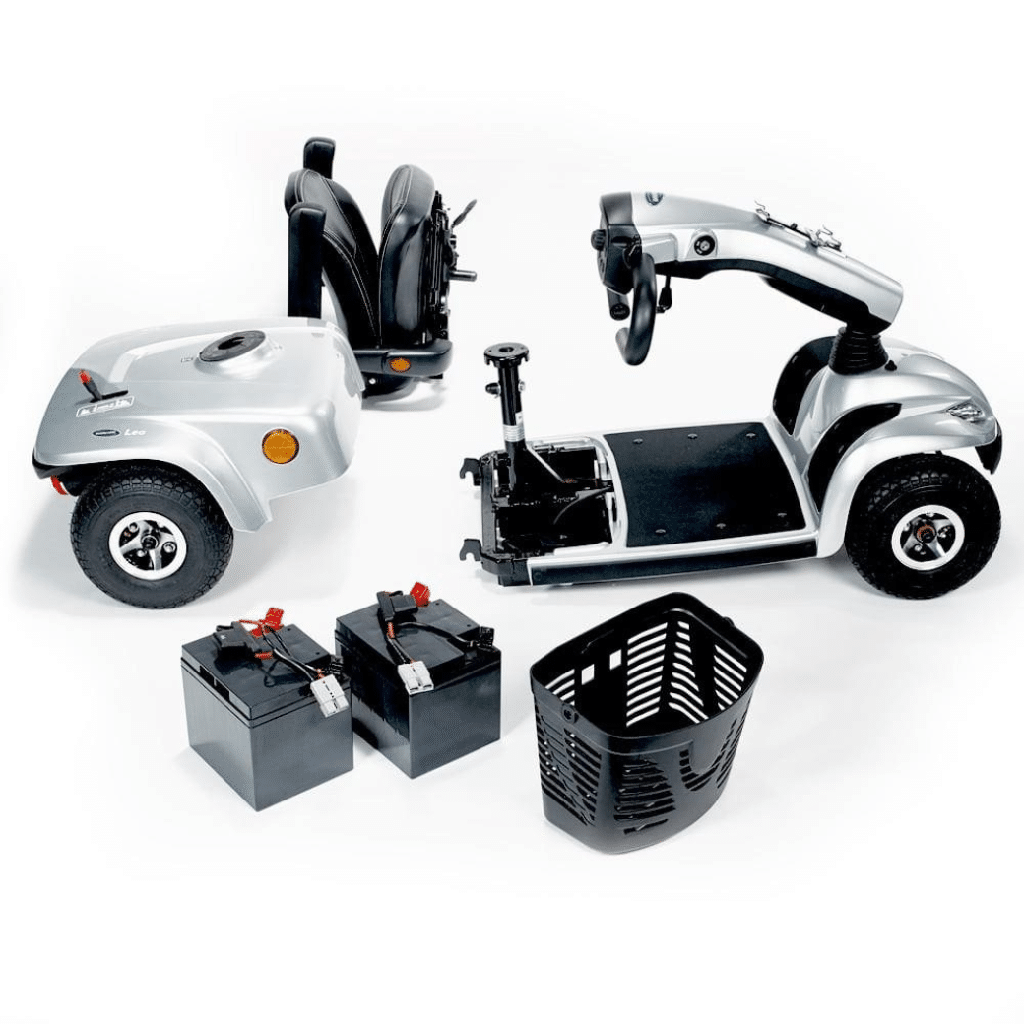

- Five pieces, no tools: seat 31 lbs (14 kg), two batteries 26 lbs (12 kg) each, and the front and rear sections.
Batteries and charging
- Two 12 V 36 Ah sealed AGM batteries are included. Range up to 38 km (23.6 mi) is a test maximum on that pair.
- The off-board charger plugs into the left side of the tiller.
- Avoid riding on the reserve light. We replace worn batteries.
- Load it empty, by a ramp or platform lift within that ramp's rating. See portable ramps.
Speed
- Top speed up to 8 km/h (5 mph). There is no suspension unless the optional seat post is fitted.
Compare
- Comet Pro: 350 lbs, longer range, batteries sold separately, and a much wider turn.
- Pegasus Pro: suspension and a larger battery, for mixed pavement rather than tight rooms.
Frequently asked questions
Which slope limit applies?
We quote 8 degrees from the North American literature. A European sheet says 10 degrees. We confirm before you order.
Does the freewheel let me sit and coast?
No. The two-step freewheel lever is for pushing it empty. The electromagnetic brakes are off until you put it back in drive.
Are the batteries in the price?
Yes. Two 12 V 36 Ah AGM batteries and the 5 amp charger come with the Leo.
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
See the Warranty tab.
Specifications
- Weight capacity
- 300 lbs (136 kg), rider plus anything carried
- Product weight
- 184 lbs (83.5 kg) with batteries; 130 lbs (59 kg) without batteries
- Folding or disassembly
- Comes apart without tools into 5 pieces: seat 31 lbs (14 kg), two batteries 26 lbs (12 kg) each, front and rear frame sections 101 lbs (46 kg) together
- Seat width
- 19" (48 cm)
- Seat depth
- 16" (41 cm)
- Seat height
- 16.5" to 19.5" (42 to 50 cm) from the floor, set at the seat post
- Seat type
- Black vinyl seat; swivels 360 degrees, slides forward and back; flip-up armrests adjust in width and angle
- Tiller
- Angle adjusts by lever and folds down for transport; delta handlebar; right lever forward, left lever reverse; speed dial
- Tires

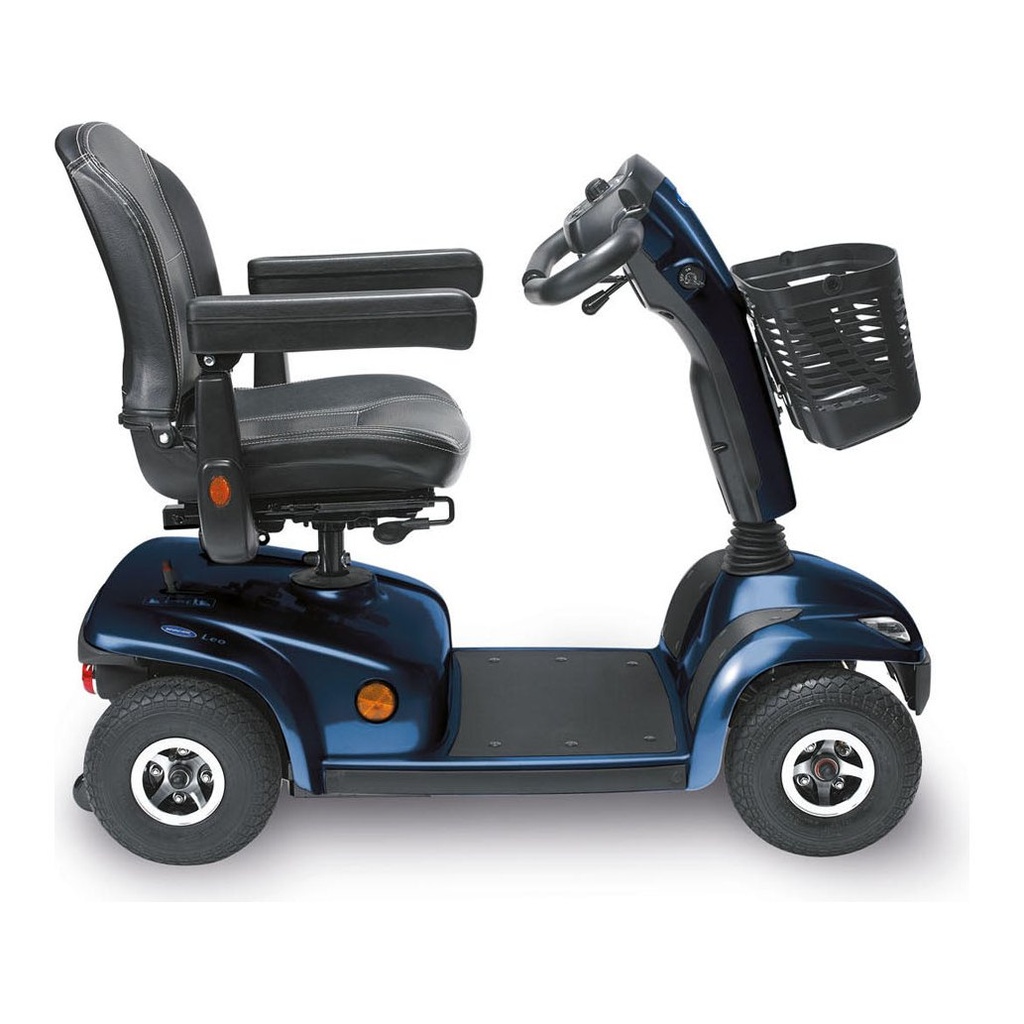

- 10" (25 cm) pneumatic, front and rear
- Suspension
- Optional seat suspension post; no other suspension listed
- Overall width
- 23.6" (60 cm) at the base; about 23" to 29" (58 to 73 cm) across the armrests
- Overall length
- 47.5" (121 cm)
- Turning radius
- 52" (132 cm)
- Maximum slope
- 8 degrees (14%)
- Driving range
- Up to 38 km (23.6 mi) per charge with two 36 Ah batteries; a test maximum, shorter with a heavier load, hills, cold or worn batteries
- Top speed
- Up to 8 km/h (5 mph)
- Brakes
- Electromagnetic brakes apply when the drive lever is released; two-step freewheel lever
- Lights
- Headlights, direction indicators that switch off after 30 seconds, rear brake light, hazard lights
- Motor
- 240 W (500 W peak), rear-wheel drive
- Batteries
- Two 12 V 36 Ah sealed AGM batteries, included
- Available colours

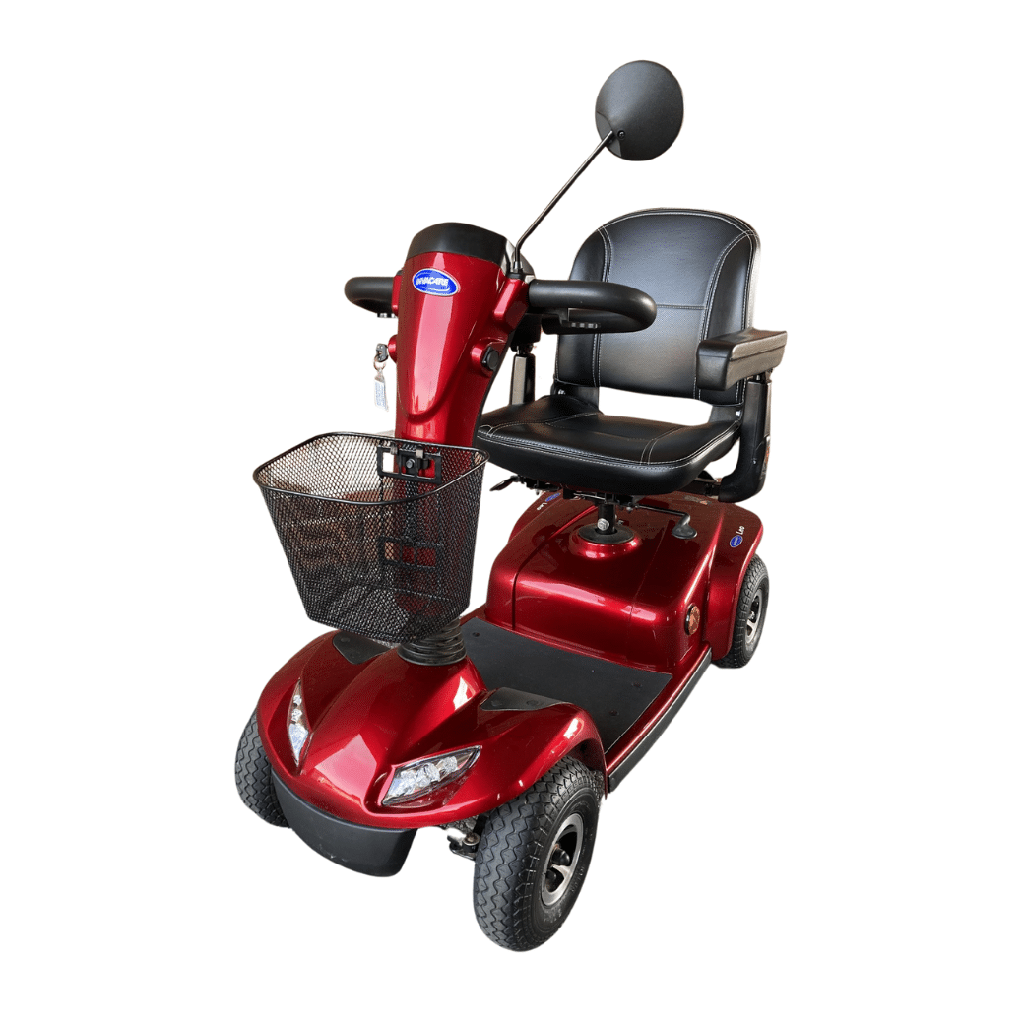

- Ruby Red, Onyx Blue
- Charging time
- Up to 12 hours from low; 18 hours before first use
- Battery charger
- 5 amp, 24 V, off-board; plugs into the left side of the tiller
- Warranty
- 2 years against manufacturing defects (upholstery, padding, tires and wheels excluded); 6 months on batteries
- Product type
- Mid-Size Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
2 years on frame, 1 year on parts and batteries.
Read the warranty and service policy for the full terms.
Funding may help pay for this
Mobility Specialties is an ADP registered vendor. Funding may help: see who may help pay.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
