Description

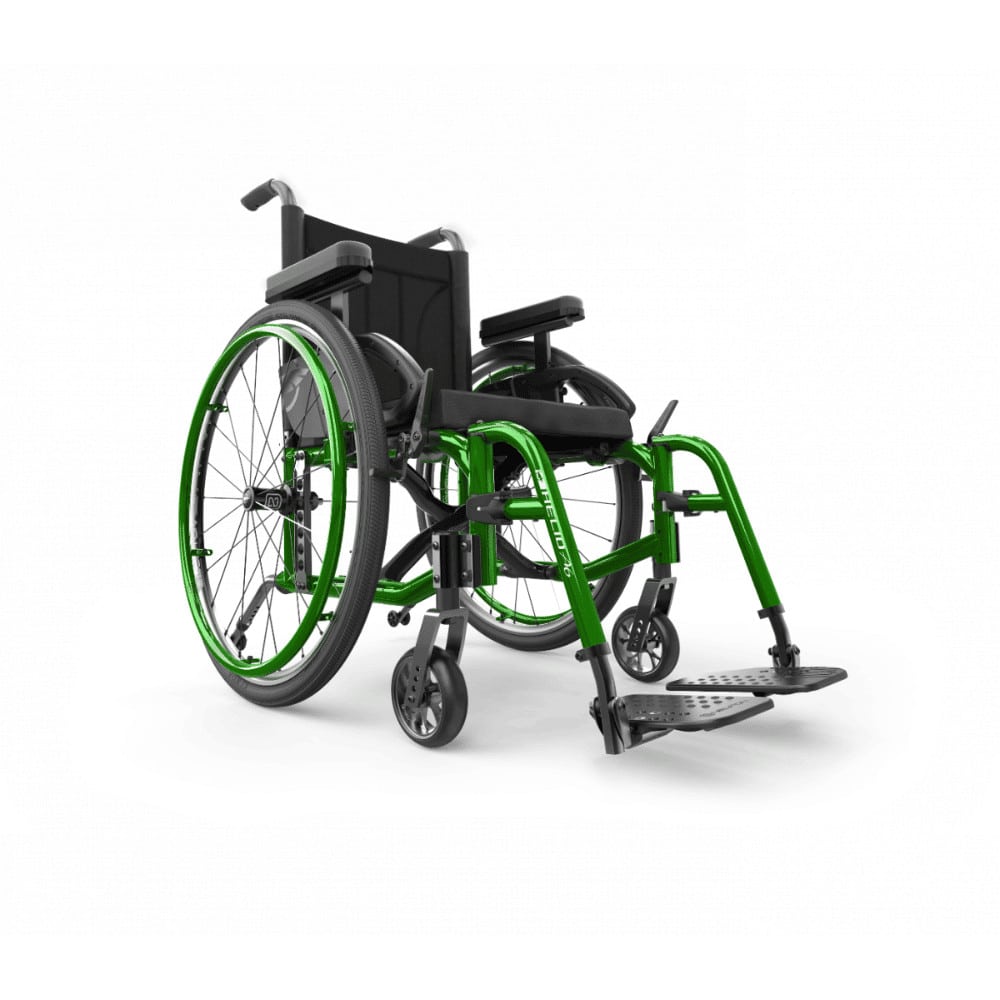

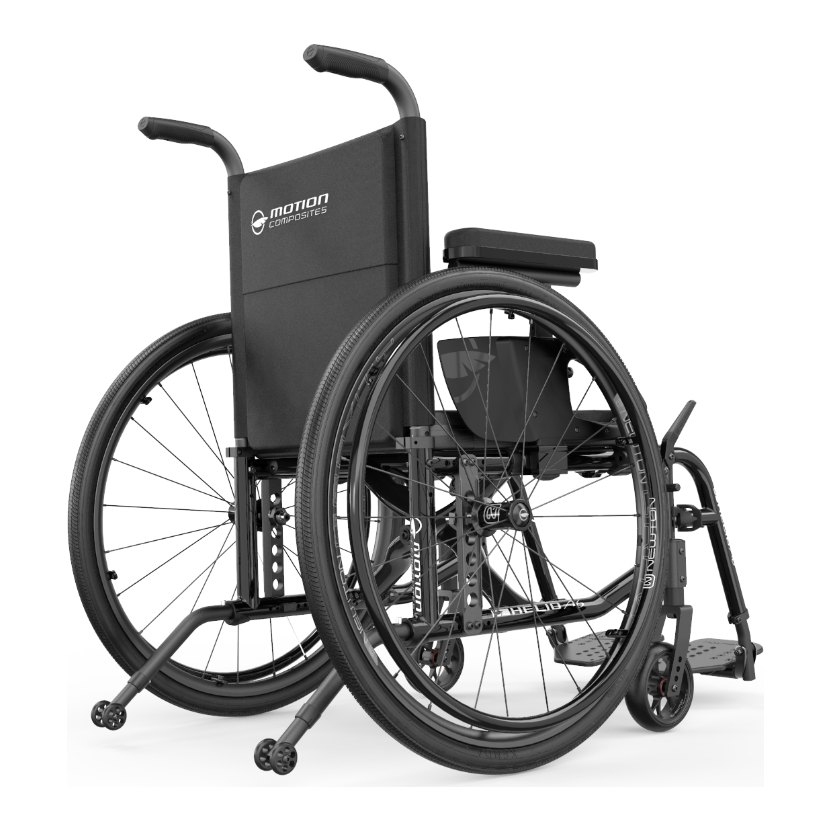

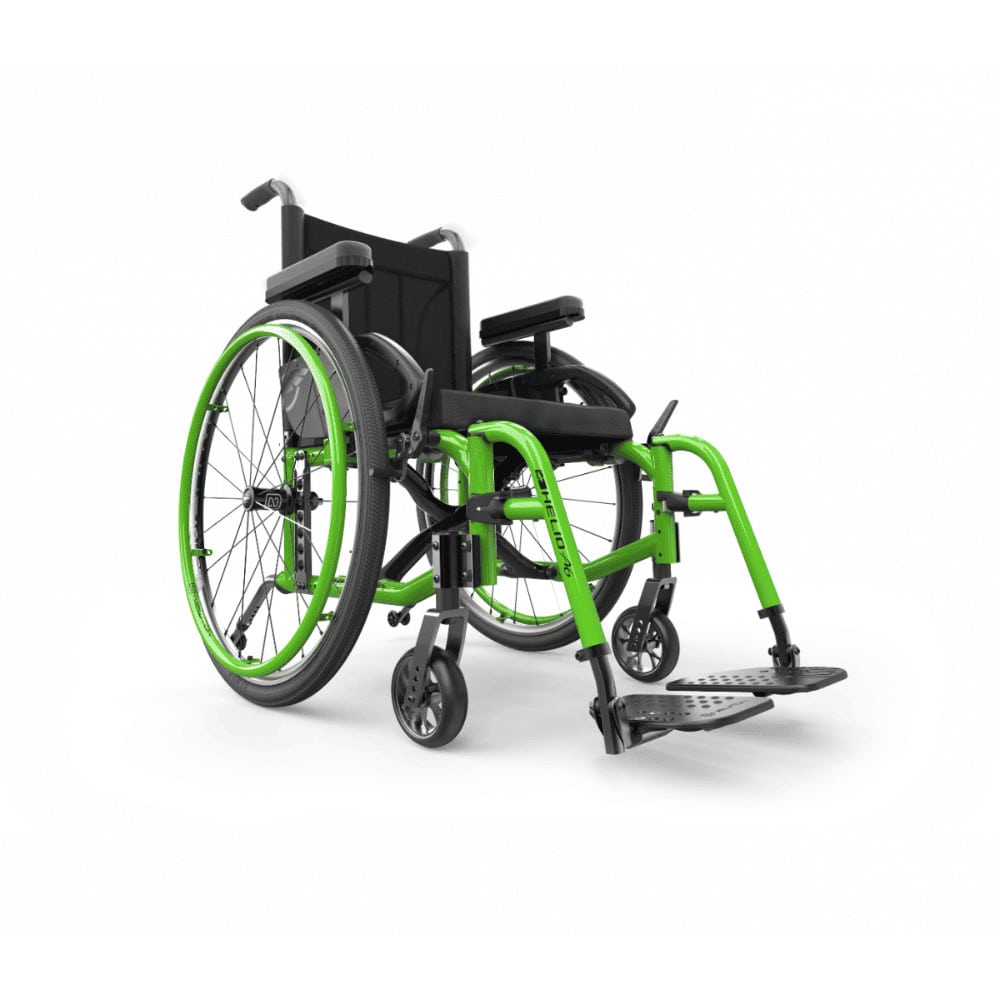

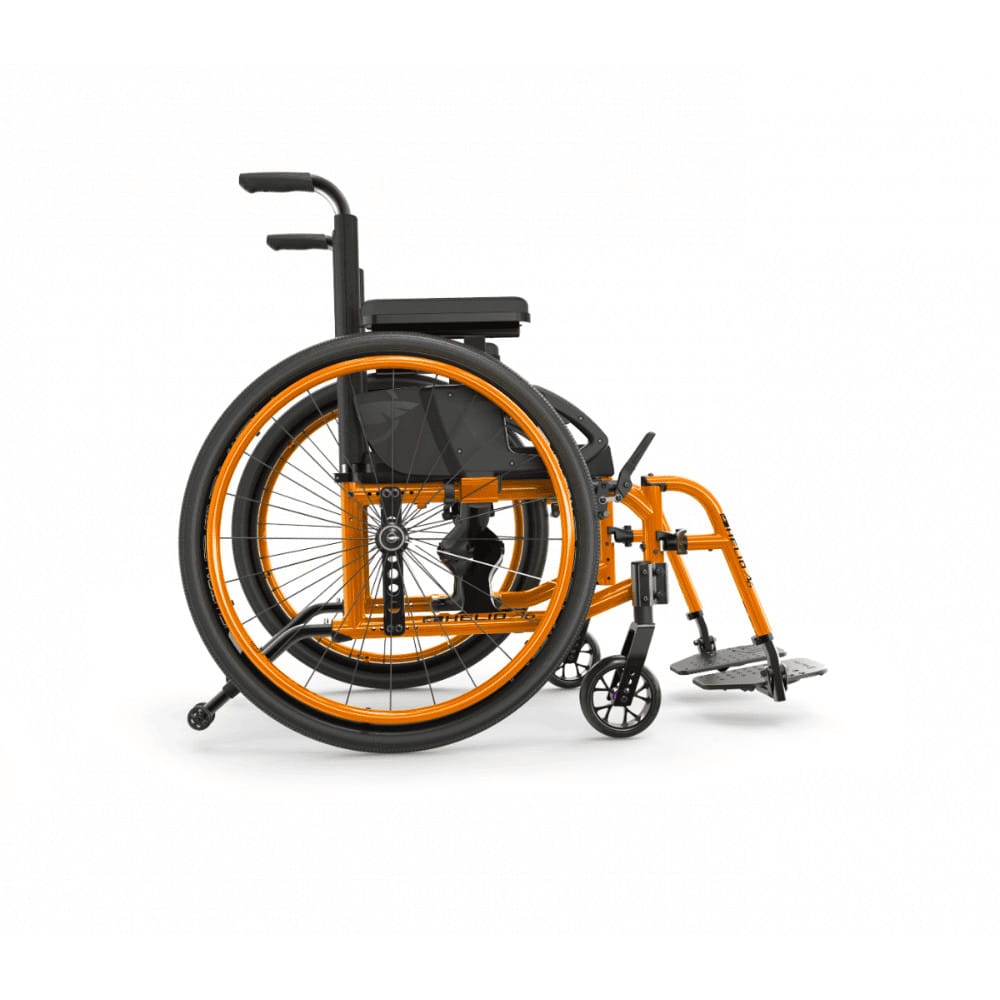

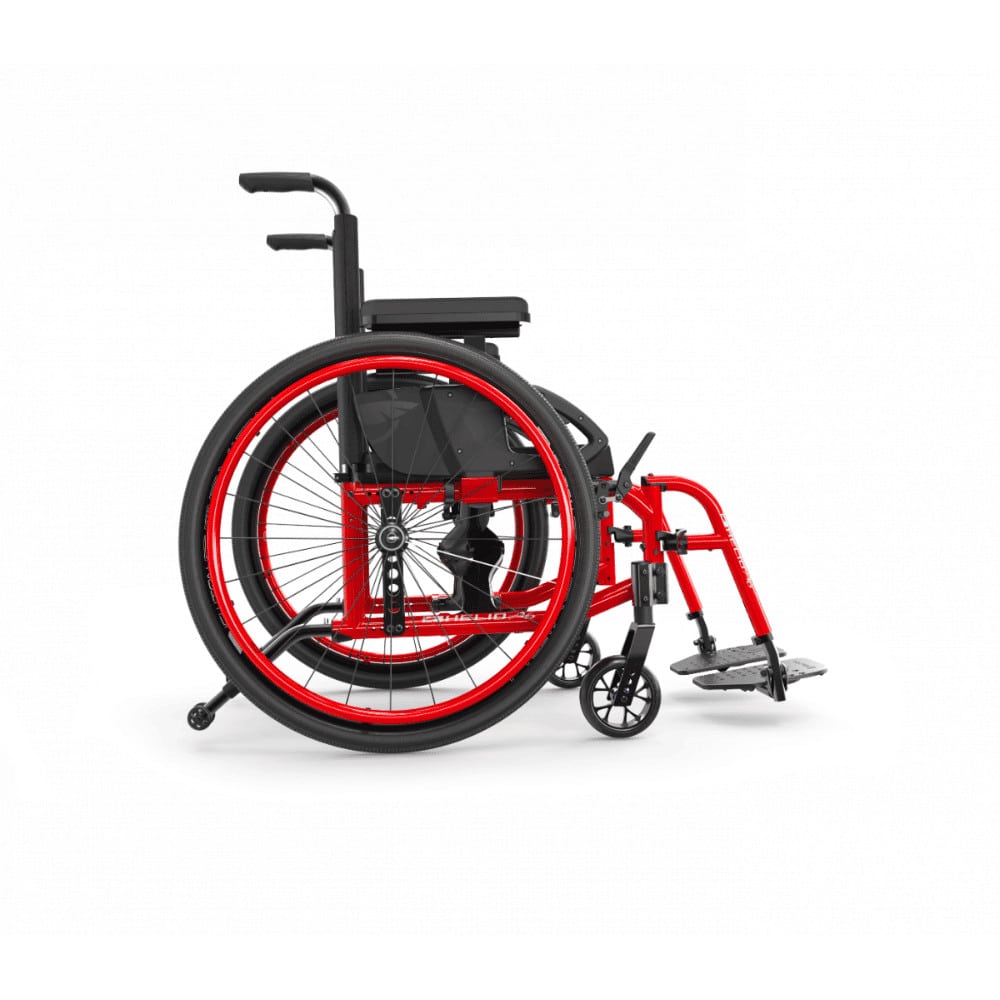

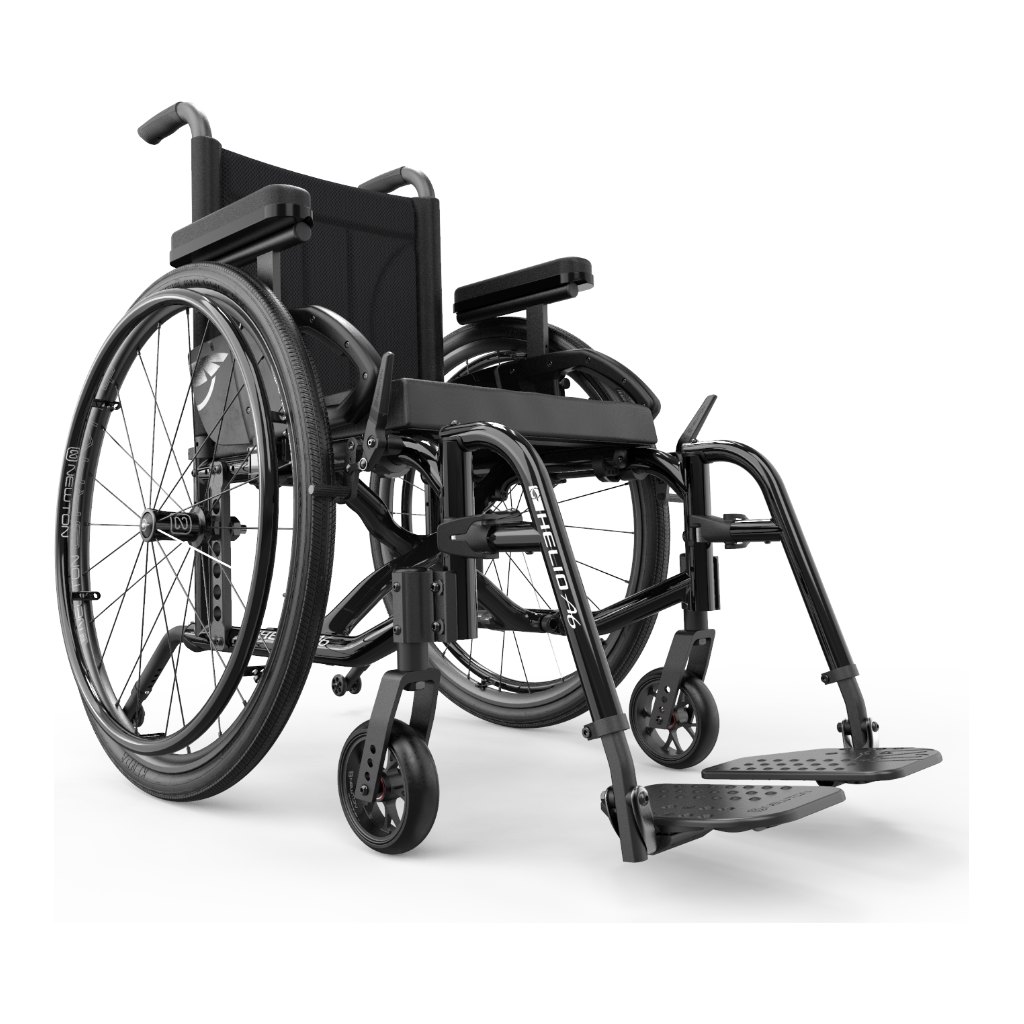

The Motion Composites Helio A6 is a folding wheelchair with a 6061 aluminum frame, built to order for an adult who self-propels.
Who it suits, and who should choose something else
- An adult up to 265 lbs (120 kg), or 350 lbs (159 kg) with the HD kit. The cross brace is 7005, not the Helio A7's 7005 frame.
- Foot propelling starts at 12" (30.5 cm) with a 3" caster. Fold-down and height-adjustable handles stop at 265 lbs (120 kg); the HD kit uses standard handles.
- Needs tilt: tilt-in-space wheelchairs. Over the HD kit: bariatric wheelchairs. Fewer adjustments: the Move.
Check the fit
- Width is across the seating surface, from the outside of the side frame tubes. Depth is from the front of the back cane to the front of the seat sling.
- Widths 21" and 22" need the HD kit. Back canes are 9" to 24" on the order form, but the product page starts at 12", so we confirm before you order.
- Overall width 20.75" to 33.5" (52.7-85.1 cm). Folded size is not stated.
- At 16" x 16", 25.4 lbs (11.52 kg) with rear wheels, wheel locks, footrests, back upholstery and seat cushion. Without rear wheels, armrests or side guards, cushion, anti-tippers and footrests, the transport weight is 15.1 lbs (6.85 kg).
- A professional should set the axle. A free home assessment can check the doorway.
Safe use
- Do not expose it below -20 C or above 40 C, and have a certified technician inspect it yearly. Transfer to a vehicle seat whenever you can. Occupied tie-downs are not offered with the HD kit.
- The manual calls quick-release axles standard, and the order form prices more than one axle, so we confirm before you order. A cushion is chosen on the form.
Compare
The Helio A7 is the 7005 chair. The Move has fewer seat depths: see all Type 3 wheelchairs.
Frequently asked questions
How many frame colours are there?
Nineteen, with black standard and a black cross brace. Custom paint is also on the order form.
What armrests and legrests can I order?
Armrests are 6" to 14" (15.2-35.6 cm) high. Elevating legrests are optional, with hangers at 60, 70, 80 or 90 degrees.
Which front casters are offered?
Front casters run from 3" to 8", with anti-flutter adjustment, and suspension forks are optional.
Funding
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
The chair is built to the order form, and timing is confirmed with the customer.
The aluminum frame and cross brace are 5 years, other Motion Composites parts 1 year, and tires, upholstery, cushion and grips 30 days. See the Warranty tab.
Specifications
- Weight capacity
- 265 lbs (120 kg); 350 lbs (159 kg) with the HD kit
- Product weight
- From 25.4 lbs (11.52 kg) at 16" x 16" with rear wheels, wheel locks, footrests, back upholstery and seat cushion
- Transport weight
- 15.1 lbs (6.85 kg) at 16" x 16" without rear wheels, armrests or side guards, seat cushion, anti-tippers and footrests
- Seat width
- 14" to 22" (35.6-55.9 cm) in 1" steps; 21" and 22" only with the HD kit
- Seat depth
- 14" to 20" (35.6-50.8 cm) in 1" steps
- Back height
- 9" to 24" (22.9-61 cm) back canes, fixed or height adjustable
- Back angle
- Set from 85 to 110 degrees in 5-degree steps (90 standard); angle-adjustable back canes optional
- Armrests
- Height-adjustable flip-back, removable T or swing-away armrests, 6" to 14" (15.2-35.6 cm) high; side guards optional
- Legrests
- Swing-in/swing-out footrests at 60, 70 or 80 degrees, or 90-degree front mount; elevating legrest with calf pad optional
- Seat height
- Front 12" to 20.5" (30.5-52 cm); rear 12" to 20.25" (30.5-51.4 cm), set by caster and rear wheel size
- Rear wheel size
- 20", 22", 24", 25" or 26"; airless urethane or pneumatic tires; quick-release axles standard
- Caster size
- 3" to 8" front casters with anti-flutter adjustment; suspension forks optional
- Overall width
- 20.75" to 33.5" (52.7-85.1 cm), depending on seat width and setup
- Brakes
- Newton push-to-lock wheel locks; pull-to-lock, grade-aid, scissors, single-side and attendant locks optional
- Folding
- Folds side to side on its cross brace; rear wheels quick release; footrests swing away
- Frame material
- 6061 aluminum frame with a 7005 T6 aluminum cross brace
- Available colours
- 19 frame colours, black standard, including matte Khaki Green and Desert Sand; custom paint colour optional
- Warranty
- Aluminum frame and cross brace 5 years; other Motion Composites parts 1 year; tires, upholstery, cushion and grips 30 days
- Product type
- Folding lightweight manual wheelchair, built to order
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Motion Composites Helio A6 brochure (v7, March 2024)
- User Manual Motion Composites folding wheelchairs user manual (Helio A6, 2026)
- User Manual Motion Composites folding wheelchair user manual
- Warranty Manual Motion Composites limited warranty, Canada (revised July 2025)
- Warranty Manual Motion Composites Helio warranty
- All forms and documents
