Description

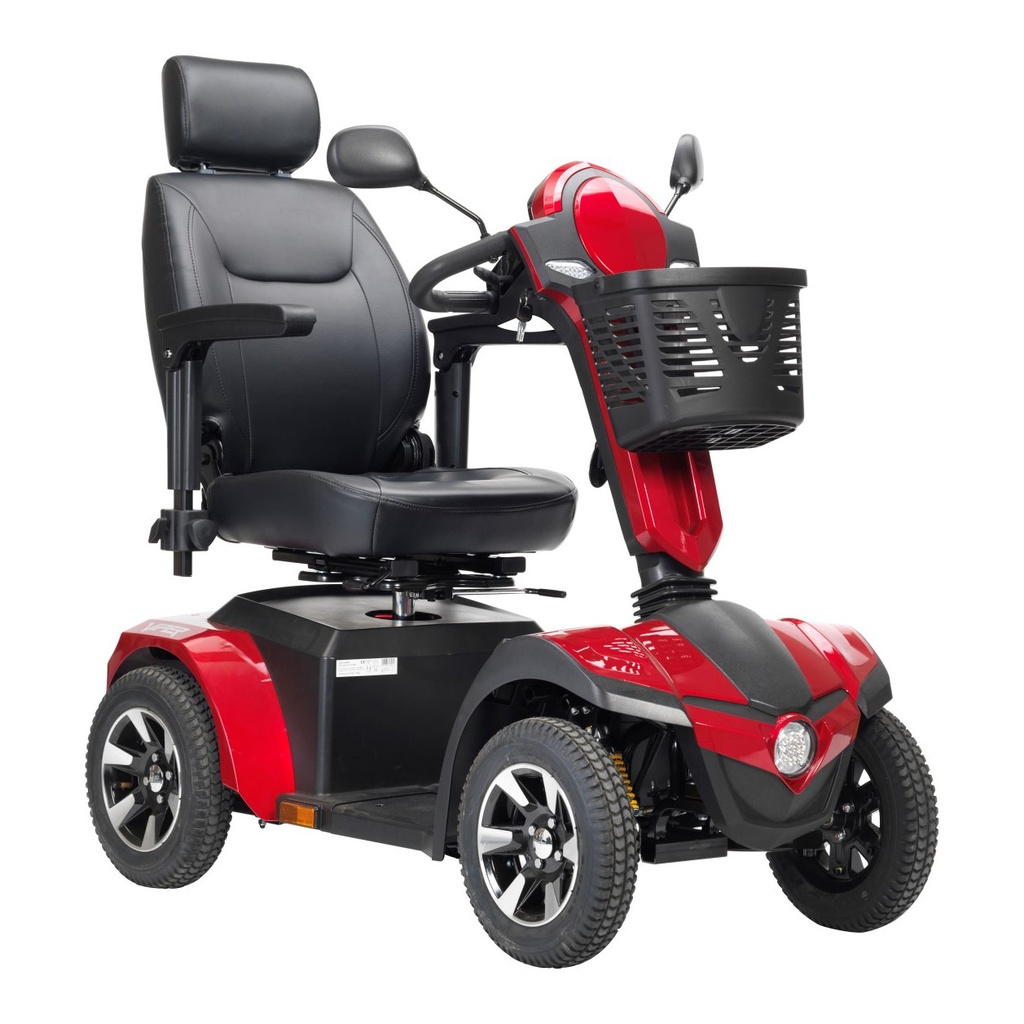

The Drive Panther is a heavy four-wheel scooter with front and rear suspension. The two 50 Ah batteries come with it. Drive marks the speed and range as estimates.
Who it suits, and who should choose something else
- A rider up to 425 lbs (193 kg) who wants lights, mirrors and a captain's seat, and who is not lifting this into a car.
- Ground clearance is 4 in (102 mm). The climbing angle is 7.5 degrees. Width is 26 in (66 cm).
- Total weight is 264 lbs (120 kg): base 145 lbs, battery pair 64 lbs, seat 55 lbs. See travel scooters if the pieces have to go in a trunk.
- If you need a cushion or back support for posture, ask your therapist about a power wheelchair.
How it drives
- Length 56 in (142 cm), height 53 in (135 cm). Turning radius 53 in (135 cm). Estimated top speed 12.9 km/h (8 mph); estimated range 40 km (25 mi).
- Captain's seat, 22 in wide and 20 in deep with a 22 in back, a headrest, slider, swivel and recline. The seat is 55 lbs and its height adjusts on the seat post.
- 14 by 3 in pneumatic tires, front and rear, with 2.5 in anti-tip wheels. LED headlight, parking lights, turn signals and tail lights. Two mirrors.
- A 24 V, 800 W motor drives the rear wheels through a 120 A controller. Electromagnetic brakes include a park brake, and a freewheel mode lets you push it with the power off. Do not ride in freewheel.
- Colour is red.
Batteries come with it
- Two 12 V 50 Ah sealed lead-acid batteries, 64 lbs the pair, and a 5 amp off-board charger that plugs into the tiller console.
- Allow 8 to 12 hours for a new or flat pair, or 10 to 14 hours once a week if the scooter is only used now and then.

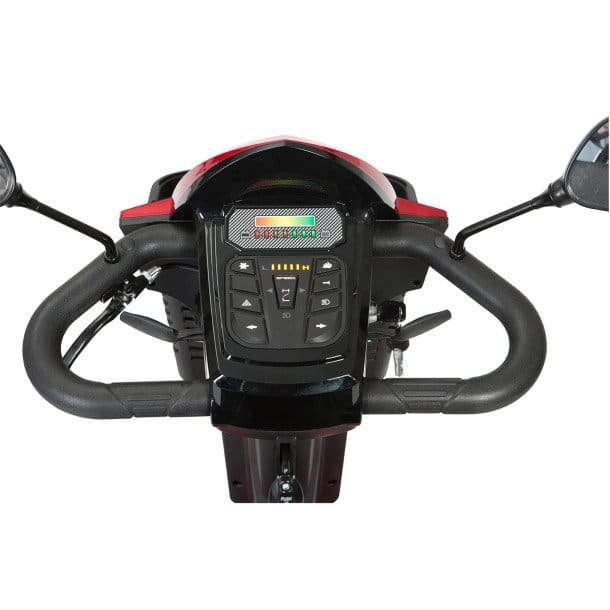

- The console has a key switch, speed dial, battery gauge, headlight, hazard lights, turn signals, horn and the charge port; the tiller adjusts through its arc on one lever.
- The seat lifts off and the tiller folds down, but the batteries are a workshop job with tools. We replace worn batteries.
Frequently asked questions
Is the 40 km range a promise?
No. Drive marks both the 40 km range and the 12.9 km/h speed as estimates. Rider weight, hills and tire pressure change them.
Can I take the batteries out to lighten it?
The pair is 64 lbs and the seat is another 55 lbs. Even then the base is 145 lbs. This is not a travel scooter.
Does it have a freewheel?
Yes. Freewheel lets someone push it. The brakes are off in that mode, so do not sit on it on a slope while it is in freewheel.
How long does charging take?
8 to 12 hours for a new or flat pair, or 10 to 14 hours once a week for occasional use.
Funding may help: see who may help pay.
Drive covers the frame, seat post, platform and welds for life, electronics and the motor for 24 months, and batteries for 12 months. See the Warranty tab.
Specifications
- Weight capacity
- 425 lbs (193 kg)
- Product weight
- 264 lbs (120 kg) as delivered; a 145 lb (66 kg) base, a 64 lb (29 kg) battery pair and a 55 lb (25 kg) seat
- Folding or disassembly
- Does not fold or come apart; the seat lifts off, the tiller folds down on one lever and the batteries are a workshop job with tools
- Seat width
- 22" (559 mm) as supplied; a 20" (508 mm) captain seat is also available
- Seat depth
- 20" (508 mm)
- Seat height
- Adjusts on the seat post, a nut and bolt job with the seat off; Drive publishes no seat height figure for this model
- Seat type
- Captain seat, fold-down reclining backrest, adjustable headrest, flip-up armrests and a slider, 55 lbs (25 kg); swivels in 45 degree steps and lifts off
- Tiller
- One-lever infinite angle adjustment; console has the key switch, speed dial, battery gauge, headlight, hazard lights, turn signals, horn and charge port
- Tires
- 14" x 3" (356 x 76 mm) pneumatic, front and rear; 2.5" anti-tip wheels
- Suspension
- Front and rear
- Overall width
- 26" (660 mm)
- Overall length
- 56" (1422 mm)
- Ground clearance
- 4" (102 mm)
- Turning radius
- 53" (1346 mm)
- Maximum slope
- 7.5 degrees (13.2%)
- Driving range
- Up to 40 km (25 mi) per charge on the included 50 Ah pair; an estimate that varies with rider weight, terrain and battery condition
- Top speed
- Up to 12.9 km/h (8 mph); Drive marks it an estimate that varies with rider weight, terrain and battery condition
- Brakes
- Electromagnetic brake with a park brake; a freewheel lever releases the drive so the scooter can be pushed with the power off
- Lights
- LED headlight, parking lights, front and rear turn signals and tail lights; dual rear-view mirrors
- Motor
- 24 V, 800 W, 4500 rpm, rear-wheel drive; Dynamic Rhino 2 120A controller
- Batteries
- Two 12 V, 50 Ah sealed lead-acid batteries (AGM or gel-cell), 64 lbs (29 kg) the pair, included; Drive lists a 75 Ah pair as an option
- Available colours
- Red
- Charging time
- 8 to 12 hours for a new or flat battery pair; 10 to 14 hours once a week when the scooter is used only now and then
- Battery charger
- 5 amp off-board charger, included; its cord plugs into the charge port on the tiller console
- Warranty
- Lifetime limited on the frame, seat post and platform; 24 months on the electronics, motor and gearbox; 12 months on the batteries; 1 year on accessories
- Product type
- Heavy Duty Scooter, 4-Wheel Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Panther heavy-duty 4-wheel scooter to the original purchaser against defects in materials and workmanship.
- Main frame, seat post, platform and frame welds: limited lifetime.
- Motor and gearbox, brakes (electromagnetic function), controller, PC board, harness, joystick, throttle and charger: 24 months.
- Batteries: 12 months, under the battery maker's own warranty.
- Accessories supplied by Drive: 1 year.
- Shrouds, tires, upholstery, armrest pads, fuses and other wear parts are covered only if defective on delivery.
- Excludes labour, service calls and shipping unless Drive authorizes them. Service is by an authorized Drive provider.
