Description

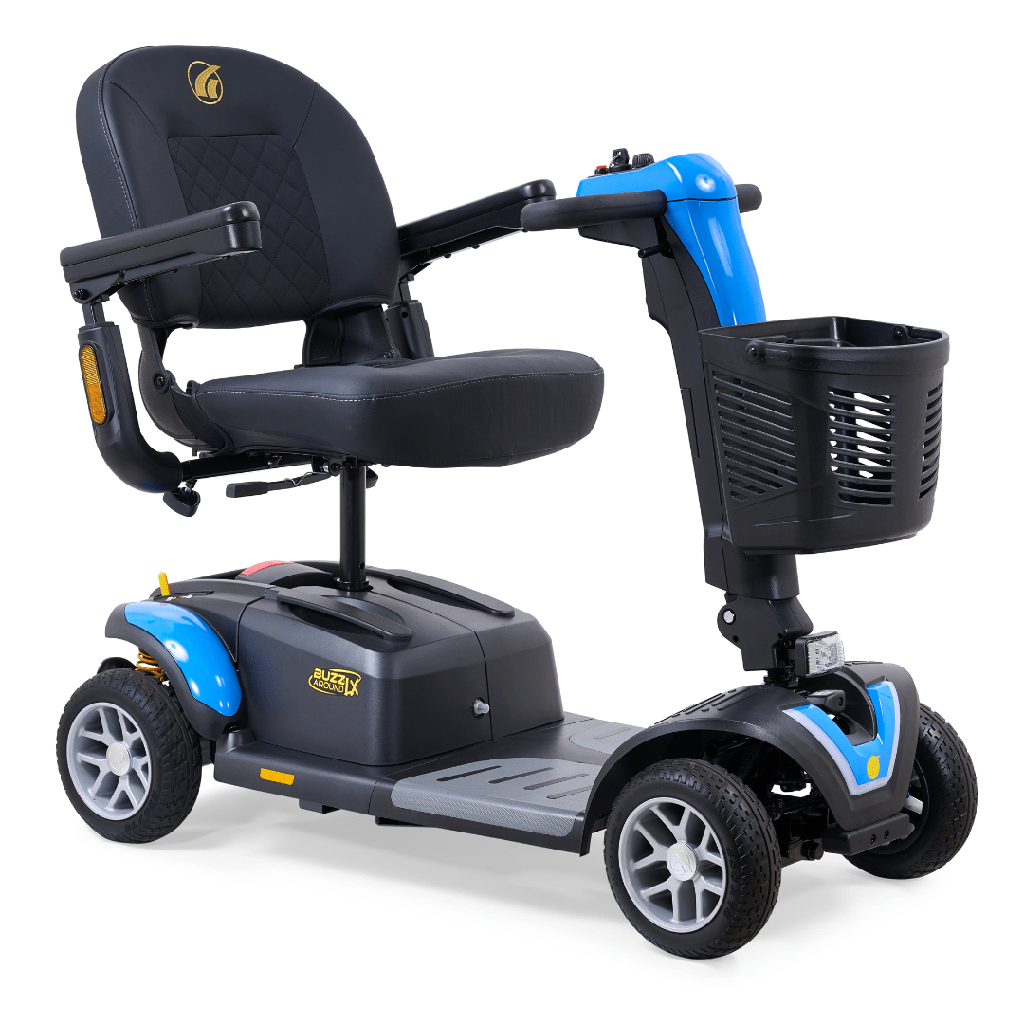

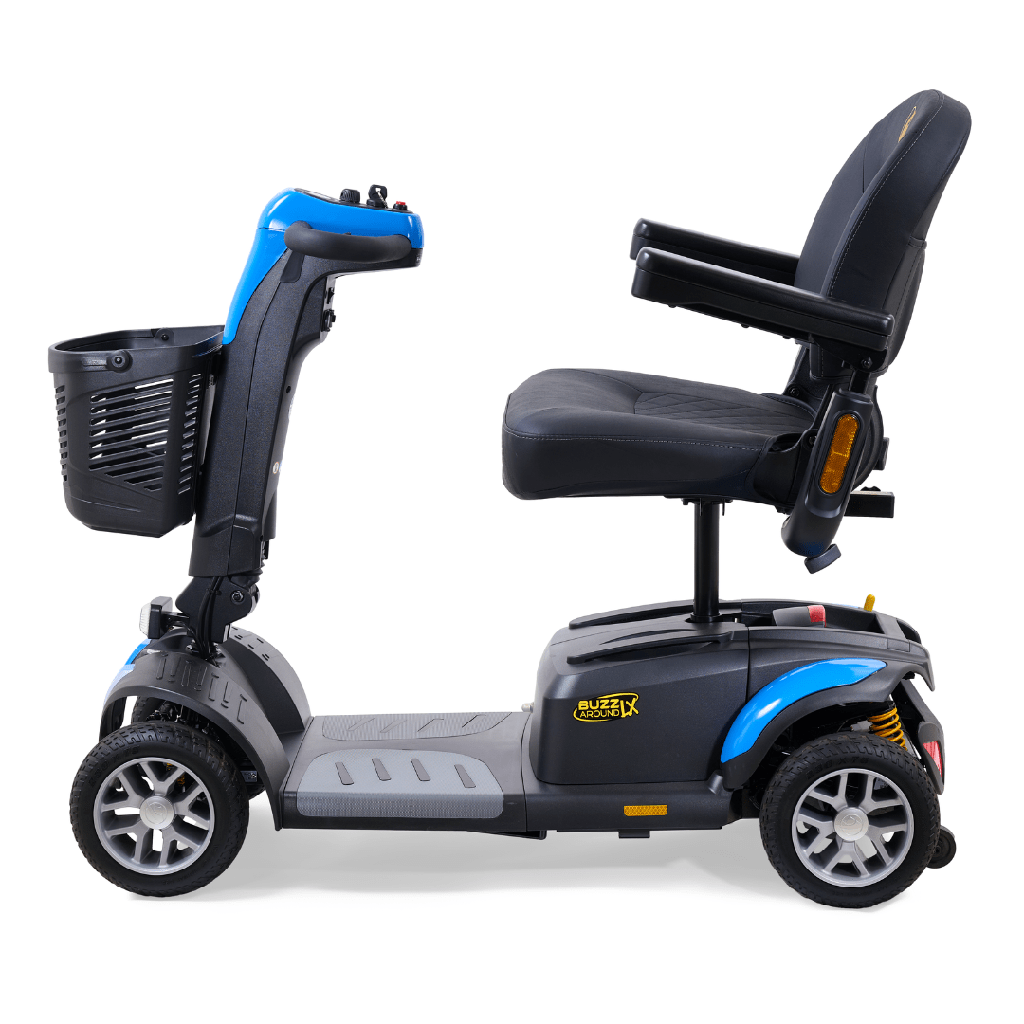

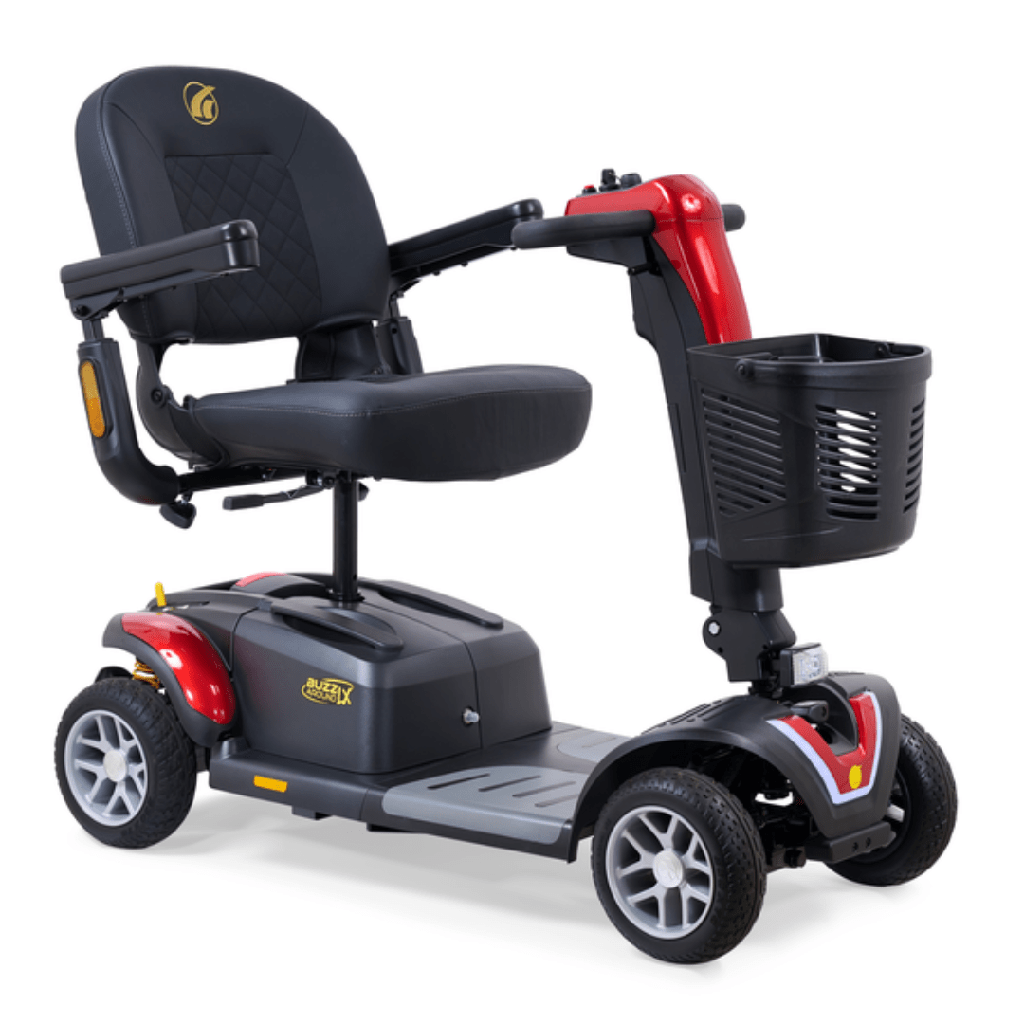

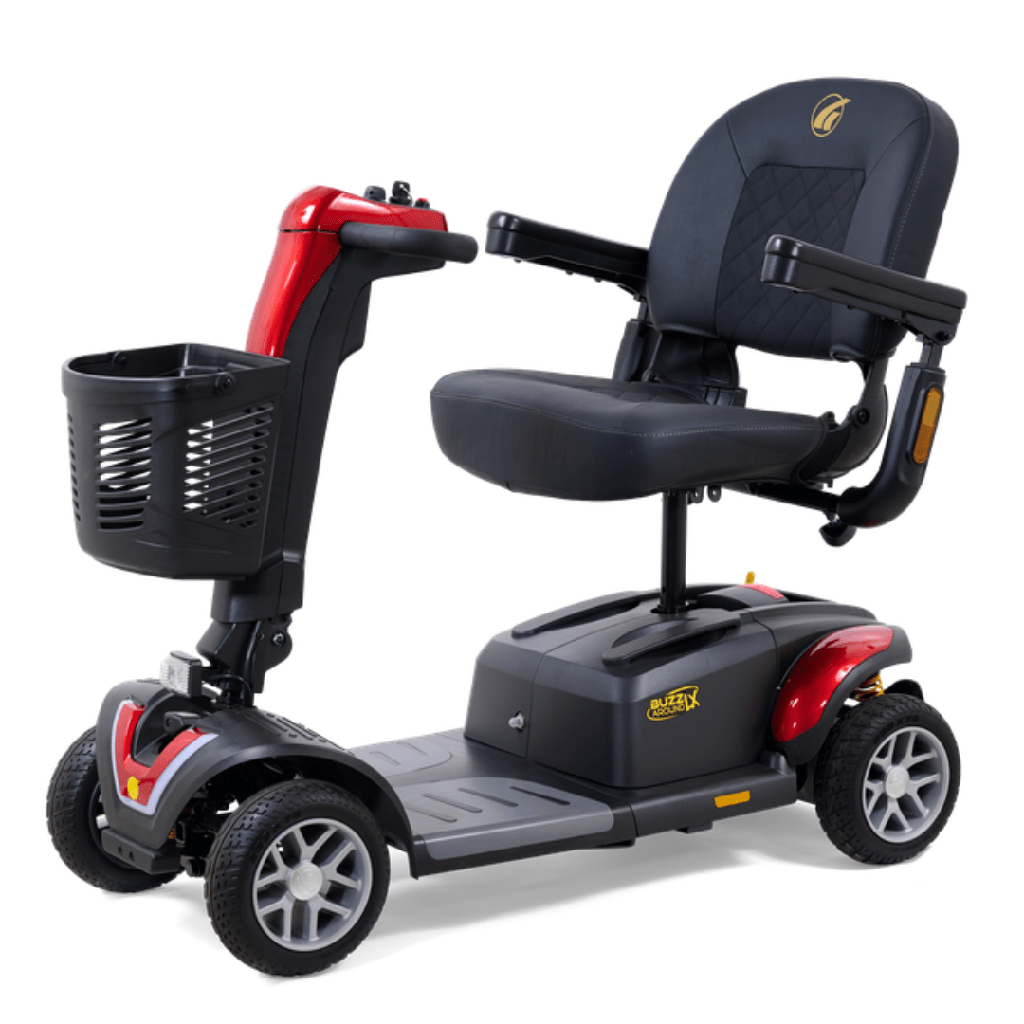

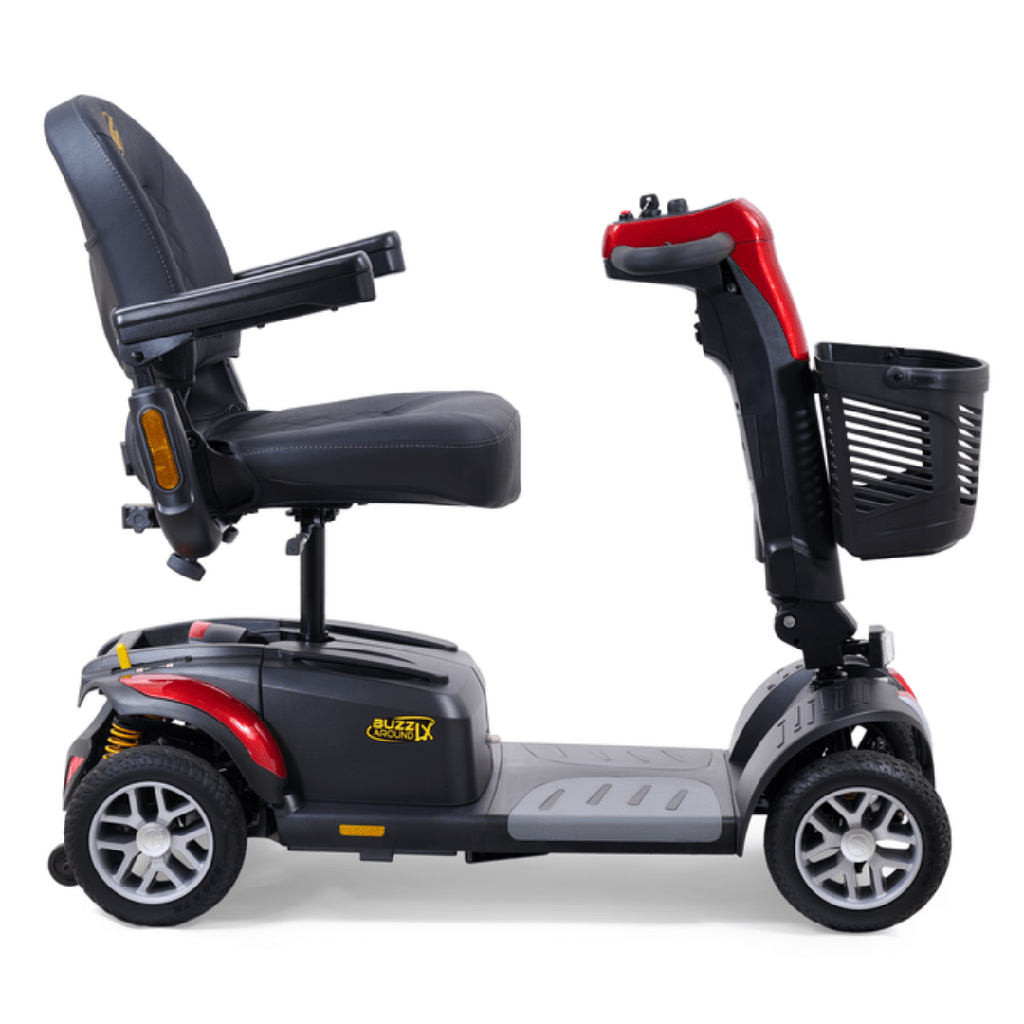

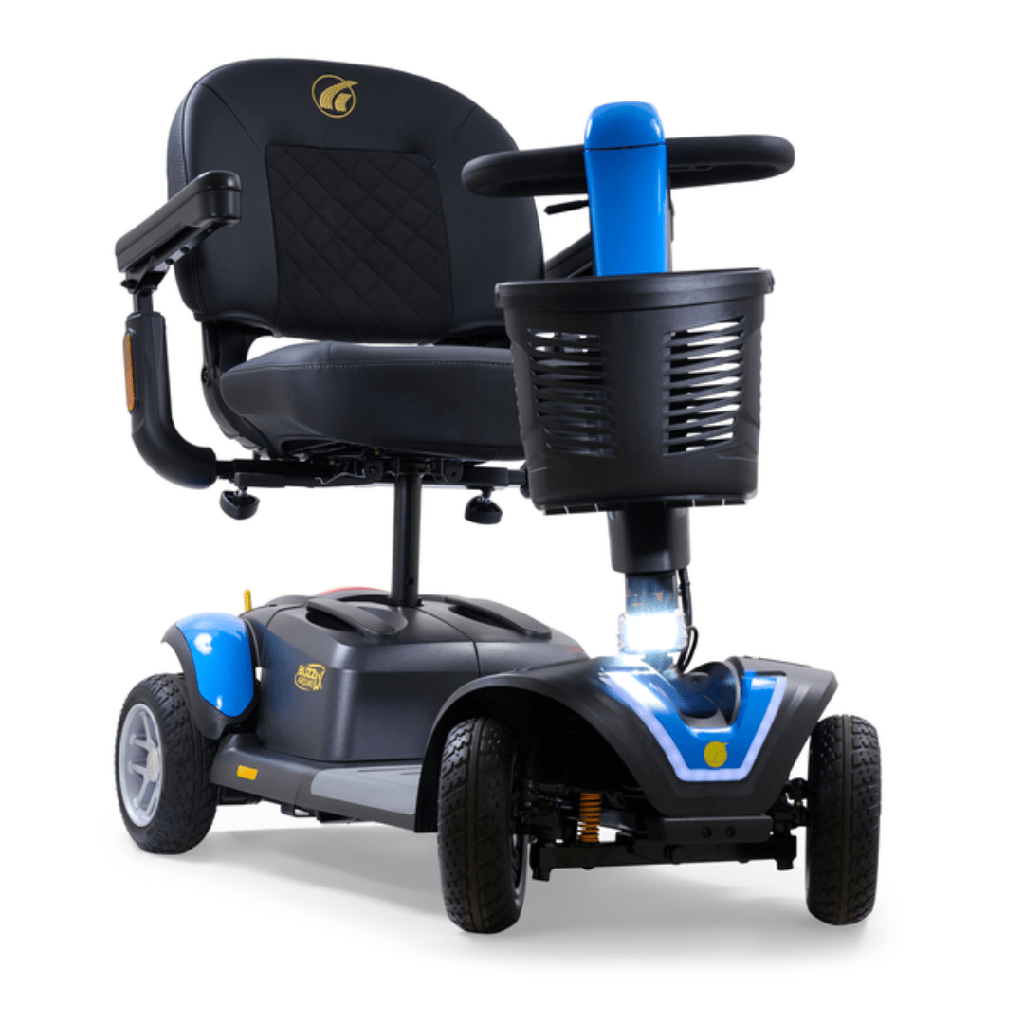

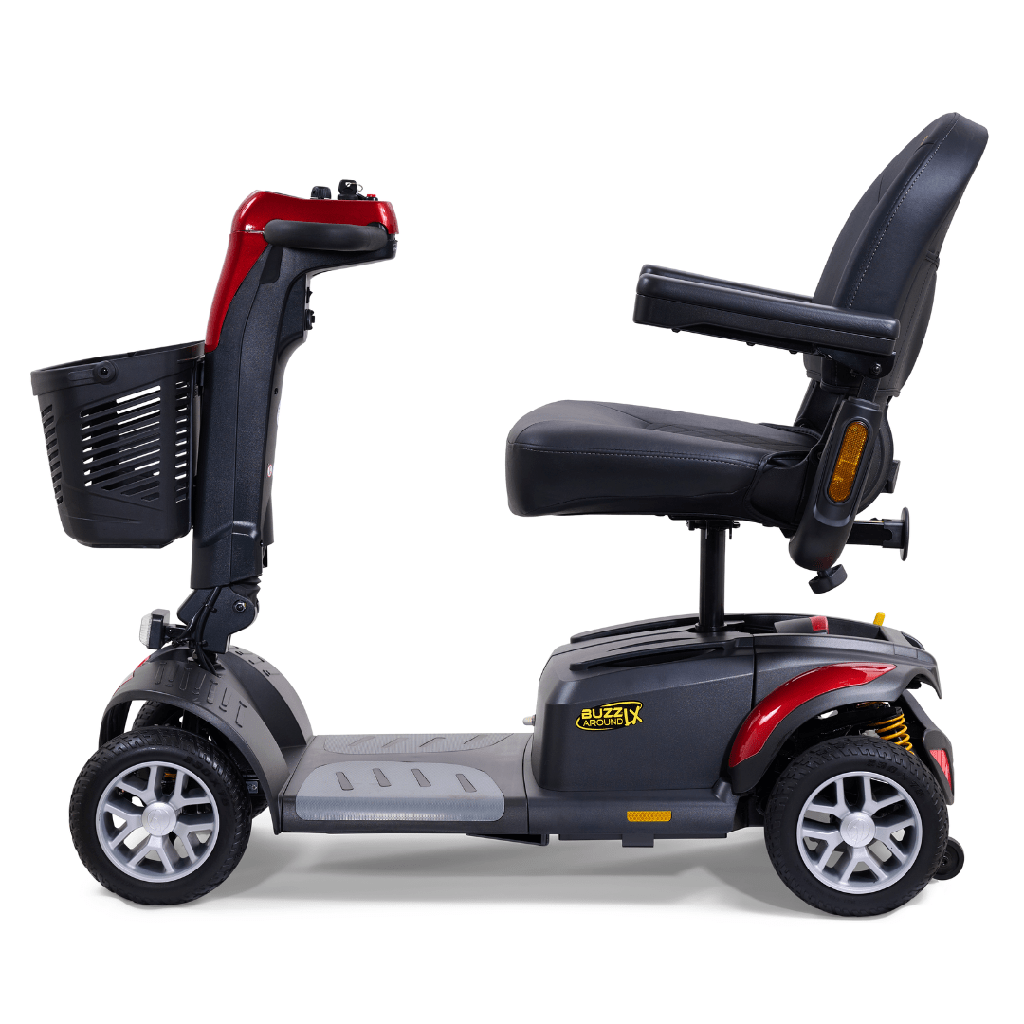

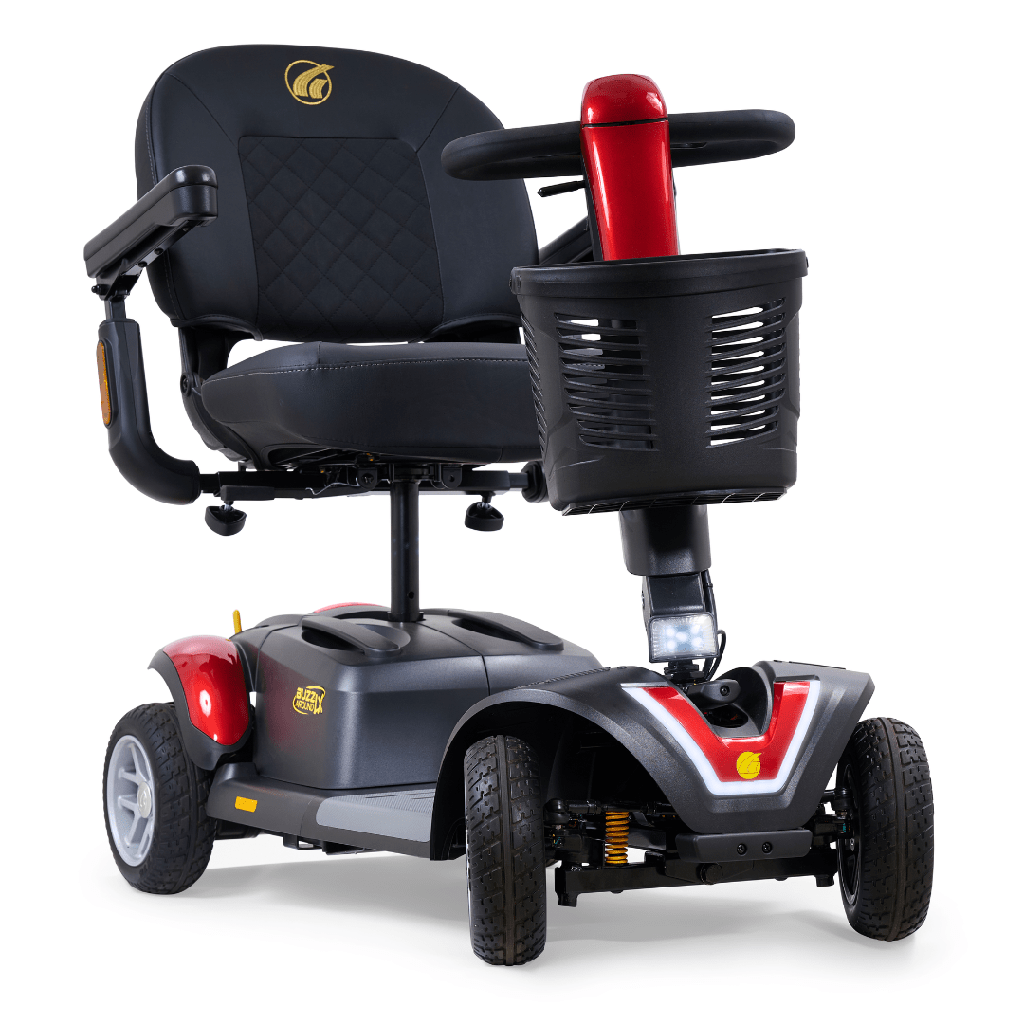

The Buzzaround LX 4-wheel (GB149) includes two U1 batteries. The front half is 57 lbs (25.9 kg), heavier than the three-wheel LX.
Who it suits, and who should choose something else
- A rider up to 375 lbs (170 kg) who can lift 57 lbs, or who has help, and who wants four wheels.
- Ground clearance is 4 in (10.2 cm). Solid 9 in tires and comfort-spring suspension.
- The three-wheel LX turns in 40.5 in and its front half is 50 lbs. If 57 lbs is too heavy, see travel scooters.
- If you need a cushion or back support for posture, ask your therapist about a power wheelchair.
Check the pieces
- Six pieces: the front half at 57 lbs, the rear half at 36 lbs, the seat with arms at 32 lbs and two 24 lb U1 packs. Assembled with batteries it is 174 lbs (79 kg).
- Length 44 in (112 cm), width 22 in (56 cm). Height is 37 to 39 in (94 to 99 cm) to the seat back, or 43.5 to 48.5 in with the headrest. Turning radius 54 in (137 cm); wheelbase 33.8 in (86 cm); deck height 6.75 in (17 cm).

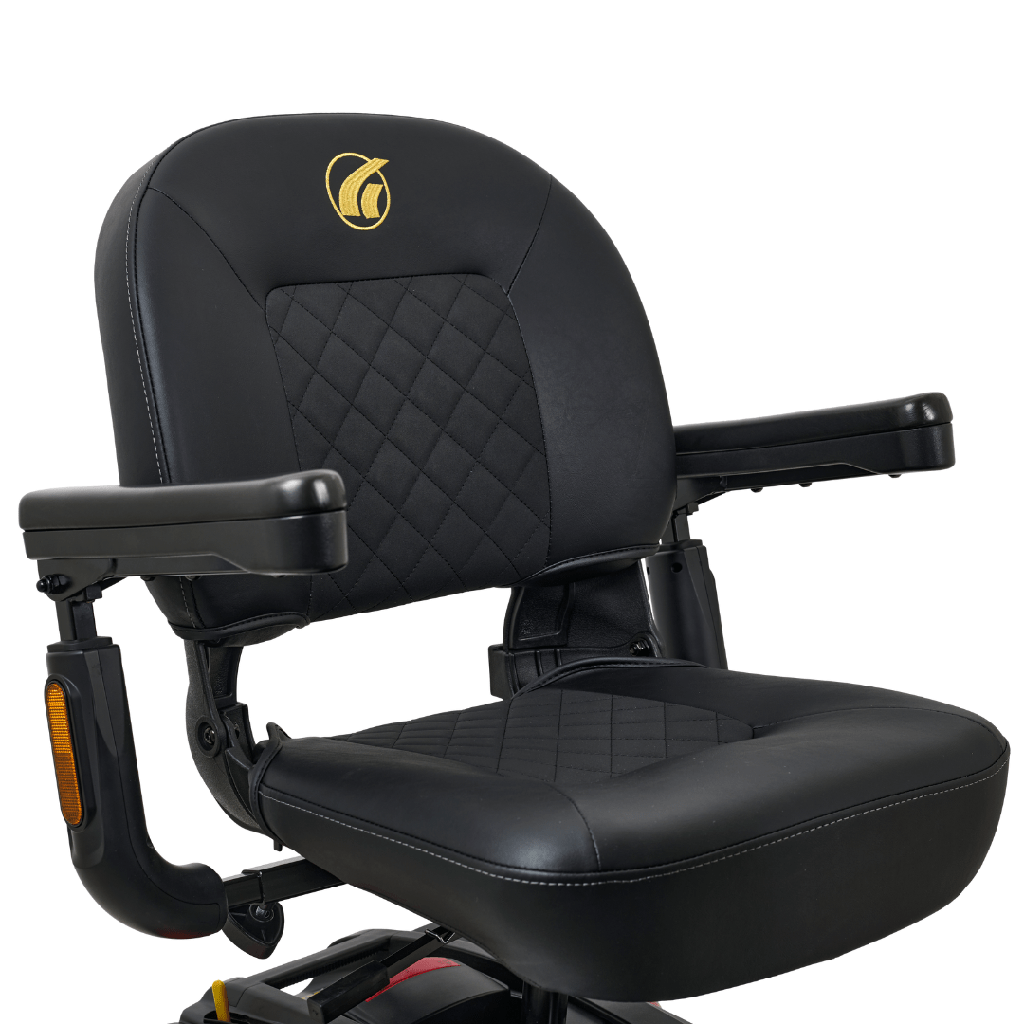

- The high-back seat is 17 in wide and 16 in deep with a 17 in back. It sits 21.75 to 23.75 in off the ground and 15.75 to 17.75 in above the deck in three 1 in positions. A 20 by 18 in stadium seat is optional.
- Solid 9 in tires with 2 in anti-tip wheels. A 90 A controller, freewheel mode, electronic speed control and electro-mechanical brakes; top speed up to 8 km/h (5 mph).
- The tiller adjusts infinitely with an EZ-reach lever, and carries USB and charging ports plus a cell phone holder. LED headlight, taillight and a front running light.
- Ask us which shroud colours we can supply with the unit; optional colour kits are separate.
Batteries come with it
- Two U1 packs, 24 lbs each. Range up to 29 km (18 mi) at 200 lbs, not at 375 lbs. The off-board charger is included.
- We replace worn batteries.
Frequently asked questions
Is GB149 the three-wheel?
No. GB149 is the four-wheel LX; GB119 is the three-wheel, with a 50 lb front half.
How wide a turn does it need?
The turning radius is 54 in (137 cm). The three-wheel LX is 40.5 in.
Are the batteries included?
Yes. Two U1 packs come with it. The 29 km range was tested at 200 lbs.
Funding may help: see who may help pay.
Golden covers the frame for life, the drive train and electronics for 2 years, and batteries for 1 year. See the Warranty tab.
Specifications
- Weight capacity
- 375 lbs (170 kg)
- Product weight
- 174 lbs (78.9 kg) assembled with batteries; front half 57 lbs, rear half 36 lbs, seat with arms 32 lbs, each U1 pack 24 lbs
- Folding or disassembly

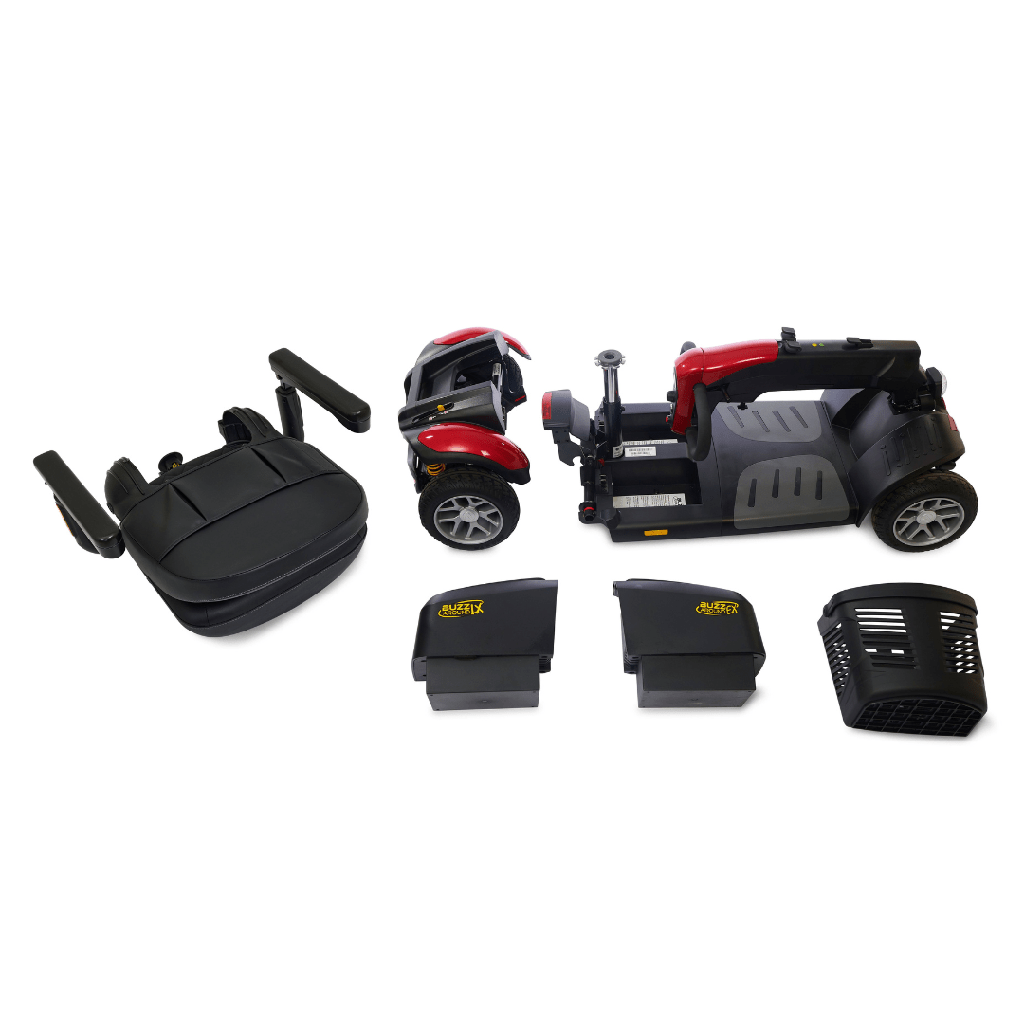

- Disassembles into six pieces: front and rear halves, seat, two battery packs and the basket
- Heaviest piece
- Front half, 57 lbs (25.9 kg)
- Seat width
- 17 inches standard; optional stadium seat 20 inches
- Seat depth
- 16 inches standard; optional stadium seat 18 inches
- Seat height
- 21.75 to 23.75 inches (55 to 60 cm) from the ground; 15.75 to 17.75 inches (40 to 45 cm) from the deck, three 1-inch positions
- Seat type
- High-back black vinyl seat, 17-inch back; optional 20 by 18 in stadium seat
- Tiller
- Infinitely adjustable with an EZ-reach lever; USB and charging ports and a cell phone holder on the tiller
- Tires
- Solid, low-profile 9-inch front and rear; 2-inch rear anti-tip wheels
- Suspension
- Comfort spring suspension
- Overall width
- 22 inches (55.9 cm)
- Overall length
- 44 inches (111.8 cm); 37 to 39 inches (94 to 99 cm) to the seat back, 43.5 to 48.5 inches with the headrest; 33.8 inches (86 cm) wheelbase
- Ground clearance
- 4 inches (10.2 cm)
- Turning radius
- 54 inches (137.2 cm)
- Driving range
- Up to 29.0 km (18 mi) with two U1 batteries at 200 lbs (91 kg)
- Top speed
- Up to 8.0 km/h (5 mph)
- Brakes
- Electro-mechanical brakes; freewheel mode for pushing; electronic speed control
- Lights

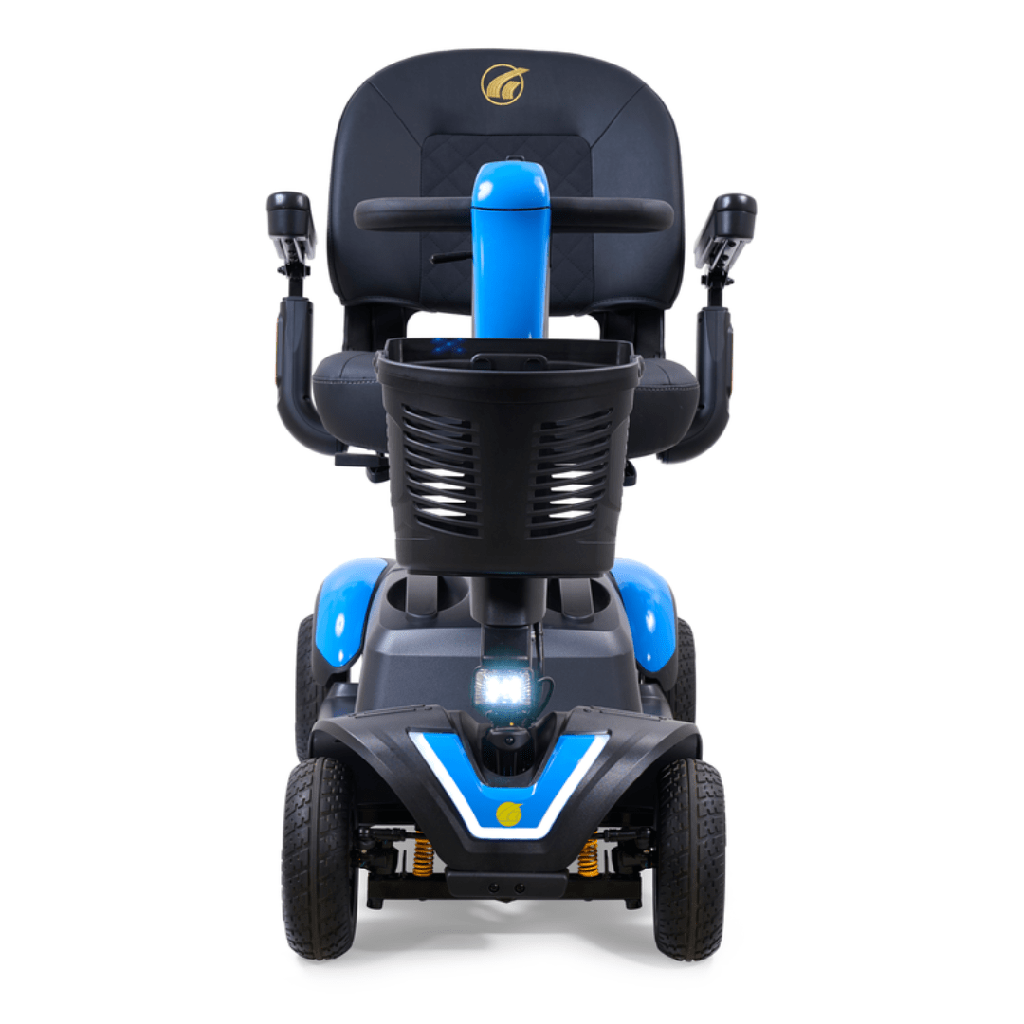

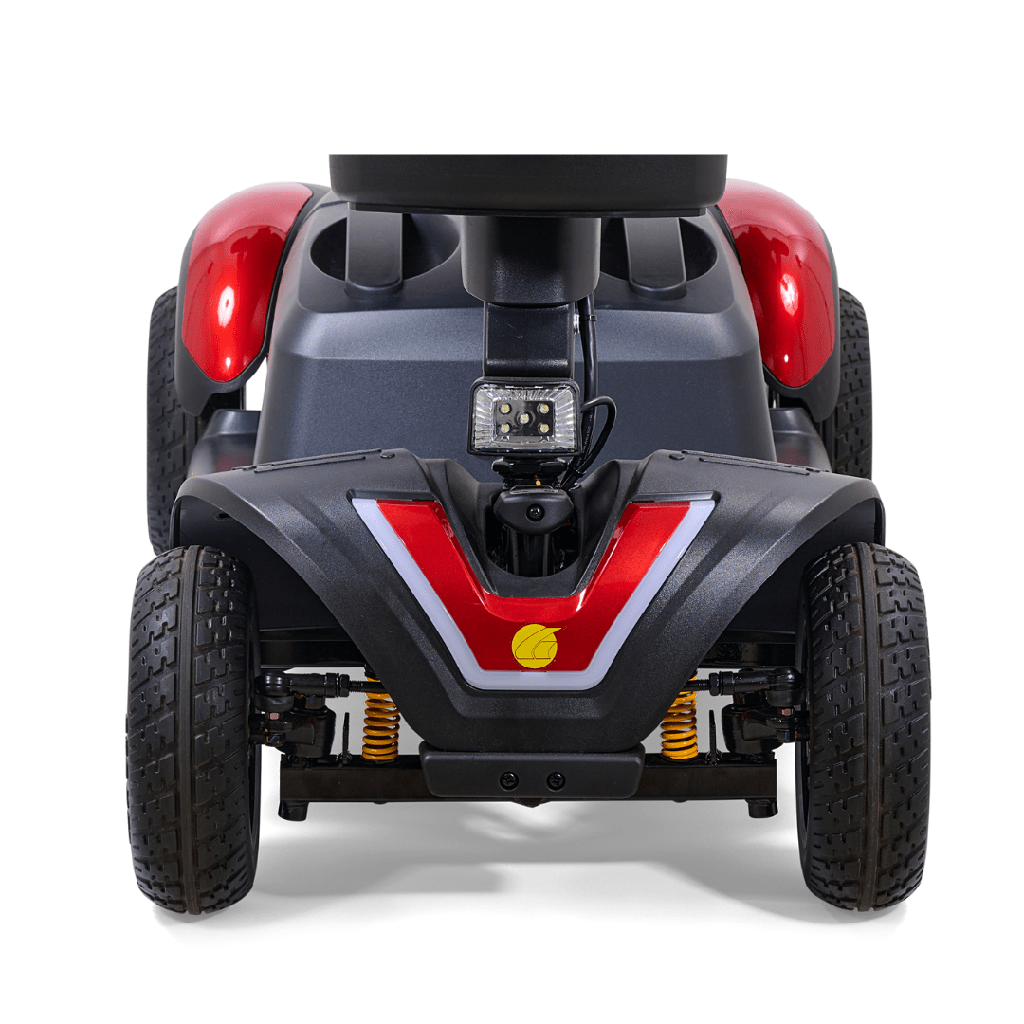

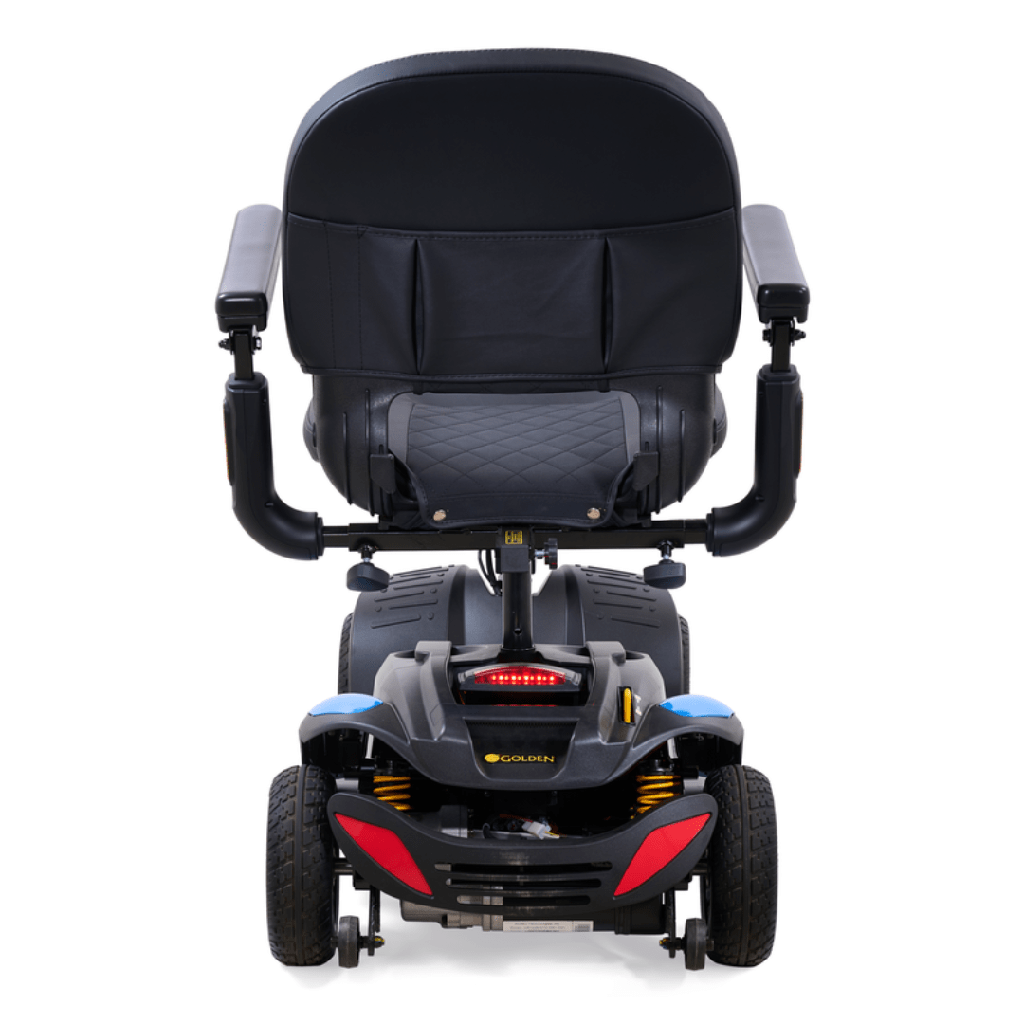

- LED headlight, taillight and a front running light
- Motor
- Rear-wheel drive; 90 A controller
- Batteries
- Two U1 battery packs, 24 lbs (10.9 kg) each, included
- Available colours
- Shroud colours confirmed with the unit; optional colour kits separate
- Battery charger
- Off-board charger; charging port on the tiller
- Warranty
- Lifetime frame; two years drive train and electronics; one year batteries
- Product type
- Portable 4-wheel scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Buzzaround LX 4-wheel (GB149) to the initial consumer, from the date of purchase from an authorized Golden provider, against defects in materials or workmanship.
- Steel frame, frame welds, tiller frame, front fork and seat post: lifetime limited.
- Transaxle and motor/brake assembly (electrical function): 2 years.
- Controller, dash, wire harnesses, potentiometer and battery charger: 2 years.
- Batteries supplied by Golden: 1 year.
- Bearings, bushings, rubber and plastic parts, seat swivel, armrests and accessories: 1 year.
- Excludes wear items (tires and tubes, motor brushes, brake pads, plastic shrouds, bulbs and fuses, upholstery, armrest pads), misuse, commercial use and exceeding the weight capacity.
- Parts only: labour, service calls and freight are the owner's cost. A warranty registration card must be on file.
