Description
The Golden Buzzaround XLS HD GB121B-SHZ is a three-wheel travel scooter rated 325 lb (147 kg), with comfort spring suspension and a 37.5 in (953 mm) turn.
What does it do and how does it work?
- A 50 A controller gives a top speed of 4 mph (6.4 km/h).
- Two 12 Ah batteries give up to 9 mi (14.5 km) at 200 lb; the 22 Ah XR option raises it to 18 mi (29 km).
- Solid low-profile tires (7.5 front, 8 rear), 4 in (102 mm) deck clearance and comfort spring suspension with hand-adjustable rear preload.
- An angle-adjustable LED headlight, USB port, phone holder and cup holder are standard.
- The wraparound delta tiller has finger and thumb controls; the stadium seat is 17 by 14.5 in with three height positions.
- It disassembles in four steps into five pieces; the front half weighs 35 lb (16 kg).
Who is it for, and who should choose something else?
- A rider up to 325 lb (147 kg) who wants a take-apart scooter.
- The 37.5 in (953 mm) turn suits tight aisles and small rooms.
- The four-wheel GB124A-SHZ has a 44 in turn.
- For postural support, ask your therapist about a power wheelchair.
Will it fit?
- Length 41 in (1041 mm), width 20 in (508 mm) and turning radius 37.5 in (953 mm).
- The seat is 17 by 14.5 in (432 by 368 mm) and sits 22.25 to 23.75 in (565 to 603 mm) high.
- It weighs 100 lb (45 kg); the front half is 35 lb and the rear half 28 lb.
- Measure the doorway and car opening; a free home assessment checks both.
Using it day to day

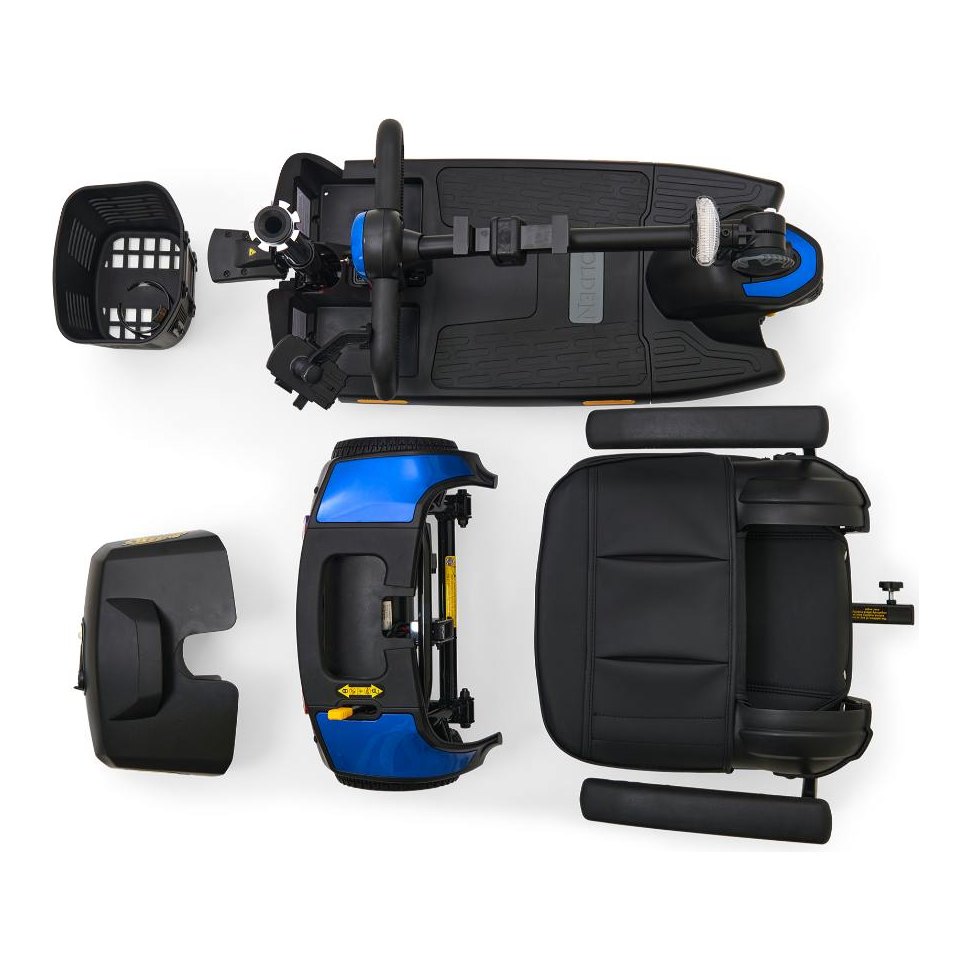

- Release the frame, lift off the seat and basket, and separate the halves; no tools are needed.
- Charge for 6 to 8 hours after use, and 12 hours the first time.
- The freewheel lever lets you push it on level ground; never use it while seated or on a slope.
- The seat has three height positions, and the tiller angle adjusts for the rider.
What does it work with, and what are its limits?
- The 325 lb (147 kg) capacity includes the rider and anything carried.
- The maximum incline is 6 degrees; never take a curb over 4 in (102 mm) or back over one.
- Use AGM or gel batteries only, and replace both together.
- The airline must approve it, and range falls with weight and terrain.
Which version should I choose?
- This three-wheel model for the tightest turn; the four-wheel GB124A-SHZ for outdoor stability.
- The 12 Ah pair for shorter trips, or the 22 Ah XR option for 18 mi.
- Red and blue are standard; optional shrouds come in six more colours.
How does it compare?
The four-wheel GB124A-SHZ adds outdoor stability but turns in 44 in. The travel scooter range lists other take-apart models.
Frequently asked questions
Is this the three-wheel or four-wheel XLS HD?
This is the three-wheel GB121B-SHZ; the four-wheel model is GB124A-SHZ.
What do I lift into the car?
The heaviest piece is the 35 lb (16 kg) front half; the whole scooter is 100 lb.
Does the 22 Ah pack come standard?
No. Two 12 Ah batteries are standard; the 22 Ah XR pack is the option.
How long does charging take?
6 to 8 hours after use, or 12 hours for a new pack.
Golden covers the frame for life, the drivetrain and electronics for 2 years, and the batteries for 1 year. Our service team services what we sell.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 325 lb (147 kg)
- Product weight
- 100 lb (45 kg) assembled
- Folding or disassembly
- Four-step disassembly into five pieces
- Heaviest piece
- 35 lb (16 kg) front half
- Seat width
- 17 in (432 mm)
- Seat depth
- 14.5 in (368 mm)
- Seat height
- 22.25 to 23.75 in (565 to 603 mm), three positions
- Seat type
- Stadium style, black vinyl, 14.75 in back, 21 lb with arms
- Tiller
- Wraparound delta tiller with finger and thumb controls
- Tires
- Solid low profile; 7.5 in front, 8 in rear, 2 in anti-tippers
- Suspension
- Comfort spring; rear preload adjusts by hand
- Overall width
- 20 in (508 mm)
- Overall length
- 41 in (1041 mm)
- Ground clearance
- 4 in (102 mm) under the deck
- Turning radius
- 37.5 in (953 mm)
- Maximum slope
- 6 degrees
- Driving range
- Up to 9 mi (14.5 km) on 12 Ah at 200 lb; 18 mi (29 km) on the 22 Ah XR pack
- Top speed
- 4 mph (6.4 km/h)
- Controller
- 50 A
- Brakes
- Electromechanical
- Lights
- Angle-adjustable LED headlight
- Batteries
- Two 12 Ah AGM or gel standard; two 22 Ah XR optional
- Available colours
- Red and blue; optional shroud kits in white, yellow, grey, tan, pink and green
- Charging time
- 6 to 8 hours; 12 hours for new batteries
- Battery charger
- Off-board
- Maximum obstacle
- 4 in (102 mm)
- Warranty
- Lifetime frame; 2-year drivetrain; 2-year electronics; 1-year batteries
- Product type
- Travel scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Buzzaround XLS HD 3-wheel (GB121B-SHZ) to the initial consumer, from the date of purchase from an authorized Golden provider, against defects in materials or workmanship.
- Steel frame, frame welds, tiller frame, front fork and seat post: lifetime limited.
- Transaxle and motor/brake assembly (electrical function): 2 years.
- Controller, dash, wire harnesses, potentiometer and battery charger: 2 years.
- Batteries supplied by Golden: 1 year.
- Bearings, bushings, rubber and plastic parts, seat swivel, armrests and accessories: 1 year.
- Excludes wear items (tires and tubes, motor brushes, brake pads, plastic shrouds, bulbs and fuses, upholstery, armrest pads), misuse, commercial use and exceeding the weight capacity.
- Parts only: labour, service calls and freight are the owner's cost. A warranty registration card must be on file.
