Description

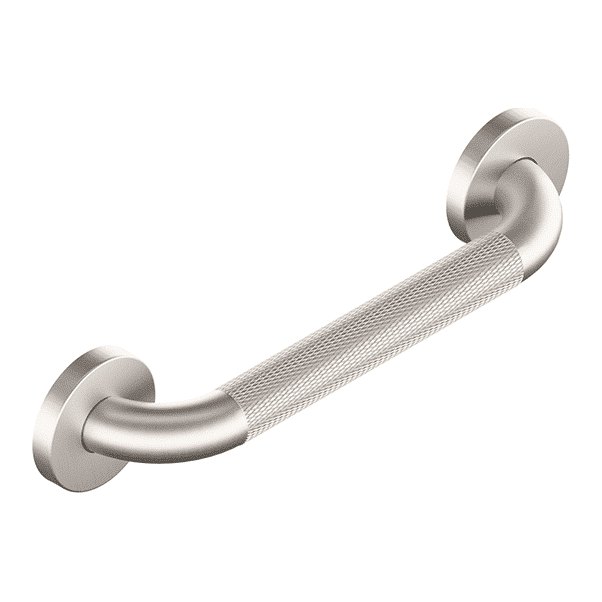

The HealthCraft G125SK knurled Easy Mount grab bar is a screw-in wall handhold in #304 stainless steel, sold in six lengths from 12 to 42 in. HealthCraft Products rates the 12, 18 and 24 in bars at 500 lb (227 kg) and the 32, 36 and 42 in bars at 400 lb (181 kg).
What does it do and how does it work?
- Tube: 1.25 in (32 mm) diameter, standing 1.50 in (38 mm) off the wall on a 3.00 in flange.
- Finish: knurled #304 stainless steel for a wet room, with flange covers that hide the screws.

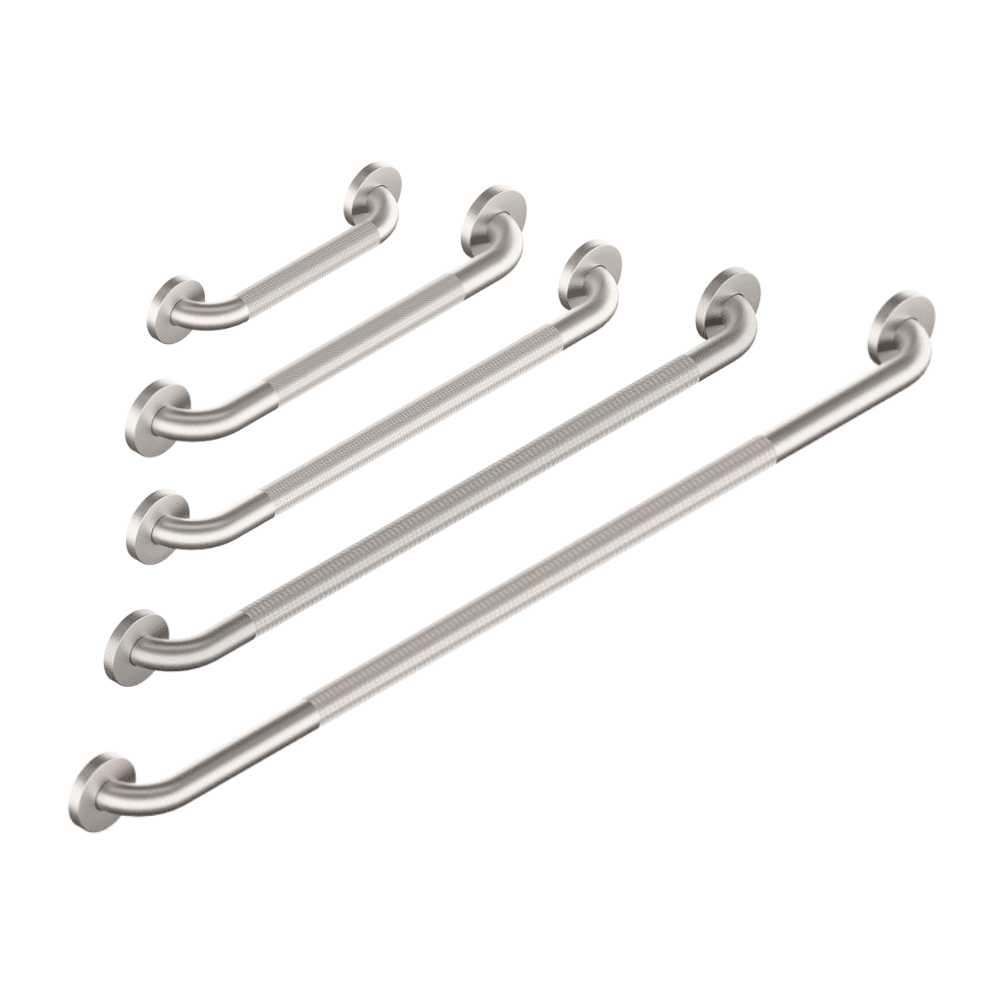

- Lengths: 12, 18, 24, 32, 36 and 42 in (305, 457, 610, 813, 914 and 1067 mm).
- Fasteners: six #10 by 2 in stainless wood screws into pilot holes.
Who is it for, and who should choose something else?

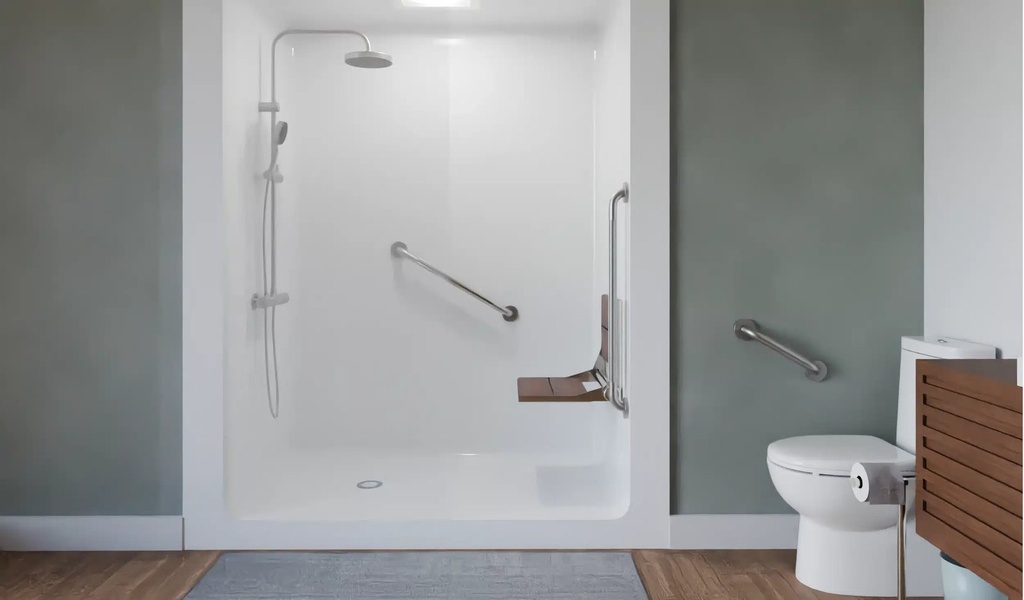

- For a fixed handhold to sit down or stand up at the toilet, shower or tub.
- It is not for carrying full body weight; talk through that need at a free home assessment.
- For a wall that cannot take screws, see super poles or PT rails.
Will it fit?
- Fasten into a wood stud, or across two studs at an angle, and add wood blocking where there is none.
- Never into metal studs, a wall you cannot see behind, or a fibreglass or acrylic shower that is not stiff enough.
- Easy Mount hollow-wall anchors are sold separately, rated 300 lb (136 kg), and need 3.5 in behind the wall.
- The 36 in bar is stocked but not on the size picker, so ask us before ordering it.
Choose the length
Pick the length that lands the screws in wood. Centre to centre is a half inch shorter, from 11.5 in on the 12 in bar to 41.5 in on the 42 in bar. Bathroom safety items are non-returnable, so measure first.
Using it day to day
- Level the bar, mark and drill pilot holes, drive the six screws and add waterproofing where needed.
- Slide the flange covers on, then check and tighten any screw that loosens.
- Clean with mild soap and a soft cloth; skip scouring pads and corrosive or abrasive cleaners.
What does it work with, and what are its limits?
- The 500 lb (227 kg) rating covers the 12, 18 and 24 in bars; the 32, 36 and 42 in bars are rated 400 lb (181 kg).
- Neither is a full body weight rating, and the installation has to be sound for either to hold.
- Limited lifetime warranty for the original purchaser; see the Warranty tab.
How does it compare?
The AquaSense knurled chrome grab bar has rotating flanges and is rated 250 lb (113 kg) into studs. The rest of our fixed bars are under grab bars.
Frequently asked questions
What wall does it need?
A wood stud or added wood blocking. Do not fit it into metal studs or a wall with nothing behind the drywall.
Can I use hollow-wall anchors?
Yes, HealthCraft's Easy Mount anchors are sold separately and rated 300 lb. They need 3.5 in of space behind the wall.
Is it safe when wet?
The knurl gives a wet hand texture, but HealthCraft warns the rail and tub are slippery when wet.
Funding may help with bathroom changes: see who may help pay.
Specifications
- Weight capacity
- 500 lb (227 kg) on 12, 18 and 24 in; 400 lb (181 kg) on 32, 36 and 42 in. Not full body weight.
- Product weight
- 3 lb (1.4 kg) for 12 and 18 in; 4 lb (1.8 kg) for 24, 32, 36 and 42 in
- Assembly
- Six #10 x 2 in stainless wood screws into pilot holes; slide the flange covers on
- Material
- #304 stainless steel, knurled, suitable for a wet room
- Mounting
- Sound wall: wood studs or added wood blocking. Not metal studs. Anchors sold separately, 300 lb (136 kg).
- Available lengths
- 12", 18", 24", 32", 36" and 42" (305, 457, 610, 813, 914 and 1067 mm)
- Bar diameter
- 1.25" (32 mm) tube, 1.50" (38 mm) off the wall, 3.00" flange
- Finish
- Knurled stainless
- Centre spacing
- 11.5, 17.5, 23.5, 31.5, 35.5 and 41.5 in (292, 445, 597, 800, 902 and 1054 mm)
- Warranty
- Limited lifetime, original purchaser; misuse, wear and harsh cleaners excluded
- Product type
- Grab Bar
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
HealthCraft Products warrants the Easy Mount knurled stainless steel grab bars (GB-12-SK to GB-42-SK) against defects in materials and workmanship for the original purchaser.
- Term: limited lifetime.
- Covers the original purchaser only.
- Excludes damage from misuse, accidents or alteration, and normal wear and tear.
- Excludes damage from corrosive or abrasive cleaning products.
- HealthCraft is not liable for damage from faulty installation or from services performed by others.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
