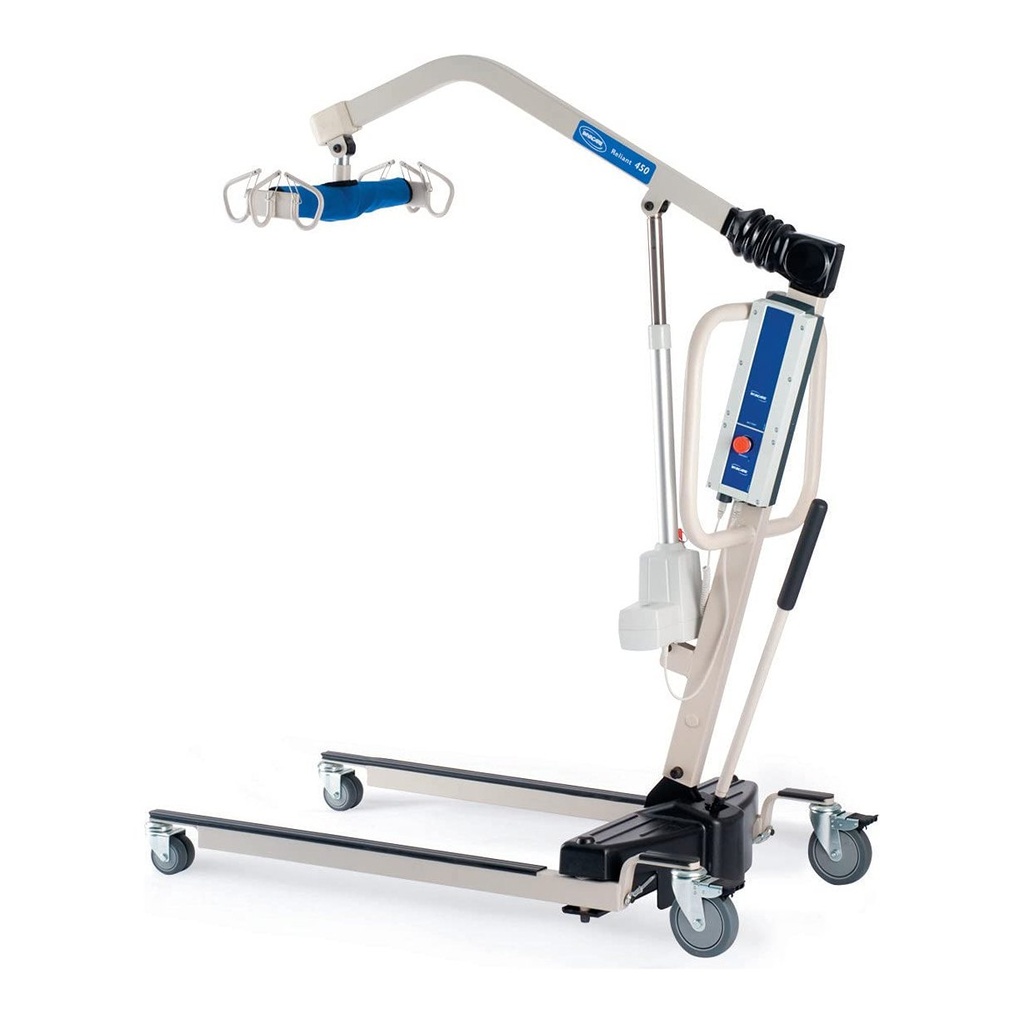

The Reliant RPL450-1 is a low-profile electric floor lift whose legs open by hand and whose boom rises on a 24V battery.
What does the low base change?
The base clears 4.5 in (11.4 cm). It is 26.5 in (67.3 cm) wide when closed and 41 in (104 cm) wide when open.
The base itself is 48 in (121.9 cm) long, which is the base length and not the overall length of the whole lift.
A shifter locks the legs open or closed. If they must close to pass under the bed, open them and lock the shifter before you lift.
How do you raise someone?

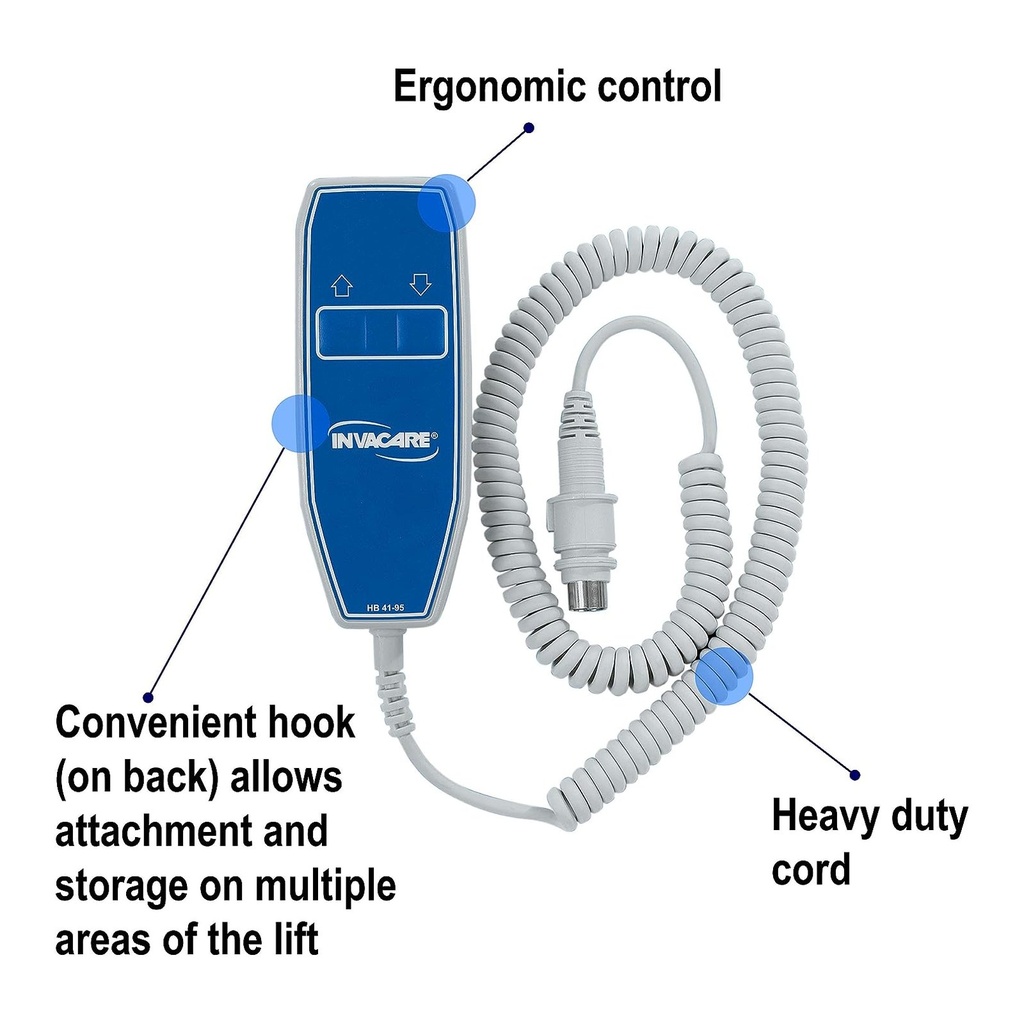

The pendant has up and down buttons. A red stop on the control box halts the boom, and a clockwise turn releases that stop.
Leave the rear casters unlocked while the boom rises, so the lift can settle instead of tipping.
The hanger bar has three hooks on each side, and the sling colours should match. Use only Invacare full-body, divided-leg, or toileting slings.
How is the battery handled?
The battery is 24V DC, part RCHBL. It comes off the lift and must click onto the wall charger, and a full charge takes about 6 hours.
Who should be in the room?
Two assistants are preferred for every transfer. One assistant is allowed only when a health professional has judged that case.
If the person weighs more than 450 lb (204.5 kg), look at heavy-duty patient lifts instead of this model.
How do you choose it?
A free home assessment checks the bed, the chair, and the path the base must roll.
Compare it with other patient lifts and electric floor lifts. A short need can start with patient lift rentals.
Floor lifts are delivered and set up across Toronto and the GTA.
The lift carries a three-year warranty; slings and electric parts carry one year.
Funding may help: see who may help pay.
Frequently asked questions
Is this lift meant to roll someone down a hallway?
No, it transfers a person between resting surfaces, such as a bed and a chair, and it is not a transport device.
Does the battery charge while it stays on the mast?
No, the battery comes off the lift and must click onto the wall charger before charging starts.
How many people should help with a transfer?
Two assistants are preferred, and one person is allowed only after a health professional has judged that case.
What if the legs must close to roll under the bed?
Close them only to pass under the bed, then open the legs and lock the shifter before you lift the person.
Specifications
- Weight capacity
- 450 lb (204.5 kg)
- Product weight
- 106 lb (48.2 kg) out of the carton
- Caster size
- 3 in (7.6 cm) front, 5 in (12.7 cm) rear
- Sling attachment
- Hanger bar with three hookup points per side
- Controls
- Hand pendant raises and lowers the boom; red stop on the control box

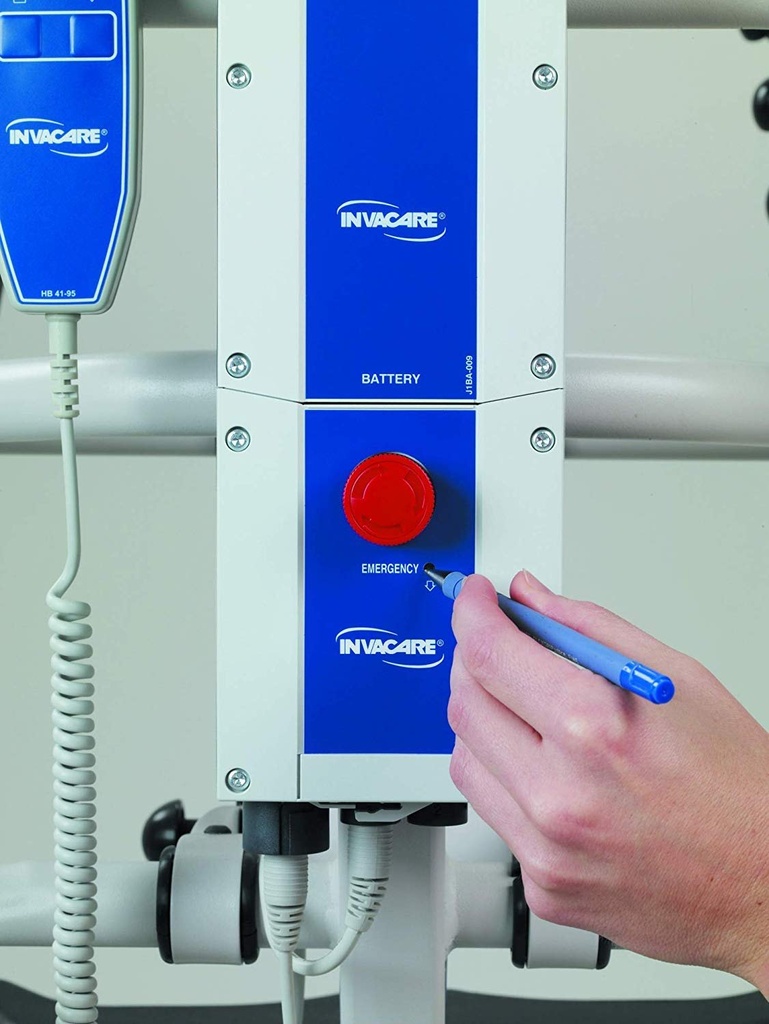

- Emergency lowering
- Pen in the control-box hole; the actuator retracts only under load
- Battery
- 24V DC (part RCHBL)
- Minimum lift height
- 24 in (61 cm) at the sling hookup
- Maximum lift height
- 74 in (188 cm) at the sling hookup
- Base width closed
- 26.5 in (67.3 cm)
- Base width open
- 41 in (104 cm)
- Base height
- 4.5 in (11.4 cm) clearance under the base
- Base widening
- Manual shifter locks the legs open or closed
- Compatible with
- Invacare full-body, divided-leg, and toileting slings
- Battery charger
- Wall charger, 100-240V AC in, 29.5V DC out, about 6 hours
- Lifts per charge
- 100 to 200 cycles per charge, varying with load and stroke
- Warranty
- 3 years on the lift; 1 year on slings and electric parts
- Product type
- Electric floor lift
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Invacare warrants the Reliant lift to be free from defects in materials and workmanship from the date of purchase. A product proven defective in that time is repaired or replaced, at Invacare's option.
- Lift: 3 years.
- Slings, hydraulic pump and electric components: 1 year.
- Covers the original purchaser or user only.
- Labour and shipping charges are not included.
- Excludes negligence, accident, improper use, maintenance or storage, changes or parts not approved by Invacare, normal wear, and use that does not follow the owner's manual.
