Description

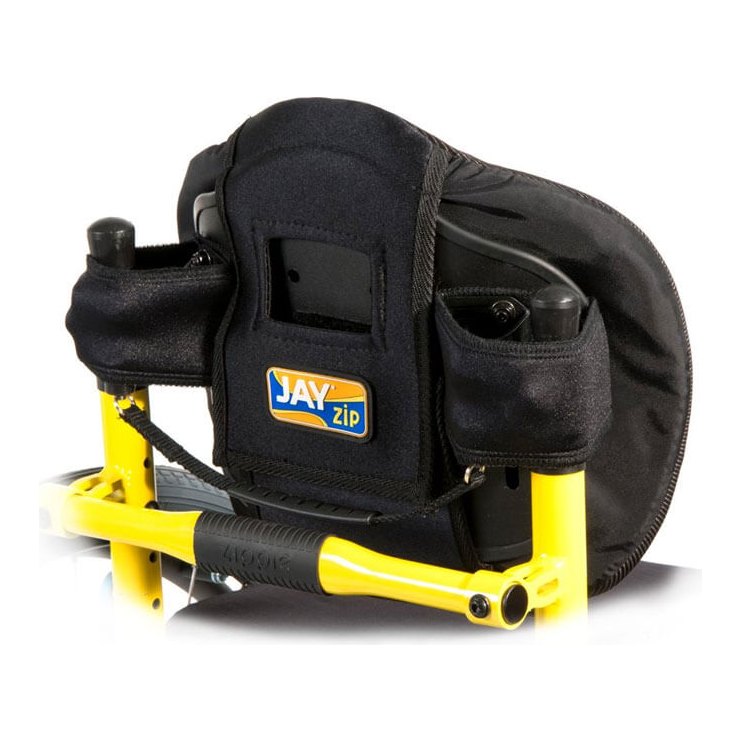

The JAY Zip is a pediatric wheelchair back from Sunrise Medical. It replaces the chair's sling upholstery with a contoured shell and foam.
What does it do and how does it work?
It gives posterior and mild lateral thoracic support, with 1 to 2.5 in (2.5 to 6.4 cm) of lateral contour that varies by width.
- A 12 by 12 in (30.5 by 30.5 cm) back weighs 2.5 lb (1.1 kg) with its hardware.
- Quick release hardware has two mounting points, 2.75 in (7 cm) of depth, 1 in (2.54 cm) of width adjustment and 20 degrees of angle.
Who is it for, and who should choose something else?
It suits a child from 25 to 165 lb (11.3 to 75 kg), about 2 to 15 years old, who needs more trunk support than a sling back gives.
- A child outside that weight range needs a different back.
Will it fit?
Measure the chair's back canes outside to outside before you choose.
- An 8 in back fits 7.7 to 9.3 in (19.6 to 23.6 cm); a 10 in back fits 9.7 to 11.3 in (24.6 to 28.7 cm).
- A 12 in back fits 11.7 to 14.3 in (29.7 to 36.3 cm); a 14 in back fits 13.7 to 16.3 in (34.9 to 41.3 cm).
- The canes must be 3/4 to 1 1/8 in (1.9 to 2.85 cm) across.
Using it day to day
The back lifts off its receivers for cleaning or transport.
- Pull the handle down, rotate the back up and lift it out; refit with the cord until it clicks.
- Machine wash the outer cover at 50 C (122 F), then drip or tumble dry on low. Do not dry clean, bleach or steam autoclave it.
- Wipe the shell and inner cover with soap and water.
What does it work with, and what are its limits?
It fits most manual chairs, but not a chair whose back angle passes 60 degrees from vertical.
- Do not fit it to a chair that reclines or tilts past 60 degrees: the back can disconnect.
- For vehicle travel, keep the shell top within 3 in (7.6 cm) of the child's shoulder.
- Spine Align inserts, lateral pads, chest straps and Whitmyer head supports are options.
Which version should I choose?
Choose the width, height and cover when you order.

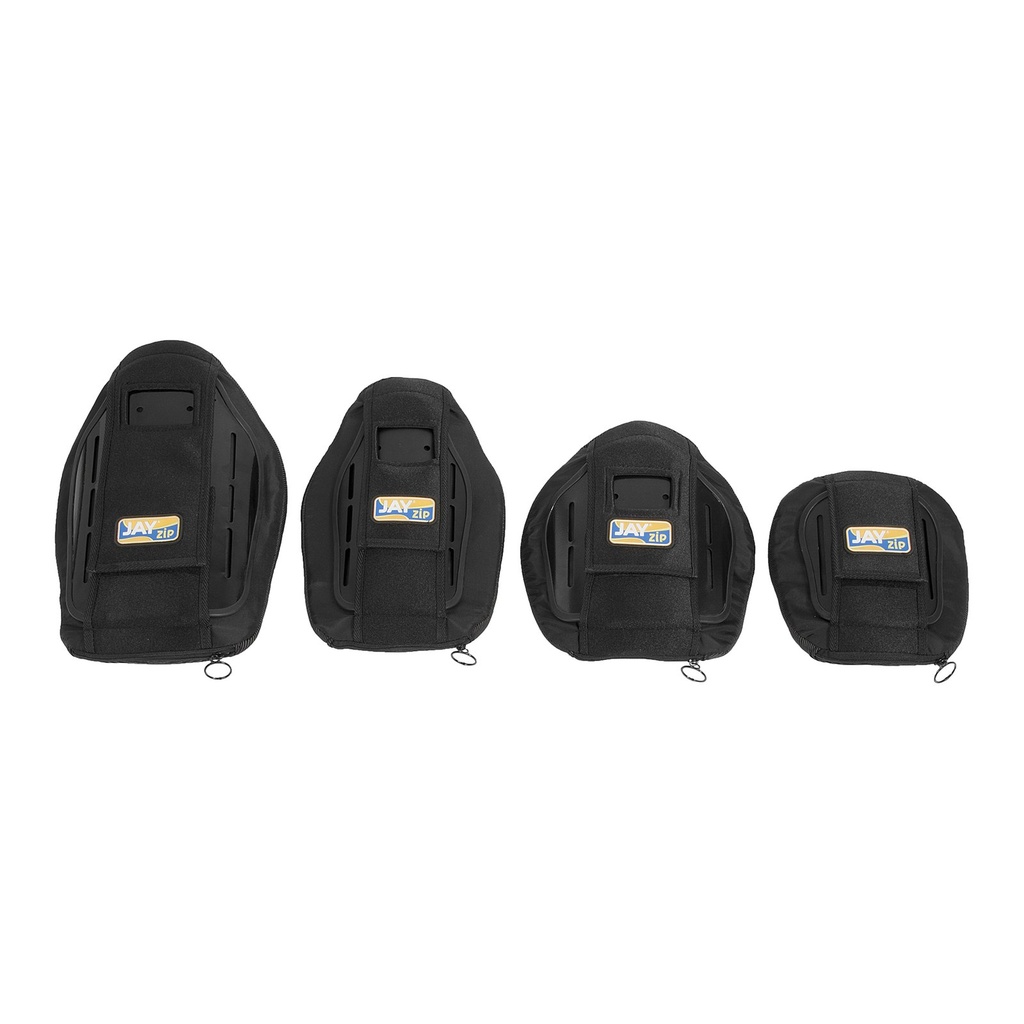

- Widths are 8, 10, 12 and 14 in (20.3, 25.4, 30.5 and 35.6 cm); heights are 6, 8, 10 and 12 in (15.2, 20.3, 25.4 and 30.5 cm).

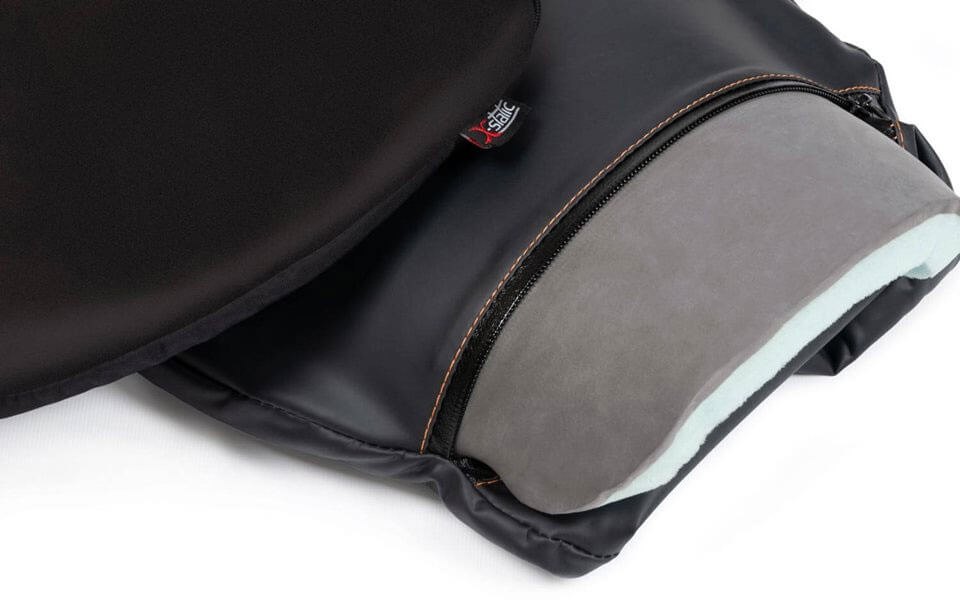

- The outer cover is machine-washable silver X-static stretch fabric.
How does it compare?
The backrest range covers adult backs; the Zip is sized for children. The cushions complete the seat. The positioning support range adds laterals, chest straps and headrests.
Frequently asked questions
Can the back be used in a vehicle?
Yes, with the shell top within 3 in (7.6 cm) of the child's shoulder. It is not a restraint: use the chair's tiedown and belt.
We have a tilt chair. Can we use it?
Only if the chair's back stays within 60 degrees of vertical. Past that it can disconnect, so we check the chair first.
Can the cover be replaced?
It unzips and machine washes. The 24 month warranty does not cover the removable cover.
Funding may help: see who may help pay. Warranty terms are in the Warranty tab.
Specifications
- Weight capacity
- 25 to 165 lb (11.3 to 75 kg) user weight
- Product weight
- 2.5 lb (1.1 kg) on a 12 by 12 in back with hardware
- Back height
- 6, 8, 10 or 12 in (15.2, 20.3, 25.4 or 30.5 cm)
- Back angle
- 20 degrees of hardware adjustment, 10 degrees forward or back
- Positioning support
- Posterior and mild lateral thoracic support; lateral contour 1 to 2.5 in (2.5 to 6.4 cm)
- Size
- Back width 8, 10, 12 or 14 in (20.3, 25.4, 30.5 or 35.6 cm)
- Mounting
- Quick release hardware with two mounting points: 2.75 in (7 cm) of depth and 1 in (2.54 cm) of width adjustment
- Compatible with
- Back canes 3/4 to 1 1/8 in (1.9 to 2.85 cm); not for chairs that recline or tilt past 60 degrees
- Warranty
- 24 months on materials and workmanship; excludes the removable cover, punctures, tears and burns
- Product type
- Pediatric wheelchair back support, built to size
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the JAY Zip Back against defects in materials and workmanship under normal use, from the date of purchase. Sunrise repairs or replaces it at its option; claims go through an authorized supplier.
- The back: 24 months.
- Not covered: the removable cover, and punctures, tears or burns.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
