Description

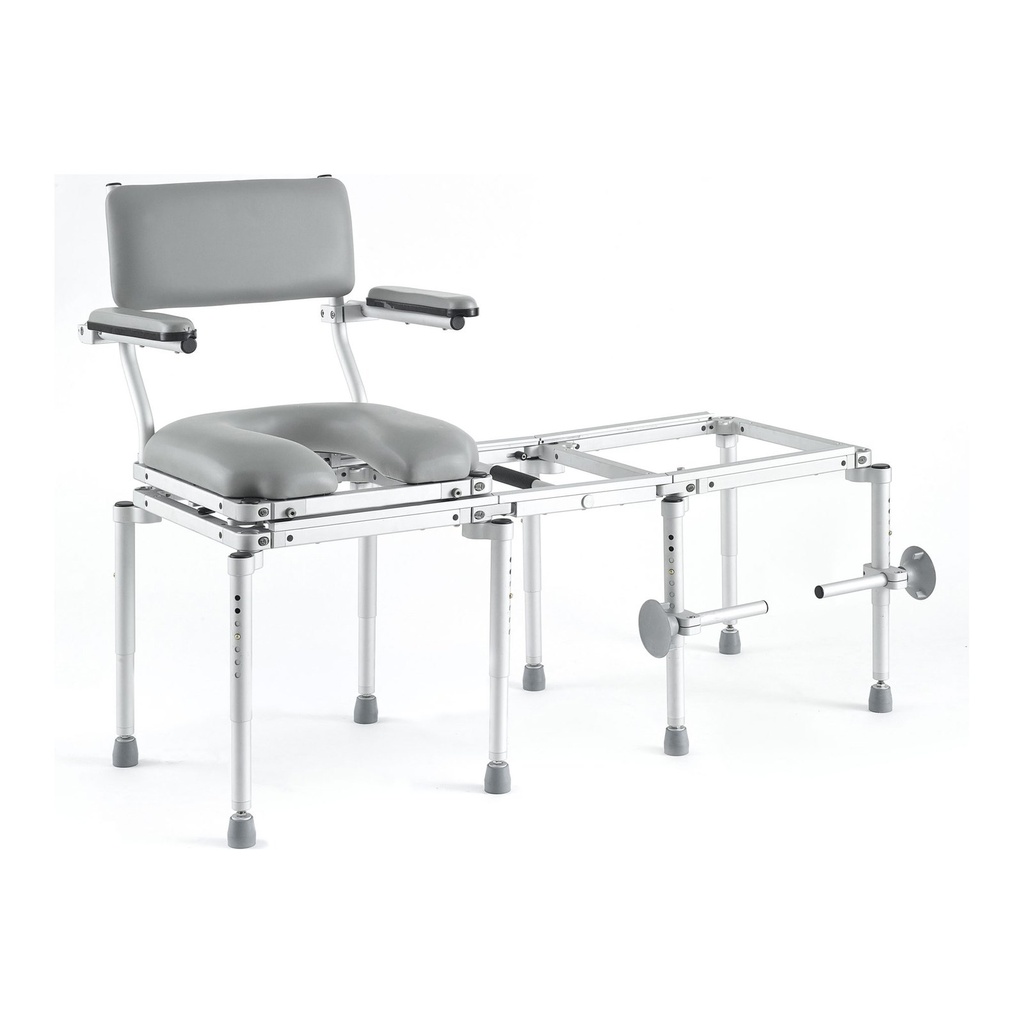

The NuProdx MC5000 is a stationary commode chair, shower chair and tub transfer bench in one. The seat slides from the section beside the tub, over a removable bridge, into the tub, so the hips do not rotate and nothing is lifted.
What does it do and how does it work?
- Sections: a commode section and a tub section, joined by a locking connector bridge.
- Seat: 17 by 17 in (43 cm) as standard, with a 17 by 20 in frame upgrade; the arms fold back.
- Slide: the seat runs on tracks over the bridge; left is the factory direction and right is available.
- Height: 21.5 to 25.5 in (55 to 65 cm) seat to floor, with the legs and crutch tips levelling both sections.
- Opening: an 8 in (20 cm) opening with a 4 in (10 cm) slot on the standard cushion.
- Build: aircraft-grade aluminum, brass and stainless steel, with hand-wrapped Naugahyde cushions.
- Weight: about 42 lb (19 kg), carrying up to 300 lb (136 kg).
Who is it for, and who should choose something else?
- For a wheelchair user who cannot reach the tub because the toilet is in the way.
- For a walker user who is not comfortable rotating the hips as a traditional transfer bench requires.
- For a rolling system, the MC6000 is the wheeled version; this one stays in place.
- If no commode is needed, a simpler transfer bench does the job.
Will it fit?
- The whole system spans 48 in (122 cm) from the commode section through the bridge to the tub section.
- Bridge length comes from the K measurement, the distance from the middle of the tub drain to the middle of the toilet.
- Measure the tub, toilet, threshold and doorway; a threshold over 1/2 in (1.3 cm) must be made accessible.
- Book a free home assessment and we measure the room with you.
Using it day to day
- Fit the legs and backrest, level both sections and lock the bridge with its shoulder screws.
- Set the height before the user is transferred in, and check the fasteners before each use.
- Slide the seat and make sure the release latch engages fully before crossing the bridge.
- The bridge lifts out for shower curtain closure or to give the carer more room.
- Clean the cushions and frame with normal household cleaner; it is for indoor bathroom use only, and outdoor use voids the warranty.
What does it work with, and what are its limits?
- It carries 300 lb (136 kg). Both backrest posts must be fully engaged, and the bridge fully seated in both sections, or a part can dislodge.
- The two sections must be level and the same height, or the slider will not work safely.
- Hard parts are covered for two years and cushions and arm pads for one year, by repair or replacement.
- Bathroom safety items are non-returnable under our return policy, so measure first.
How does it compare?
A transfer bench is simpler where the user can rotate the hips; the shower commode range has wheeled and tilt models.
Frequently asked questions
Do I need to measure my bathroom first?
Yes. The bridge length comes from the K measurement, from the middle of the drain to the middle of the toilet.
Does it roll?
No. Both sections stand in place and the seat slides between them.
Is a commode pan included?
No. The commode pan, footrests and splash guards are separate accessories.
Warranty terms are in the Warranty tab.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lb (136 kg)
- Product weight
- 42 lb (19 kg)
- Assembly
- The buyer fits the legs and the backrest, levels both sections and locks the connector bridge
- Seat width
- 17 in (43 cm) standard; the 17 in x 20 in frame upgrade keeps the 17 in width
- Seat depth
- 16.2 in (41 cm) effective as standard without laterals; the maker sets the depth in the order
- Armrests
- Fold-back cantilever arms on the sliding seat
- Backrest
- Padded 17 in wide x 8 in tall back cushion as standard; taller, narrower and cloth backs are options
- Footrests
- Swing-away footrest assembly and footrest clamps sold as accessories
- Seat height
- 21.5 in to 25.5 in (55-65 cm) seat to floor, adjustable
- Height adjustment
- Tub section legs and adjustable crutch tips level the two sections; the maker states height is set before the user is transferred in
- Overall width
- 48 in (122 cm) across the whole system, from the commode section through the bridge to the tub section
- Seat opening
- 8 in (20 cm) wide commode opening with a 4 in (10 cm) slot on the standard cushion; closed front and 5.5 in wide cushions are options
- Uses
- Sliding from a seat beside the tub, over a bridge, into the tub; bathing and commode use in one place
- Available colours
- Gray as standard; Dark Blue, Camo and Green as options
- Material
- Aircraft-grade aluminum, brass and stainless steel; hand-wrapped Naugahyde cushions
- Tub fit
- For a bathtub the bridge can span; the bridge length is set by the K measurement, the distance from the middle of the tub drain to the middle of the toilet
- Warranty
- 2 years parts; 1 year seat and back cushions
- Product type
- Stationary Shower Commode and Tub Transfer System
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Nuprodx warrants this multiCHAIR 5000 series shower commode chair against defects in material and workmanship from the date you receive it, and will repair or replace it at its discretion with no charge for parts and labour, with proof of purchase and purchase date.
- Chair parts: 2 years.
- Seat and back cushions: 1 year.
- Excludes normal wear and tear and custom parts or custom cushions.
- For indoor shower and bathroom use; outdoor use voids the warranty.
