Description

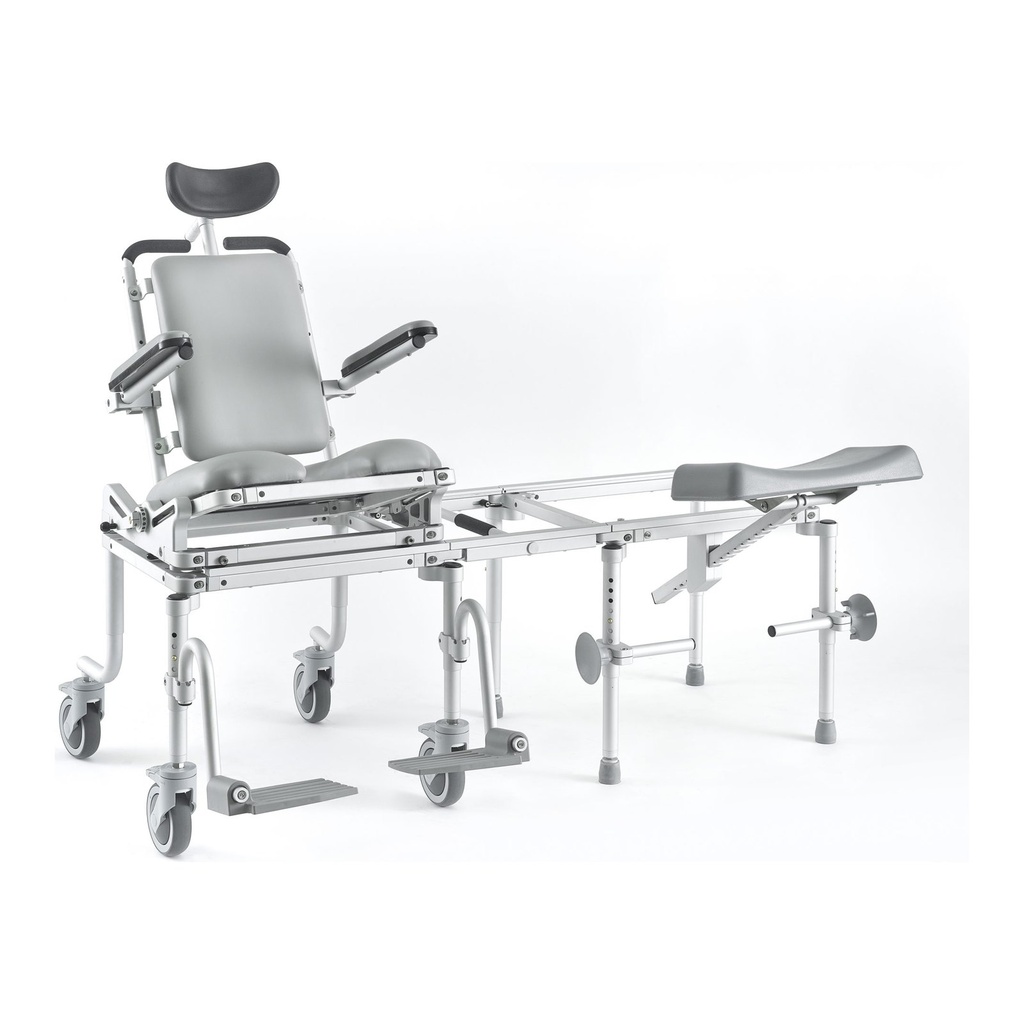

The NuProDX MC6000TiltPed is a pediatric shower commode and tub transfer system for a child who needs caregiver assistance. It combines a commode chair, a sliding tub seat and a mobility chair.
What does it do and how does it work?
- Three sections: a roll-in section on casters, a connector bridge and a tub section with adjustable feet.
- Tilt: centre-of-mass tilt in space with a rack and pinion hand crank, in a smaller footprint than back-pivot tilt.

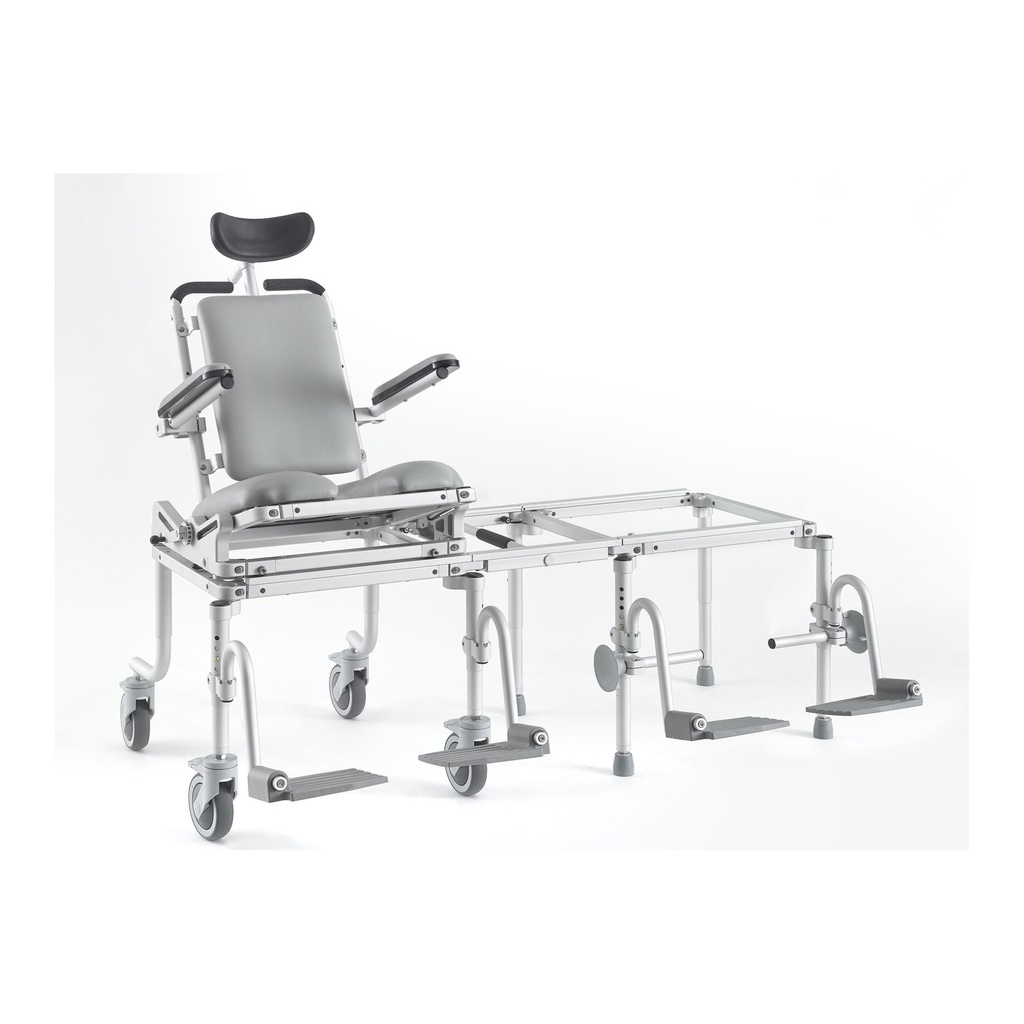

- Support: an adjustable padded headrest, flip-up cantilever arms and swing-away footrests.
- Transfer: the seat slides over the bridge into the tub, and the bridge comes off so the curtain can close.
- Frame: aluminum, brass and stainless steel, with Derlin wheels and Naugahyde cushions.
Who is it for, and who should choose something else?
- It suits a child with a higher-level disability who needs head support.
- It suits a bathroom where the chair can roll from the bed to the toilet and the tub.
- Choose a stationary shower commode if the child can transfer at the door.
Will it fit?
- Width: 22 in (56 cm) from the outside crank handle to the opposite arm pad; measure the narrowest doorway.
- Seat height: 21.5 to 25.5 in (55 to 65 cm) to the floor, with the under-frame at 16 to 20 in (41 to 51 cm).
- Seat depth: chosen for the child from 10.70 to 17.70 in (27 to 45 cm); the back cushion sets the space between the arm pads.
- Toilet and tub: fits over standard and taller toilets and into most tubs, over a threshold up to 1/2 in (1.3 cm); slide direction set left or right.
- Bridge: 13 in (33 cm) standard, or 9 to 23 in (23 to 58 cm) for a different tub.
Which version should I choose?
- Seat depth: eight effective depths from 10.70 to 17.70 in (27 to 45 cm).
- Back cushion: tall and narrow 9, 11 or 13 in (23, 28 or 33 cm) wide, or a T-back in 13, 15 or 17 in (33, 38 or 43 cm).
- Commode cushion: 5.5 in (14 cm) opening with or without a 4 in (10 cm) slot, solid, or pinned for both.
- Upholstery: Gray standard, or Dark Blue, Camo and Green.
What does it work with, and what are its limits?
- It carries 300 lb (136 kg) and weighs about 66 lb (30 kg).
- It is built to the order, so the seat depth and cushions are fixed then.
- It is for indoor bathroom use; outdoor use voids the warranty.
- Warranty terms by part are in the Warranty tab.
How does it compare?
- A stationary shower commode costs less but needs a transfer at the bathroom door.
- A patient lift moves a child who cannot sit unsupported through a transfer.
More bathroom safety equipment.
Frequently asked questions
Does the chair come assembled?
It comes in three sections; we fit the legs and cushions and set it up with you.
Can the tub be on either side?
Yes. The slide direction and the tub section are set left or right.
Can it roll over a shower curb?
Only over a threshold up to 1/2 in (1.3 cm); a higher curb needs a different setup.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- About 66 lbs (30 kg)
- Assembly
- Three sections: roll-in section, connector bridge and tub section
- Seat width
- 17" (43 cm) standard, with grow features
- Seat depth
- 10.70" to 17.70" (27-45 cm), chosen in the order
- Armrests
- Flip-up cantilever arms; laterals and arm troughs optional
- Tilt range
- Centre-of-mass tilt in space, rack and pinion hand crank
- Backrest
- Tall and narrow 9, 11 or 13 in (23, 28 or 33 cm) wide, or T-back 13, 15 or 17 in (33, 38 or 43 cm) wide
- Footrests
- Adjustable, swing-away
- Seat height
- 21.5" to 25.5" (55-65 cm)
- Height adjustment
- Adjustable legs; under-frame 16" to 20" (41-51 cm)
- Overall width
- 22" (56 cm) from the outside crank handle to the opposite arm pad
- Seat opening
- 5.5" (14 cm) with a 4" (10 cm) slot, without a slot, or a solid cushion
- Uses
- Showering, toileting and tub transfer for a child with caregiver assistance
- Available colours
- Gray standard; Dark Blue, Camo and Green optional
- Material
- Aircraft-grade aluminum, brass and stainless steel; Naugahyde cushions
- Tub fit
- Standard and taller toilets and most tubs and showers; 1/2 in (1.3 cm) threshold limit
- Warranty
- 2 years parts; seat and back cushions not covered
- Product type
- Tilt Shower Commode
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Nuprodx warrants this multiCHAIR 6000 series shower commode chair against defects in material and workmanship from the date you receive it, and will repair or replace it at its discretion with no charge for parts and labour, with proof of purchase and purchase date.
- Chair parts: 2 years.
- Seat and back cushions: not covered, because the foam is fragile.
- Excludes normal wear and tear and custom parts or custom cushions.
- For indoor shower and bathroom use; outdoor use voids the warranty.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
