Description

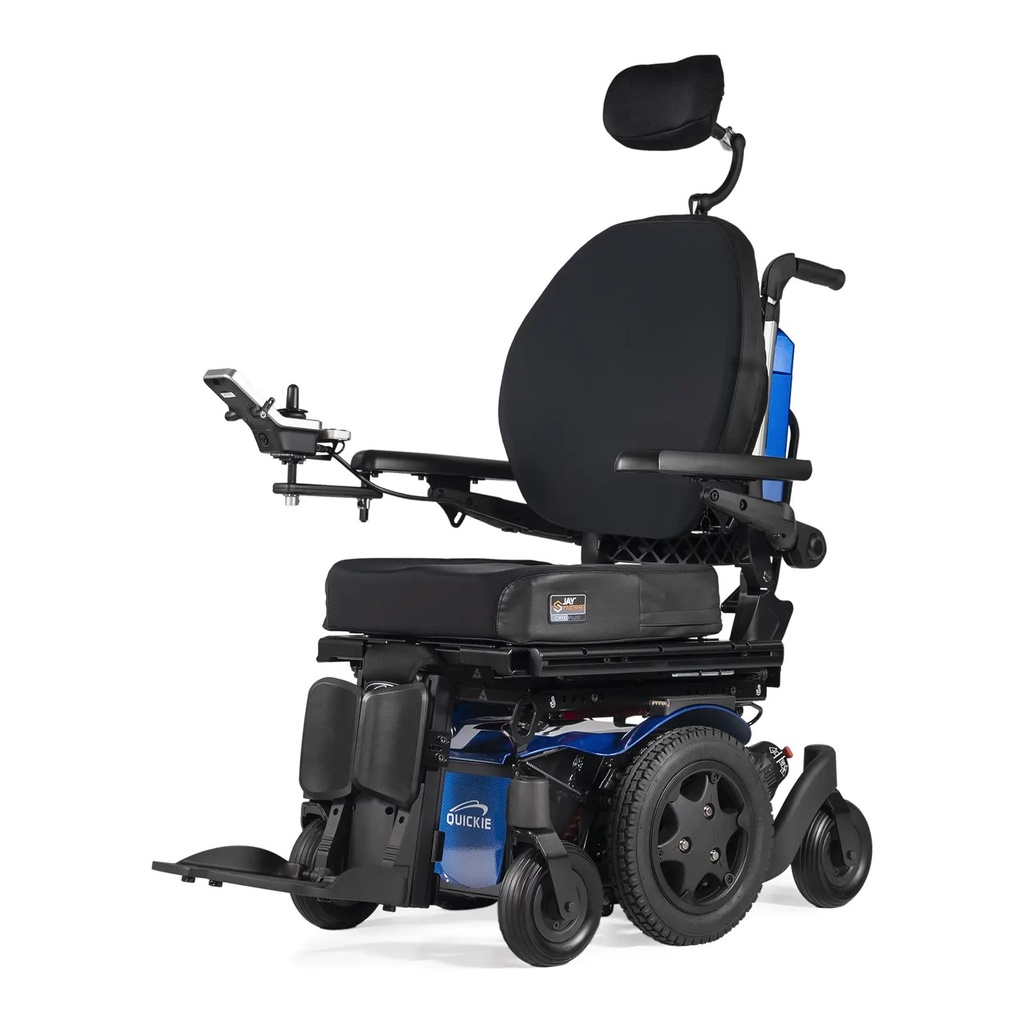

The Quickie Q300 M Mini is a compact mid-wheel-drive power chair from Sunrise Medical, 20.5 in (52 cm) wide with a 17 in (43.2 cm) turning radius.
What does it do and how does it work?

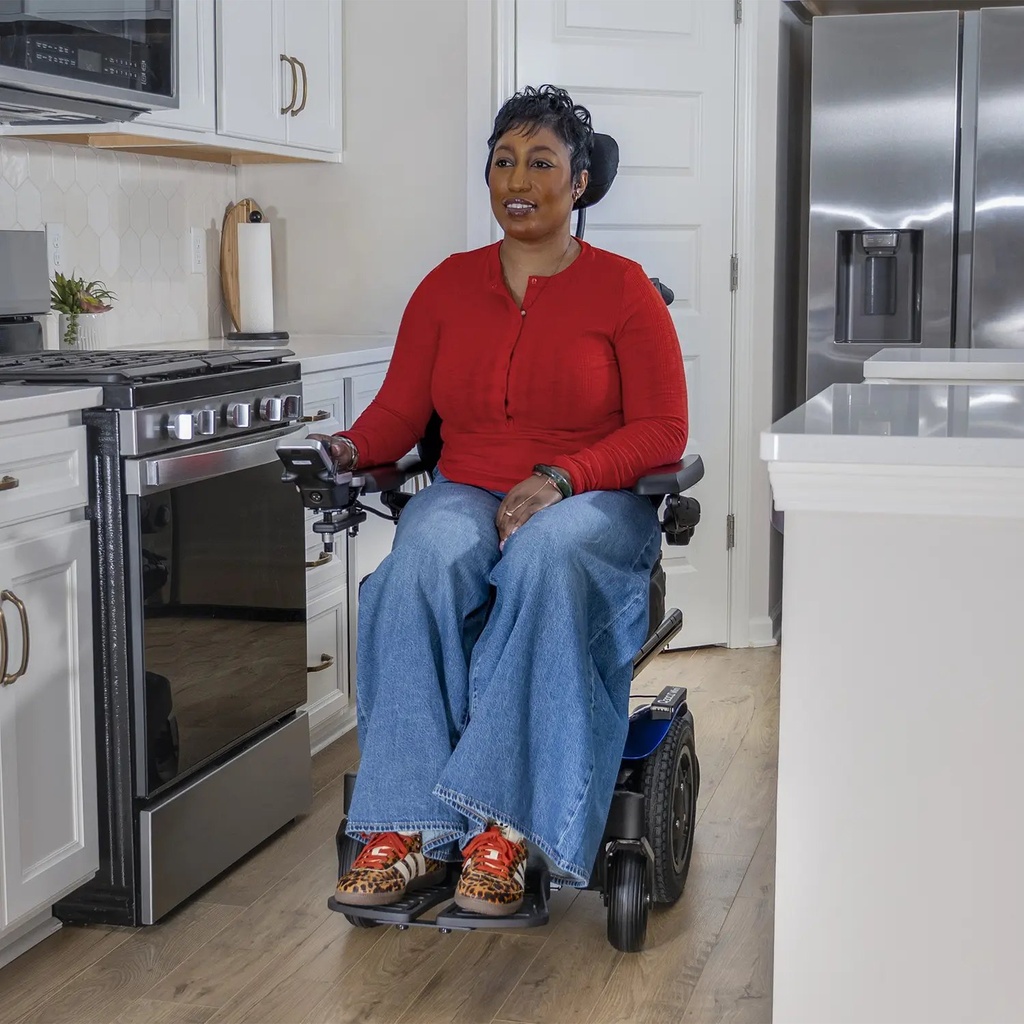

- True mid-wheel drive: the drive wheels sit under the rider, so the chair turns on the spot in 17 in (43.2 cm) without footplates.
- Compact base: 20.5 in (52 cm) wide, 33 in (83.8 cm) long without footplates and 3 in (76 mm) of clearance, with a 3 in curb climb.
- Drive: 12 in (30.5 cm) drive wheels, 14 in optional, 7 in (17.8 cm) casters and all-wheel independent suspension.
- Speed and range: 6 mph (about 10 km/h) and up to 17 miles (about 27 km) on Group 22 batteries.

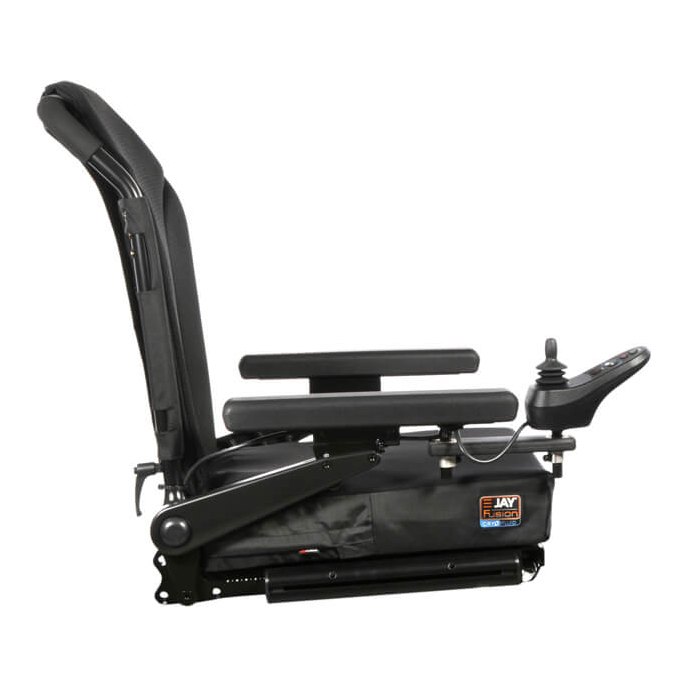

- Seating: SEDEO PRO 16-22 in wide by 14-22 in deep with a 21-30 in back, SEDEO LITE 15-20 in by 16-22 in with an 18-30 in back, or a Captain seat 16-20 in wide with a 25 in back; seat to floor is 16.5-19 in.
- Powered seating: 50 degree tilt, a 150 degree power recline with 4 in of anti-shear on the SEDEO PRO, and C-Me elevation up to 12 in at up to 3 mph.
- Electronics and transit: R-Net 90A, VR-2 90A or LiNX 120A; the chair is ISO 7176-19:2008 transit approved with occupied tie-down brackets standard.
Who is it for, and who should choose something else?
- It suits a rider up to 300 lbs (136 kg) who needs to fit narrow doorways or a small elevator but still wants powered seating.
- Choose a larger chair for more width, or an all-terrain chair for trails.
Will it fit?
- Rider: 300 lbs (136 kg); seat 15-22 in wide and 14-22 in deep; seat height 16.5-19 in.
- Base: 20.5 in (52 cm) wide, 33 in (83.8 cm) long and 3 in (76 mm) clearance.
- Turns and ground: 17 in (43.2 cm) without footplates; curbs up to 3 in (76 mm).
Using it day to day
- Raise or lower the seat with C-Me while the chair is moving at up to 3 mph.
- Tilt and recline through the powered seating; the SEDEO PRO adds the 150 degree recline.
- Charge with the off-board charger.
- Secure the chair by its occupied transit brackets for vehicle travel.
What does it work with, and what are its limits?
- Stay within 300 lbs (136 kg).
- The 17 mile range is a maximum; terrain, weight and powered seating shorten it.
- The 17 in turn excludes the footplates.
- The chair is built for indoor and paved use, not trails.
Which version should I choose?
- Seating: SEDEO PRO, SEDEO LITE or the Captain seat.
- Electronics: R-Net 90A, VR-2 90A or LiNX 120A.
- Wheels: 12 in standard or 14 in optional.
- Colours: black with an accent, or seven full colours including Candy Blue, Candy Apple Red and Pearl White.
How does it compare?
- The Quickie Q500 M is the roomier mid-wheel model.
- The Quickie Q700 M is the larger rehab chair.
- See all standard power wheelchairs, or read how to choose a wheelchair.
Frequently asked questions
Will it fit through my bathroom door?
The base is 20.5 in wide and turns in 17 in; measure the doorway and tightest turn before ordering.
Can the seat be raised while driving?
Yes. C-Me lifts up to 12 in and the chair keeps moving at up to 3 mph.
Does it have tilt and recline?
Yes, 50 degrees of tilt, and the SEDEO PRO adds a 150 degree power recline with 4 in of anti-shear.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- Starting at 250 lbs (113 kg); 266 lbs with SEDEO LITE
- Seat width
- SEDEO PRO 16-22 in (40.6-55.9 cm); SEDEO LITE 15-20 in (38.1-50.8 cm); Captain 16, 18 or 20 in
- Seat depth
- SEDEO PRO 14-22 in (35.6-55.9 cm); SEDEO LITE and Captain 16-22 in (40.6-55.9 cm)
- Back height
- SEDEO PRO 21-30 in (53.3-76.2 cm); SEDEO LITE 18-30 in (45.7-76.2 cm); Captain 25 in (63.5 cm)
- Casters
- 7 in (17.8 cm)
- Seat height
- 16.5-19 in (41.9-48.3 cm)
- Seat elevation
- C-Me up to 12 in (30.5 cm) at up to 3 mph
- Drive wheel size
- 12 in drive wheels
- Caster size
- 7 in casters
- Suspension
- All-wheel independent suspension
- Overall width
- 20.5 in
- Overall length
- 33 in without footplates
- Ground clearance
- 3 in (76 mm)
- Turning radius
- 17 in (43.2 cm) without footplates
- Maximum obstacle height
- 3 in (76 mm)
- Driving range
- Up to 17 miles (27 km)
- Top speed
- 6 mph (10 km/h)
- Motors
- Four-pole motors with metal gears and a brief power boost for ramps and door jambs
- Controller
- PG Drives R-Net or Dynamic Controls LiNX. LiNX adds memory seating and Bluetooth. SureTrac is available on R-Net
- Battery
- Two Group 22 batteries, 50 Ah
- Available colours
- Black with an accent, or full Candy Blue, Candy Purple, Candy Apple Red, Green Apple, Pearl Pink, Pearl White or Silver
- Compatible with
- Two Group 22 batteries at 50 Ah. Off-board charger
- Battery charger
- Off-board
- Tilt
- Up to 50 degrees
- Transit
- ISO 7176-19:2008 approved with occupied tie-down brackets standard
- Seating
- SEDEO PRO with power centre of gravity tilt, or the lighter SEDEO LITE. Both take JAY Syncra cushions and backs and WHITMYER headrests
- Product width
- 20.5 in (52 cm)
- Product length
- 33 in (83.8 cm) without footplates
- Drive
- Mid-wheel drive
- Drive wheel
- 12 in (30.5 cm); 14 in optional
- Recline
- Up to 150 degrees with 4 in (10 cm) anti-shear on the SEDEO PRO
- Electronics
- R-Net 90A, VR-2 90A or LiNX 120A
- Charger
- Off-board charger
- Warranty
- Frame 5 years; Sunrise-made parts 1 year; batteries 1 year. Owner pays labour
- Product type
- Compact mid-wheel drive power wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the Quickie Q300 M Mini against defects in materials and workmanship for the first consumer purchaser, through a Sunrise Medical authorized dealer in Canada or the USA, counted from the date of first purchase. This warranty does not affect your legal rights.
- Frame: 5 years.
- Sunrise-made parts and components, including motors, gearboxes and electronics: 1 year.
- Batteries: 1 year, through the original battery maker.
- Sunrise repairs or replaces covered parts. The owner pays labour to repair, remove or install parts, even when they are covered.
- Not transferable. Void if the serial number tag is removed or altered.
- Excludes tires and tubes, upholstery, pads and push-handle grips, and damage from neglect, accident, misuse, improper installation or repair, changes made without Sunrise's written consent, or exceeding the weight limit.
