Description

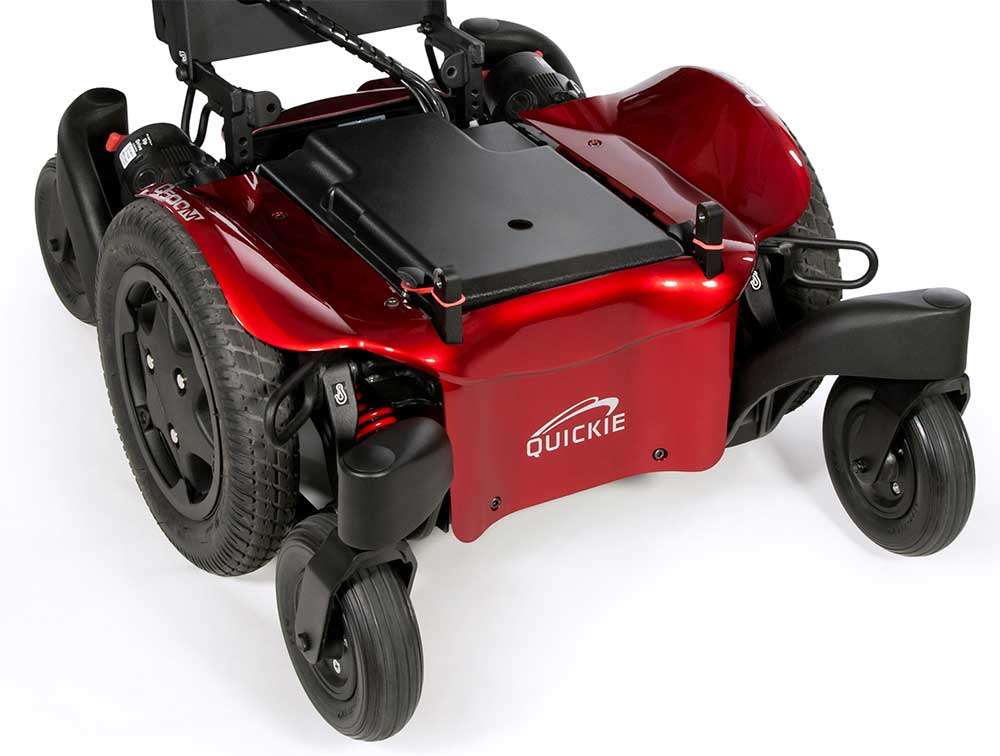

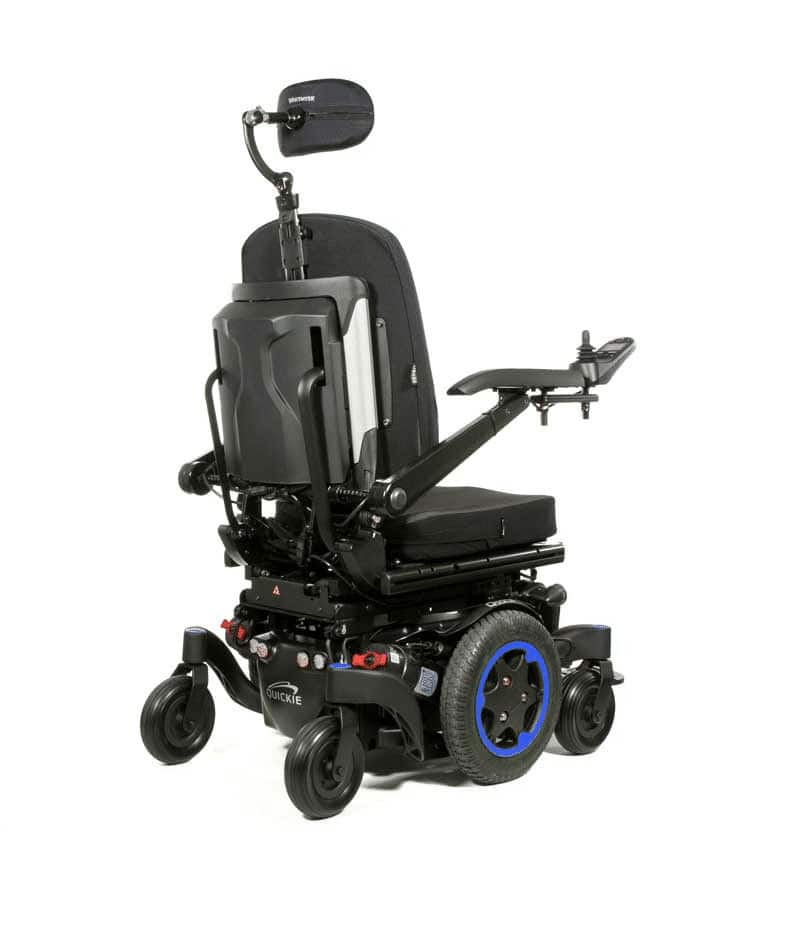

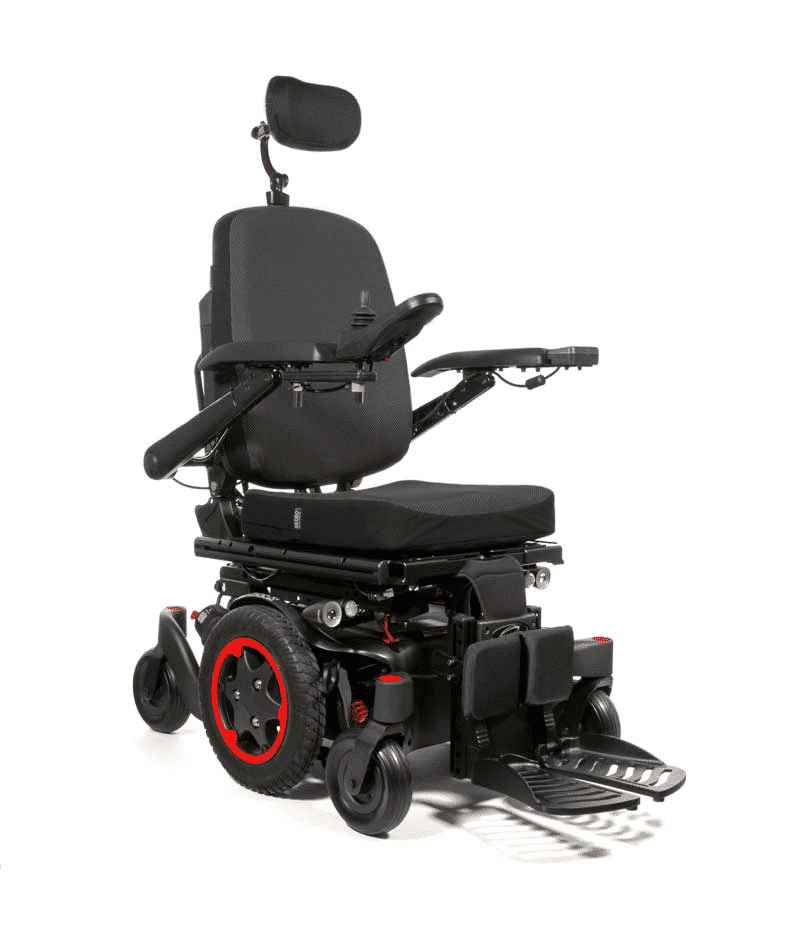

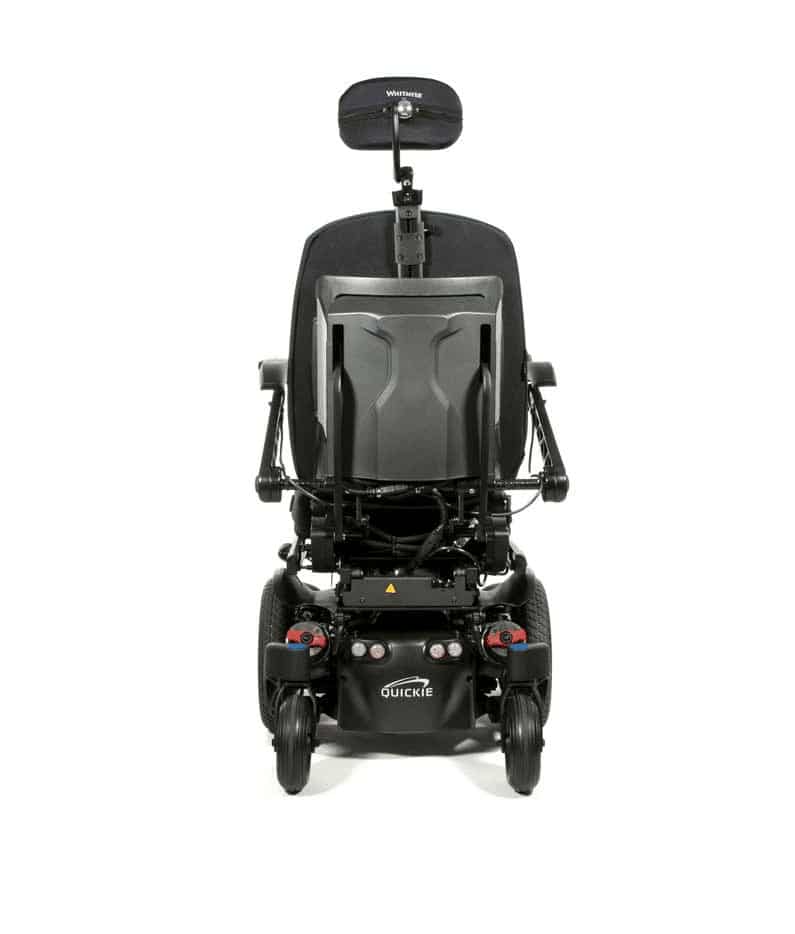

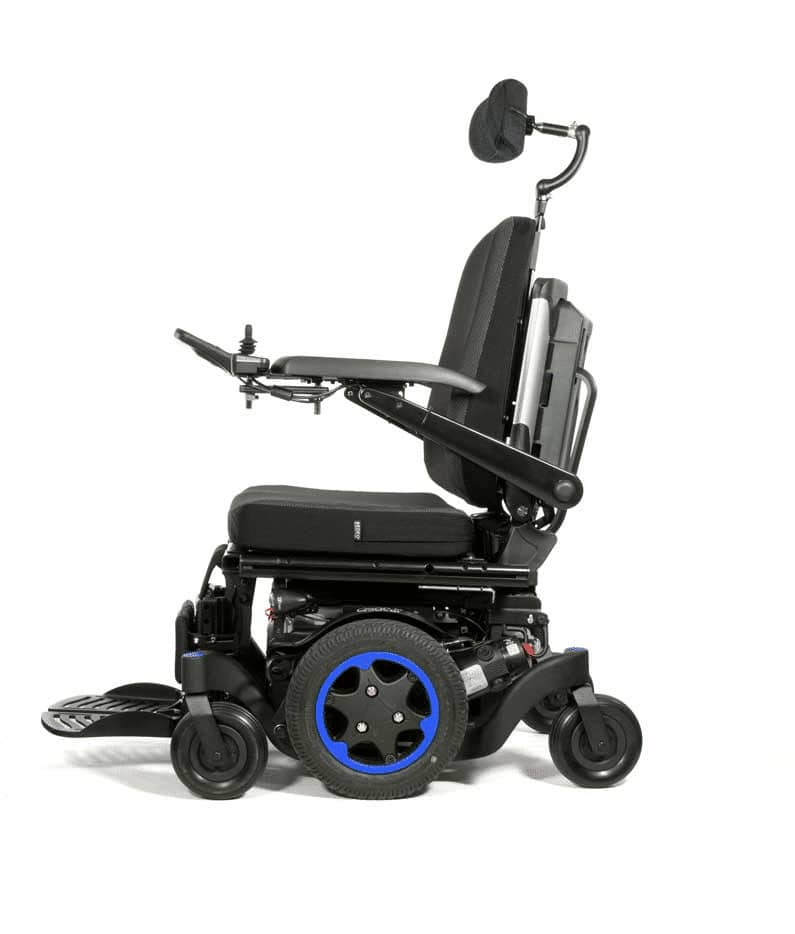

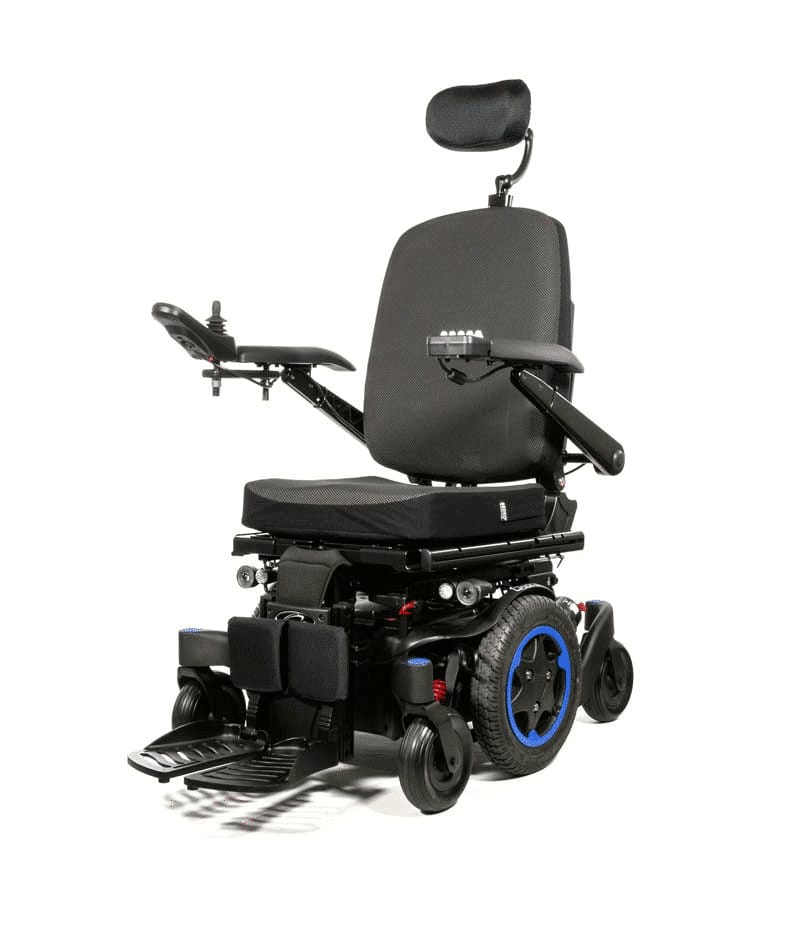

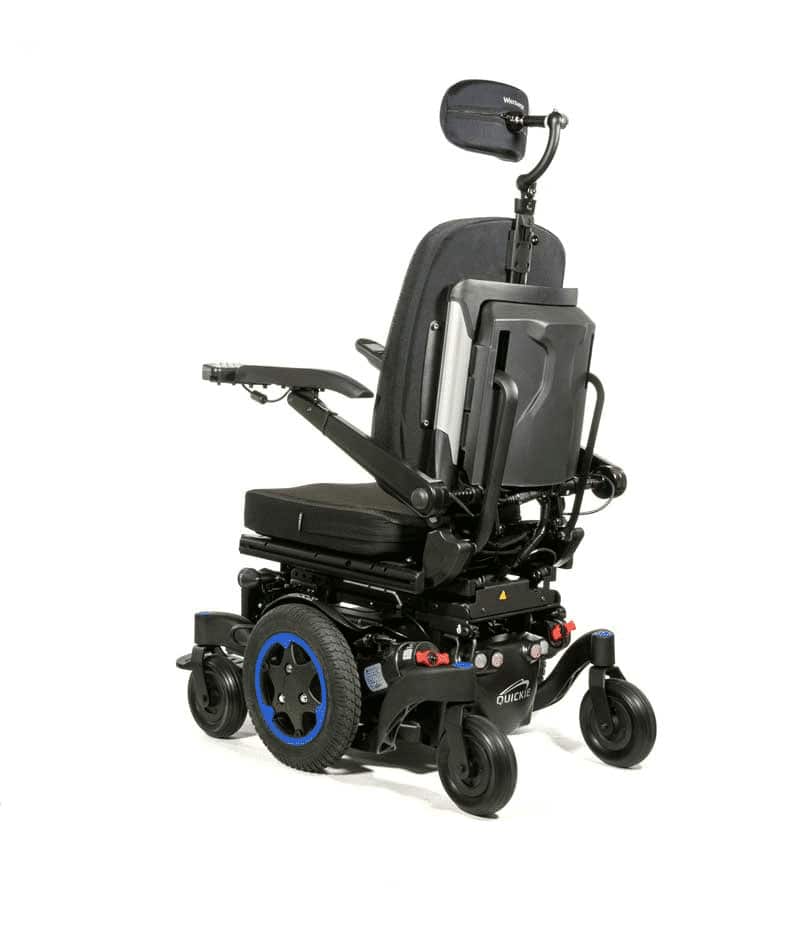

The Sunrise QUICKIE Q500 M is a short mid-wheel rehab chair configured with the seating and controls a rider needs.
Who does the Q500 M suit?
- A rider within 300 lb (136 kg) needing a compact base.
- SEDEO PRO, LITE or Captain seating with power functions where assessed.
- Not a car-trunk folder; the Q700 M carries more.
Will it fit the route?
- The base is 24 in wide and 33 in long, with an 18.5 in turning radius.
- Ground clearance is 3 in, the obstacle rating 2.4 in and the slope rating 7.5 degrees.
- Measure the complete chair before tight corners or sills.
Which seating fits?
- SEDEO PRO runs 16 to 22 in wide and 14 to 22 deep; LITE 15 to 20 wide.
- Captain comes in 16, 18 or 20 in, with 16 to 22 depth.
- Seat height 16.5-19 in, or 17-19 with Captain.
- SEDEO PRO can combine tilt and recline, with a 12 in lift.
How does it drive?
- Six independently suspended wheels, 13 or 14 in flat-free drive wheels and 7 in casters.
- High-torque 4-pole motors reach 10 km/h.
- VR-2 or R-Net runs at 90 A; R-Net is needed for C-Me and two power functions.
What does C-Me add?
- C-Me on PRO or LITE with R-Net drives at 3 mph (5 km/h) raised.
- Raised driving is for smooth, level, hard floors and pavement only.
- Do not raise the seat on slopes, gravel, grass or bumpy ground.
Battery and charging
- Two 12 V batteries, Group 34 gel or AGM, or Group 22.
- An 8 A off-board charger takes up to 12 hours; 10 A is optional.
- Capacity falls in cold; never charge a frozen battery.
- SEDEO seating is up to 13.5 miles (21.7 km). Captain seating is up to 12 miles (19.3 km).
Can the rider travel in the chair?
- The Canadian base has occupied-transit brackets.
- Seated travel needs a compliant tie-down, an anchored belt and a lowered seat.
- A vehicle seat is preferred.
Which colours are there?
- Seven shroud colours and seven accents, all at no charge.
Funding help for a power wheelchair in Ontario
Depending on the person's needs and assessment, funding may be available for mobility equipment in Ontario. Our team works with funding programs every week and can point you to the right route before you buy. See our funding guide or call (905) 798-1853.
How do delivery, setup and service work?
Sunrise builds each chair to the rider's order. We deliver and set up across Toronto and the GTA and service what we sell.
What does the warranty cover?
- The frame is covered for 5 years from the first purchase.
- Sunrise-made parts are covered for 1 year, and batteries for 1 year.
- The rider pays the labour. Tires, tubes, upholstery and grips are not covered.
- Coverage can differ by province.
How does it compare?
- Q700 M: a longer base with HD capacity.
- Quantum Edge 3: another mid-wheel base.
- Power wheelchairs: compare by fit and seating.
Frequently asked questions
Can C-Me be used on a ramp?
No; raised driving is limited to level, hard floors and pavement.
Can a rider stay in the chair in a van?
Only with a compliant tie-down and occupant belt; a vehicle seat is preferred.
Who pays the repair labour?
The rider pays labour even when the part is covered. Frame coverage is 5 years.
Will every route reach 13.5 miles?
That test uses level ground, new batteries and a 220 lb (100 kg) rider. Hills and cold shorten it.
Does it fold for a car?
No; it is a rigid mid-wheel chair.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- Starting at 266 lbs (121 kg) with batteries and SEDEO LITE; SEDEO PRO from 300 lbs (136 kg), up to 338 lbs (153 kg) with multi-power
- Seat width
- SEDEO PRO 16-22"; SEDEO LITE 15-20"; Captain seat 16", 18" or 20"
- Seat depth
- SEDEO PRO 14-22"; SEDEO LITE 16-22"; Captain seat 16-22"
- Seat height
- 16.5-19" seat-to-floor (17-19" with Captain seat)
- Seat elevation
- Optional 12" (30 cm) power seat lift; C-Me version drives up to 3 mph (about 5 km/h) raised
- Drive wheel size
- 13" standard or 14", flat-free
- Caster size
- 7" solid, front and rear
- Suspension
- All-wheel suspension, six independently suspended wheels
- Overall width
- 24" (61 cm)
- Overall length
- 33" (84 cm) without footplates
- Ground clearance
- 3" (7.6 cm)
- Turning radius
- 18.5" (47 cm) without footplate
- Maximum obstacle height
- 2.4" (60 mm)
- Maximum slope
- 7.5 degrees in standard configuration
- Driving range
- Up to 13.5 miles (21.7 km) with SEDEO seating; up to 12 miles (19.3 km) with Captain seating
- Top speed
- 10 km/h (6 mph)
- Motors
- High-torque 4-pole
- Controller
- VR-2 or R-Net, 90 A; R-Net required for C-Me, specialty controls and two or more power functions
- Available colours
- Shrouds: Matte Black, Candy Apple Red, Candy Blue, Candy Purple, Green Apple, Pearl Pink, Silver; 7 accent colours
- Compatible with
- Two 12 V batteries: Group 34 (gel or AGM) or Group 22
- Charging time
- Up to 12 hours for a full charge
- Battery charger
- 8 A dual mode, off-board; 10 A optional
- Warranty
- Frame 5 years; Sunrise-made parts 1 year; batteries 1 year. Rider pays labour
- Product type
- Mid-wheel drive power wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Sunrise Quickie Q500M Power Wheelchair brochure (MK-130057 Rev. B, September 2024)
- Brochure Quickie power wheelchair reference guide with Q500 M specifications (MK-100166 Rev. L, October 2025)
- Brochure Quickie power chair colour chart (Canada, MK-130306-CAN Rev. A, May 2025)
- User Manual Sunrise Quickie Q500M Power Wheelchair owner's manual (English, P/N 248035 Rev. I, 2025)
- User Manual Sunrise Quickie Q500M Power Wheelchair owner's manual (French, P/N 248035 Rev. I)
- User Manual Quickie SEDEO PRO / PRO ADVANCED seating owner's manual (English)
- User Manual Quickie SEDEO LITE seating owner's manual (English)
- User Manual Quickie Captain Seat owner's manual (English)
- User Manual Quickie and Zippie WC-19 transit securement supplement (English)
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the Quickie Q500 M against defects in materials and workmanship for the first consumer purchaser, through a Sunrise Medical authorized dealer in Canada or the USA, counted from the date of first purchase. This warranty does not affect your legal rights.
- Frame: 5 years.
- Sunrise-made parts and components, including motors, gearboxes and electronics: 1 year.
- Batteries: 1 year, through the original battery maker.
- Sunrise repairs or replaces covered parts. The owner pays labour to repair, remove or install parts, even when they are covered.
- Not transferable. Void if the serial number tag is removed or altered.
- Excludes tires and tubes, upholstery, pads and push-handle grips, and damage from neglect, accident, misuse, improper installation or repair, changes made without Sunrise's written consent, or exceeding the weight limit.
