Description

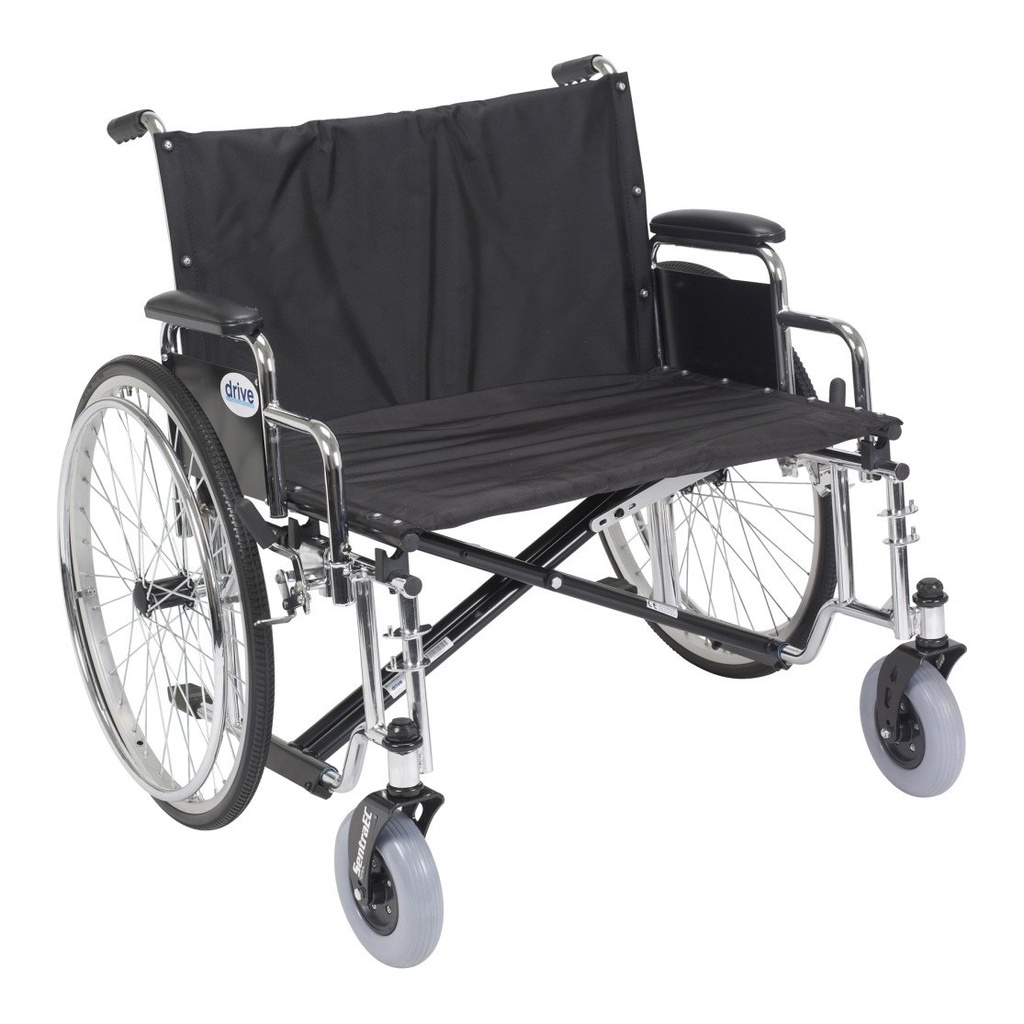

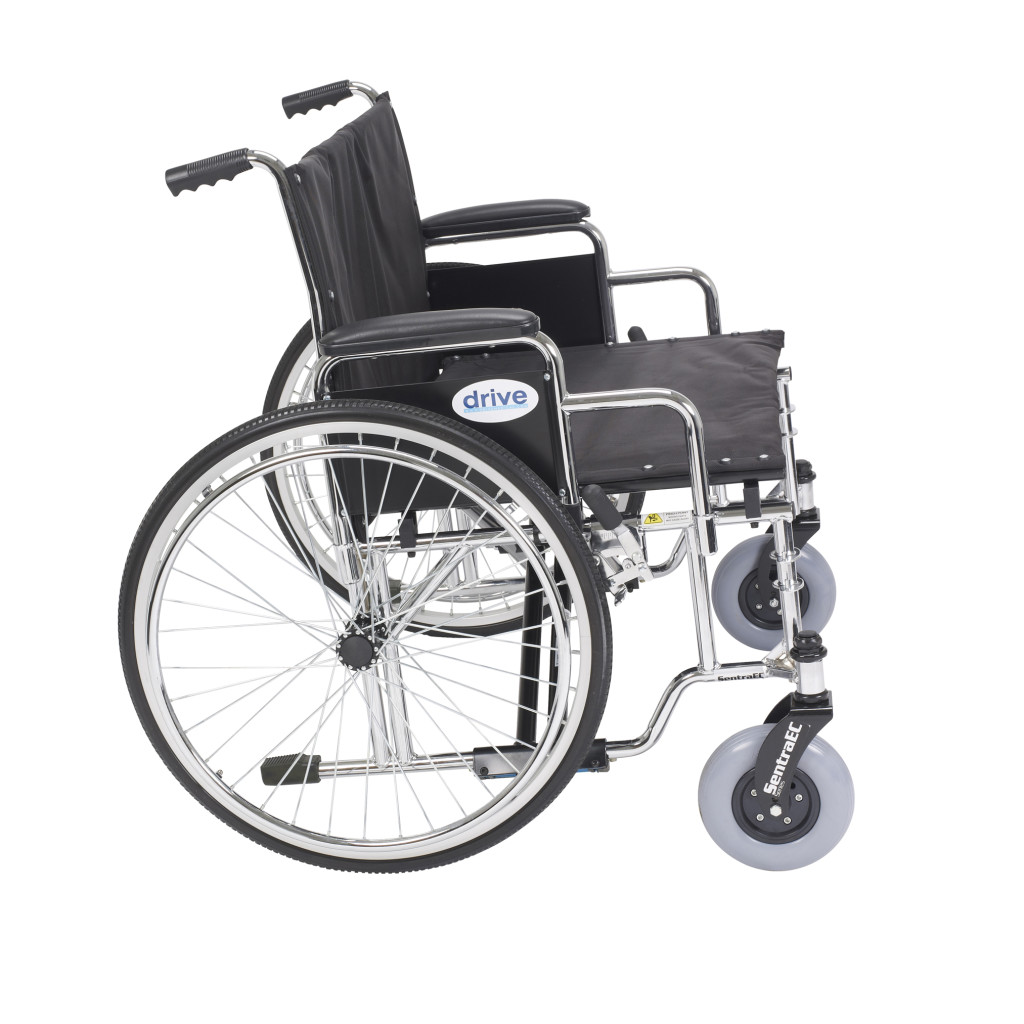

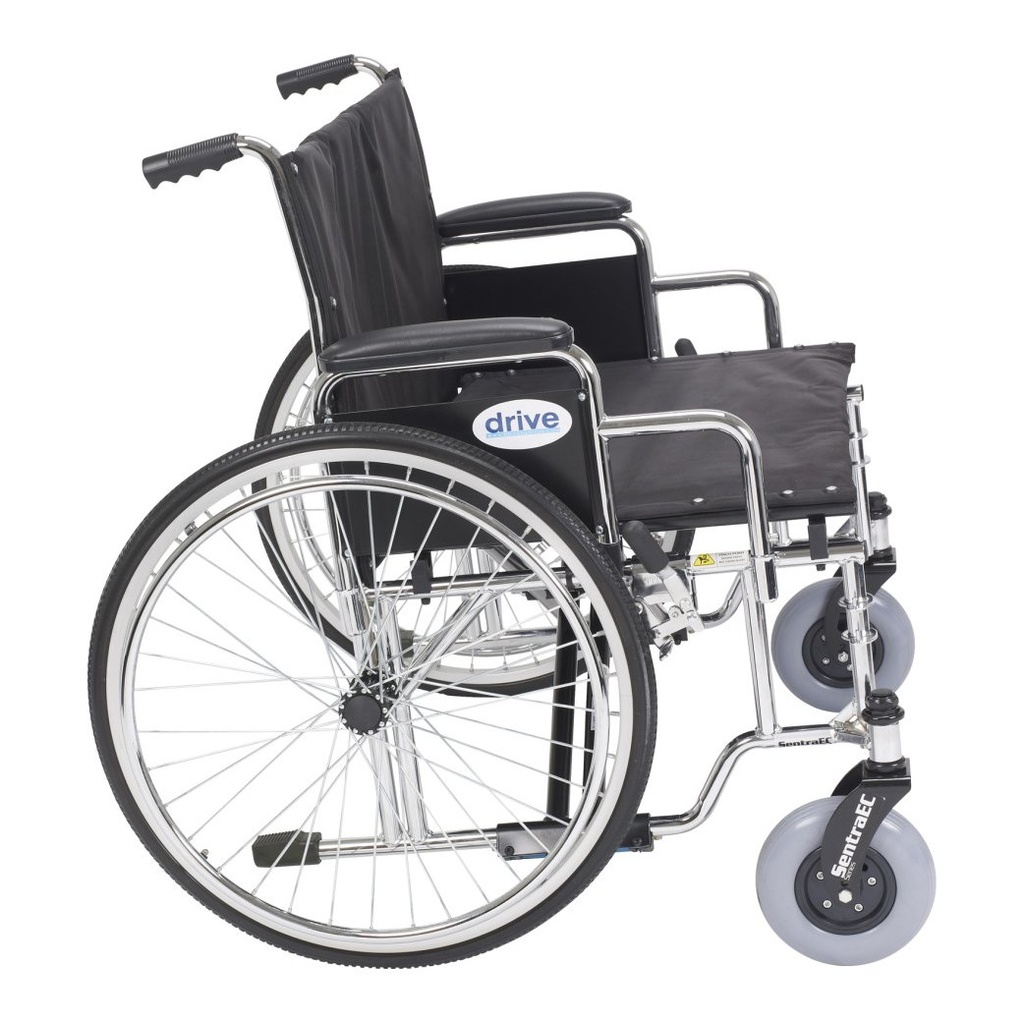

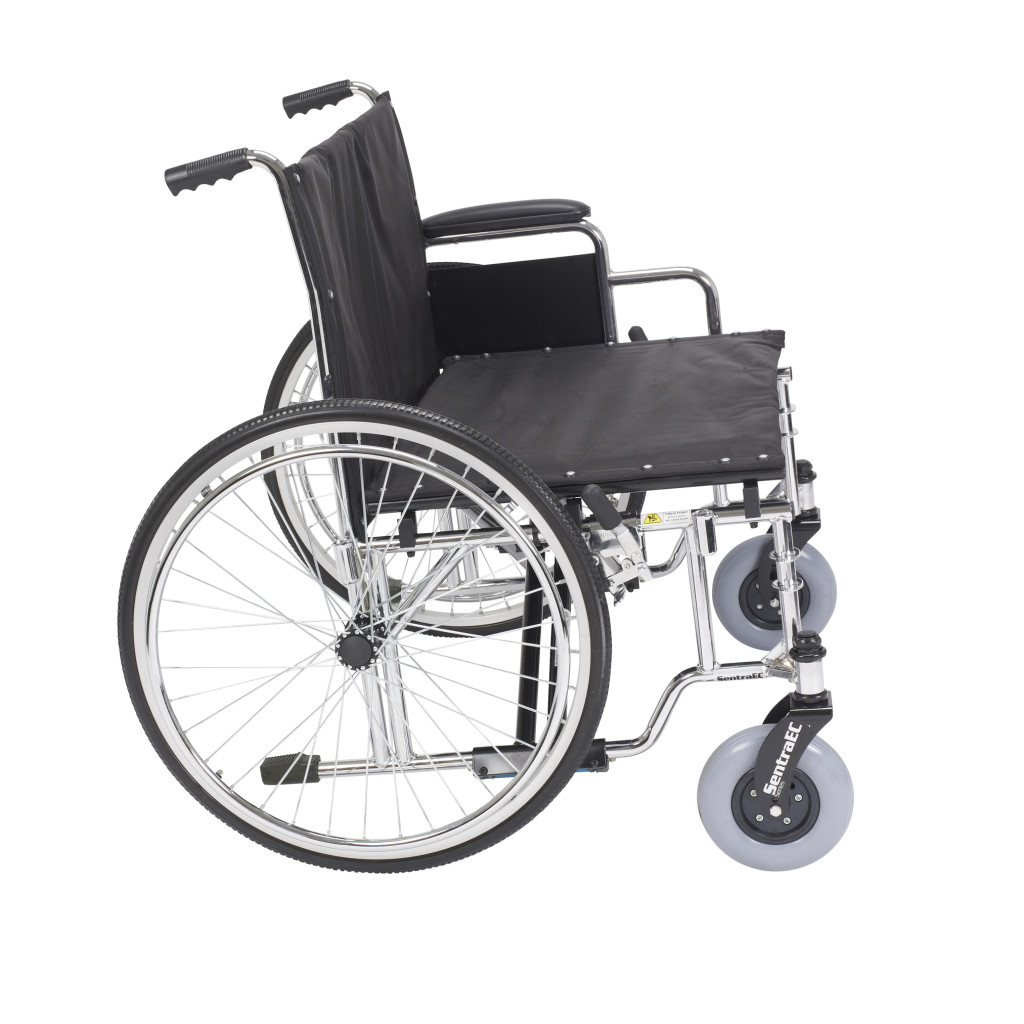

The Drive Sentra EC STD28ECDDA is a 28 in (71 cm) extra-wide bariatric wheelchair with detachable desk arms, rated to 700 lb (318 kg).
What does it do, and how does it work?
- Seat 28 in (71 cm) wide by 20 in (51 cm) deep, with a 700 lb (318 kg) capacity.
- Carbon steel frame with a triple-coated chrome finish and gussets; reinforced nylon upholstery.
- Steel spoke rear wheels and 8 in (20 cm) flat-free casters in two positions.
- Push-to-lock wheel locks on both rear wheels, and detachable desk-length arms with extra-large pads.
- 64 lb (29 kg); 37 in (94 cm) wide open and 14.5 in (37 cm) wide folded.
Who is it for, and who should choose something else?
- A rider up to 700 lb (318 kg) who self-propels from the large rear wheels.
- Full-length arms: item STD28ECDFA. Companion-pushed travel: a bariatric transport chair.
- More heavy chairs: bariatric wheelchairs.
Will it fit?
- Seat 28 in wide by 20 in deep; the chair is 37 in (94 cm) wide open, so the doorway must be wider than that.
- Seat to floor 19.5 in (50 cm); back height 18 in (46 cm).
- 43 in (109 cm) long with riggings and 35 in (89 cm) high; folded 43 x 14.5 x 35 in (109 x 37 x 89 cm).
- Measure hip width, hip to knee and knee to heel in shoes, or book a free home assessment.
Using it day to day
- Press the release to lift each arm off for a sideways transfer.
- Push both wheel locks into place before a transfer or a forward lean.
- The frame folds side to side; the folded width of 14.5 in is for storage, not for rolling through a doorway while seated.
- Footrests are bought separately: choose Drive's PH-SF swing-away footrests or PHELR elevating legrests.
What does it work with, and what are its limits?
- 700 lb (318 kg) applies to this 28 in chair; do not use another width's limit.
- The chair is not a seat in a motor vehicle.
- No footrests and no cushion are included; add a 28 x 20 in cushion.
- This item has desk-length arms only; full-length arms are a different item.
Which version should I choose?
- Desk arms (this item) or full arms (STD28ECDFA).
- PH-SF swing-away footrests or PHELR elevating legrests, ordered separately.
How does it compare?
- The 26 in Sentra EC is 34.5 in wide and weighs 62 lb (28.1 kg).
- The 30 in Sentra EC is 39 in wide and weighs 66 lb (29.9 kg).
Frequently asked questions
How wide a doorway does it need?
Wider than the chair's 37 in (94 cm) open width; measure the narrowest point before ordering.
Which footrests fit?
Drive's PH-SF swing-away footrests or PHELR elevating legrests; neither is included with the chair.
Where do I find replacement parts?
Drive's parts diagram lists the 28 in seat and back upholstery and the desk and full arm assemblies.
Funding
Funding may help: see who may help pay.
Drive gives a limited lifetime warranty for the original purchaser; misuse, wear, casters, grips and rubber parts are excluded. See the Warranty tab.
Specifications
- Weight capacity
- 700 lb (318 kg)
- Product weight
- 64 lb (29.0 kg)
- Seat width
- 28" (71 cm)
- Seat depth
- 20" (51 cm)
- Back height
- 18" (46 cm)
- Armrests
- Detachable desk-length, extra-large pads
- Legrests
- Not included. Order PH-SF or PHELR separately
- Seat height
- 19.5" (50 cm) from the floor
- Caster size
- 8" (20 cm) flat-free, two positions
- Overall width
- 37" (94 cm) open
- Overall length
- 43" (109 cm) with riggings
- Folded dimensions
- 43" L x 14.5" W x 35" H (109 x 37 x 89 cm)
- Brakes
- Push-to-lock wheel locks on both rear wheels
- Folding
- Folds side to side to 14.5" (37 cm) wide
- Frame material
- Carbon steel, triple-coated chrome
- Warranty
- Limited lifetime for the original purchaser
- Product type
- Bariatric extra-wide wheelchair, self-propelled
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Sentra EC extra-wide wheelchair (28 inch) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser. Drive will repair or replace a defective device at its option.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
