Description
The Drive BTR22-R is a steel transport chair with a 22 inch seat and a 450 lb (204 kg) rating, pushed by a companion.
What does it do, and how does it work?
- Reinforced steel frame with dual steel cross braces, in red or blue.
- A 22 by 18 in (56 by 46 cm) seat, 19.5 in (49.5 cm) from the floor, with a 16 in (41 cm) back.
- 12 in (30.5 cm) flat-free rear wheels with 8 in (20 cm) front casters; the rear wheels have no hand rims.
- Padded desk-length arms lift out and reverse.
- Swing-away footrests lift off and slide to set the length.
- Companion-operated wheel locks sit against both rear tires.
- Black nylon upholstery with a carry pouch on the back.
Who is it for, and who should choose something else?
- For an adult up to 450 lb (204 kg) who is pushed to appointments, the mall or a hospital.
- It needs an attendant; the rider cannot push it.
- For a self-propelled chair, see the Sentra; for tilt, see tilt-in-space chairs.
Will it fit?
- Seat 22 in (56 cm) wide by 18 in (46 cm) deep, 19.5 in (49.5 cm) high; back 16 in (41 cm).
- Open 26.5 in (67 cm); 38 in (97 cm) long with footrests and 37 in (94 cm) high; folded 11.5 in (29 cm) wide.
- Chair weight 49 lbs (22.2 kg).
- Measure hip width, hip to knee and knee to heel in shoes, or book a free home assessment to check doorways.
Using it day to day
- To fold, tilt the chair and push down on the seat rails; the footrests swing away and lift off.
- Set the footrest length with the rider seated, and keep the plates at least 2.5 in (6.4 cm) off the ground.
- Before a transfer, set both wheel locks against the tires and turn the casters forward.
- The arms lift out for a side transfer.
What does it work with, and what are its limits?
- It is not a seat in a vehicle; transfer to a vehicle seat.
- Do not lean out or stand on the footrests.
- There are no hand-brake levers on the push handles; the wheel locks are for parking.
- Elevating legrests are not available for this model.
Which version should I choose?

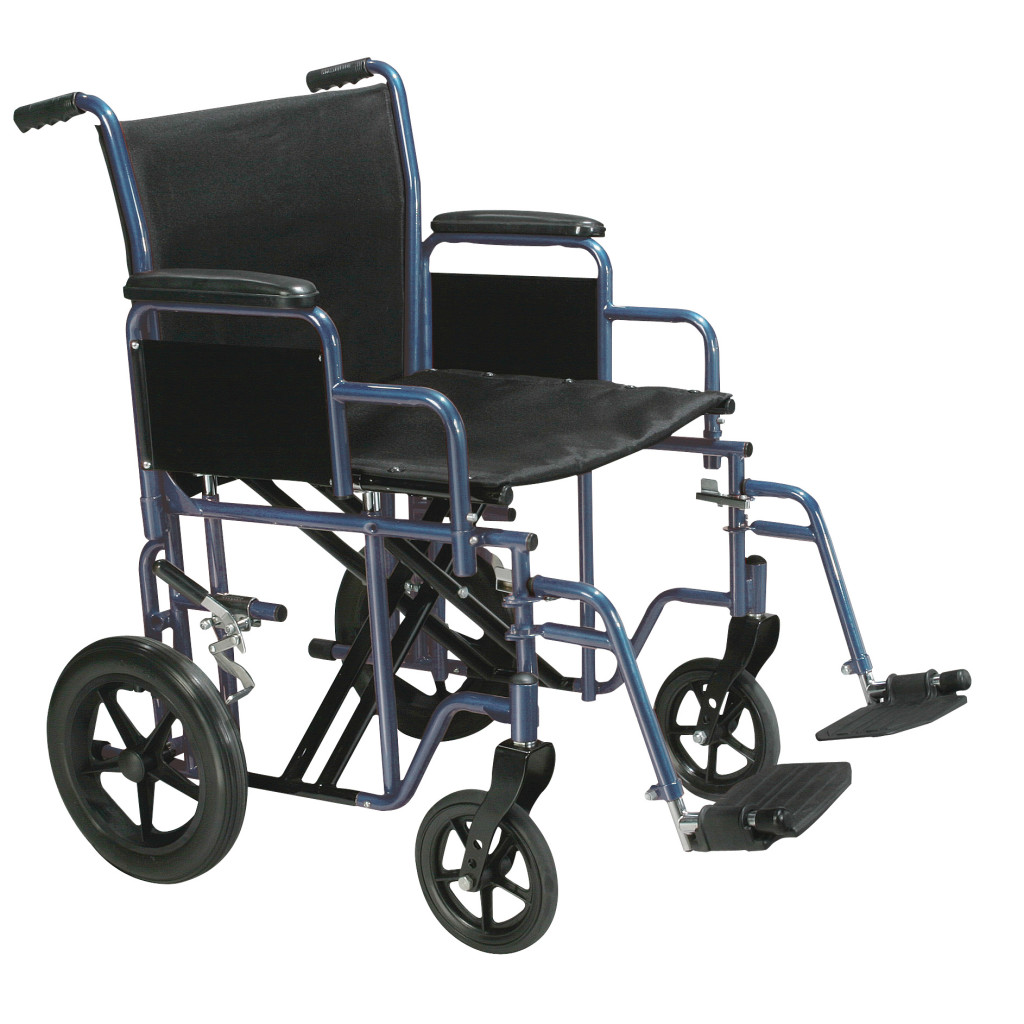

- Red frame (BTR22-R) or blue frame (BTR22-B); the chairs are otherwise the same.
How does it compare?
- The aluminum ATC22-R weighs 33 lbs (15 kg), has a fold-down back, fixed arms and a 30 in (76 cm) open width.
- The Sentra is self-propelled to 500 lbs (227 kg).
- See other transport chairs.
Frequently asked questions
Does the back fold down?
No. The back is fixed; the aluminum ATC22-R is the 22 inch chair whose back folds for storage.
Are the wheel locks hand brakes?
No. They are parking locks at both rear tires, worked by the companion; there are no levers on the push handles.
Is a cushion included?
No. A cushion 22 in wide by 18 in deep fits the seat and is ordered with the chair.
Funding
Funding may help: see who may help pay.
Drive's limited lifetime warranty is for the original buyer; casters, grips and rubber parts are excluded. See the Warranty tab.
Specifications
- Weight capacity
- 450 lbs (204 kg)
- Product weight
- 49 lbs (22.2 kg), 22" model
- Seat width
- 22" (56 cm)
- Seat depth
- 18" (46 cm)
- Back height
- 16" (41 cm)
- Armrests
- Padded desk-length arms, removable and reversible
- Legrests
- Swing-away, removable footrests with sliding length adjustment
- Seat height
- 19.5" (49.5 cm) seat to floor
- Rear wheel size
- 12" (30.5 cm) flat-free wheels with solid rubber tires
- Caster size
- 8" (20 cm) front casters
- Overall width
- 26.5" (67 cm) open
- Overall length
- 38" (97 cm) with footrests
- Folded dimensions
- 11.5" (29 cm) wide; overall height 37" (94 cm)
- Brakes
- Companion-operated wheel locks on both rear wheels
- Folding
- Folds side to side on dual cross braces; footrests swing away and lift off
- Frame material
- Reinforced steel with dual steel cross braces
- Available colours
- Red frame (BTR22-R) or blue frame (BTR22-B), black nylon upholstery
- Warranty
- Limited lifetime for the original buyer; casters, grips and rubber parts excluded
- Product type
- Bariatric transport chair (pushed by a companion)
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the 22 inch Bariatric Steel Transport Chair (BTR22-R) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
