Description
The Companion HD GC540 is Golden's 3-wheel heavy-duty scooter, rated 500 lb (226.8 kg), for a rider who wants a wider seat and a tighter turning circle than a 4-wheel gives.
Who is it for?
- Riders up to 500 lb (226.8 kg) who need the 51 in (1295 mm) turning radius a 3-wheel layout gives.
- A wider seat than most scooters carry: 22 in (559 mm) by 20 in (508 mm), with four height positions.
- Indoor and outdoor use on level paths and driveways. It sits on the 3-wheel scooters and heavy-duty scooters lists.
- Not for anyone who lifts it into a vehicle: 225.5 lb (102.3 kg) assembled, with a 101.5 lb (46.0 kg) base, a 50 lb (22.7 kg) seat and arms, and two 37 lb (16.8 kg) batteries.
What has to fit?
- Length 48 in (1219 mm) and width 26 in (660 mm). Measure the doorway and the turning space before you order.

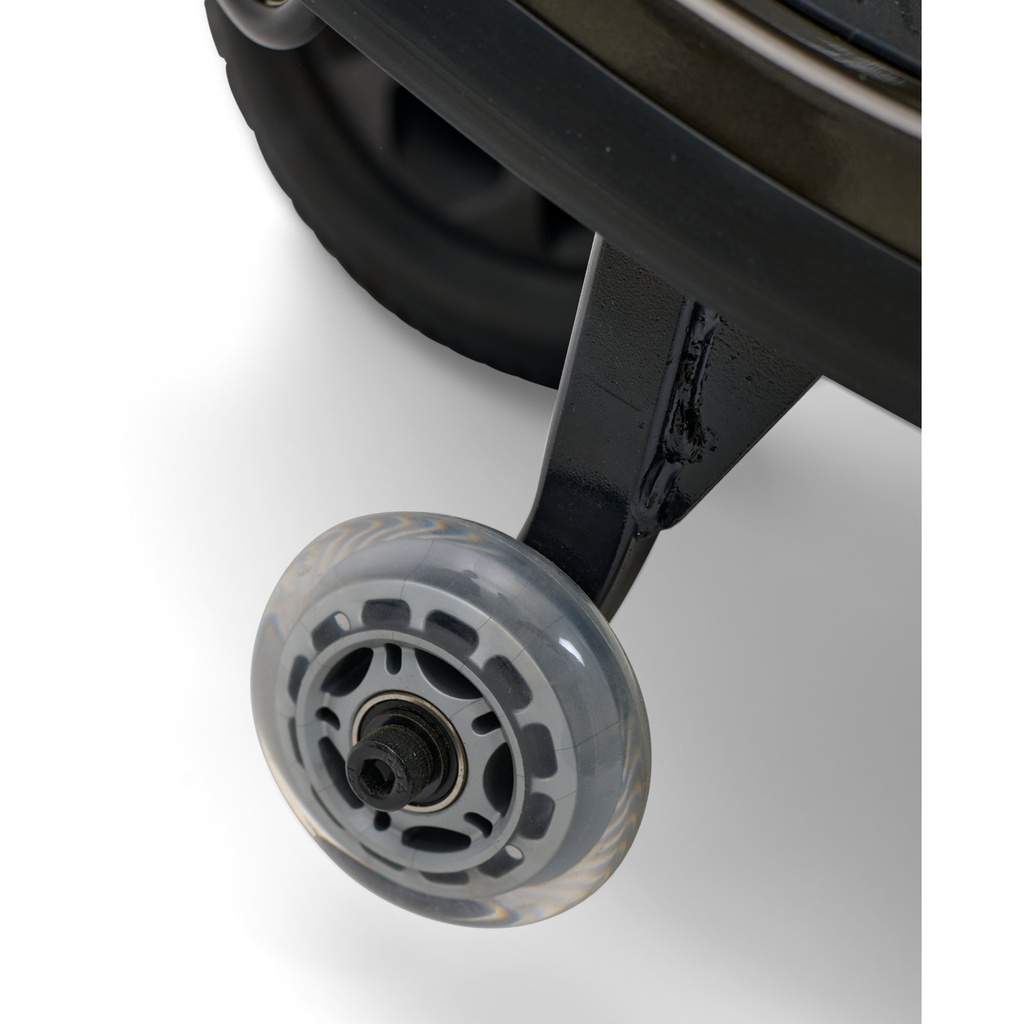

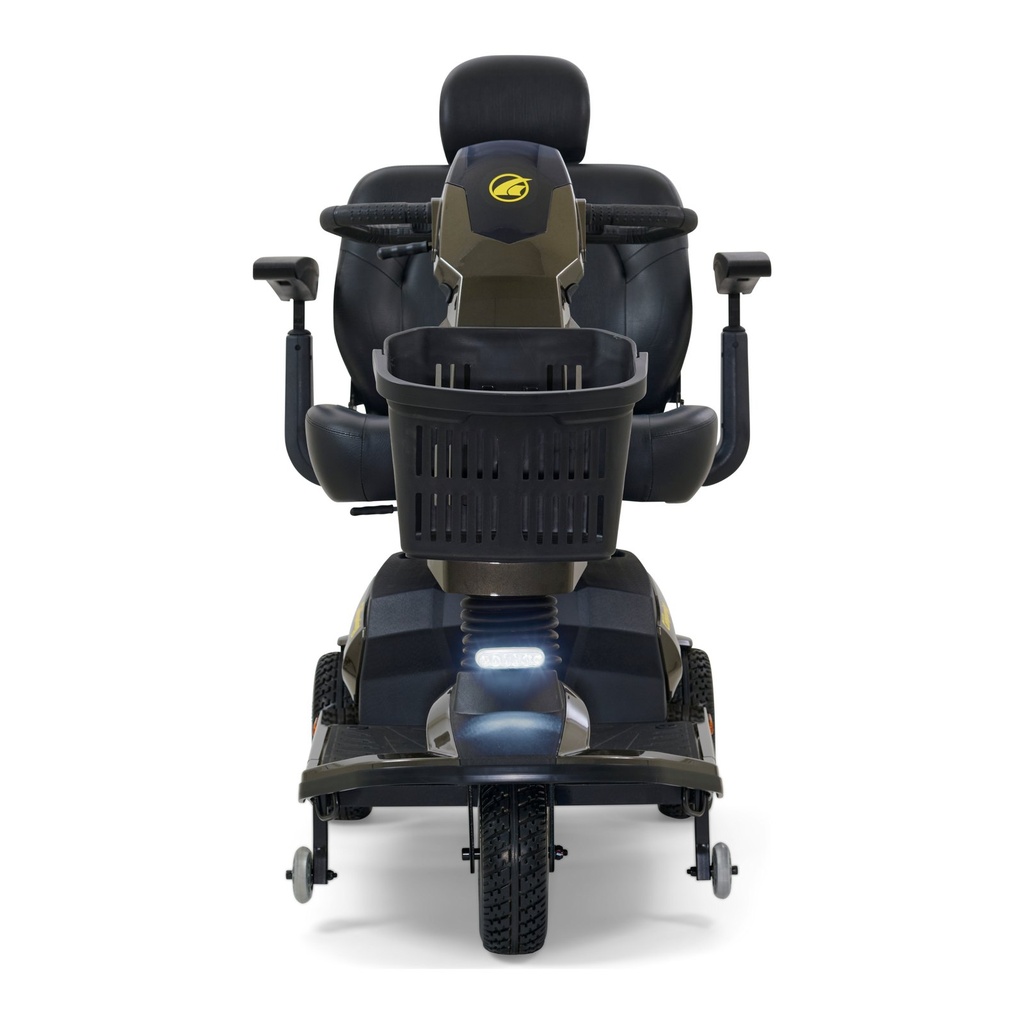

- Ground clearance is 6.25 in (159 mm) at the centre deck and 3.75 in (95 mm) at the motor; the deck sits 8 in (203 mm) off the ground. Front and rear anti-tippers are fitted.
- The seat sits 24.5 in to 27.5 in (622 mm to 699 mm) off the ground, 16.5 to 19.5 in above the deck in four 1 in positions. It swivels 90 degrees each way, 360 in total, and locks for transport.
- Wheelbase is 36 in (914 mm). Book a free home assessment to check the doorway and the ramp.
How far and how fast?
Top speed is 9.7 km/h (6 mph) and the range is up to 25.7 km (16 mi) on the two NF22 batteries. Range falls with rider weight, hills and cold weather.
The tyres are solid and flat-free, so there is no air to check, and rear suspension softens curbs.
Controls and options
- The tiller adjusts through infinite positions and auto-locks. Its LCD console shows battery level and fault codes, and a USB port charges a phone.
- A 120 A controller, electronic speed control, freewheel mode and an automatic sleep mode. LED headlights, tail lights and flashers, plus side reflectors.
- Shroud colours: Crimson Red, Azure Blue or Galactic Grey.
- An optional Captain's chair, 20 by 20 in, with a 6 in power elevating seat for a rider who needs help standing up.
What should I compare it with?
For more stability outdoors, the 4-wheel Companion 4-wheel full size is the same family. If the scooter has to travel in a vehicle, a lighter take-apart model such as the Buzzaround XL 3-wheel suits that better.
Frequently asked questions
Can I charge a phone from the scooter?
Yes. The tiller's USB port charges a phone or tablet, not the scooter.
Are the batteries airline safe?
The airline must approve the scooter and its batteries before you fly. Check the carrier's own rules.
Can I push it if the battery runs flat?
Yes. Freewheel mode releases the drive so the scooter can be pushed by hand.
Funding may help: see who may help pay.
Warranty covers the frame for 5 years, the drivetrain and electronics for 2 years, and the batteries for 1 year (see the Warranty tab). Service covers everything we sell.
Specifications
- Weight capacity
- 500 lb (226.8 kg)
- Product weight
- 225.5 lb (102.3 kg) assembled
- Heaviest piece
- Base, 101.5 lb (46.0 kg)
- Seat width
- 22 in (559 mm), extra wide high-back; optional Captain's chair 20 in
- Seat depth
- 20 in (508 mm)
- Seat height
- 24.5 in to 27.5 in (622 mm to 699 mm) to the ground; 16.5 to 19.5 in above the deck, four 1-inch positions
- Seat type
- Extra wide high-back in black, self-locking for transport, swivels 90 degrees each way; optional Captain's chair with a 6 in power elevating seat
- Tiller
- Infinite position adjustable tiller with an auto-lock, an LCD console with fault codes and a USB charging port
- Tires
- Solid, flat-free and non-marking. Front 10.25 in (260 mm), rear 10.75 in (273 mm); front and rear anti-tippers
- Suspension
- Rear suspension
- Overall width
- 26 in (660 mm)
- Overall length
- 48 in (1219 mm)
- Ground clearance
- 6.25 in (159 mm) at the centre deck, 3.75 in (95 mm) at the motor; deck 8 in (203 mm) off the ground
- Turning radius
- 51 in (1295 mm)
- Driving range
- Up to 25.7 km (16 mi) on two NF22 batteries
- Top speed
- Up to 9.7 km/h (6 mph)
- Brakes
- Electromechanical, with freewheel mode, electronic speed control and an automatic sleep mode
- Lights
- LED headlights, tail lights and flashers, with side reflectors
- Motor
- Rear-wheel drive with a 120 A controller; Golden does not publish the motor rating
- Batteries
- Two 12 V NF22 batteries, 37 lb (16.8 kg) each, included
- Available colours
- Crimson Red, Azure Blue and Galactic Grey shrouds
- Battery charger
- Portable 8 amp, off-board
- Warranty
- 5-year frame, 2-year drivetrain, 2-year electronics, 1-year batteries
- Product type
- Heavy duty, 3-wheel
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Companion HD 3-wheel (GC540) to the initial consumer, from the date of purchase from an authorized Golden provider, against defects in materials or workmanship.
- Steel frame, frame welds, tiller frame, front fork and seat post: 5 years.
- Transaxle and motor/brake assembly (electrical function): 2 years.
- Controller, dash, wire harnesses, potentiometer and battery charger: 2 years.
- Batteries supplied by Golden: 1 year.
- Bearings, bushings, rubber and plastic parts, seat swivel, armrests and accessories: 1 year.
- Excludes wear items (tires and tubes, motor brushes, brake pads, plastic shrouds, bulbs and fuses, upholstery, armrest pads), misuse, commercial use and exceeding the weight capacity.
- Parts only: labour, service calls and freight are the owner's cost. A warranty registration card must be on file.
