Description

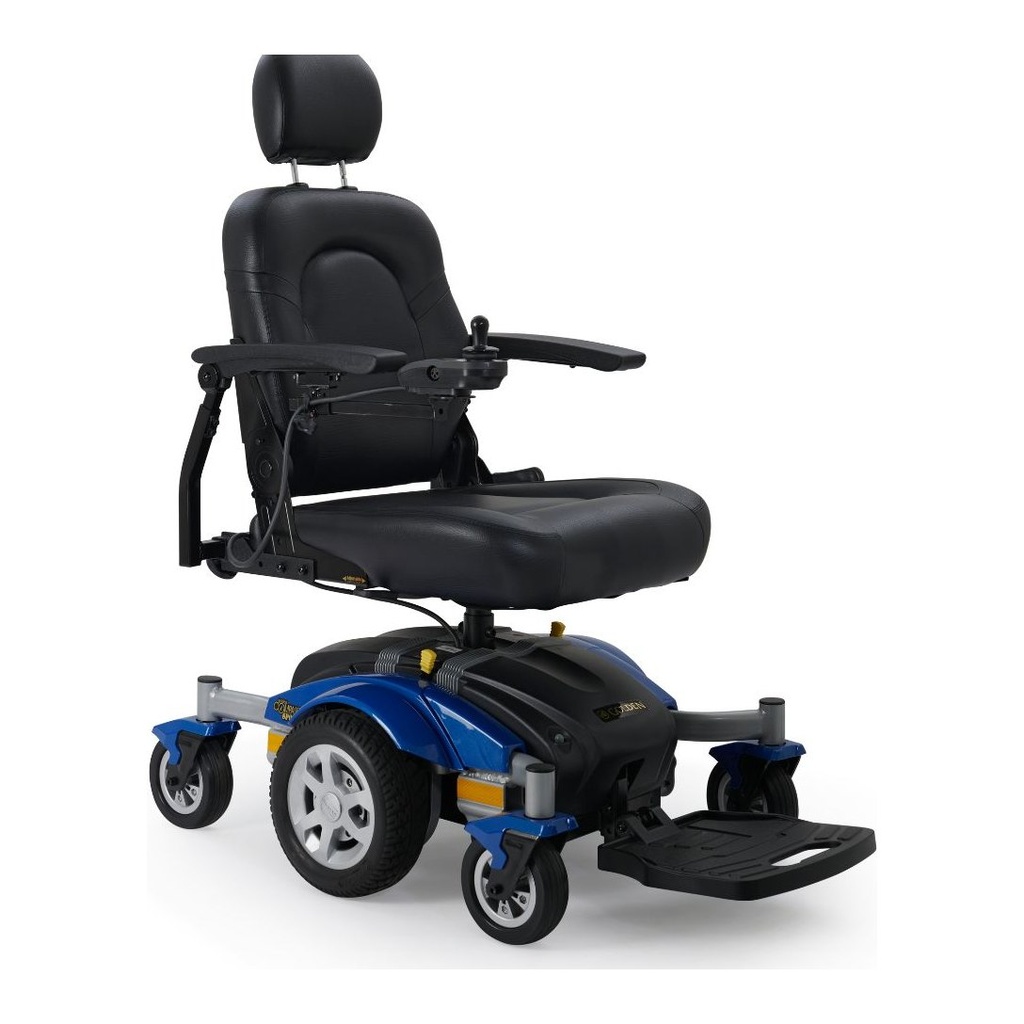

The Golden Compass HD GP620 is a heavy-duty centre-wheel power chair with a captain's seat up to 24 in (61 cm) wide and a 20 in (50.8 cm) turning radius.
What does it do and how does it work?
- Centre-wheel drive: 10 in (25.4 cm) flat-free drive wheels, 6 in (15.2 cm) flat-free casters, 3.5 in (88.9 mm) clearance and a 20 in (50.8 cm) turn.

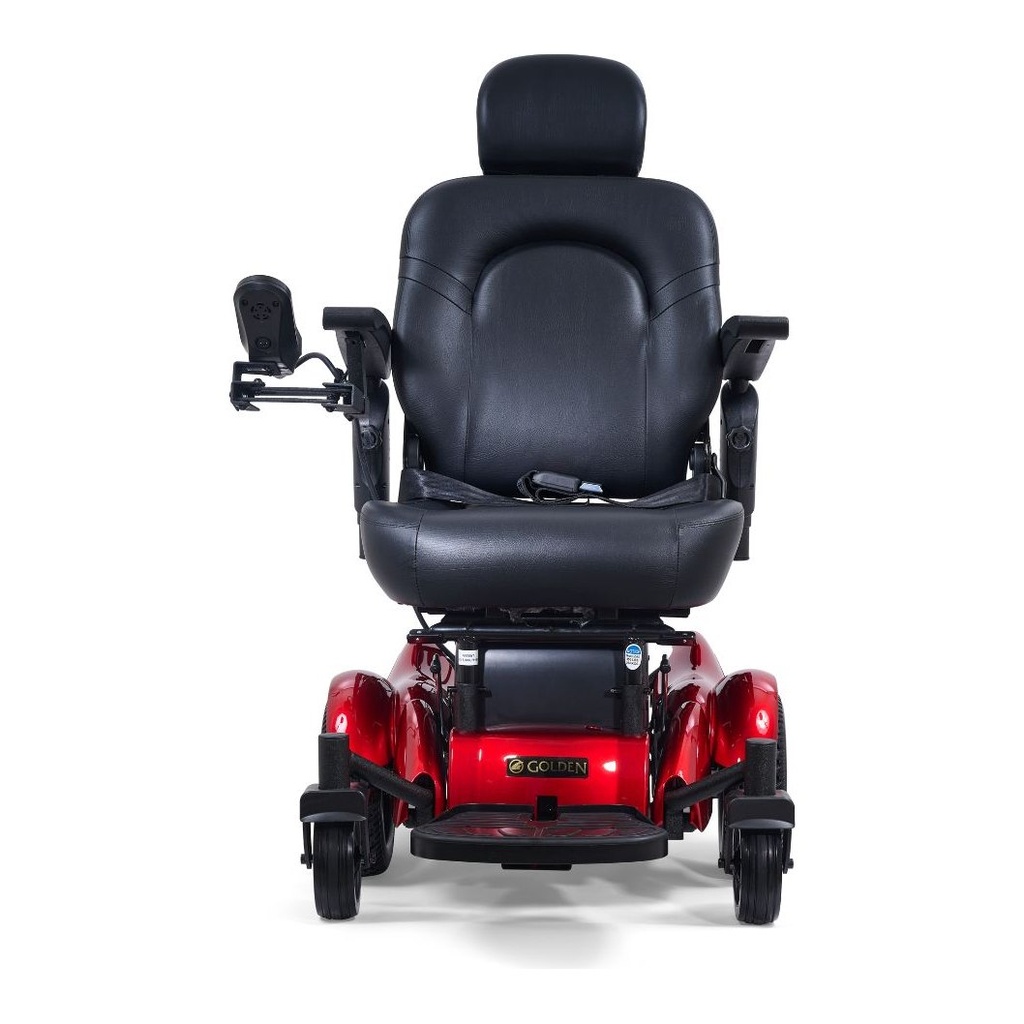

- Seat: a captain's seat 20 x 20 in or 20 x 18 in, with a 19 in (48.3 cm) back or 26.5-30 in with the headrest; it reclines to 115 degrees, and optional seats run 18-24 in wide.
- Seat mechanism: a fold-flat hinge, slide bracket and separate front and rear posts; seat height runs 21.25-24.25 in (54-61.6 cm) in five 0.5 in steps.
- Speed and range: 4 mph (about 6 km/h) and 12 miles (about 19 km) at maximum capacity.
- Controls: a 75 amp fully programmable joystick, freewheel mode and electro-mechanical brakes.
- Footrest: adjusts 3-7 in (7.6-17.8 cm) in height and 0-35 degrees in angle.
Who is it for, and who should choose something else?
- It suits a rider up to 450 lbs (204 kg) who needs a wider seat.
- It suits a rehab build with separately adjustable seat posts.
- Choose the Compass Sport GP605 for 300 lbs, or a folding chair if it must go in a car boot.
Will it fit?
- Rider: 450 lbs (204 kg); seat 20 x 20 or 20 x 18 in standard, 18-24 in wide optional; seat height 21.25-24.25 in; back 19 in without the headrest.
- Base: 25 in (63.5 cm) wide and 40 in (101.6 cm) long, 38.25-42.75 in (97.2-108.6 cm) high, or 47.25-53.75 in with the headrest.
- Weight: 226 lbs (102.5 kg) assembled; base 101 lbs, seat 51 lbs, batteries 37 lbs each.
- Ground: 3.5 in (88.9 mm) clearance, a 20 in (50.8 cm) turning radius and a 6 degree slope limit.
Using it day to day
- Set the seat: use the fold-flat hinge, slide bracket and separate posts to set height and position.
- Charge: use the off-board charger for 6-8 hours, or 12 hours for new batteries.
- Freewheel: turn the levers; use it only on level ground.
- Transport: never sit in the chair while it is transported; tie the empty chair down with an approved system.
- Footrest: set it between 3 and 7 in high and 0 to 35 degrees.
What does it work with, and what are its limits?
- Stay within 450 lbs (204 kg), one rider.
- Incline limit 6 degrees.
- The 12 mile range is measured at maximum capacity.
- Warranty: frame 5 years; drive train and electronics 13 months; batteries 12 months.
Which version should I choose?
- Seats: 20 x 20 or 20 x 18 in standard; 18, 20, 22 or 24 in wide optional.
- Colours: red or blue.
- Accessories: swing-away or elevating legrests, stump support, footplate extender, holders and a Pack N Go case.
How does it compare?
- The Compass Sport GP605 is the lighter 300 lbs model.
- The Ally Pro GP304 is a folding chair rated to 330 lbs.
- See all standard power wheelchairs, or read how to choose a wheelchair.
Frequently asked questions
How wide a seat can it take?
Up to 24 in wide; the standard captain's seat is 20 in wide.
Does the back recline?

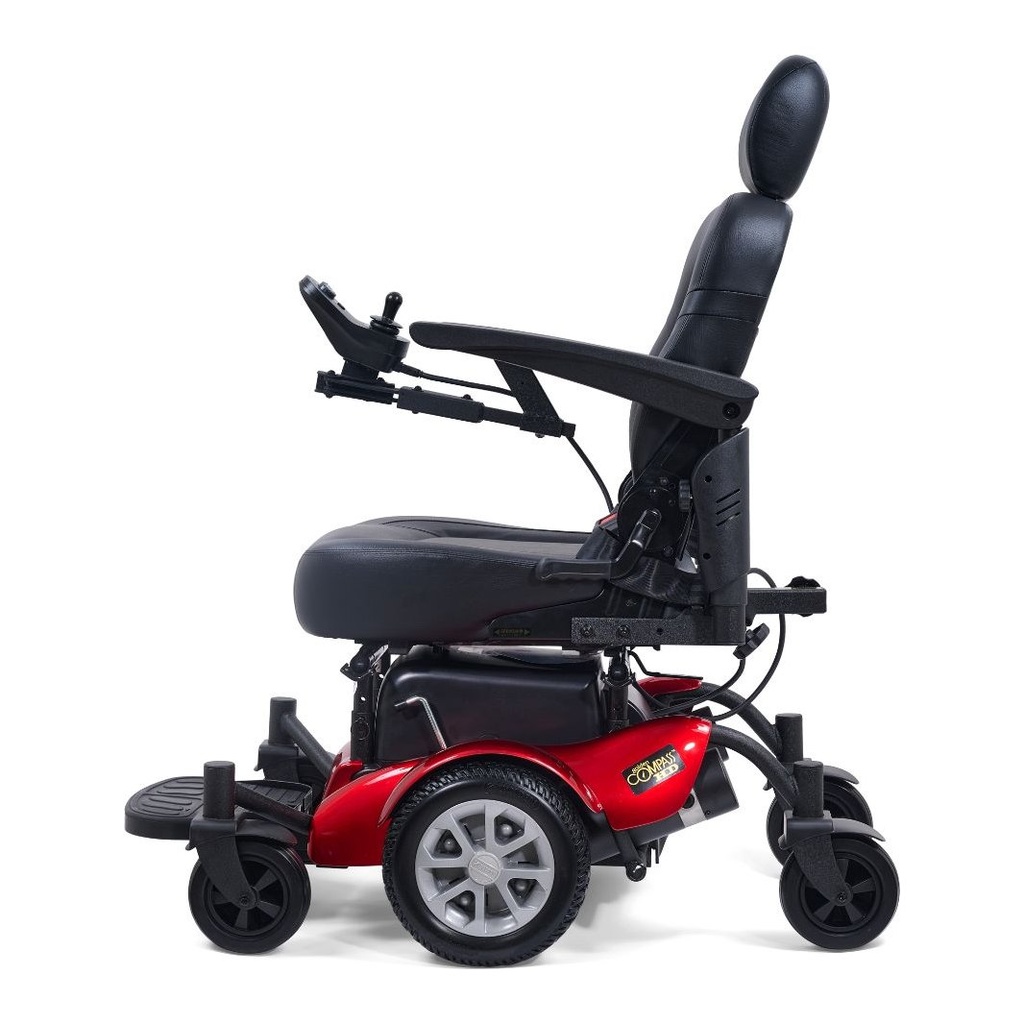

Yes, up to 115 degrees; the headrest raises the back to 26.5-30 in.
Can I sit in it in a vehicle?
No. Never sit in the chair while it is transported; tie the empty chair down with an approved system.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 450 lbs (204 kg)
- Product weight
- 226 lbs (102.5 kg) assembled; base 101 lbs (45.8 kg), seat with arms 51 lbs (23.1 kg), batteries 37 lbs (16.8 kg) each
- Seat width
- 20 in (50.8 cm) standard; optional 18, 20, 22 or 24 in (45.7, 50.8, 55.9 or 61 cm)
- Seat depth
- 20 or 18 in (50.8 or 45.7 cm) standard; optional 18 or 20 in
- Back angle
- Adjustable up to 115 degrees
- Seat height
- 21.25-24.25 in (54-61.6 cm) ground to seat, five positions
- Drive wheel size
- 10 in (25.4 cm) flat-free centre drive
- Caster size
- 6 in (15.2 cm) flat-free
- Overall width
- 25 in (63.5 cm)
- Overall height
- 38.25-42.75 in (97.2-108.6 cm); 47.25-53.75 in (120-136.5 cm) with headrest
- Overall length
- 40 in (101.6 cm)
- Ground clearance
- 3.5 in (88.9 mm)
- Turning radius
- 20 in (50.8 cm)
- Maximum slope
- 6 degrees
- Driving range
- 12 miles (about 19 km) at maximum capacity
- Top speed
- 4 mph (about 6 km/h)
- Controller
- 75 amp fully programmable joystick
- Brakes
- Electro-mechanical with electronic speed control and freewheel mode
- Footrest
- Adjustable 3-7 in (7.6-17.8 cm) in height and 0-35 degrees in angle
- Battery
- Two NF22 batteries, 37 lbs (16.8 kg) each
- Available colours
- Red and Blue
- Compatible with
- Two NF22 batteries, 37 lb each, required. Off-board charger
- Battery charger
- Off-board; 6-8 hours to charge, 12 hours for new batteries
- Seat
- Captain's seat, 20 x 20 or 18 in, 19 in back without the headrest and 26.5 to 30 in with it, black vinyl
- Backrest height
- 19 in (48.3 cm) without headrest; 26.5-30 in (67.3-76.2 cm) with it
- Seat mechanism
- Fold-flat seat hinge, slide seat bracket and separate front and rear height-adjustable posts
- Warranty
- Frame 5 years; drive train and electronics 13 months; batteries 12 months
- Product type
- Heavy-duty centre-wheel power wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Compass HD GP620 to the first consumer who bought it from an authorized Golden Technologies retailer, from the date of purchase. A warranty registration card must be on file for service.
- Steel frame, frame welds and seat post: 5 years.
- Motor and gearbox, electrical brake function, controller, charger, wiring, caster beam, forks, armrests, footrest, seat swivel, bearings, bushings and other rubber and plastic parts: 13 months.
- Batteries supplied by Golden: 12 months.
- Accessories supplied by Golden: 1 year.
- Covers replacement parts only. Labour, service calls, transport and freight are paid by the owner.
- Excludes wear items (tires and tubes, plastic shrouds, armrest pads, motor brushes, bulbs and fuses, battery cases, brake pads, upholstery), loss or theft, battery leakage, abuse, misuse, accident, neglect, improper use or storage, commercial use, exceeding the weight limit, and unapproved repairs or accessories.
