Description
The Golden Technologies Cricket LT GP309 is a carbon fibre power wheelchair that side-folds to a 12 in profile and stays on its wheels. It holds 300 lb and turns in 29.5 in.
Who it suits, and who should look elsewhere
- It suits a rider at or under 300 lb who can lift about 26 lb with the cushion, battery and drink holder off.
- The seat is one size, 18 by 18 in; a wider hip needs another chair.
- At 1.25 in clearance, it is not a trail chair.
- Compare other folding power wheelchairs if a 24 in open width is tight.
Will it fit the rider and the vehicle?
- Weight limit 300 lb; range tested at 200 lb reaches up to 9.5 miles.
- Seat 18 in by 18 in, 19 in from the ground, with a 16.4 in back and no headrest.
- Open size is 36 in long, 24 in wide and 33 in to the top of the back.
- Turning radius is 29.5 in; folded, it stands 12 in deep on its wheels.

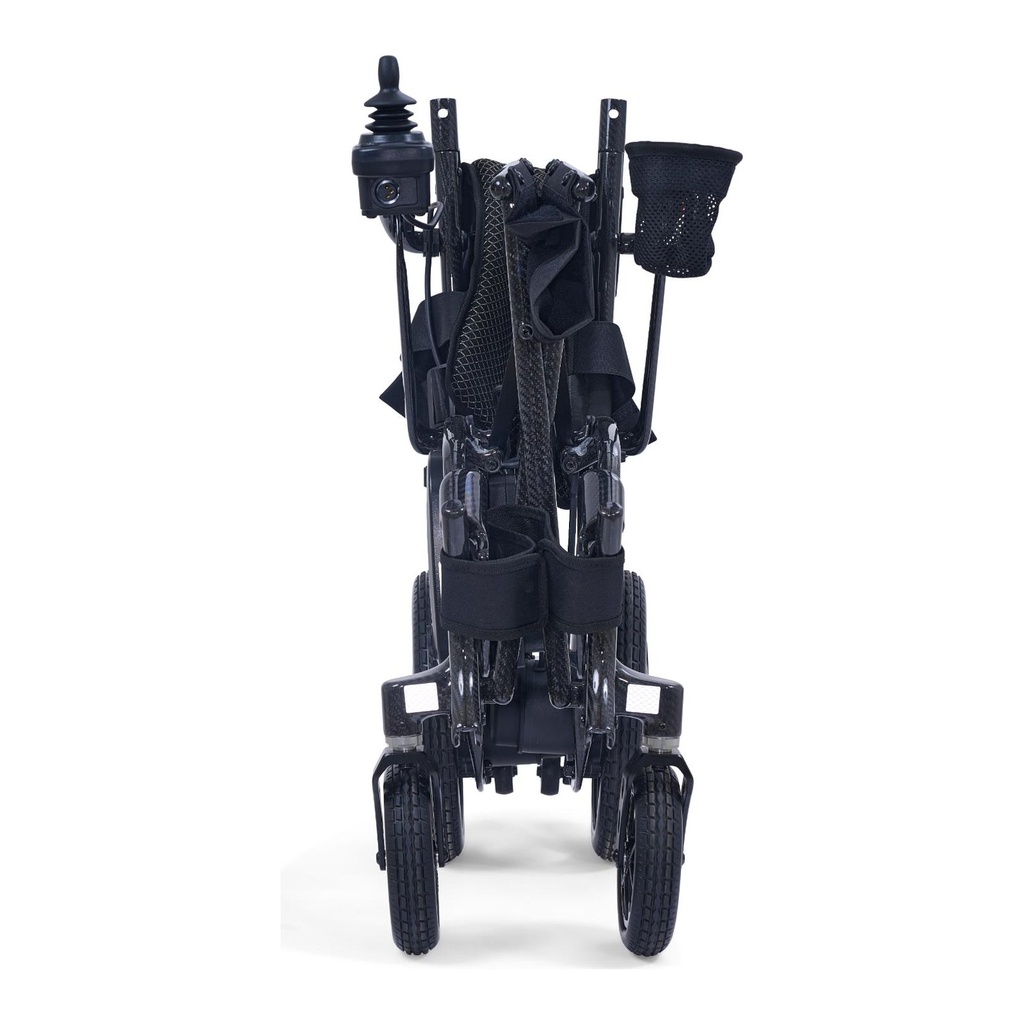

How does it fold?
- Peel back the seat pad velcro, pull the two strap handles up, then fold the backrest in half and fold each footrest.
- Do not sit on it while folding, and keep hands flat on the seat, away from the frame gap.
- To unfold, press down on the seat edges until the frame locks.
- The battery clips in on two lower tabs and releases by button for charging or storage.
How does it drive?
- Rear-wheel drive with 11 in flat-free drive wheels, 6.5 in front casters and 2 in anti-tip wheels.
- Top speed is 3.7 mph (about 6.0 km/h) from a 35 amp controller, with electro-mechanical brakes and a freewheel mode.
- It climbs no more than 6 degrees and no curb over 1.5 in. Never back up or down a curb.
- The joystick mounts on either arm, and its USB port charges a phone, not the chair.
Seat and comfort
- The memory foam cushion, drink holder and flip-up armrests are standard.
- The seat belt must be used. Never use the backrest, arms or footrest as a handle to transfer in or out.
- Never sit on the chair while it is being transported, or in freewheel mode on a slope.
Battery and charging
- The 10 Ah 24 V pack weighs 2 to 3 lb and carries in its own bag.
- Charge 5-8 hours after each use; the first charge reaches about 90%, and 4-5 cycles bring full capacity.
- If unused for more than a week, charge fully and remove the battery. The charger LED is blue while charging and green when full.
How it compares
- The Cricket GP302 folds forward and weighs more. This LT side-folds.
- A carbon travel chair is the Pride Jazzy Carbon.
- See power wheelchairs if 300 lb or a 29.5 in turn is the wrong fit.
Frequently asked questions
Can the Cricket LT be pushed if the battery is flat?
Yes. It has a freewheel mode. Put it in freewheel only when a helper is holding the chair.
Is the 25.8 lb figure the whole chair?
No. It leaves off the cushion, battery and drink holder; with the memory foam cushion it is 31.3 lb.
What slope and curb can it handle?
Up to 6 degrees and a curb of 1.5 in, driven straight on. Never back up or down a curb.
Frame warranty is 5 years; drive train and electronics 13 months; battery 1 year. Funding may help: see who may help pay, or book a free home assessment.
Specifications
- Weight capacity
- 300 lb (136 kg)
- Product weight
- 31.3 lb with memory foam; 29.5 lb with base cushion; 25.8 lb without cushion, battery and drink holder
- Seat width
- 18 in
- Seat depth
- 18 in
- Back height
- 16.4 in, no headrest
- Seat height
- 19 in from the ground to the top of the seat
- Rear wheel size
- 11 in, flat-free
- Caster size
- 6.5 in front, flat-free; 2 in rear anti-tip
- Overall width
- 24 in
- Overall length
- 36 in
- Folded dimensions
- 12 in side profile, stays on its wheels
- Unfolded dimensions
- 33 in from the ground to the top of the back
- Ground clearance
- 1.25 in
- Turning radius
- 29.5 in
- Maximum obstacle height
- 1.5 in curb; never back up or down a curb
- Maximum slope
- 6 degrees
- Driving range
- Up to 9.5 miles, tested at 200 lb
- Top speed
- 3.7 mph (about 6.0 km/h)
- Controller
- 35 amp; joystick mounts on either arm and has a USB port for a phone
- Brakes
- Electro-mechanical, with freewheel mode
- Battery
- 10 Ah 24 V lithium-ion, 2-3 lb depending on the build, with a carry bag
- Available colours
- Black carbon fibre frame, black seat
- Compatible with
- 10 Ah 24 V lithium-ion battery, 3 lb
- Charging time
- 5-8 hours after each use; first charge reaches about 90% and 4-5 cycles bring full capacity
- Battery charger
- Off-board charger; LED blue while charging and green when full
- Features
- Memory foam cushion, integrated drink holder, flip-up armrests, folding backrest and footrests
- Seat belt
- Standard; must be used
- Warranty
- Frame 5 years; drive train 13 months; electronics 13 months; battery 1 year
- Product type
- Side-folding carbon fibre power wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies gives the Cricket LT GP309 a limited warranty from the date of purchase. The full written terms come with the product, and the warranty registration card should be filled in and returned.
- Frame: 5 years.
- Drive train: 13 months.
- Electronics, not including batteries: 13 months.
- Batteries: 1 year.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
