Description

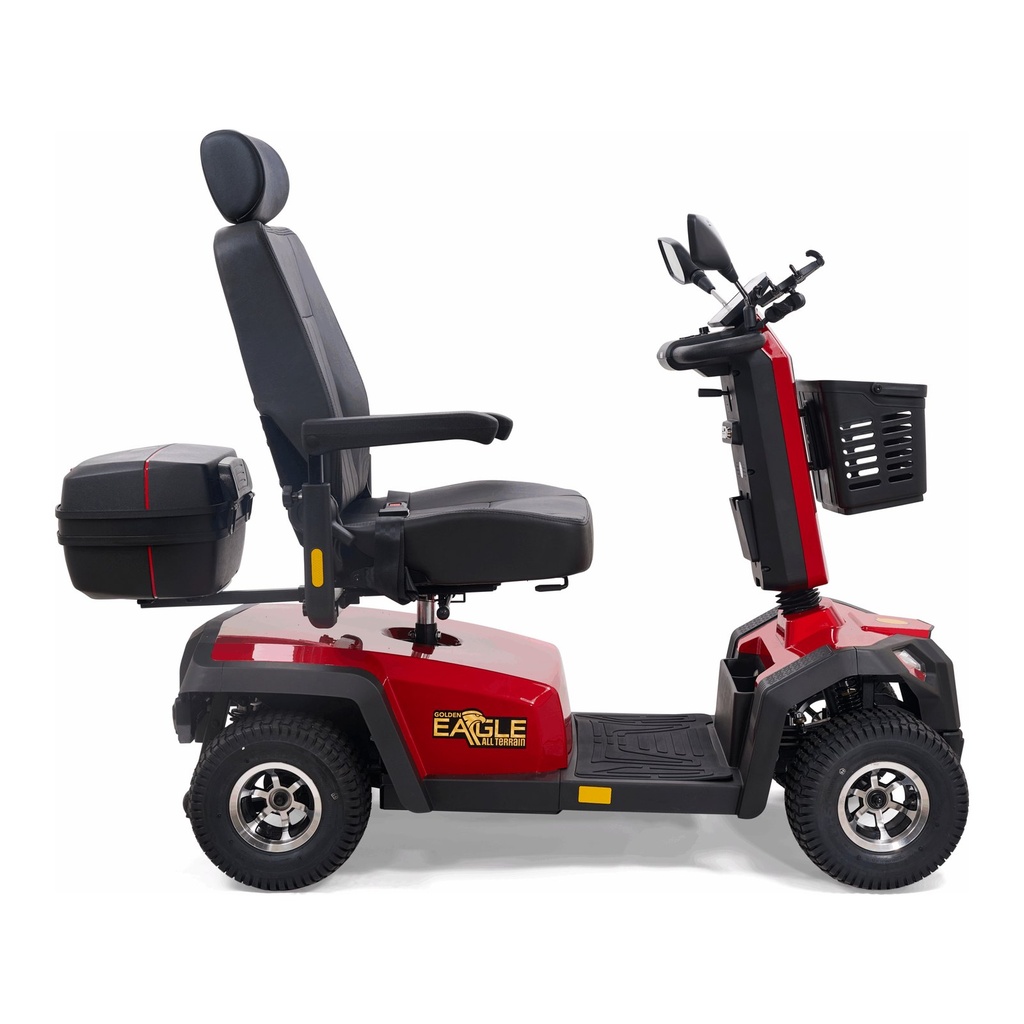

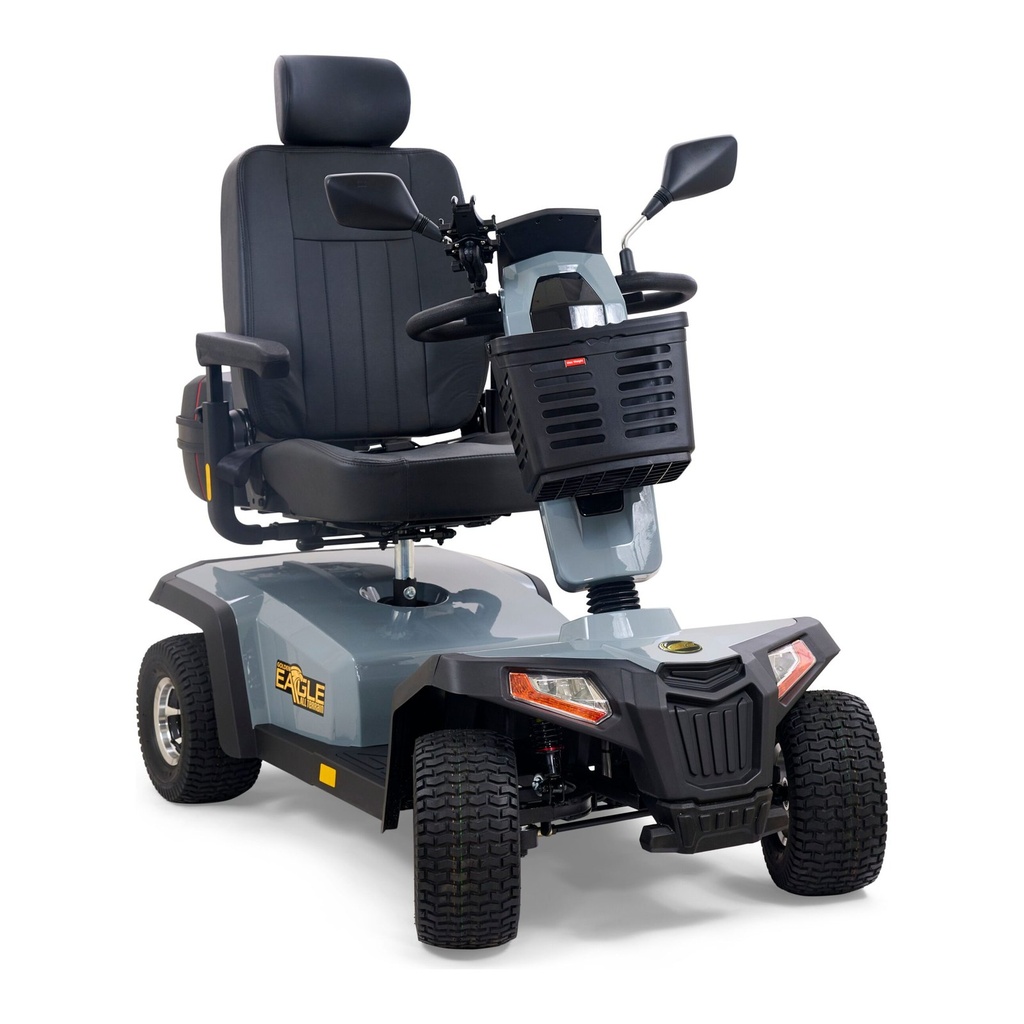

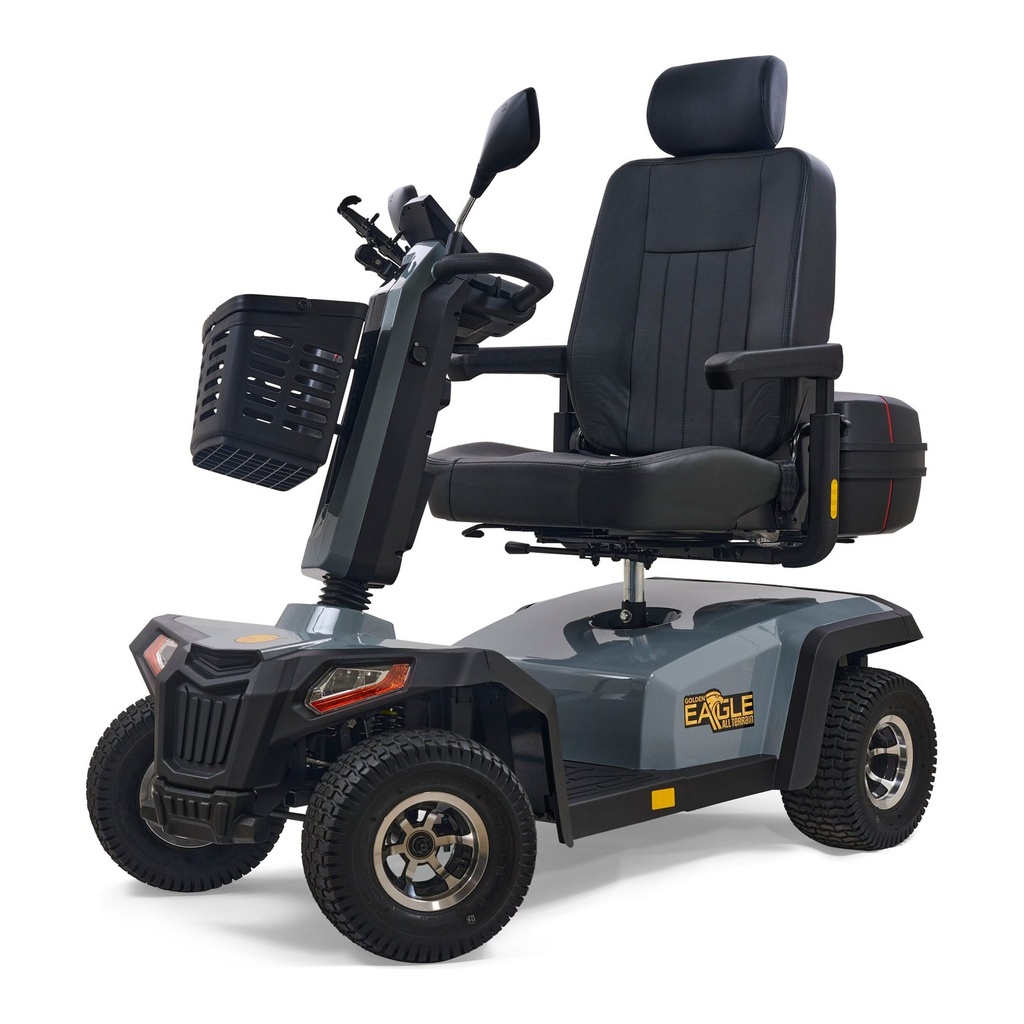

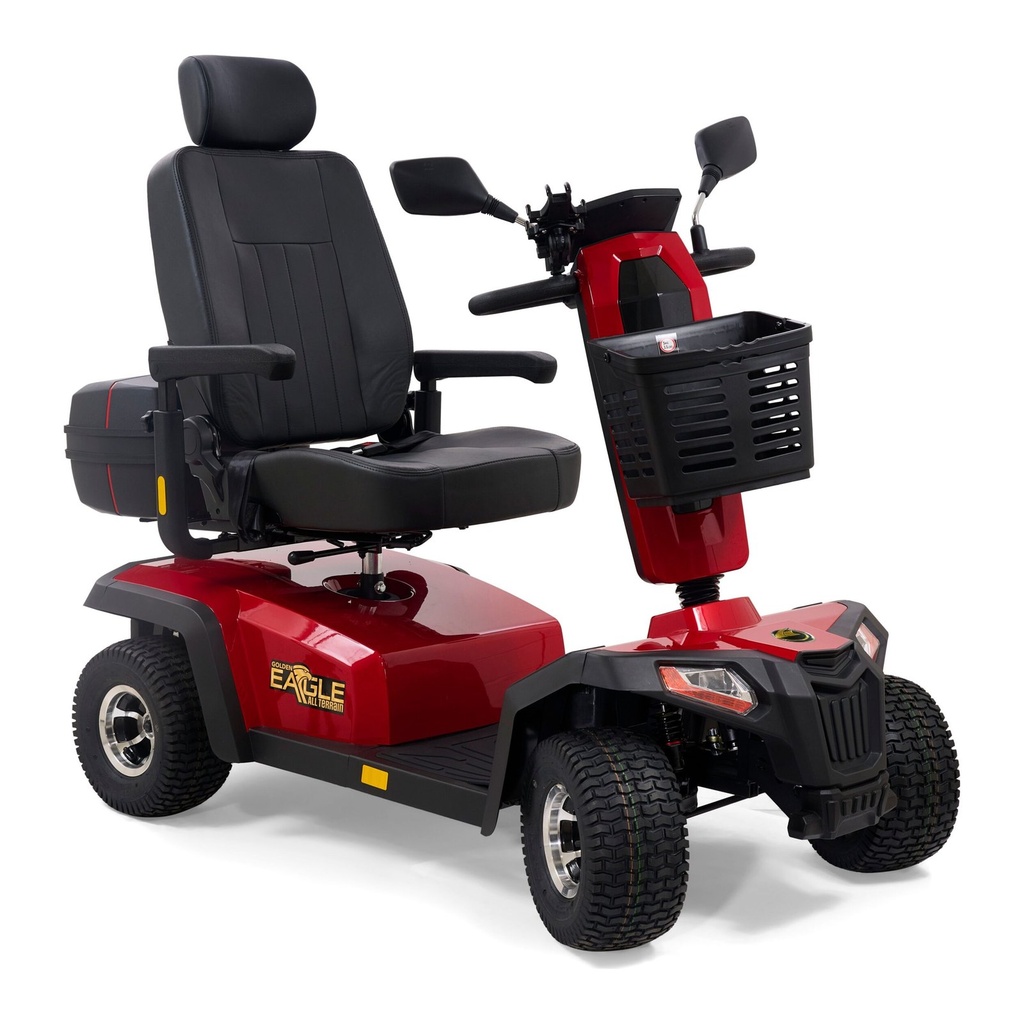

Eagle All Terrain GR596 is Golden's off-road scooter. It carries 500 lb (226.8 kg) on 13 in pneumatic turf tires, with adjustable suspension at both ends.
Who is it for?
- Riders up to 500 lb (226.8 kg) who want one scooter for the driveway, the cottage lane and the gravel path.
- Up to 54.7 km (34 mi) on the standard 75 Ah batteries.
What has to fit?
- Length 63 in (1600 mm), width 31.7 in (805 mm). Measure the door, gate and ramp first.
- The turn is 76 in (1930 mm), so it wants room to swing around. Height is 56.5 in (1435 mm) to the seat back.
- Ground clearance 4 in (102 mm); a kerb or root is a real obstacle. The deck sits 7 in (178 mm) off the ground and the seat 19.5 in (495 mm) above it.

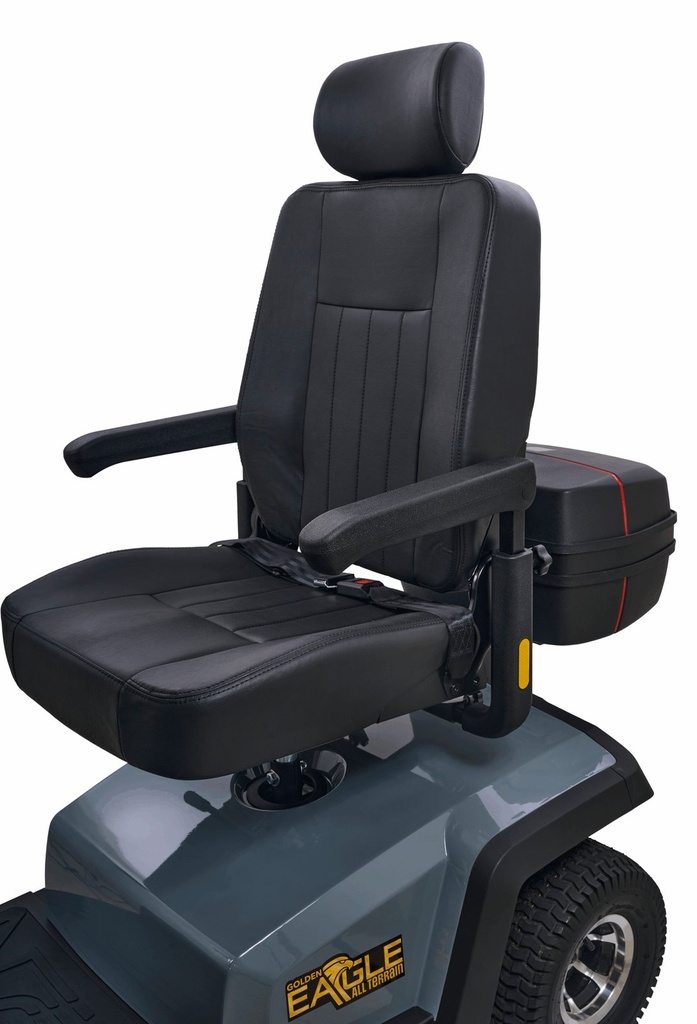

- The captain's seat is 20 in by 18 in (508 by 457 mm) and 26.5 in (673 mm) off the ground, with a slide seat and two height positions.
What are its limits?
- For a van, the seat, arms and batteries come off. With the seat off, the height is 20.5 in (521 mm). Assembled weight is 377 lb (171 kg) with the 75 Ah batteries.
- The recommended maximum incline is 6 degrees. Do not climb snow, ice or wet grass, and do not reverse down a slope.
- Each battery is 52 lb (23.6 kg) and charges off-board with the supplied charger.

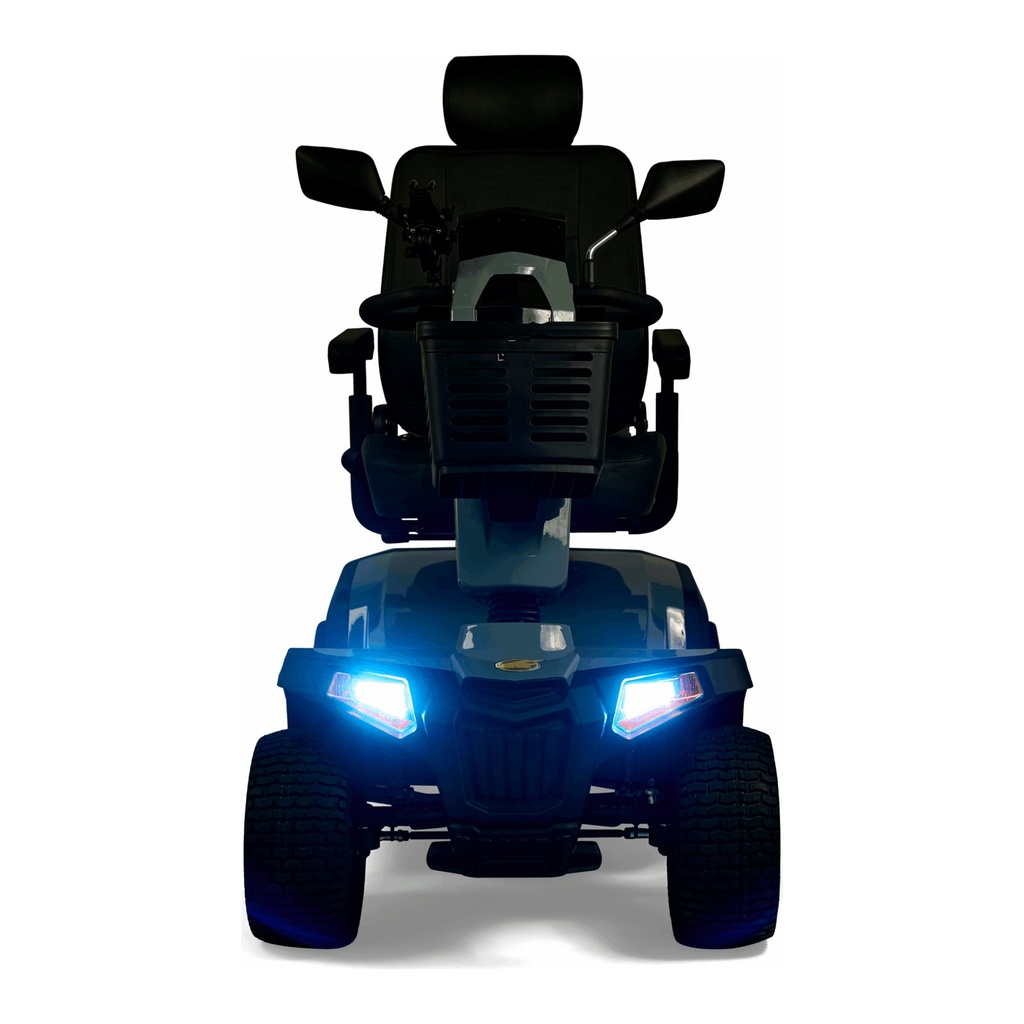

- A 200 amp controller drives the rear wheels. The LED package includes turn signals and a brake light, with freewheel mode and electronic speed control.
- The tires hold 28 psi. Check them before a long ride or heavy load.
- Grass, hills and cold weather all shorten the 54.7 km (34 mi) range figure.
- Two 100 Ah batteries are a factory upgrade: 407 lb (184.6 kg) assembled, with no published range.
How does it compare?
- Pride Pursuit XL is the other 4-wheel heavy-duty scooter to weigh if most of your riding is on pavement.
- Pride Victory 10.2 is smaller, for a doorway the 31.7 in width will not clear.
- More classes: heavy-duty scooters and mobility scooters.
Frequently asked questions
Does the Eagle GR596 come apart for a van or a lift?
The base is 208 lb (94.3 kg), and the scooter is up to 407 lb (184.6 kg) with 100 Ah batteries. Get a second person before you lift a piece.
Can I reverse down a slope?
No. Do not reverse down an incline, and do not sit on the scooter in freewheel while it is on a slope.
Can the 100 Ah batteries be fitted later?
Golden lists the 100 Ah pack as a factory upgrade, so we cannot promise a later field fit. Confirm with us before you buy, and order the scooter with the pack you want.
Where can I ride it in Ontario?
Medical scooters count as pedestrians in Ontario, but most municipalities set their own sidewalk bylaws. Check your city's rule first.
Funding may help: see who may help pay.
Golden's warranty: five years on the frame, 13 months on the drive train and the electronics, one year on the batteries. Service covers what we sell.
Specifications
- Weight capacity
- 500 lb (226.8 kg)
- Product weight
- 377 lb (171 kg) assembled with 75 Ah batteries, 407 lb (184.6 kg) with 100 Ah
- Folding or disassembly
- Seat, arms and batteries come off; the tiller raises. Taking it apart reverses those steps
- Heaviest piece
- The base, at 208 lb (94.3 kg). Seat with arms 54 lb (24.5 kg), batteries 52 lb (23.6 kg) each
- Seat width
- 20 in (508 mm)
- Seat depth
- 18 in (457 mm)
- Seat height
- 26.5 in (673 mm) to the ground, two positions in 1 in increments
- Seat type
- Captain's high-back with a slide seat, 23.75 in (603 mm) back, black vinyl
- Tiller

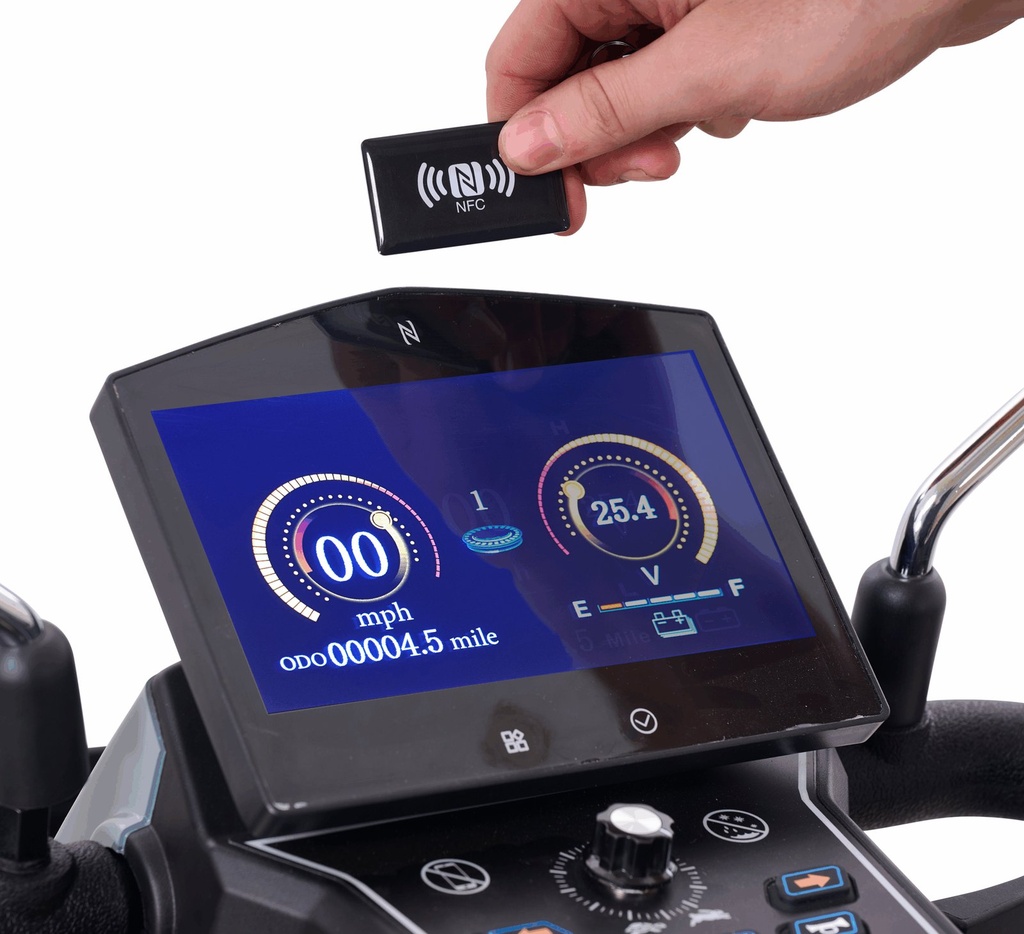

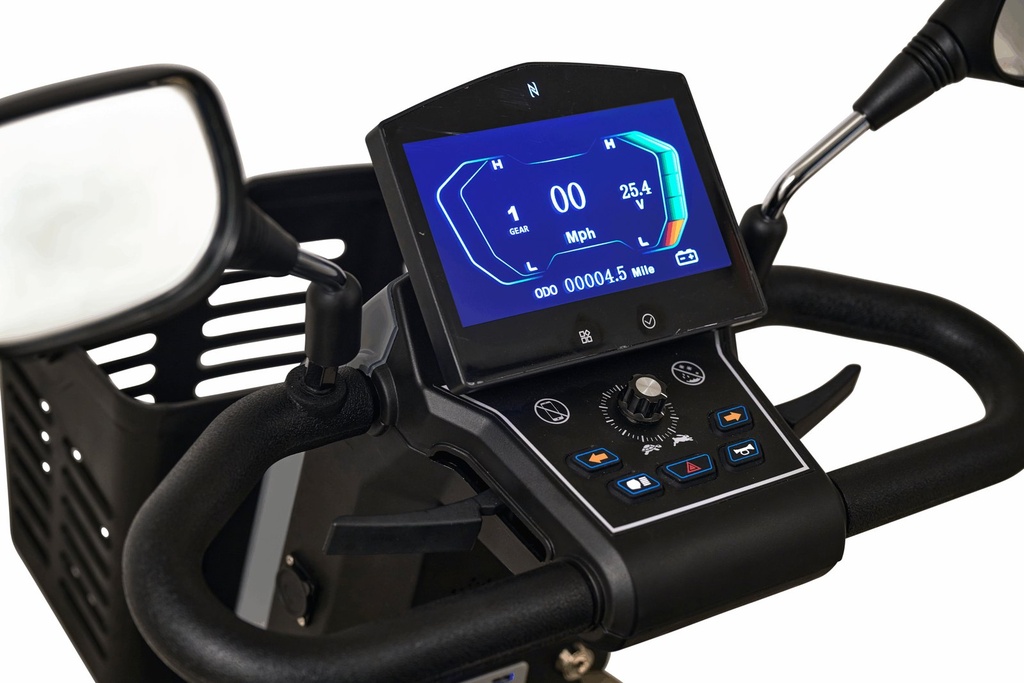

- Infinite-position wraparound tiller with a colour LCD console and USB port
- Tires

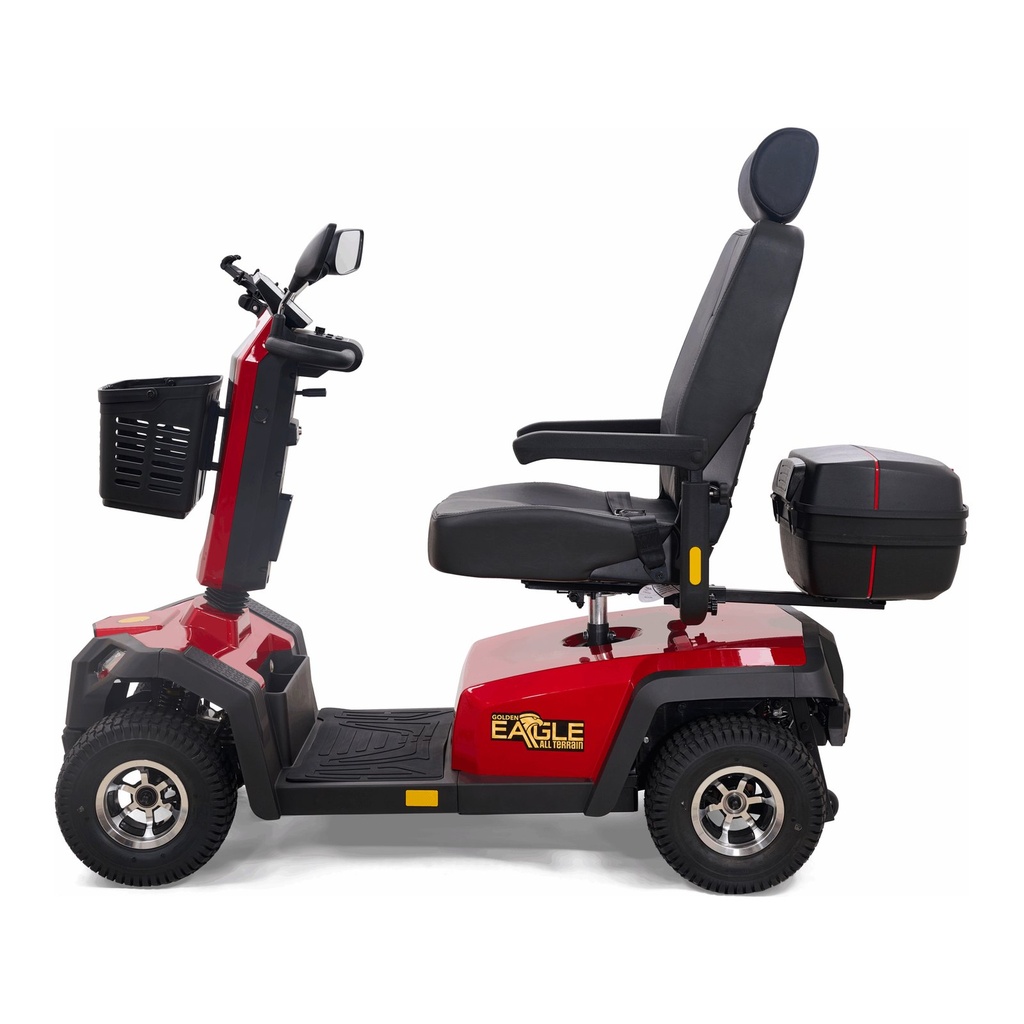

- Pneumatic 13 in by 6.5 in turf tread, front and rear, inflated to 28 psi
- Suspension
- Front and rear adjustable suspension
- Overall width
- 31.7 in (805 mm)
- Overall length
- 63 in (1600 mm)
- Folded dimensions
- 20.5 in (521 mm) high with the seat removed
- Ground clearance
- 4 in (102 mm)
- Turning radius
- 76 in (1930 mm)
- Maximum slope
- 6 degrees
- Driving range
- Up to 54.7 km (34 mi) on two 75 Ah batteries, rated at a 200 lb (90.7 kg) rider
- Top speed
- Up to 17.7 km/h (11 mph)
- Brakes
- Electro-mechanical, with freewheel mode and electronic speed control. No mechanical hand brake
- Lights

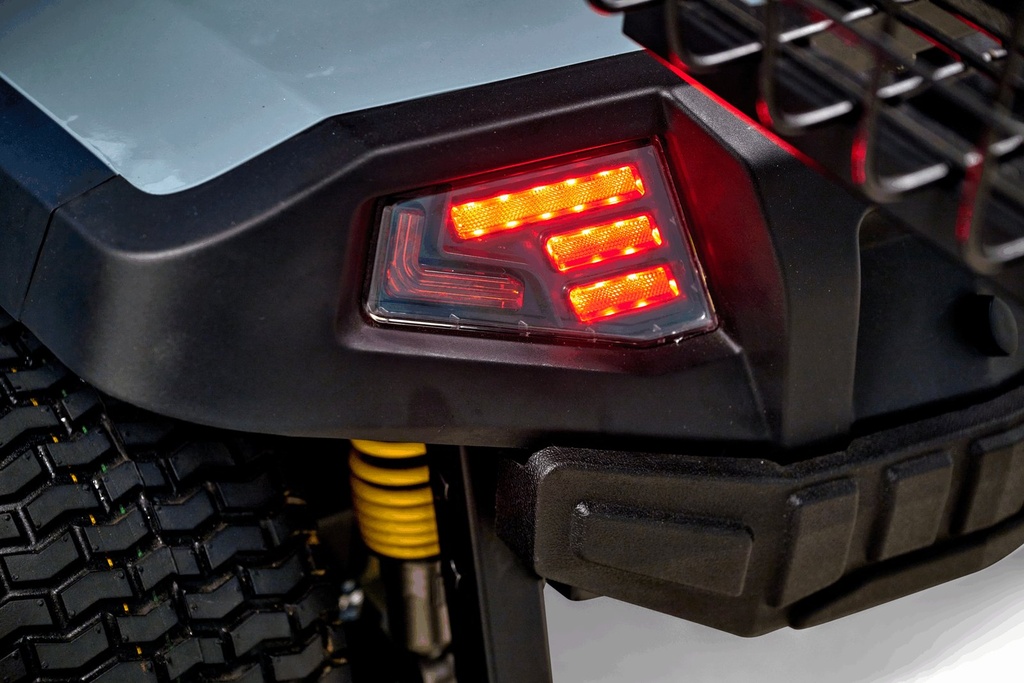

- Full LED lighting package with brake light and turn signals
- Motor
- Rear-wheel drive with a 200 amp controller
- Batteries
- Two 75 Ah; two 100 Ah are a factory upgrade
- Available colours
- Crimson Red and Stone Grey
- Battery charger
- Off-board
- Warranty
- Frame 5 years, drive train 13 months, electronics 13 months, batteries 1 year
- Product type
- Off-Road Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Eagle All Terrain GR596 against defects in materials and workmanship.
- Frame: 5 years.
- Drive train: 13 months.
- Electronics: 13 months.
- Batteries: 1 year.
- Return the warranty registration card, or register online, to receive service.
- Exceeding the 500 lb (226.8 kg) weight capacity, fitting unauthorized accessories or letting moisture into the dashboard voids the warranty.
