Description

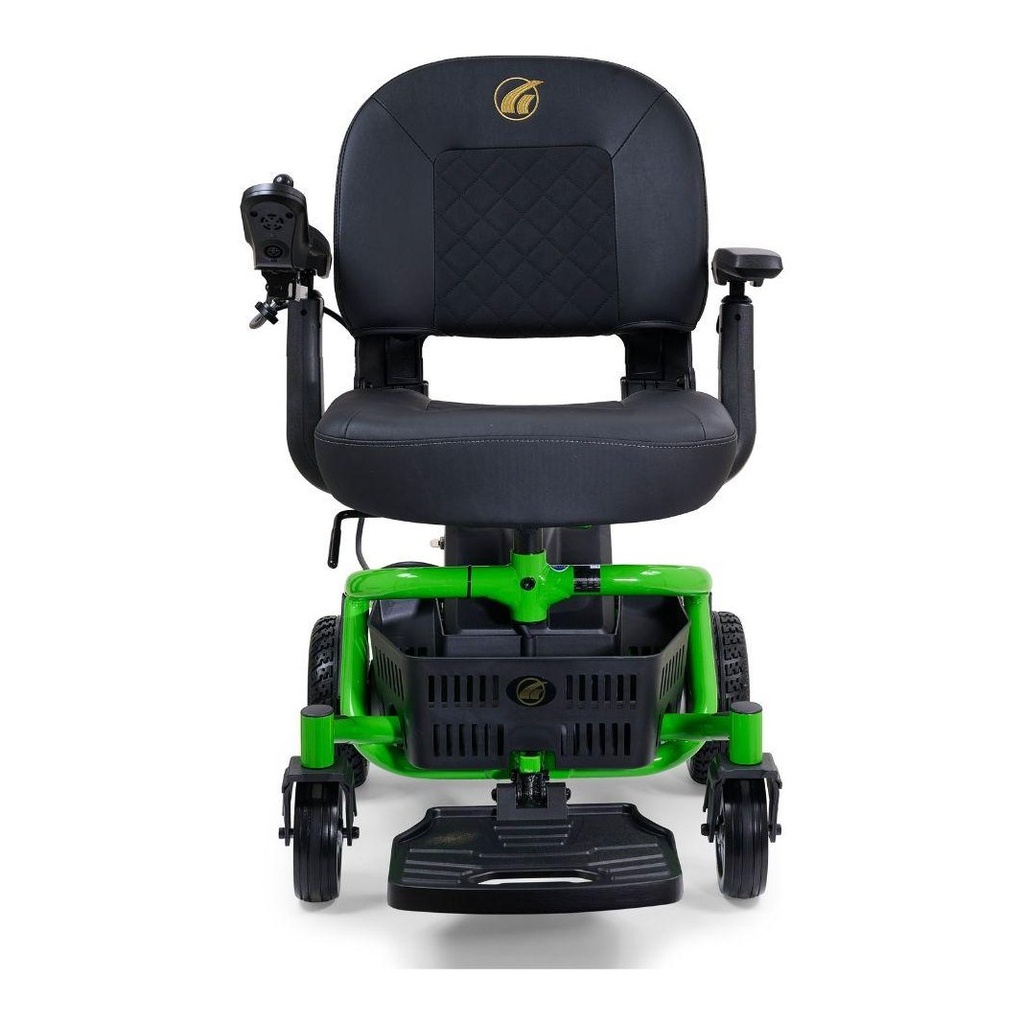

The Golden LiteRider Envy GP162 is a rear-wheel power wheelchair that separates into four liftable pieces for transport, rated to 300 lbs (136 kg).
What does it do and how does it work?

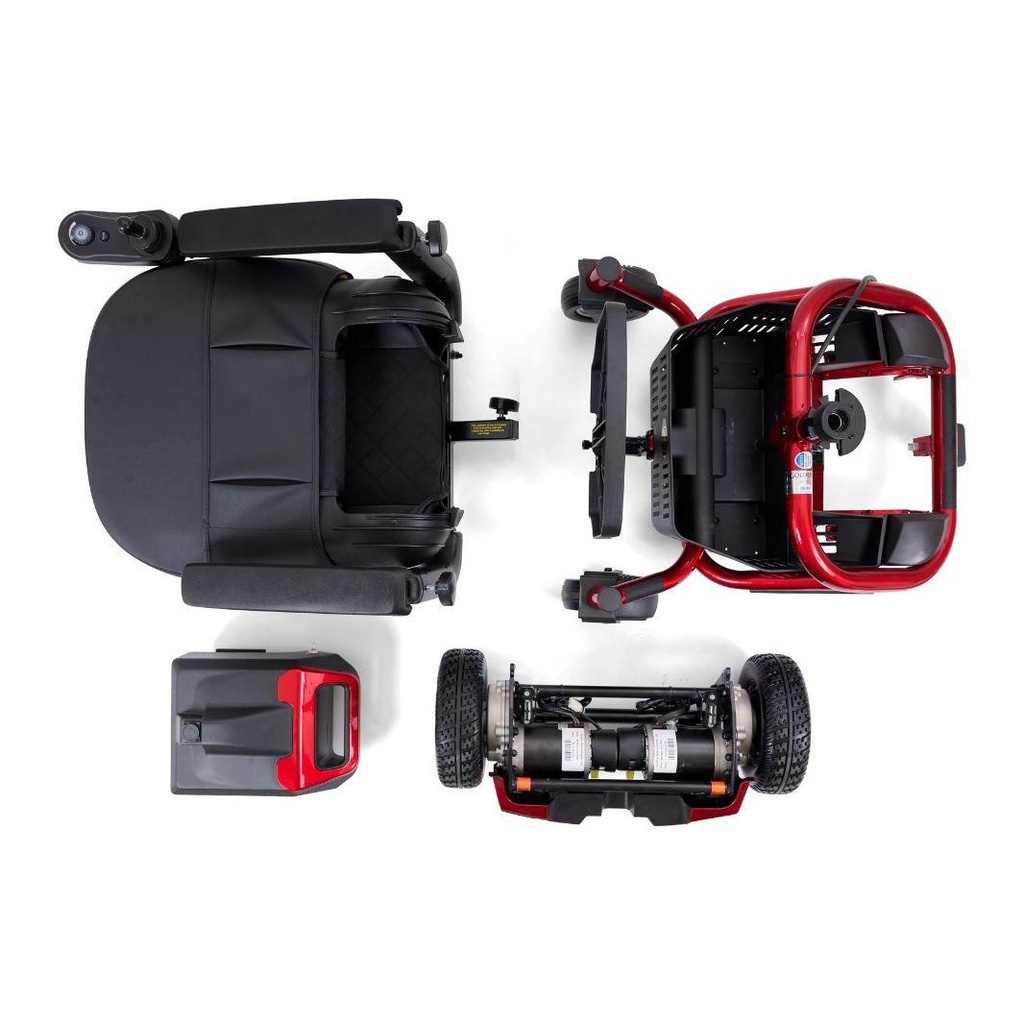

- Four-piece frame: the seat, battery pack, front half and rear half separate; the heaviest piece is 37 lbs (16.8 kg).
- Disassembly: fold the seat back, lift the seat off, remove the battery pack, then lift the frame off the drivetrain.
- Drive: rear-wheel drive with 9 in (22.9 cm) flat-free drive wheels, 6 in (15.2 cm) casters and 3 in (7.6 cm) anti-tip wheels.
- Speed and range: 3.5 mph (5.6 km/h) and up to 15.5 miles (24.9 km) at 200 lbs (91 kg).

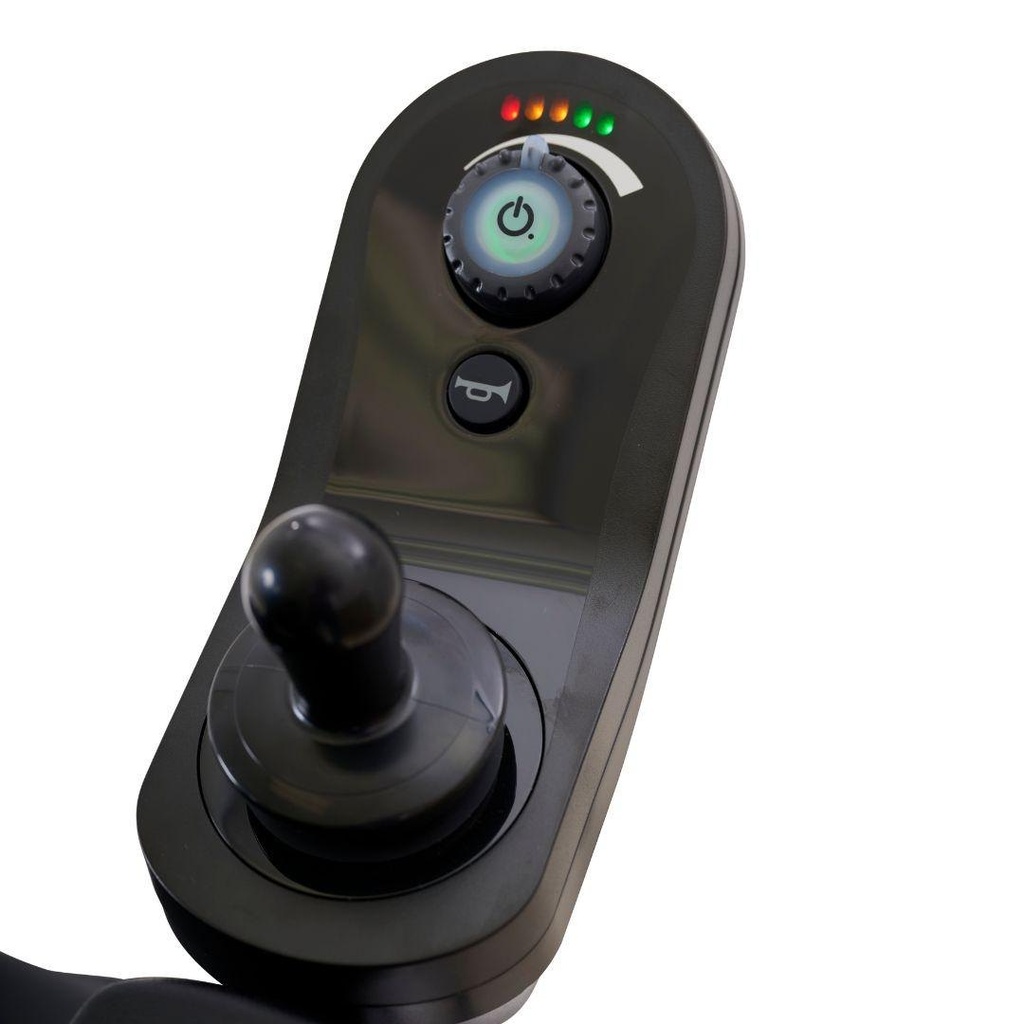

- Controls: a 40 amp Dynamic LiNX controller, electronic speed control and electro-mechanical brakes, with freewheel mode.
- Battery: two 22 Ah batteries in a 27 lbs (12.2 kg) pack, with an off-board charger.
Who is it for, and who should choose something else?
- It suits a rider up to 300 lbs (136 kg) who wants a chair that comes apart for a car boot.
- It suits a carer who can lift 37 lbs (16.8 kg).
- Choose a folding chair if one piece suits better; choose a mid-wheel base for turns tighter than 28.5 in (72.4 cm).
Will it fit?
- Rider: 300 lbs (136 kg); stadium seat 17 x 17 in (43.2 x 43.2 cm) with a 16 in (40.6 cm) back; highback 20 x 18 in; premium 17 x 16 in.
- Seat height: 21.5-22.5 in (54.6-57.2 cm), in two positions.
- Base: 22.5 in (57.2 cm) wide, 36 in (91.4 cm) long, 28.5 in (72.4 cm) turning radius.
- Ground: 2.5 in (6.4 cm) clearance and slopes up to 6 degrees.
Using it day to day
- Charge after every use: 6-8 hours, or 12 hours for the first charge; it cannot drive while charging.
- Charge through the joystick socket or the battery pack; disconnect the pack if the chair will sit for more than a week.
- Never sit in the chair while it is transported; tie the empty chair down with an approved system.
- Use freewheel only on level ground; do not operate or store the chair in rain, snow or below-freezing temperatures.
What does it work with, and what are its limits?
- Stay within 300 lbs (136 kg), one rider.
- The maximum incline is 6 degrees; the chair is not made for steps over 1.5 in (3.8 cm).
- The flat-free tyres need no inflation; do not try to inflate or disassemble them.
- Warranty: frame 5 years, drive train and electronics 13 months, batteries 12 months; wear items are excluded.
Which version should I choose?
- Seats: stadium, highback or premium; none has a headrest.
- Colours: cherry red, paradise blue, solar flare orange, envy green, satin silver or sunburst yellow.
- Accessories: cane, oxygen, cup, walker and crutch holders, safety flag, cover and seat belt.
- No power rise seat is offered.
How does it compare?
- The Pride Jazzy Carbon is a carbon-fibre folding chair that stays in one piece.
- Other chairs built for transport are under travel power wheelchairs.
- See all standard power wheelchairs.
Frequently asked questions
Does it come with a headrest?
No. None of the three seats has a headrest, and Golden offers none for the GP162.
What batteries does it use?
Two 22 Ah batteries in a 27 lb pack. Use the supplied off-board charger and AGM or gel replacements.
Can it climb a kerb?
Up to 1.5 in (3.8 cm), driven straight on; never back up or down a step or kerb.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- 123 lbs (55.8 kg) assembled; front half 37 lbs (16.8 kg), rear half 36 lbs (16.3 kg), seat with arms 23 lbs (10.4 kg), battery pack 27 lbs (12.2 kg)
- Seat width
- 17 in (43.2 cm) stadium; 20 in (50.8 cm) highback; 17 in (43.2 cm) premium
- Seat depth
- 17 in (43.2 cm) stadium; 18 in (45.7 cm) highback; 16 in (40.6 cm) premium
- Seat height
- 21.5-22.5 in (54.6-57.2 cm) from the ground, two positions
- Drive wheel size
- 9 in (22.9 cm) flat-free
- Caster size
- 6 in (15.2 cm) flat-free; 3 in (7.6 cm) anti-tip wheels
- Overall width
- 22.5 in (57.2 cm)
- Overall length
- 36 in (91.4 cm)
- Ground clearance
- 2.5 in (6.4 cm)
- Turning radius
- 28.5 in (72.4 cm)
- Maximum obstacle height
- 1.5 in (3.8 cm) step or kerb
- Maximum slope
- 6 degrees
- Driving range
- Up to 15.5 miles (24.9 km) at 200 lbs (91 kg)
- Top speed
- 3.5 mph (5.6 km/h)
- Controller
- 40 amp Dynamic LiNX
- Brakes
- Electro-mechanical, with electronic speed control and freewheel mode
- Footrest
- Height and angle adjustable
- Battery
- Two 22 Ah batteries, 27 lbs (12.2 kg) per pack
- Available colours
- Cherry red, paradise blue, solar flare orange, envy green, satin silver, sunburst yellow
- Compatible with
- Two 22 Ah batteries, 27 lb per pack. Off-board charger
- Battery charger
- Off-board; 6-8 hours, 12 hours for the first charge
- Seat
- Stadium style, 17 x 17 in, 16 in back, black vinyl. Optional highback 20 x 18 in and premium 17 x 16 in
- Backrest height
- 16 in (40.6 cm) stadium and highback; 17 in (43.2 cm) premium; no headrest
- Warranty
- Frame 5 years; drive train and electronics 13 months; batteries 12 months
- Product type
- Rear-wheel power wheelchair, disassembles into four pieces
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the LiteRider Envy GP162 to the first consumer who bought it from an authorized Golden Technologies retailer, from the date of purchase. A warranty registration card must be on file for service.
- Steel frame, frame welds and seat post: 5 years.
- Motor and gearbox, electrical brake function, controller, charger, wiring, caster beam, forks, armrests, footrest, seat swivel, bearings, bushings and other rubber and plastic parts: 13 months.
- Batteries supplied by Golden: 12 months.
- Accessories supplied by Golden: 1 year.
- Covers replacement parts only. Labour, service calls, transport and freight are paid by the owner.
- Excludes wear items (tires and tubes, plastic shrouds, armrest pads, motor brushes, bulbs and fuses, battery cases, brake pads, upholstery), loss or theft, battery leakage, abuse, misuse, accident, neglect, improper use or storage, commercial use, exceeding the weight limit, and unapproved repairs or accessories.
