Description

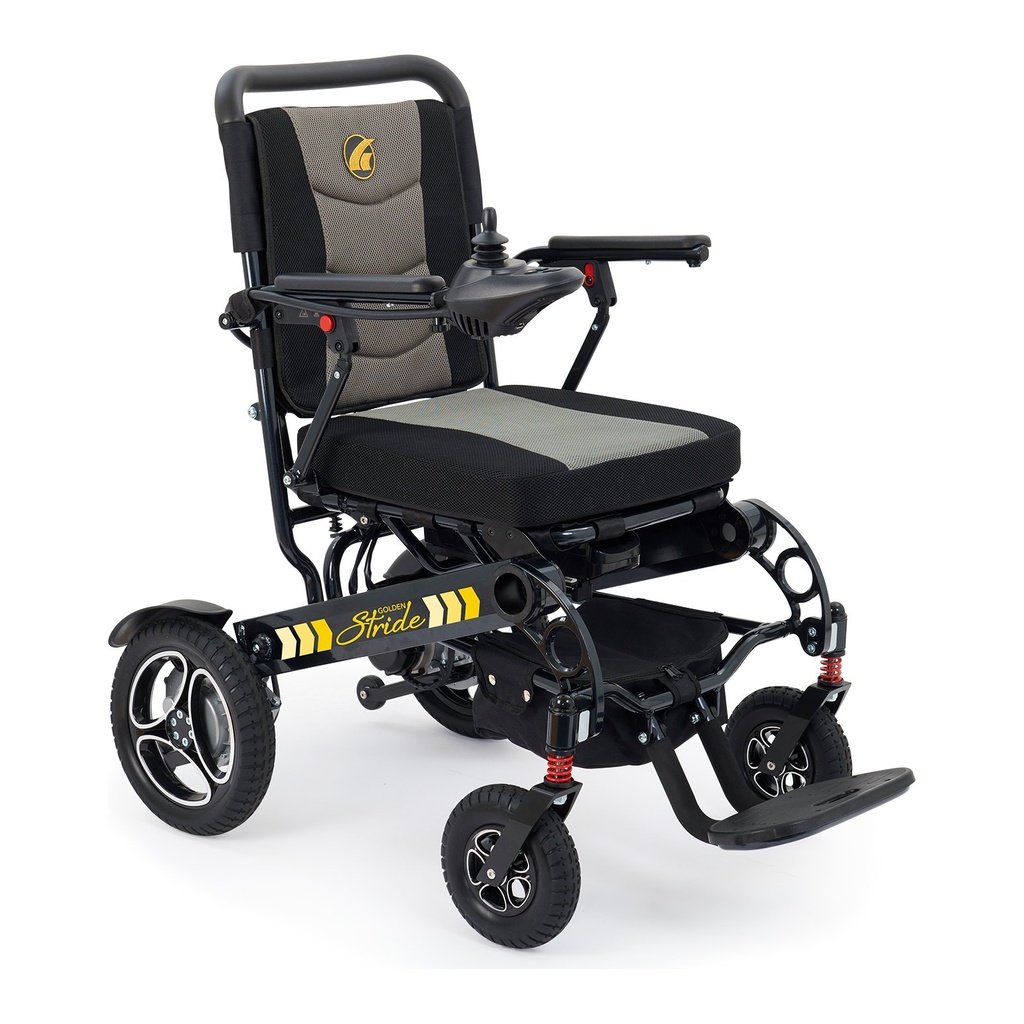

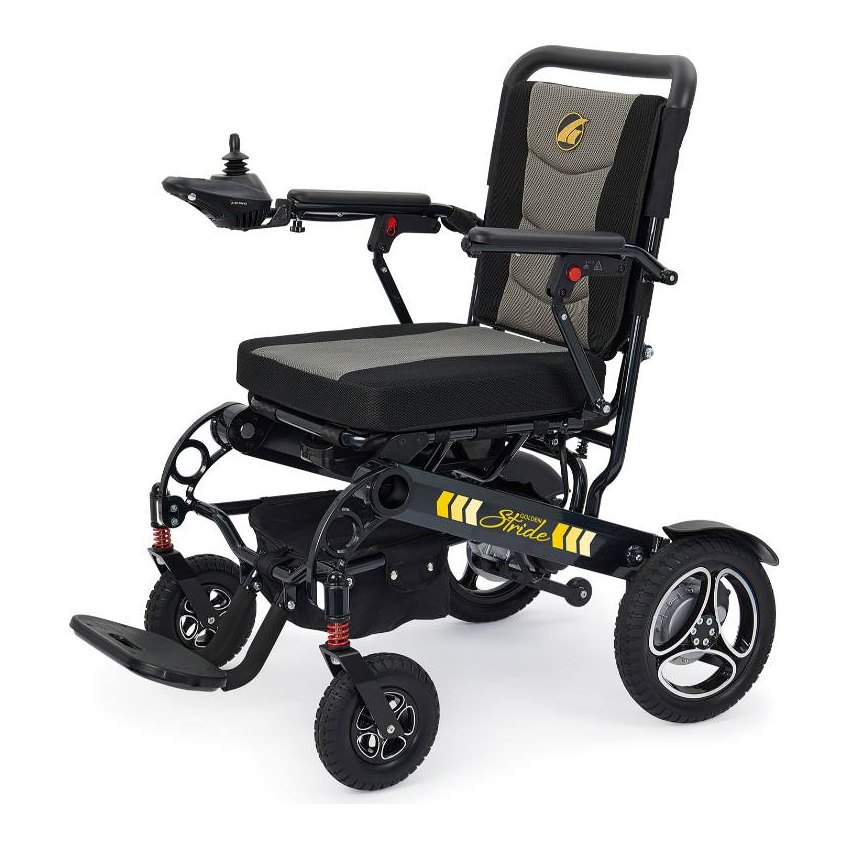

The Golden Technologies Stride GP301 is an aluminum folding power wheelchair with comfort-spring suspension and a 23.6 in turn.
Who it suits, and who should look elsewhere
- A rider who can lift 52.6 lb with the battery, joystick, cushion and bag off. We confirm the rider weight rating from the unit's label before you order.
- The seat is one size, 17 in by 18 in. A wider hip needs another chair.
- At 1.6 in clearance it is a pavement chair, not a trail chair.
- Compare other folding power wheelchairs if 52.6 lb is too heavy to lift.
Will it fit the rider and the vehicle?
- Seat 17 in by 18 in, 22 in from the ground, with a 16 in back and no headrest.
- Open size is 42.5 in long, 24.4 in wide and 38.6 in to the top of the back.

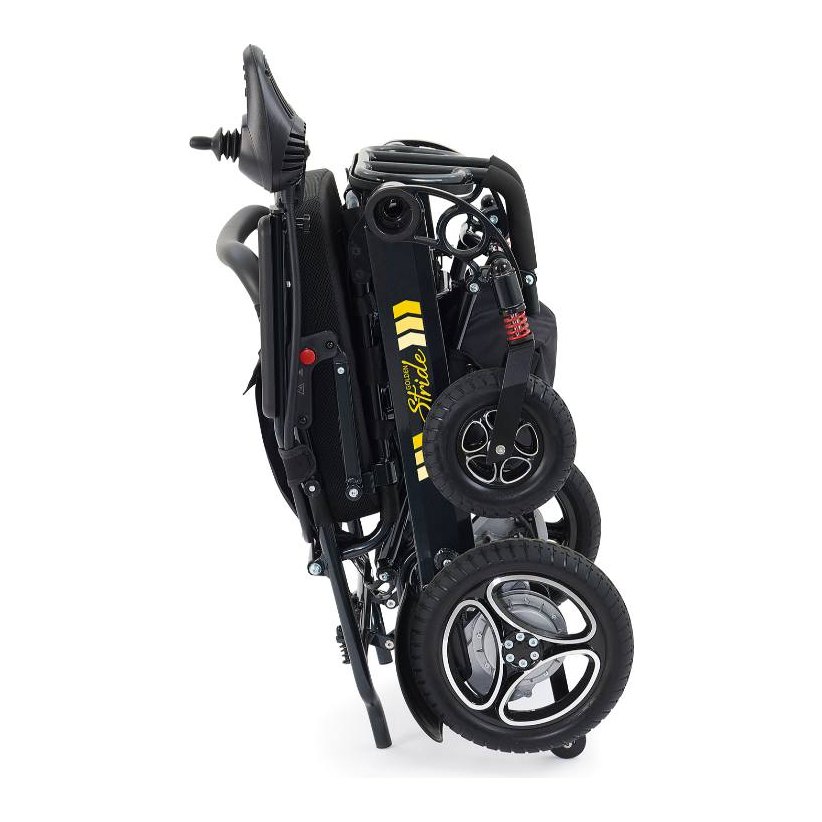

- Folded, it measures 15.7 in long, 24.4 in wide and 32.7 in high, and it stands on end for storage.
- It turns in 23.6 in; measure the doorway against the 24.4 in open width.
How does it fold?
- Power off, set both freewheel levers to drive, push the backrest down, pull the latch, fold, then flip up the footrest.
- Both anti-tip brackets must be extended and locked before the folded chair stands on end, or it can tip.
- The padded seat lifts off, the back has a pocket, and under-seat storage holds small items.
How does it drive?

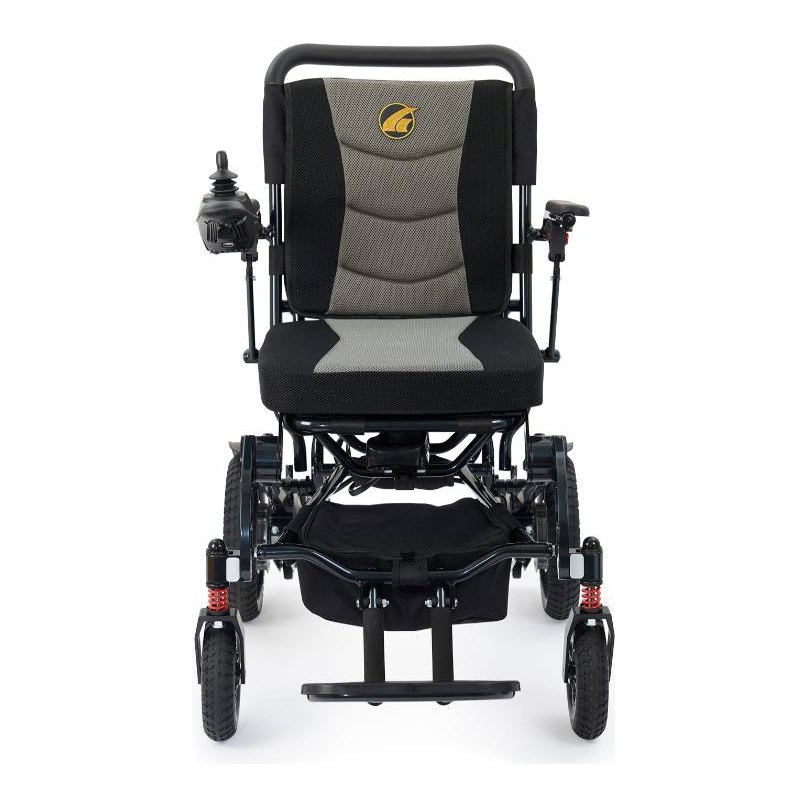

- Rear-wheel drive with 12 in flat-free drive wheels, 8 in front casters and 2 in anti-tip wheels, all foam-filled and never inflated.
- Comfort springs front and back smooth the ride. Top speed is 3.7 mph from a 50 amp controller, with electro-mechanical brakes and freewheel.
- It climbs no more than 6 degrees and no curb over 1.5 in. Never back up or down a curb or a slope.
- Ground clearance is 1.6 in. The joystick USB port charges a phone, not the chair.
Battery and charging
- A 10 Ah 24 V lithium-ion pack weighs 3.8 lb, and the range is up to 9.3 miles (15 km), tested at 200 lb.
- Charge 5-8 hours after each use; the first charge reaches about 90%, and 4-5 cycles bring full capacity.
- If the chair will sit unused for more than a week, charge it fully and remove the battery, then store it indoors.
Using it safely
- Fasten the seat belt before driving. Never use the backrest as a handle to transfer in or out.
- Do not store or operate the chair in rain, snow or below-freezing temperatures.
- Have the chair checked yearly by an authorized Golden provider.
How it compares
- The Cricket GP302 is carbon fibre and lighter. This Stride is aluminum with spring suspension.
- A lighter published travel chair is the Pride Jazzy Carbon.
- See power wheelchairs if the 17 by 18 in seat is the wrong size.
Frequently asked questions
How do I get into the seat?
Power off and take it out of freewheel. Raise the armrests and the footrest, sit, then lower both and fasten the seat belt.
Can the Stride be pushed if the battery is flat?
Yes. It has a freewheel mode. Use it only when a helper is holding the chair.
Is the 52.6 lb figure the whole chair?
No. It leaves off the battery, joystick, cushion and bag. Assembled weight is 58 lb.
Frame warranty is 5 years; drive train and electronics 13 months, and batteries 12 months. Funding may help: see who may help pay, or book a free home assessment to have the seat measured at home.
Specifications
- Product weight
- 58.0 lb assembled; 52.6 lb without battery, joystick, cushion and bag
- Seat width
- 17 in
- Seat depth
- 18 in
- Back height
- 16 in, no headrest
- Seat height
- 22 in from the ground to the top of the seat
- Rear wheel size
- 12 in, flat-free and foam-filled
- Caster size
- 8 in front, flat-free and foam-filled; 2 in rear anti-tip
- Suspension
- Comfort spring, front and back
- Overall width
- 24.4 in
- Overall length
- 42.5 in
- Folded dimensions
- 15.7 in long, 24.4 in wide, 32.7 in high; stands on end
- Unfolded dimensions
- 38.6 in from the ground to the top of the back
- Ground clearance
- 1.6 in
- Turning radius
- 23.6 in
- Maximum obstacle height
- 1.5 in curb; never back up or down a curb
- Maximum slope
- 6 degrees; never back down a slope or curb
- Driving range
- Up to 9.3 miles (15 km), tested at 200 lb
- Top speed
- 3.7 mph (about 6.0 km/h)
- Motors
- 24 V 200 W, two motors
- Controller
- 50 amp; joystick USB port charges a phone, not the chair
- Brakes
- Electro-mechanical, with freewheel mode
- Battery
- 10 Ah 24 V lithium-ion, 3.8 lb
- Available colours
- Black frame, grey and black seat
- Compatible with
- 10 Ah 24 V lithium-ion battery, 3.8 lb
- Charging time
- 5-8 hours after each use; first charge reaches about 90% and 4-5 cycles bring full capacity
- Battery charger
- 2 amp, off-board
- Features
- Removable padded seat, back seat pocket, under-seat storage, one-step fold, stands on end for storage
- Seat belt
- Standard; must be used
- Warranty
- Frame 5 years; drive train 13 months; electronics 13 months; batteries 12 months
- Product type
- Aluminum folding power wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Golden Technologies warrants the Stride GP301 to the first consumer who bought it from an authorized Golden Technologies retailer, from the date of purchase. A warranty registration card must be on file for service.
- Metal frame and frame welds: 5 years.
- Motor and gearbox, electrical brake function, controller, charger, wiring, caster beam, forks, armrests, footrest, bearings, bushings and other rubber and plastic parts: 13 months.
- Batteries supplied by Golden: 12 months.
- Accessories supplied by Golden: 1 year.
- Covers replacement parts only. Labour, service calls, transport and freight are paid by the owner.
- Excludes wear items (tires and tubes, plastic shrouds, armrest pads, motor brushes, bulbs and fuses, battery cases, brake pads, upholstery), loss or theft, battery leakage, abuse, misuse, accident, neglect, improper use or storage, commercial use, exceeding the weight limit, and unapproved repairs or accessories.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
