Description

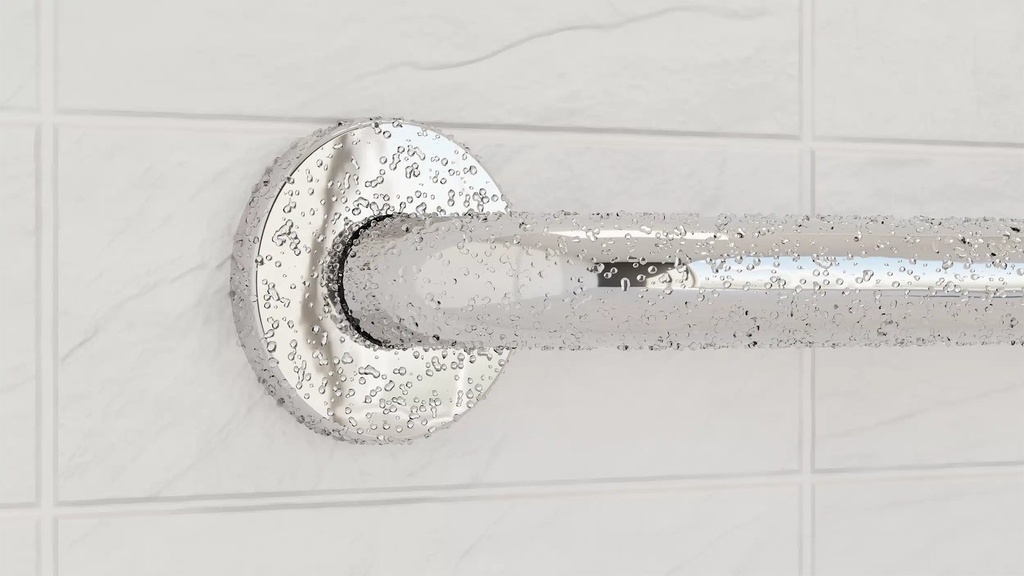

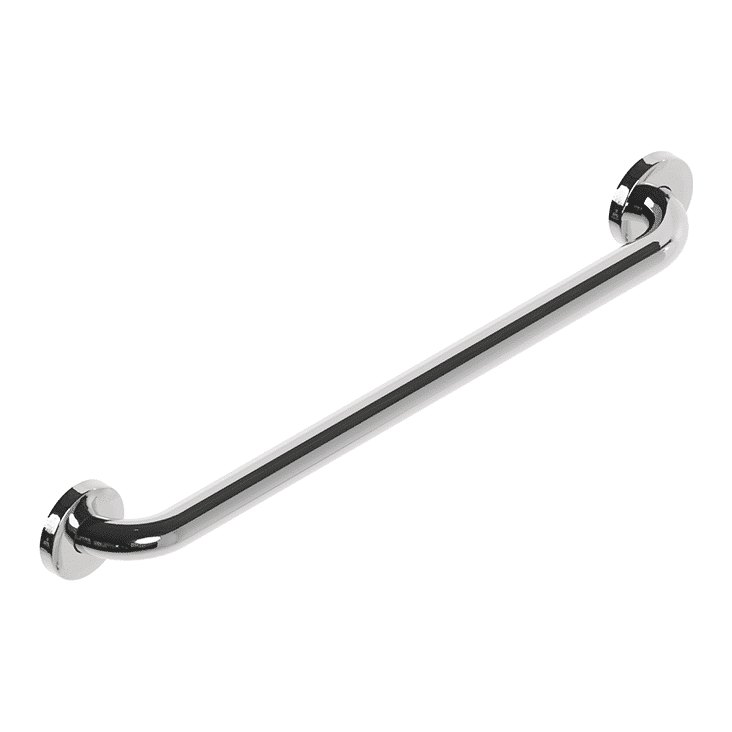

The HealthCraft G125CP is a 24 in (610 mm) straight grab bar in polished chrome, with a 1.25 in (32 mm) #304 stainless steel rail and a concealed multi-hole flange.
What does it do and how does it work?
- Length: 24 in (610 mm), fixed; the bar cannot be cut shorter.
- Rail: 1.25 in (32 mm) tube, 1.5 in (38 mm) off the wall.

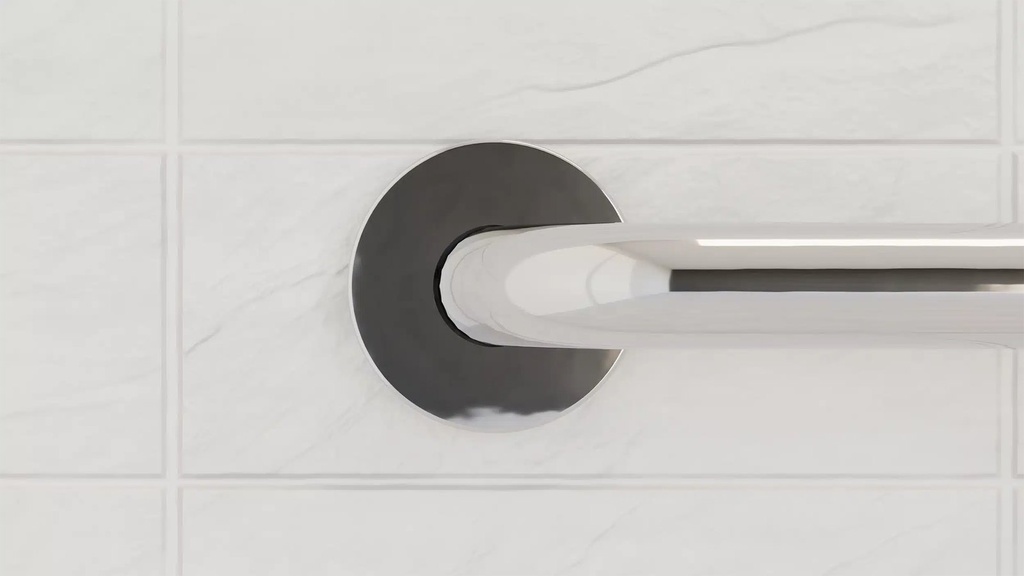

- Flange: a 3 in (76 mm) multi-hole flange with a snap-on cover and six stainless wood screws.
- Capacity: 500 lb (227 kg) on 12, 18 and 24 in bars; not for full body weight.
Who is it for, and who should choose something else?

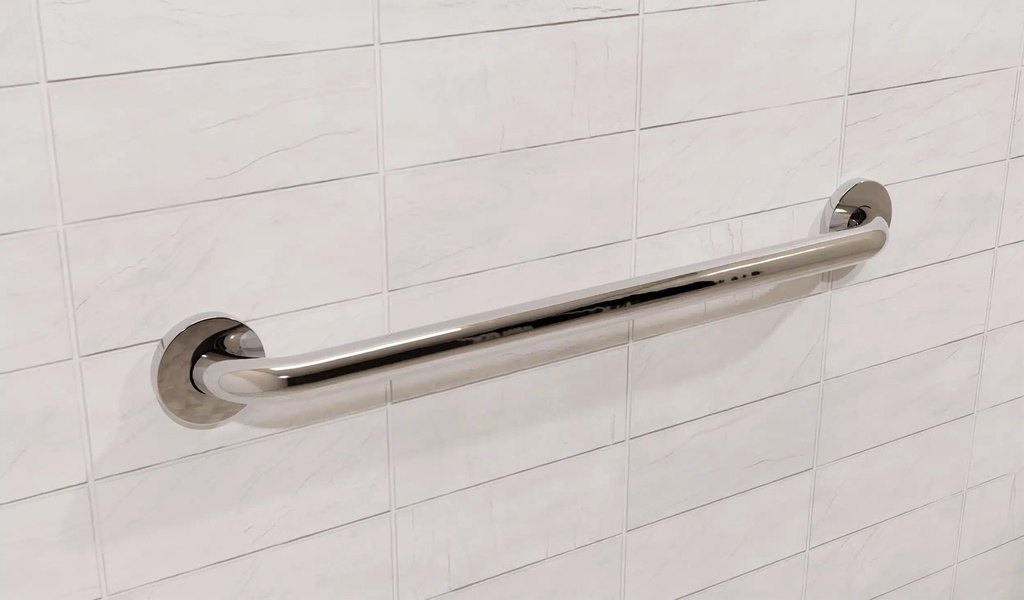

- It suits a tub, shower or toilet wall within a 24 in reach.
- Choose a knurled bar for a textured grip: the HealthCraft knurled bar.
Will it fit?
- 24 in is the middle of the line, which runs from 12 to 42 in.
- The flange needs wood studs or added blocking; do not fit it into metal studs or unknown structure.
- For a hollow wall, Easy Mount anchors are sold separately and rated 300 lb (136 kg).
What does it work with, and what are its limits?
- It holds only as well as the wall: the 500 lb (227 kg) rating assumes sound framing or blocking.
- It is a fixed bar, not a suction bar, so it does not move between walls.
- Warranty: limited lifetime to the original purchaser, excluding misuse and wear.
More grab bars.
How does it compare?
- The knurled HealthCraft bar adds grip in 12 to 42 in lengths.
- The AquaSense 785-136 is rated 250 lb (113 kg) with rotating flanges.
Frequently asked questions
Can the bar be cut to fit?
No. The 24 in length is fixed; choose another length from the 12 to 42 in range.
Can it go on drywall alone?
No. It needs studs or blocking; for a hollow wall, the Easy Mount anchor is sold separately and rated 300 lb (136 kg).
Can it be mounted vertically?
Yes. It can run vertically on one stud, or at an angle between two studs.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 500 lbs (227 kg) on 12, 18 and 24 in bars, with sound framing or blocking; not for full body weight
- Product weight
- 4 lbs (1.8 kg) for the 24 in bar
- Assembly
- Drill pilot holes, fix with six screws, slide the flange cover on
- Overall length
- 24 in (610 mm)
- Uses
- Tub, shower or toilet wall; fixed with screws into framing or blocking
- Material
- #304 stainless steel
- Mounting
- Concealed multi-hole flange; six #10 x 2 in stainless wood screws into studs or blocking
- Available lengths

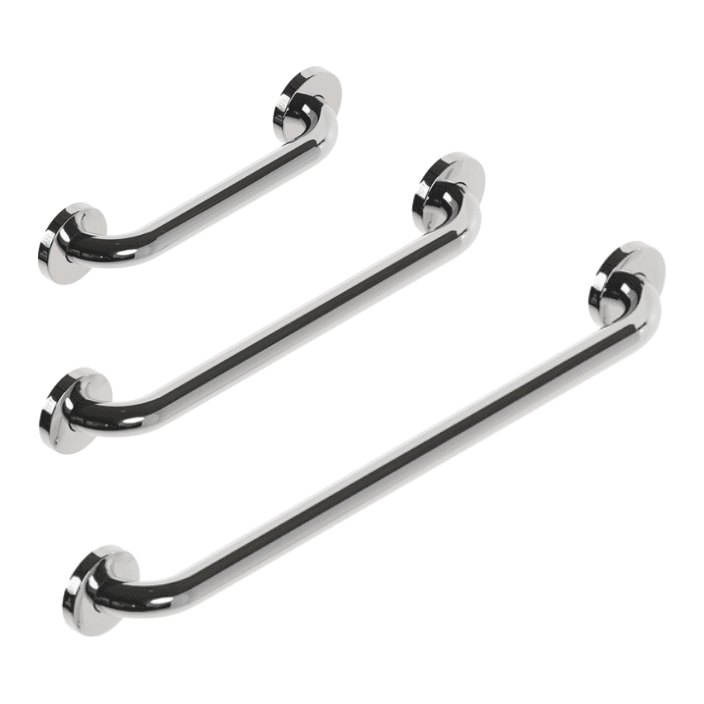

- 12, 18, 24, 32, 36 and 42 in (305, 457, 610, 813, 914 and 1067 mm); this page is 24 in
- Bar diameter
- 1.25 in (32 mm) tube, 1.5 in (38 mm) off the wall
- Finish
- Polished chrome
- Warranty
- Limited lifetime to the original purchaser; excludes misuse, accidental damage, alteration, wear and corrosive or abrasive cleaners
- Product type
- Grab Bar
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
