Description

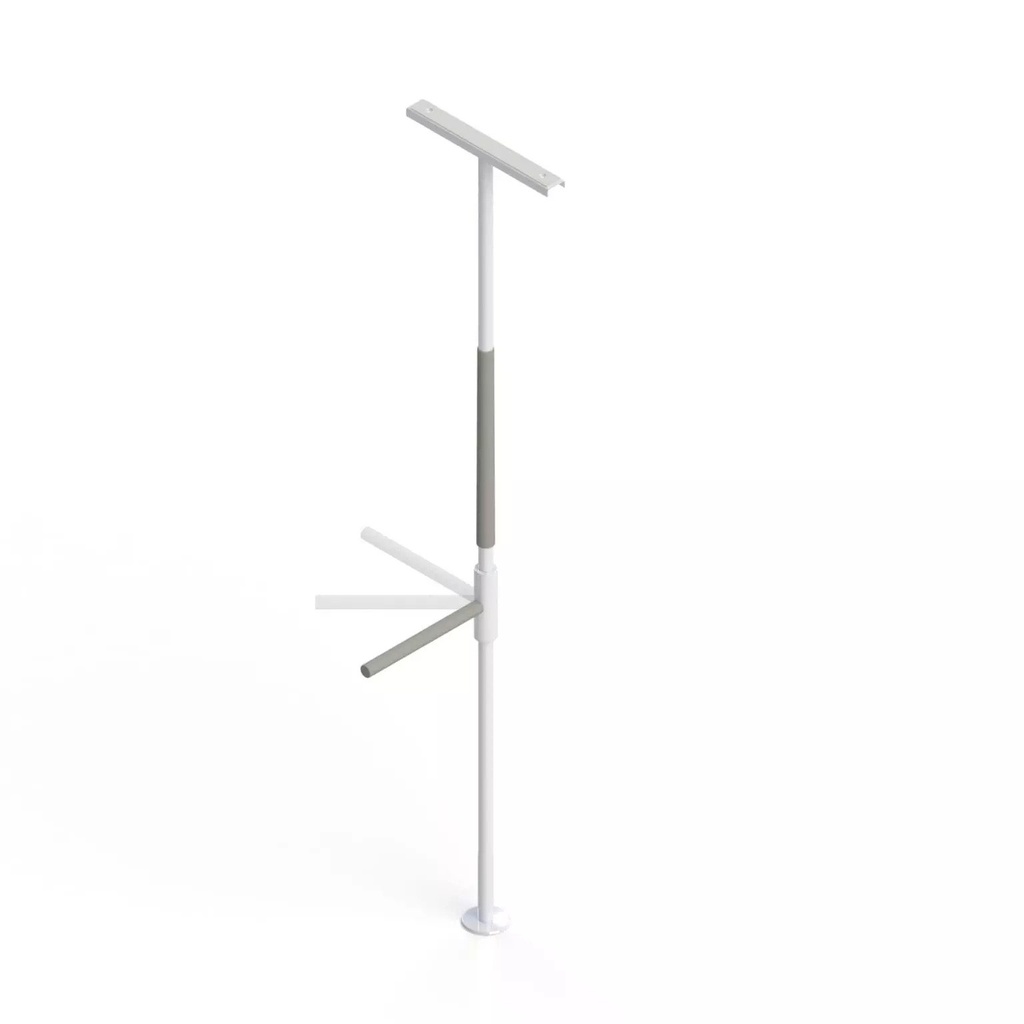

The HealthCraft SuperPole with SuperBar (SPB-S) is a floor-to-ceiling pole with a 16 in bar that locks every 45 degrees. It gives upright and horizontal handholds at a bed, toilet, tub or chair. Maximum user weight is 300 lbs, not full body weight.
What does it do and how does it work?
- Pole: 1.5 in steel, white anti-microbial coat, 20 in foam grip; 20 in top plate and 5 in base.

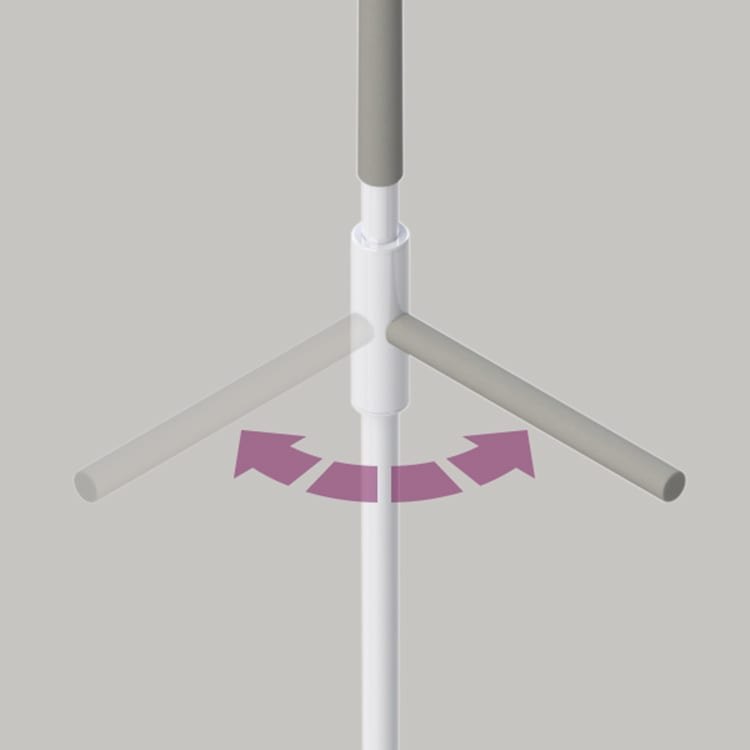

- Bar: 16 in; lift to turn, lower to lock, every 45 degrees.
- Height: 93 to 99 in.
Who is it for, and who should choose something else?
- Lifting: not a hoist; choose a patient lift if the person cannot take their own weight.
- Over 300 lbs: the SPB-HD is a different part rated 450 lbs, fixed to the joists, for 93 to 99 in ceilings only.
- Bedside safety: entrapment risk rises with dementia, confusion, restlessness, frailty or sedation. Never with children or on toddler, bunk, water, electric or inflatable beds, or beds with toppers.
- Shower or another ceiling: use grab bars in the shower and the floor-mounted Advantage Rail where the ceiling will not work.
Will it fit?
- Ceiling: 93 to 99 in; 100 to 120 in with the Uni-Fit Extender at 300 lbs; a custom cut covers under 93 in. The Ultra does not take this bar.
- Joist: the top plate must cross one joist. A Ceiling Plate Extender suits 24 in spacing, and an Angled Ceiling Plate is separate.
- Avoid: radiant ceiling heat, a ceiling whose framing has not been identified, loose floor coverings, direct water and outdoor use.
Using and installing it

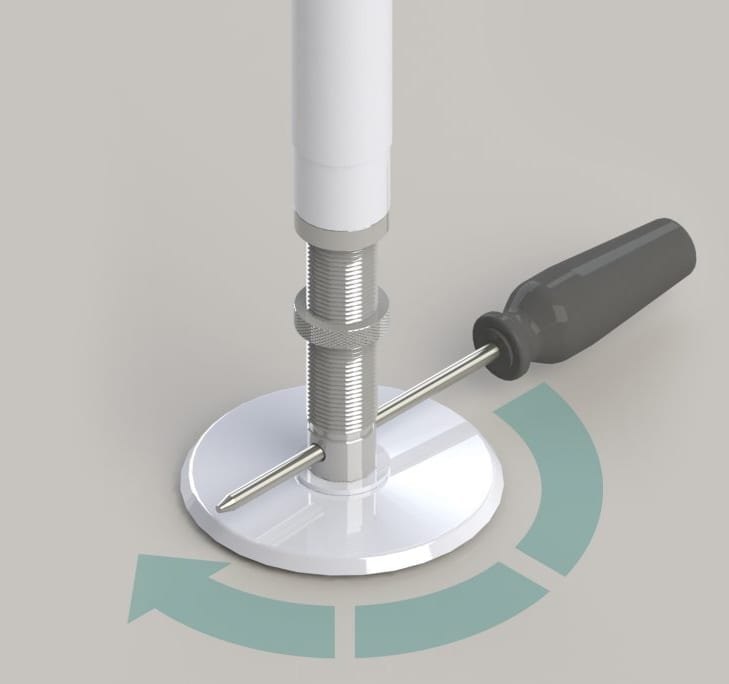

- Turn the jackscrew with a screwdriver until the plate meets the ceiling, then 2 to 5 turns; do not overtighten. Fit the jam nut and cover, and inspect monthly.
- Normal use needs no drilling; heavy use means screwing the plate to the joist, and the screws are not in the box. The HD model is always screwed.

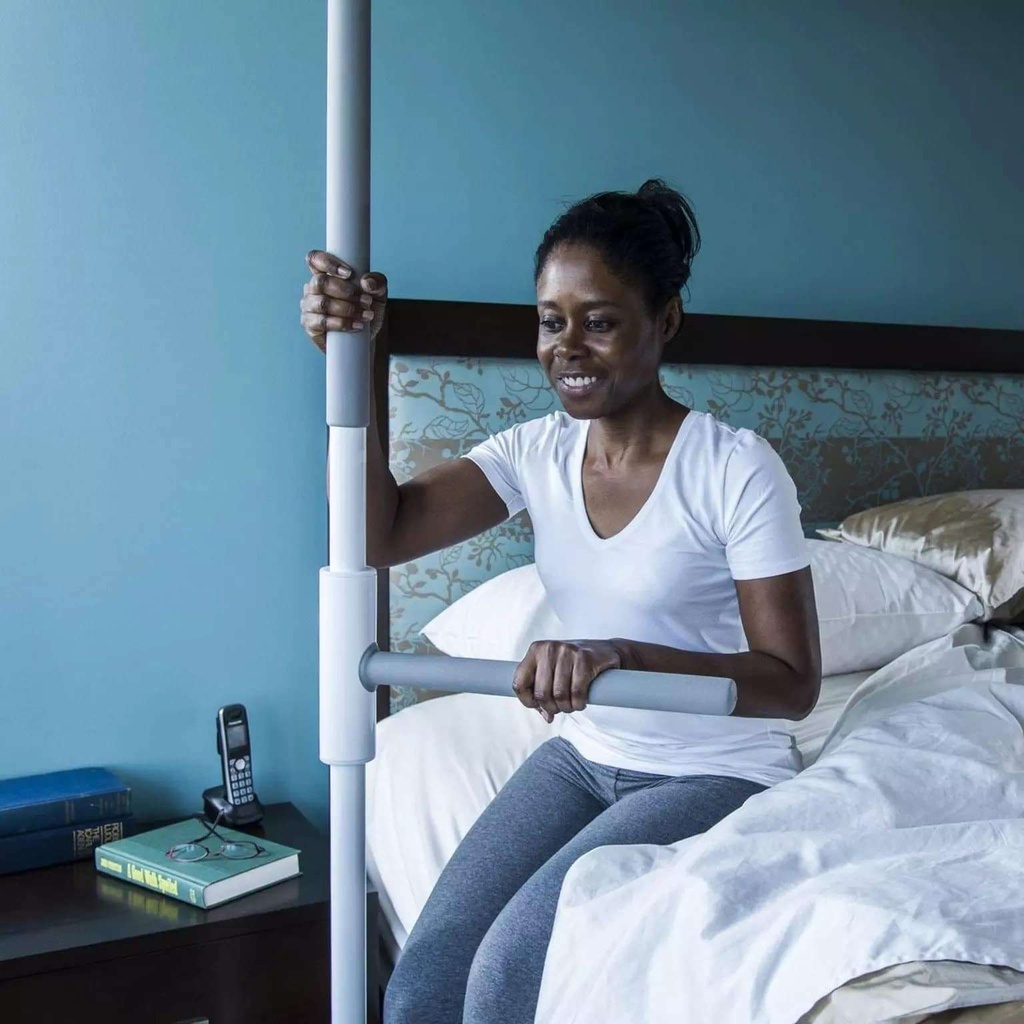

- The bar sits typically 24 to 38 in up. Beside a bed, set the collar at mattress top plus 12.5 in, at the waist, and 12.5 in from the head and footboards; keep it tight to the mattress or 12.5 in away. If 12 lbs sinks the edge 2 in, do not use it there.

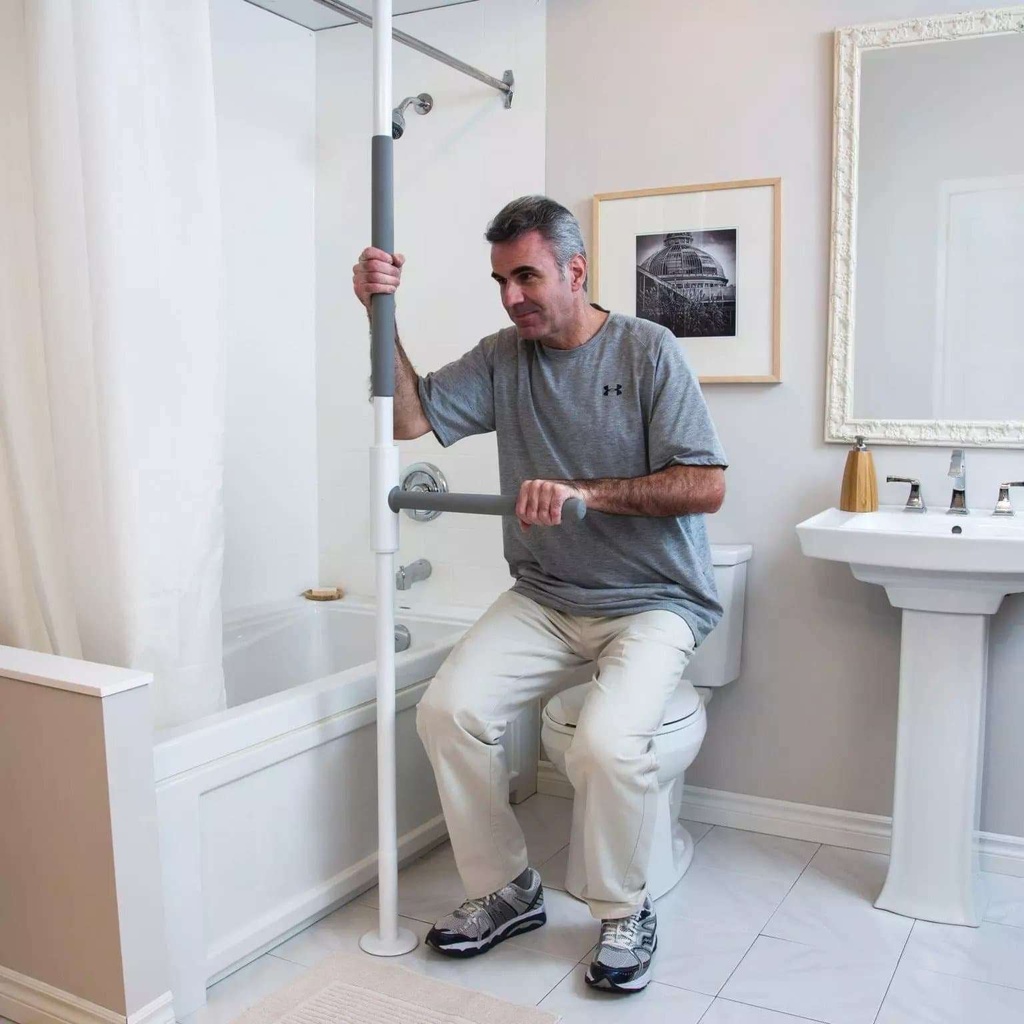

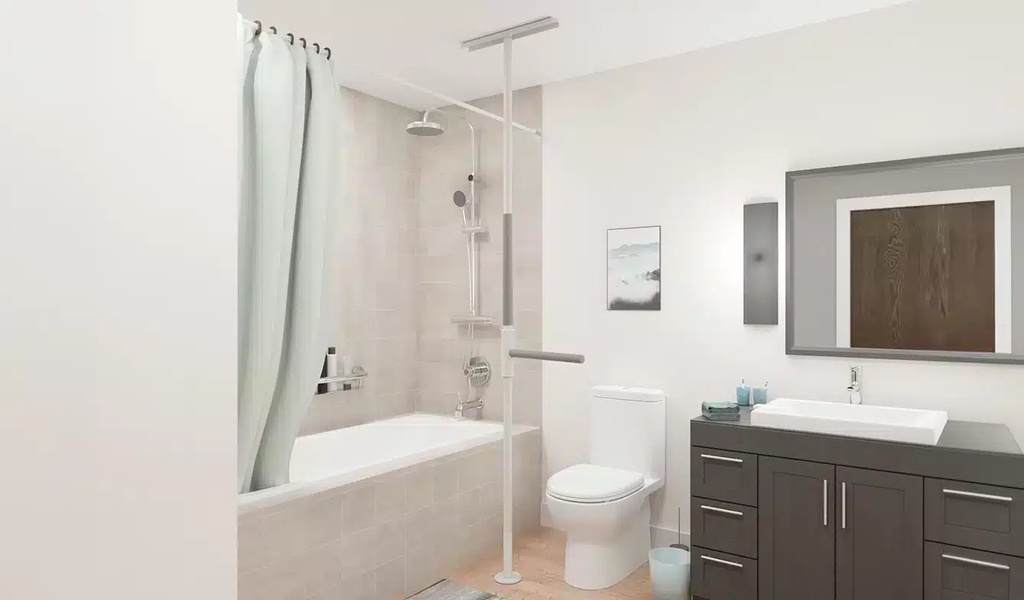

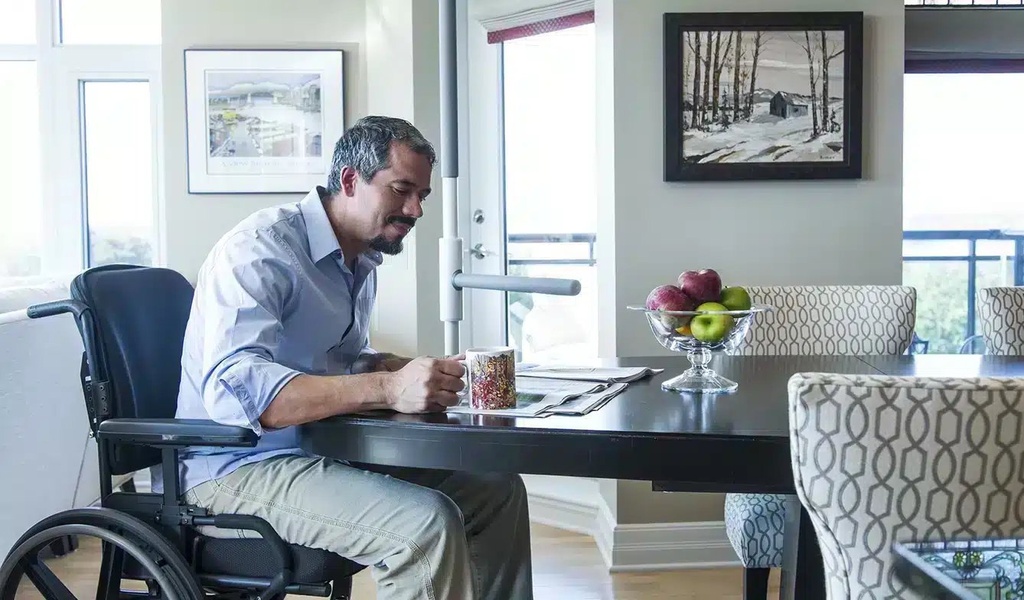

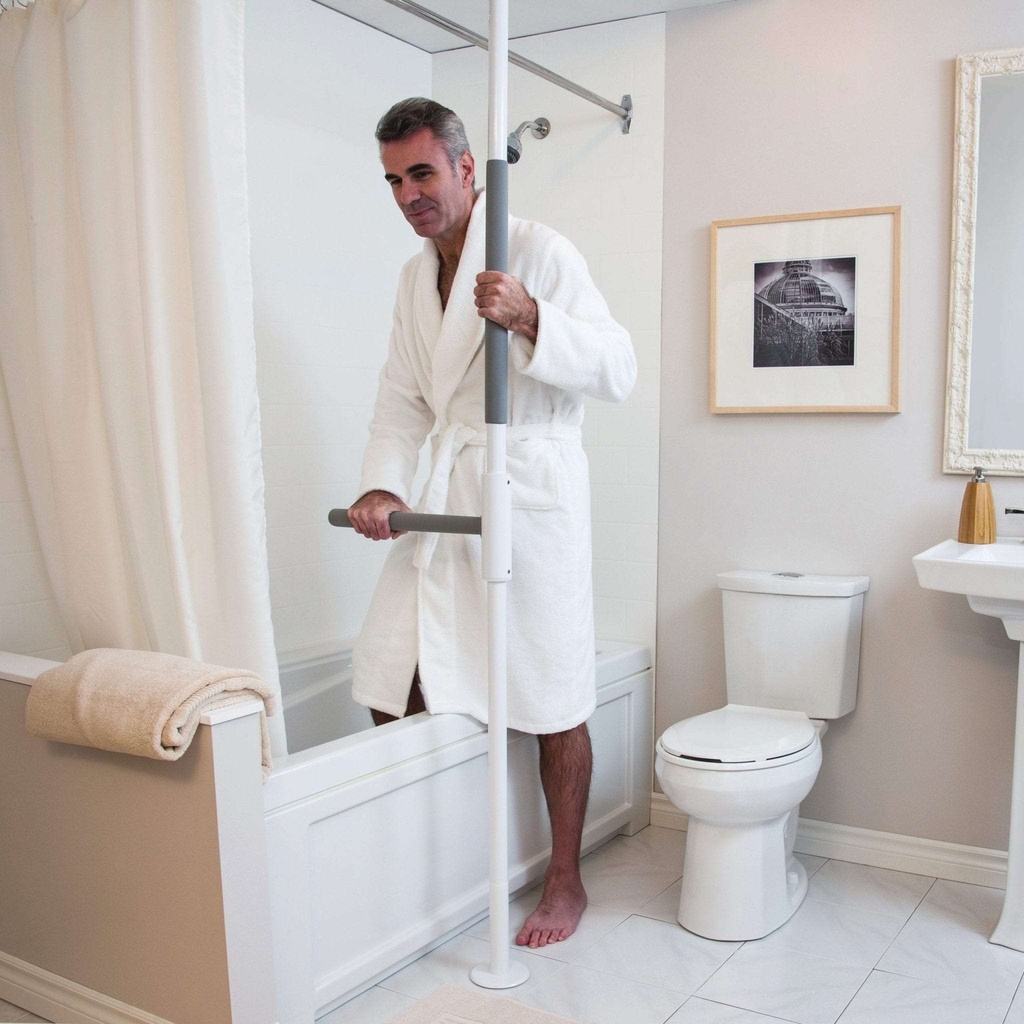

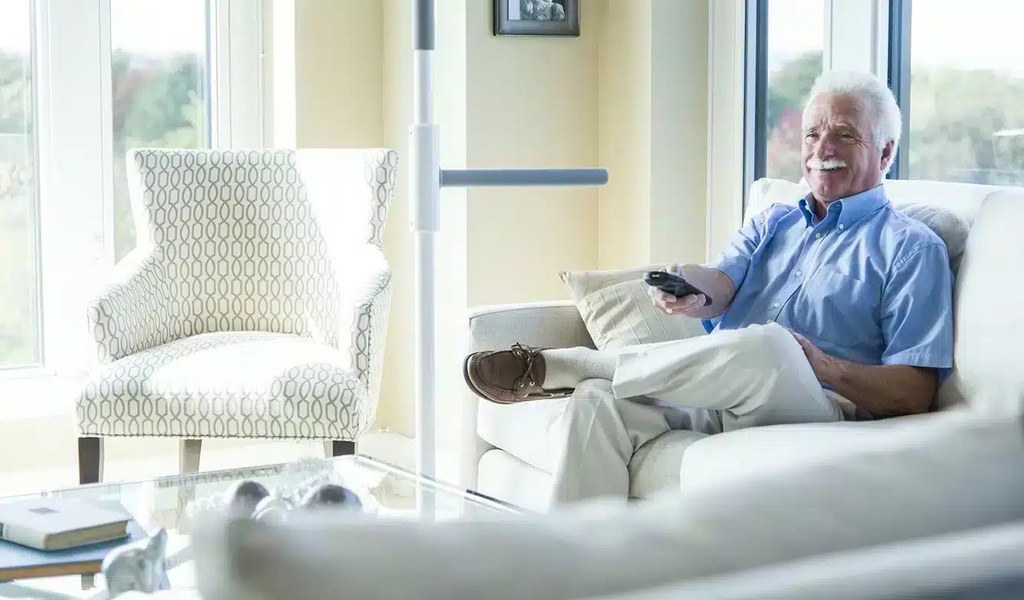

- Toilet or chair: 3 to 10 in in front of the knees, 2 to 6 in to the side. Tub: base against the tub, about halfway along.
What does it work with, and what are its limits?
- Accessories: Uni-Fit Extender, Angled Ceiling Plate, Ceiling Plate Extender and custom-cut poles; the SPB-AK bar kit fits an existing SuperPole.
- Warranty: limited lifetime to the original purchaser, on materials and workmanship; misuse, accidents, alterations, wear, rust and corrosive cleaners are excluded. HealthCraft states compliance with ASTM F3186-24.
How does it compare?
- Bariatric SuperPole: 450 lbs, no bar, fixed to the joists.
- All super poles are on the hub page.
Funding, delivery and service
Funding may help: see who may help pay. We can install the pole; ask about installation when you order. See warranty services. We deliver across the GTA.
Frequently asked questions
How many lock positions are there?
It locks in 8 positions, one every 45 degrees.
Do I have to drill the ceiling?
Not for normal use on the standard pole, as long as the top plate crosses a joist. Heavy use, and every HD pole, must be screwed to the joist.
Can I move it to another room?
Yes. The standard pole is made to relocate. The new spot still needs a joist under the plate.
Specifications
- Weight capacity
- 300 lbs (136 kg) user weight; not made to hold full body weight
- Ceiling height range
- 93-99 in (2362-2515 mm); 100-120 in (2540-3048 mm) with the Uni-Fit Extender; custom-cut pole below 93 in
- Installation
- Jackscrew tension fit, no drilling for normal use; top plate must cross a ceiling joist and be screwed to it for heavy use
- Pole diameter
- 1.5 in (38 mm)
- Top plate length
- 20 in (508 mm)
- Rail height
- Typically 24-38 in (610-965 mm) from the floor; beside a bed, mattress height plus at least 12.5 in (320 mm)
- Rail length
- 16 in (406 mm) from the pole, 1.5 in (38 mm) tube
- Locking positions
- 8, one every 45 degrees; lift the bar to turn it, lower it to lock
- Material
- Alloy steel, white powder-coat finish, latex-free PVC foam grips
- Compatible with
- HealthCraft Uni-Fit Extender, Angled Ceiling Plate, Ceiling Plate Extender and custom-cut poles; not the SuperPole Ultra
- Warranty
- HealthCraft limited lifetime warranty for the original purchaser
- Product type
- Floor-to-ceiling transfer pole with pivoting bar
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure HealthCraft SuperPole with SuperBar technical data sheets
- Brochure HealthCraft SuperPole with SuperBar technical data sheet, Rev C 2026
- User Manual HealthCraft SuperPole with SuperBar instructions
- User Manual HealthCraft SuperBar instructions, DC202 Rev C (2026)
- User Manual HealthCraft bed entrapment prevention guide, DC126 Rev A
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
HealthCraft Products warrants the SuperPole with SuperBar (item SPB-S) against defects in materials and workmanship for the lifetime of the original purchaser.
- Term: limited lifetime, original purchaser only.
- Excludes damage from misuse, accidents and alterations, normal wear and tear, wood material and stain, rusting from water exposure, and corrosive or abrasive cleaning products.
- HealthCraft accepts no liability for faulty installation, misuse or services performed by others.
