Description

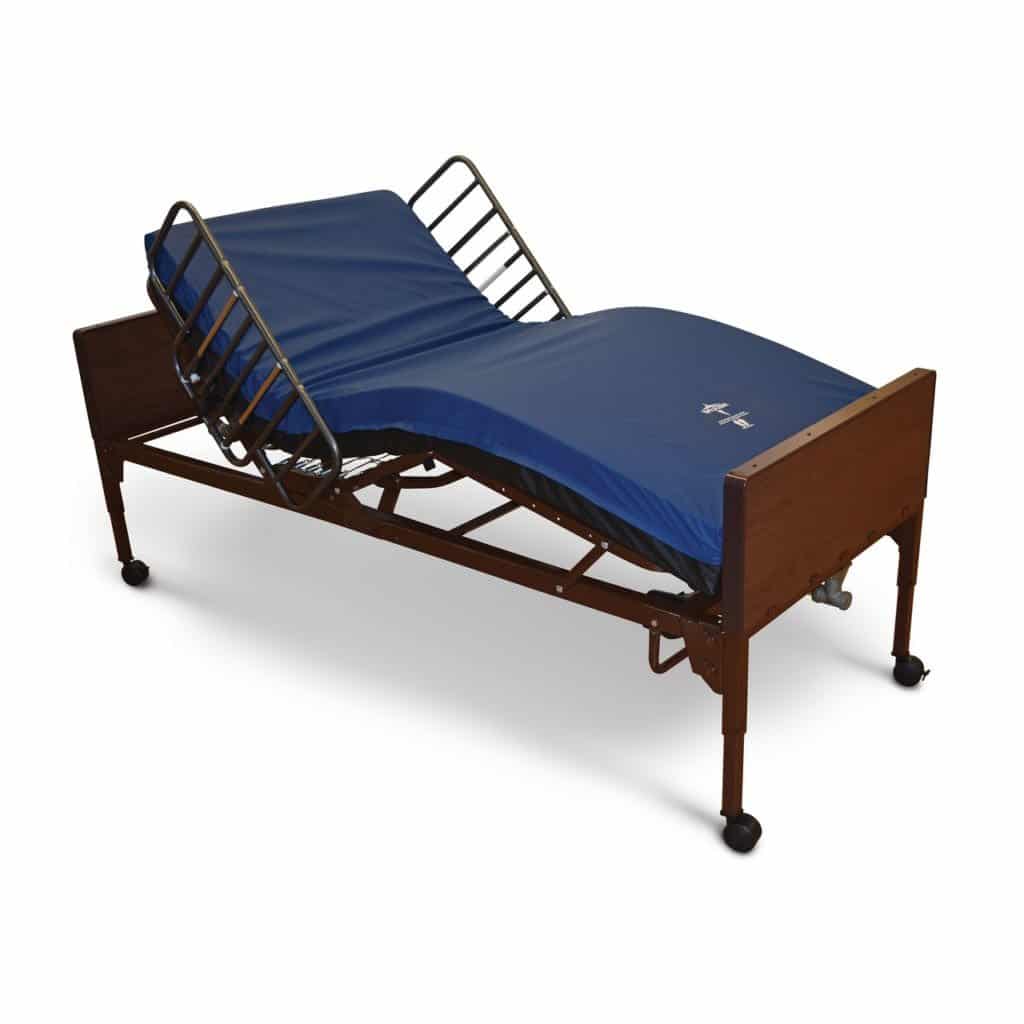

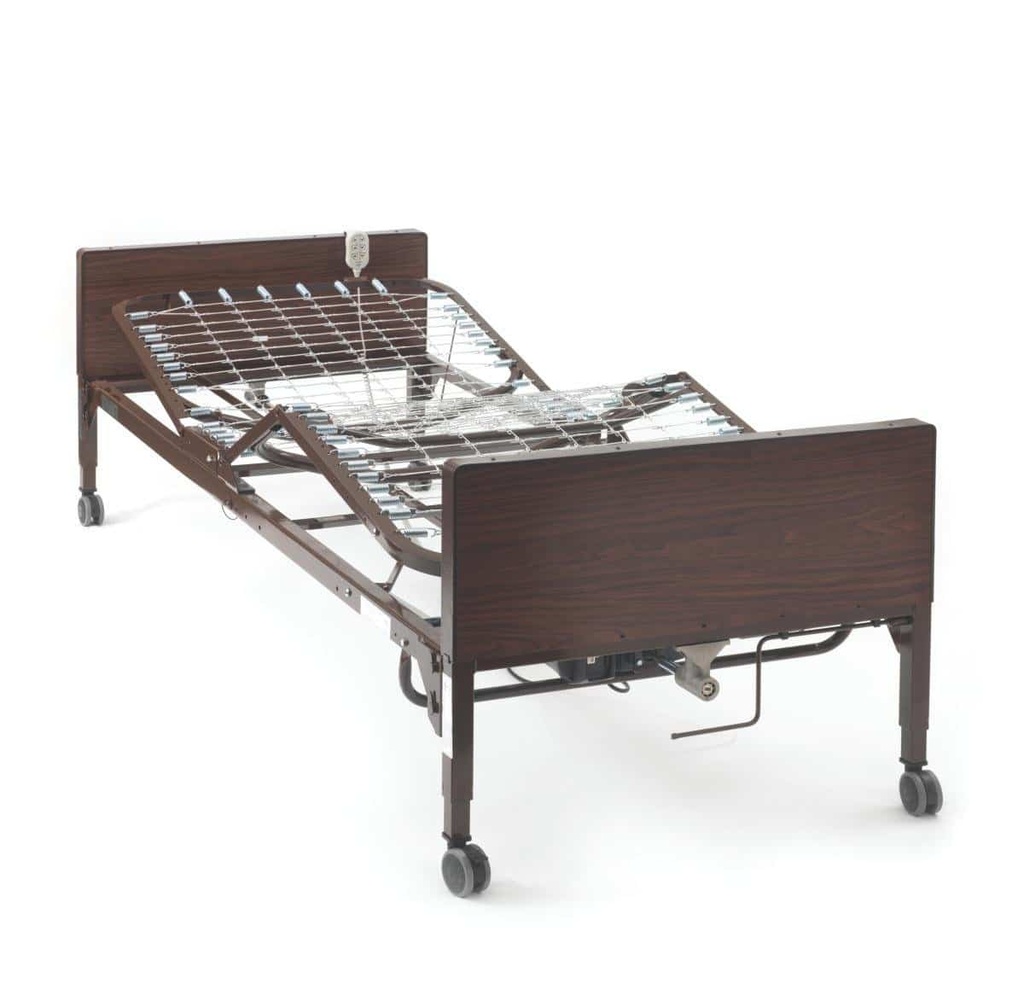

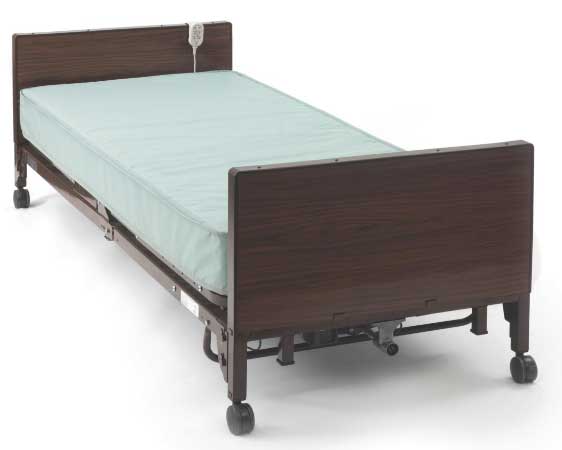

Medline MedLite is a full-electric home care bed, model MDR107003L, with a 36 by 80 inch sleep surface and a 450 lb (204 kg) total load.
What does it do and how does it work?
- Three motors raise and lower the head, the foot and the bed height.
- The pendant has head up and down, foot up and down, and bed up and down buttons.
- The head section raises to about 70 degrees and the knee section to about 35 degrees.
- The spring deck is 34.5 inches (87.6 cm) wide and 80 inches (203 cm) long; the bed is 35.75 inches (90.8 cm) wide and 89 inches (226 cm) long overall.
- Four casters, two of them locking, move and hold the bed.
Who is it for, and who should choose something else?
- It suits an adult at home who needs powered head, foot and height adjustment, with a caregiver nearby.
- It is not the low-bed variant, MDR107003LO.
- It is not for a person, mattress and accessories that add up to more than 450 lb (204 kg).
Will it fit?
- The spring deck adjusts from 15 to 23 inches (38 to 58 cm) above the floor.
- The bed is 89 inches (226 cm) long and 35.75 inches (90.8 cm) wide overall; measure the room, doorway and turns.
- Use a 36 by 80 inch mattress made or approved by Medline.
- Use only authorized Medline rails on this frame.
Using it day to day
- Pause briefly between pendant adjustments, and press one button at a time.
- Lock the two locking casters before a transfer.
- An emergency crank in the spring deck raises and lowers the height if the power fails.
- An emergency battery box lowers the head and foot during an outage; it takes two 9V batteries, which are not included.
What does it work with, and what are its limits?
- The 450 lb (204 kg) limit covers the occupant, the mattress and the accessories together.
- Medline approves only its own rails and mattresses for this frame; a different size or density can entrap.
- The mechanics and electronics are covered for 5 years, and the frame and welds for the life of the bed. Casters are not covered.
- Health Canada recall RA-81440 (24 December 2025) includes MDR107003L for electrical safety and for non-Medline accessories. Contact Medline with the bed's serial number for the notice.
What comes in the box?
- Two boxes: the head board, head spring, four casters, wrench and emergency crank in one.
- The foot spring with motors, junction box and cord, pendant, foot board, drive shaft and battery box in the other.
- The mattress and the rail pair are chosen with the order.
How does it compare?
- The Drive Delta 1000 is another full-electric homecare bed with a lighter frame.
- The Drive 15005LP is the low-height option when the bed must sit close to the floor.
- See full electric hospital beds for the range.
Frequently asked questions
Is a mattress included?
No mattress is in the base bed package; choose one with the order.
Does it have a battery backup?
An emergency battery box is included for the head and foot. It needs two 9V batteries, which are not included.
What is the total weight limit?
450 lb (204 kg), including the person, mattress and accessories.
Can I use my own bed rails?
No. Use authorized Medline rails; other rail sizes and mattress depths can entrap.
The Medline warranty runs 5 years on mechanics and electronics and life on the frame and welds.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 450 lb (204 kg) total, including occupant, mattress and accessories
- Product weight
- 180.7 lb (82 kg) shipping weight
- Assembly
- Two boxes; casters, frames, boards and drive shaft assembled with the included wrench
- Caster locks
- 4 casters, 2 locking
- Overall width
- 35.75 in (90.8 cm)
- Overall length
- 89 in (226 cm)
- Mattress fit
- 36 x 80 in mattress; use an authorized Medline mattress
- Package contents
- Head and foot boards, head and foot springs, 4 casters, pendant, drive shaft, emergency crank and battery box
- Compatible rails
- Medline MDS89698N half rails; use authorized Medline rails only
- Motors
- 3: head, foot and hi/low
- Battery backup
- Emergency battery box included; two 9V batteries not included; lowers head and foot
- Hand pendant
- Head up/down, foot up/down, bed up/down
- Bed width
- 34.5 in (87.6 cm) spring deck
- Bed length
- 80 in (203 cm) sleep surface
- Minimum bed height
- 15 in (38 cm) spring deck
- Maximum bed height
- 23 in (58 cm) spring deck
- Deck sections
- 2: head spring and foot spring
- Bed positions
- Head and foot raise and lower; bed height up and down
- Section angles
- Head about 70 degrees; knee about 35 degrees
- Warranty
- 5 years mechanics and electronics; lifetime on frame and welds; casters excluded
- Product type
- Full-Electric Bed, Home Care Bed
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Medline warrants the MedLite home care bed to the original purchaser against defects in materials and workmanship, and repairs or replaces the bed at its option.
- Mechanics and electronics: 5 years.
- Welds and frame: life of the bed.
- Excludes failure from owner misuse or negligence, and normal wear and tear.
- Excludes non-durable parts that wear and need replacement, such as casters.
