Drive 15005LP Full Electric Low Height Bed

(7 reviews)

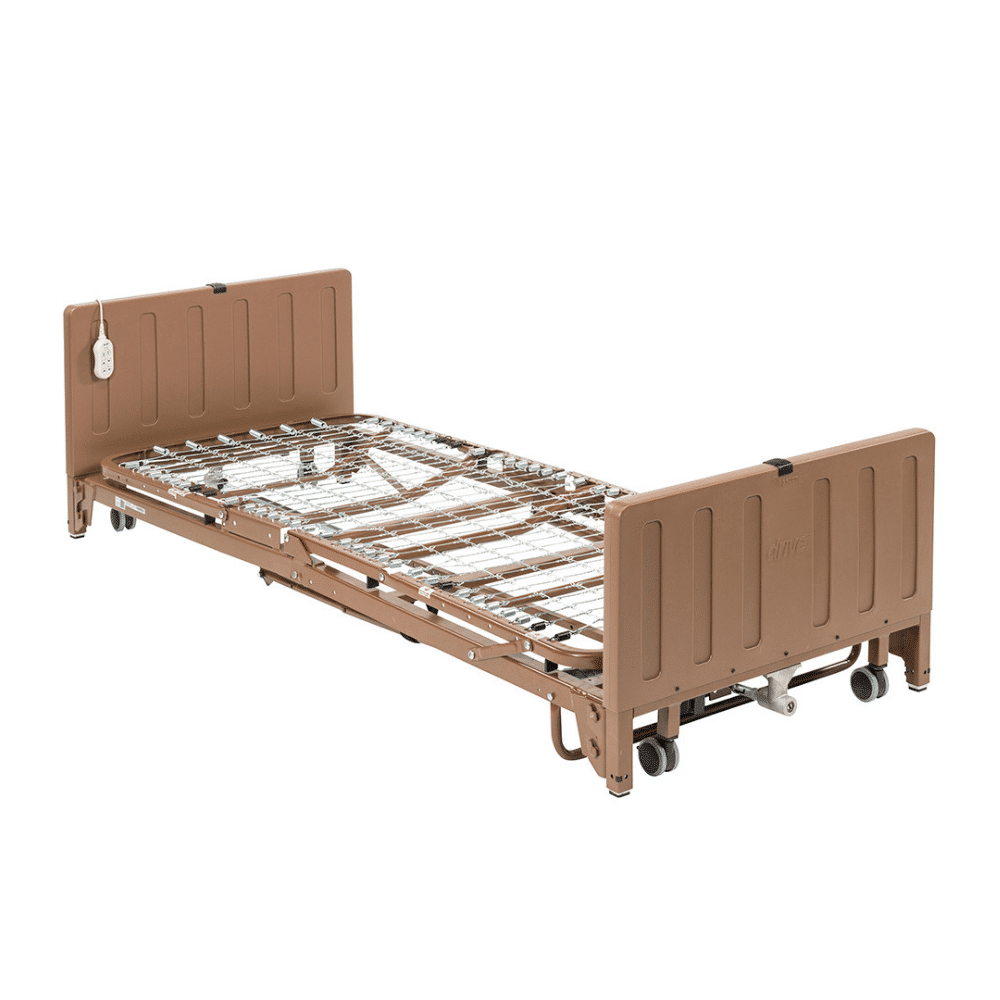

The Drive Full Electric Low Height Bed 15005LP is a full electric homecare bed whose deck lowers to 9.25 inches (235 mm) from the floor, so a person can sit on the edge with both feet down and stand up with less help. The hand pendant moves the head, the foot and the whole bed, and the casters can be fitted in two positions, one that lets the bed roll at any height and one that keeps it low. The frame carries 450 lbs (204 kg) in total, 350 lbs (158 kg) of that the person. It suits a home where the person still gets out of bed and the caregiver wants to work at a comfortable height.

  • Type: full electric low height homecare bed, 36 inch deck
  • Weight capacity: 450 lbs (204 kg) total, 350 lbs (158 kg) of it the person
  • Deck height: 9.25 to 23 inches (235 to 585 mm) from the floor, measured with no mattress
  • Motors: 3 motors for the head, the foot and the bed height, with a wired hand pendant
  • Power failure: manual crank override, no battery backup
  • Warranty: 5 years on the frame, motor and hand pendant, limited lifetime on the welds
Weight capacity
450 lbs (204 kg) total, including the person, mattress, rails, trapeze and accessories
Product weight
169 lbs77 kg
Overall width
36.25" (92 cm) without rails, 38.6" (98 cm) with rails fitted
Maximum bed height
23" (585 mm) deck to floor, no mattress
$ 1,450.00 $ 1,450.00

Choose Side Safety Rails Required
Choose Mattress Required

Total with your choices

Add to cart
Buy now
Add to wishlist
Terms of service · Return policy · Shipping policy

What is included?

The bed ships in two cartons: the head spring with the low head board and casters (Drive 15215P), and the foot spring with the low foot board, junction box, three motors, wired hand pendant and the emergency crank handle (Drive 15216P), plus four casters, two locking pins and the pull tube straps. Side rails and a mattress are not included: choose a Drive half rail set or a full length set as an option, and a mattress of 36 inches wide and 5-1/2 to 7 inches thick. Call (905) 798-1853 if you want the frame on its own, or with the extension kit 15005EXTKIT-L for an 84 inch deck.

Offers and rewards
$20 Coupon Gift Cards Rental to Purchase - First Month Credit
Applied in your cart at checkout.
  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
  • Free home assessment We check the fit and the funding with you.
  • Try it in a showroom Etobicoke and Brampton
SKU
15005LP
Brand
Drive Medical
Barcode 822383988351 822383988351

Barcode: 822383988351

Description Specifications Documents Delivery and service Warranty

Description

The Drive full-electric low height bed (15005LP) brings the deck near the floor, in our full-electric hospital beds.

Who is it for?

  • An adult up to 350 lbs (158 kg) who still gets out of bed.
  • Total load, including person, mattress, rails, trapeze and accessories, stays within 450 lbs (204 kg).
  • Drive does not permit moving a person in this bed, so lock the wheels while someone is in it.
  • Not the Delta 15033, the Delta 15235, or the Solite Pro 15006LP.

Will it fit the room?

  • Heights are the underside of the deck, with no mattress.
  • With the casters in the low-roll position, the deck works from 9.25 to 23 inches (235 to 585 mm).
  • With the casters in the roll-at-any-height position, the deck works from 14.81 to 23 inches (376 to 585 mm).
  • The caster position is set when the bed is assembled; tell us which one you need.
  • The bed is 88 inches long, 36.25 inches wide without rails, and 38.6 inches wide with rails.
  • A 36 inch mattress fits the 80 inch deck. The 15005EXTKIT-L makes it 84 inches and is not in the box.
  • Assembled in the room: head carton 74.8 lbs, foot carton 101 lbs.

Which mattress and rails are safe on it?

Compare

  • Delta 15235: same 9.25 inch figure on Drive's page, and the same half and full rails. Ends and warranty differ.
  • Delta 15033: a higher deck that uses a 9 volt battery in a power cut, not this crank.
  • Solite Pro 15006LP: lighter sections and its own integral rails, not the 15201BV.

Frequently asked questions

What happens in a power cut?

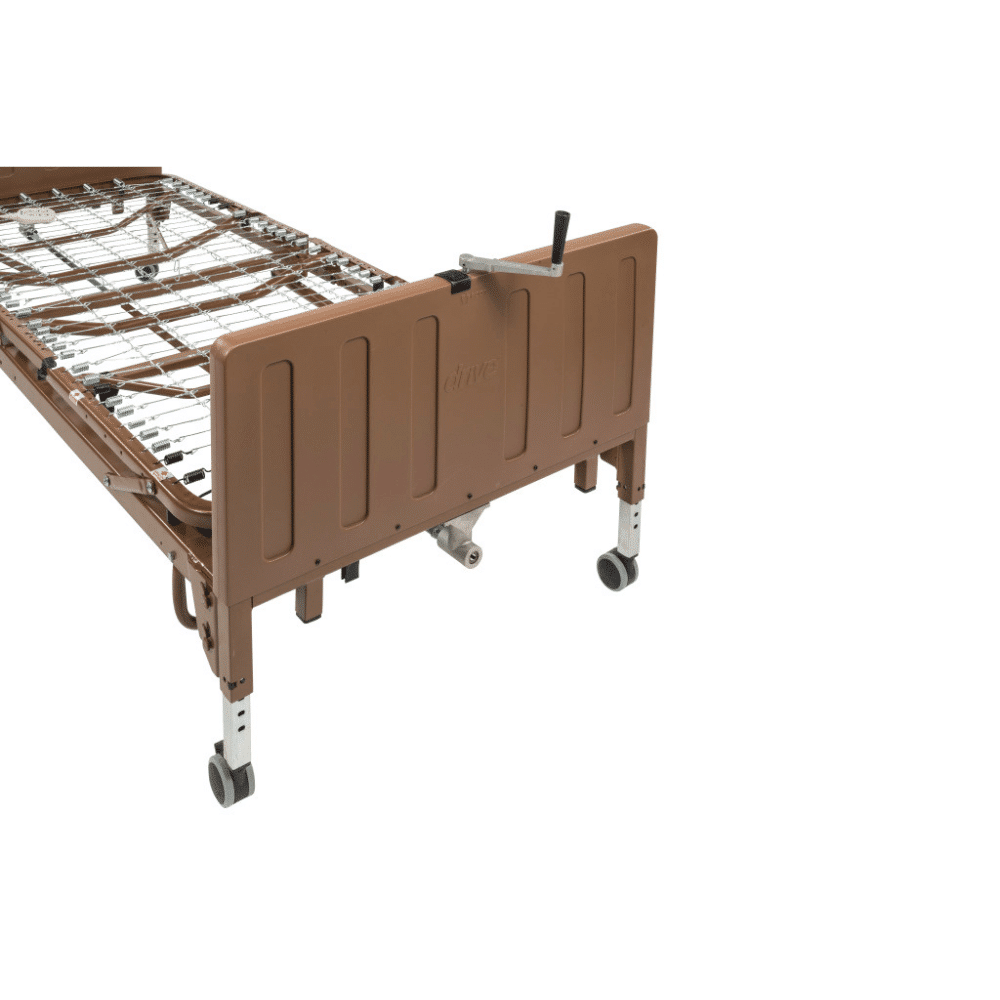

There is no battery backup. A top-mounted crank moves the head, the foot and the height by hand.

What is not in the cartons?

Rails, a mattress and the 15005EXTKIT-L are separate. The cartons are head section 15215P and foot section 15216P.

Should I buy or rent?

For a short stay, see hospital bed rental.

Funding may help: see who may help pay.

Drive gives a limited lifetime on the welds, 5 years on the frame, motors and pendant, and 1 year on other parts. See the warranty tab.

Specifications

Weight capacity
450 lbs (204 kg) total, including the person, mattress, rails, trapeze and accessories
Maximum user weight
350 lbs (158 kg)
Product weight
169 lbs (77 kg)
Assembly
Bed ends, spring sections and casters go together by hand, no tools for the frame
Safety standard
UL approved motor, built in an ISO 9001 facility
Heaviest section
101 lbs (46 kg), the foot carton
Caster locks
4 casters, 2 lock and 2 do not lock
Overall width
36.25" (92 cm) without rails, 38.6" (98 cm) with rails fitted
Overall length
88" (224 cm)
Mattress fit
36" (91 cm) wide and 5-1/2" to 7" (14 to 18 cm) thick, for an 80" or 84" frame
Package contents
Head spring with low head board and casters, foot spring with low foot board, 3 motors, junction box, pendant, crank handle, 4 casters and locking pins
Compatible rails

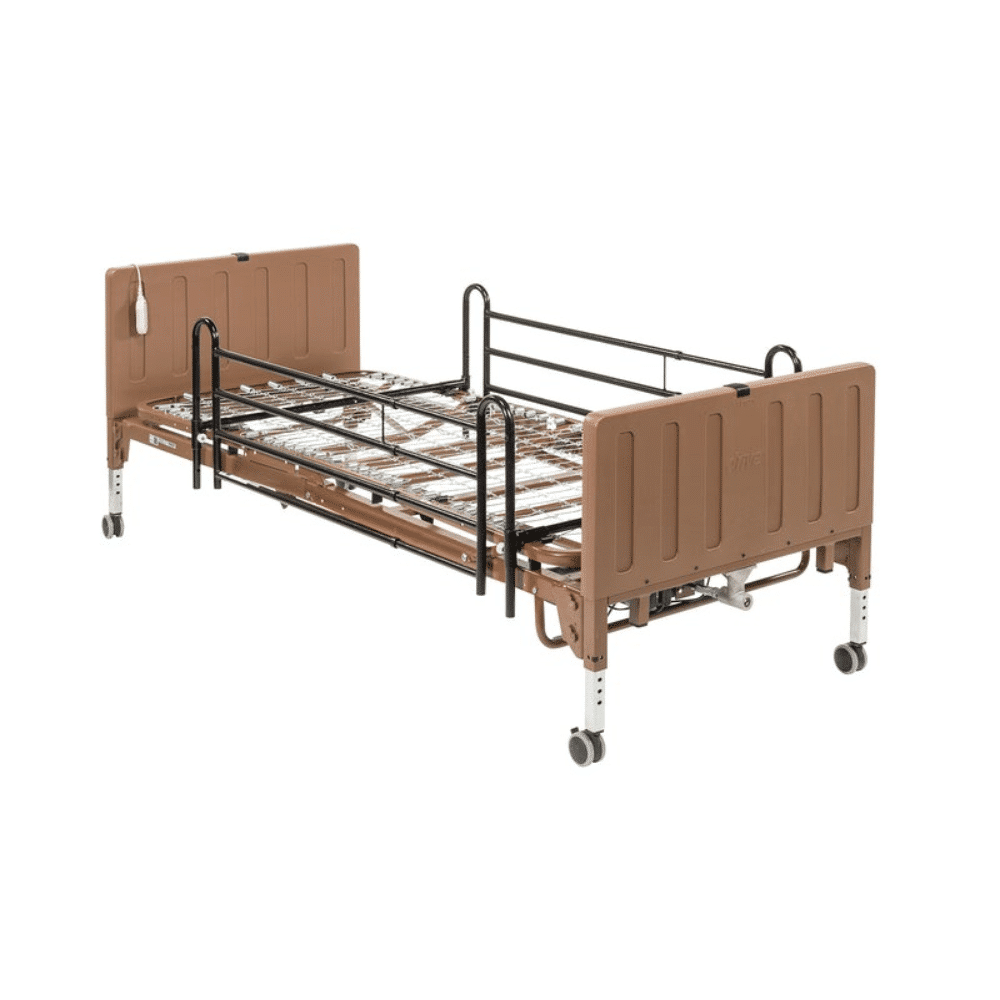

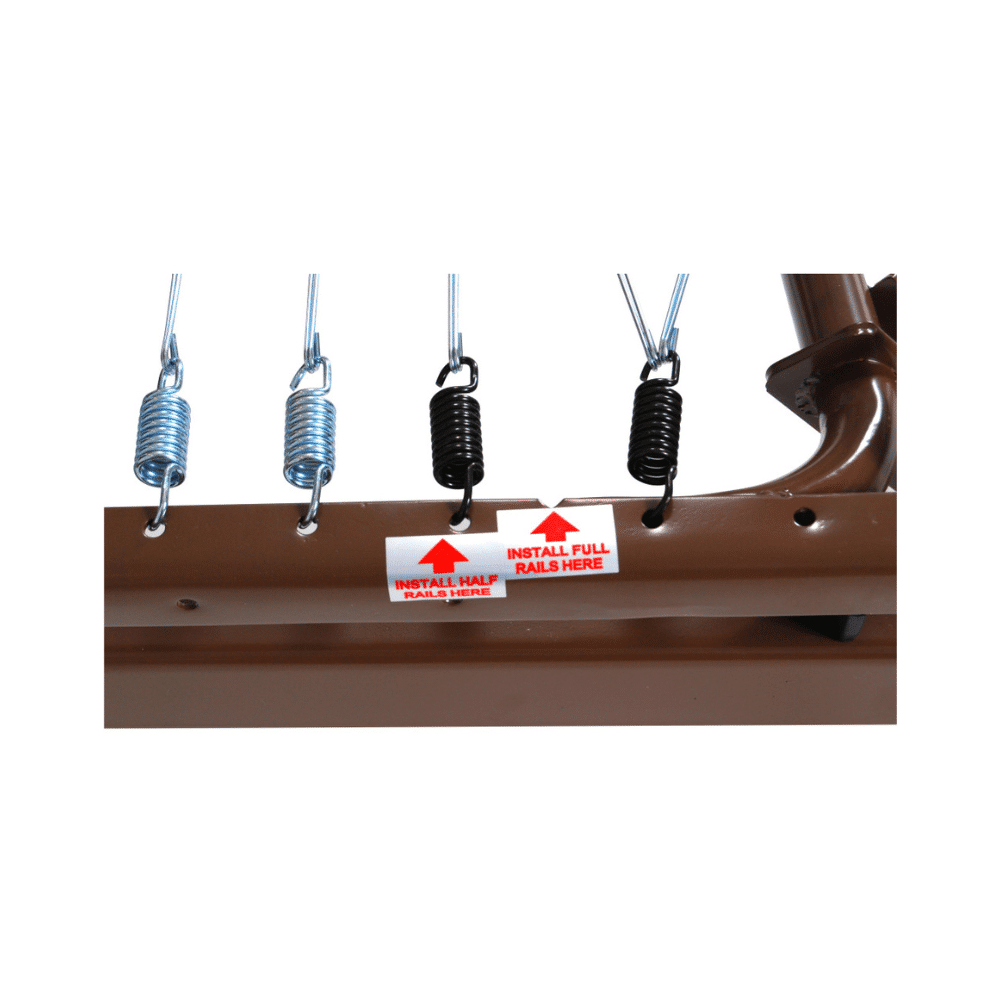

Drive half rails 15201BV or Drive telescoping full rails 15001ABV
Motors

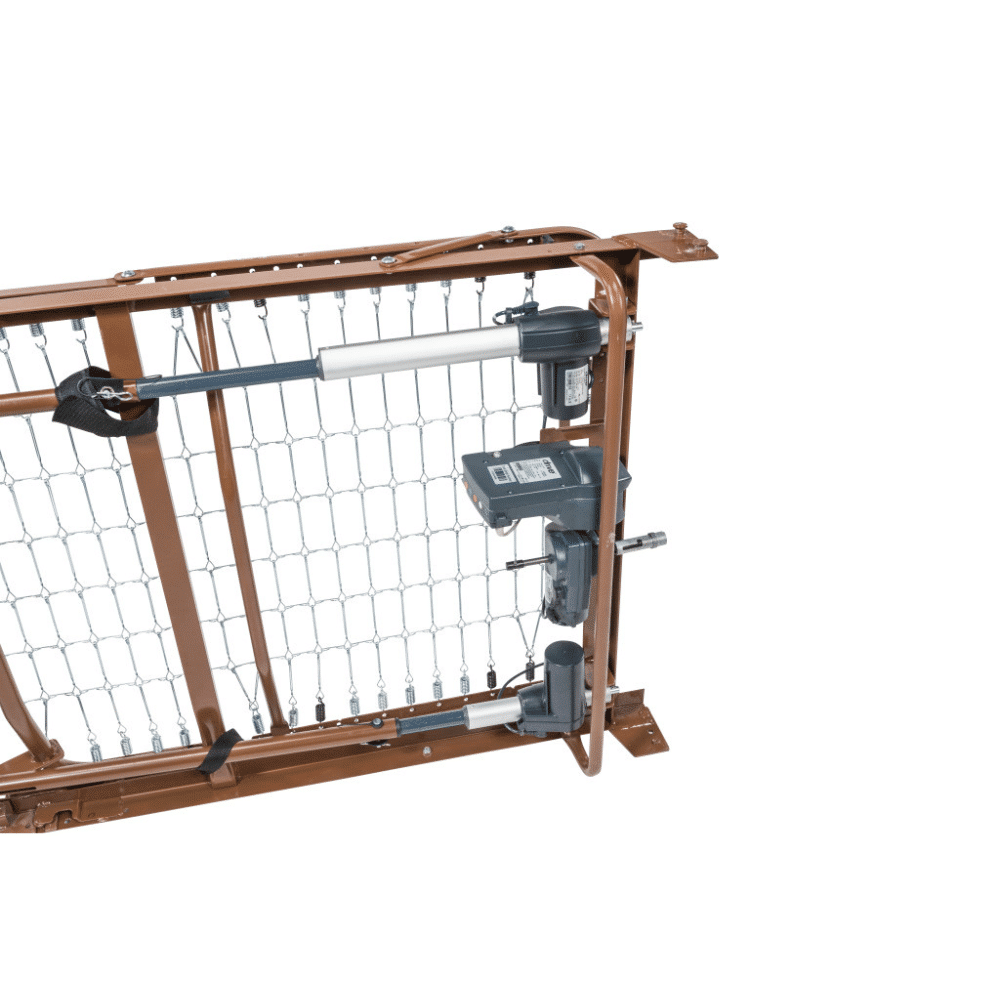

3 motors for the head, the foot and the bed height, pre-installed on the foot section
Battery backup
None. In a power failure a manual crank overrides the motors
Hand pendant

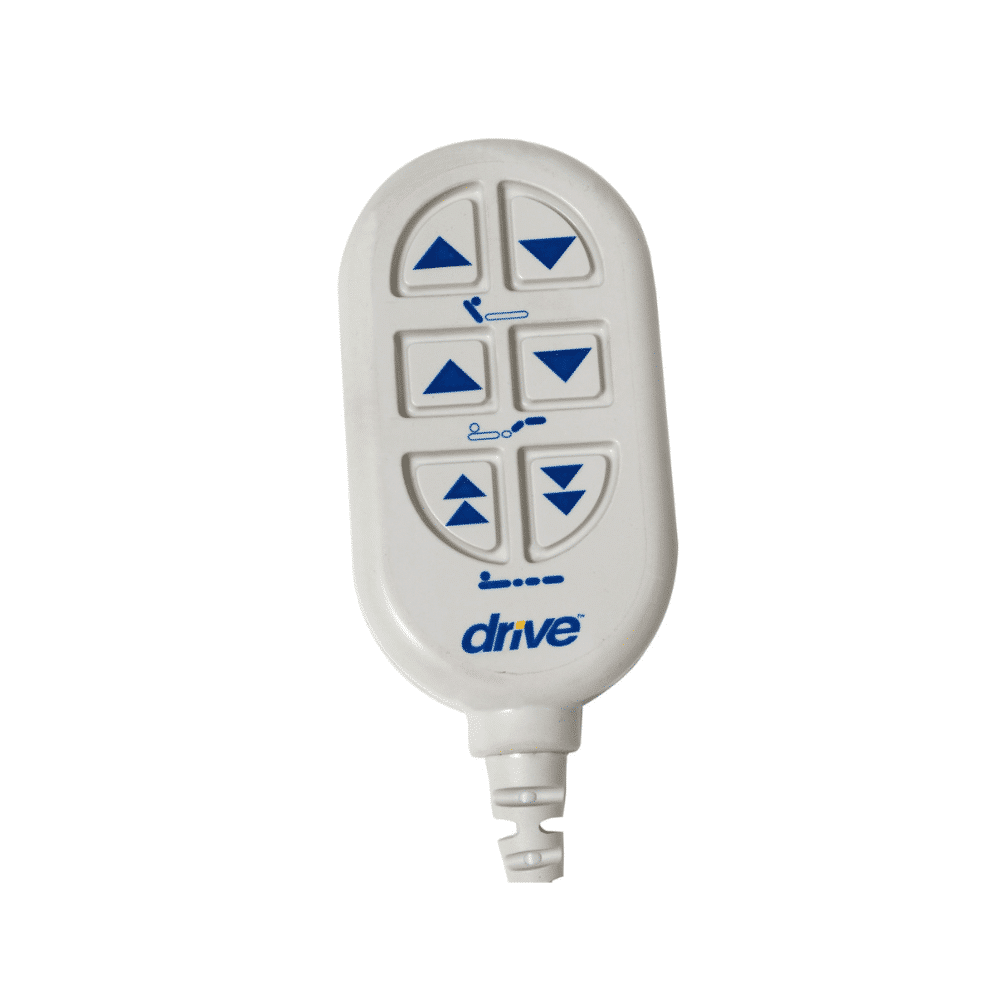

Wired pendant with head, foot and height buttons
Bed width
36" (91 cm) mattress deck
Bed length
79.5" (202 cm) mattress deck
Size options
80" deck, extends to 84" with the extension kit 15005EXTKIT-L
Minimum bed height
9.25" (235 mm) deck to floor, no mattress, casters in the low roll position
Maximum bed height
23" (585 mm) deck to floor, no mattress
Deck sections
2 spring sections, head and foot, joined by a pull tube
Bed positions
Head up, foot up, both together and the whole bed up or down; auto contour moves head and foot together
Section angles
Head 0 to 70 degrees, foot 0 to 46 degrees
Bed accessories
Extension kit 15005EXTKIT-L, taking the deck from 80" to 84"
Head and footboards

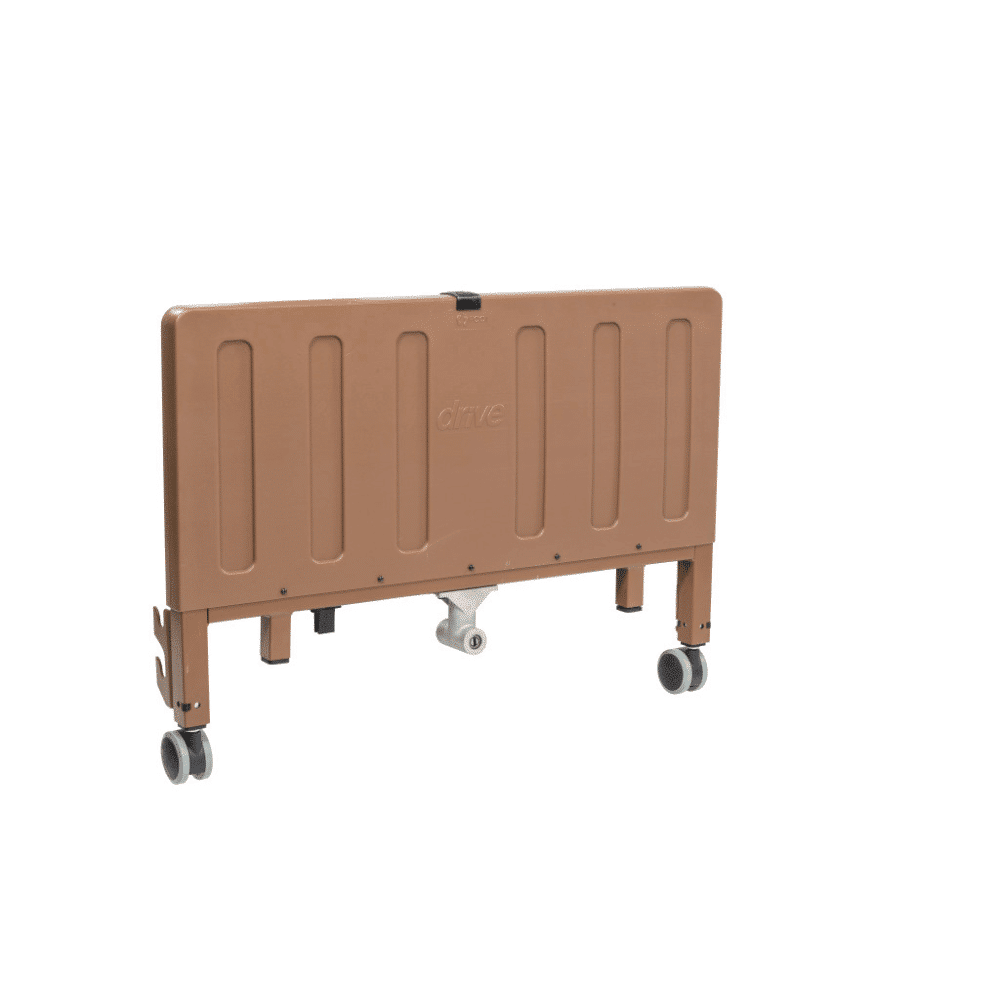

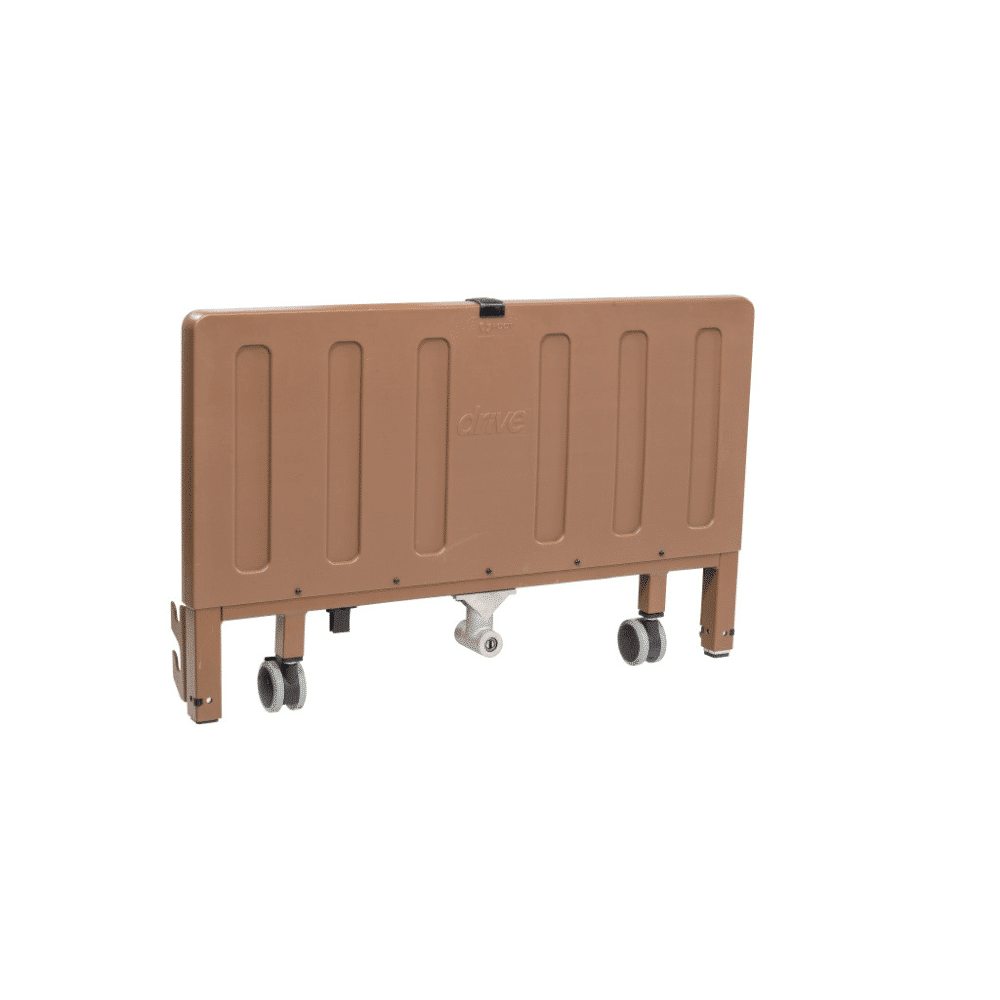

Low head board and low foot board with moulded covers, the head board taller than the foot board
Warranty
Limited lifetime on welds; 5 years on frame, motor and pendant; 1 year on other parts
Product type
Full electric low height homecare bed with a low head board and low foot board

Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Drive Medical warrants the full electric low height bed (15005LP) to the original purchaser. During the warranty period, Drive repairs or replaces defective items at its option at no charge.

  • Welds: limited lifetime.
  • Frame: 5 years.
  • Motor and pendant: 5 years.
  • All other parts and components: 1 year.
  • Void after unauthorized service or modification, work by unqualified people, or use of parts or accessories other than authorized Drive Medical replacements.
