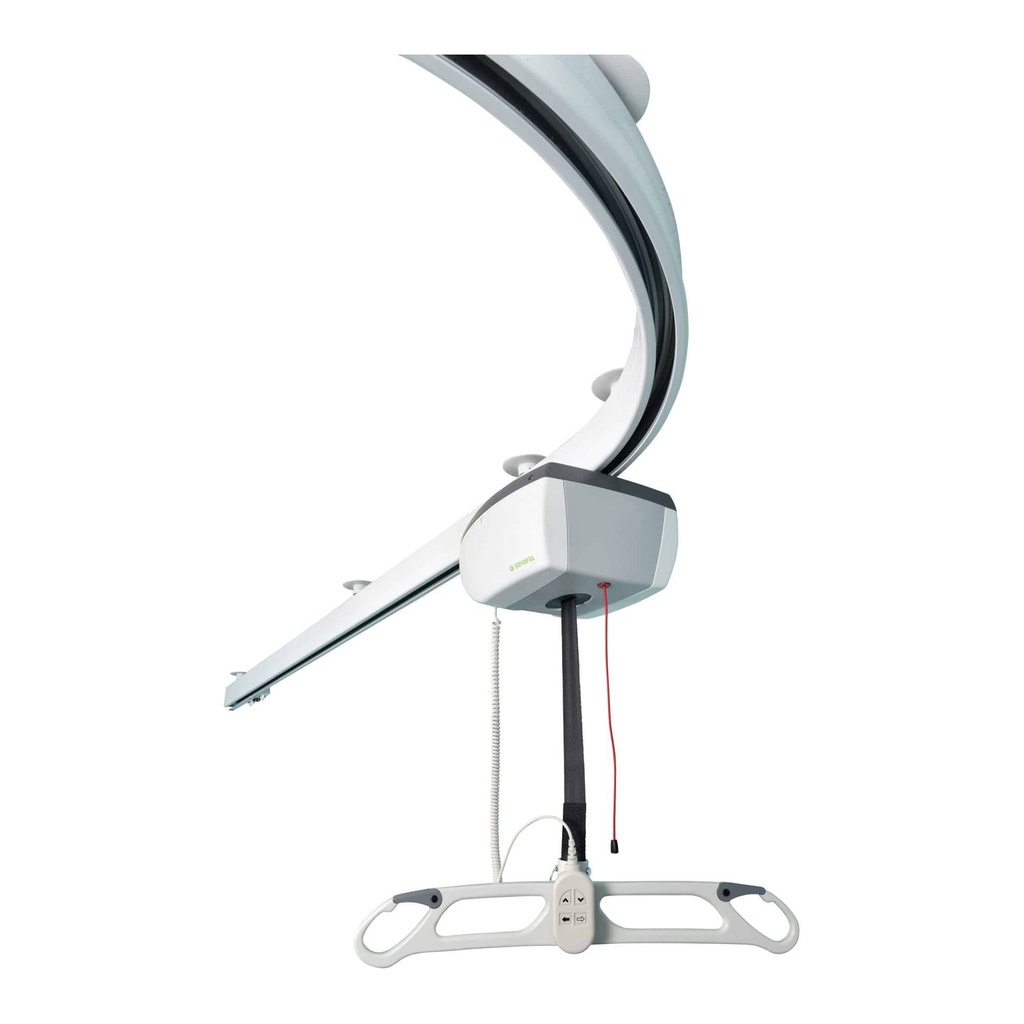

Savaria Patient Care Monarch fixed ceiling motor, item M929101

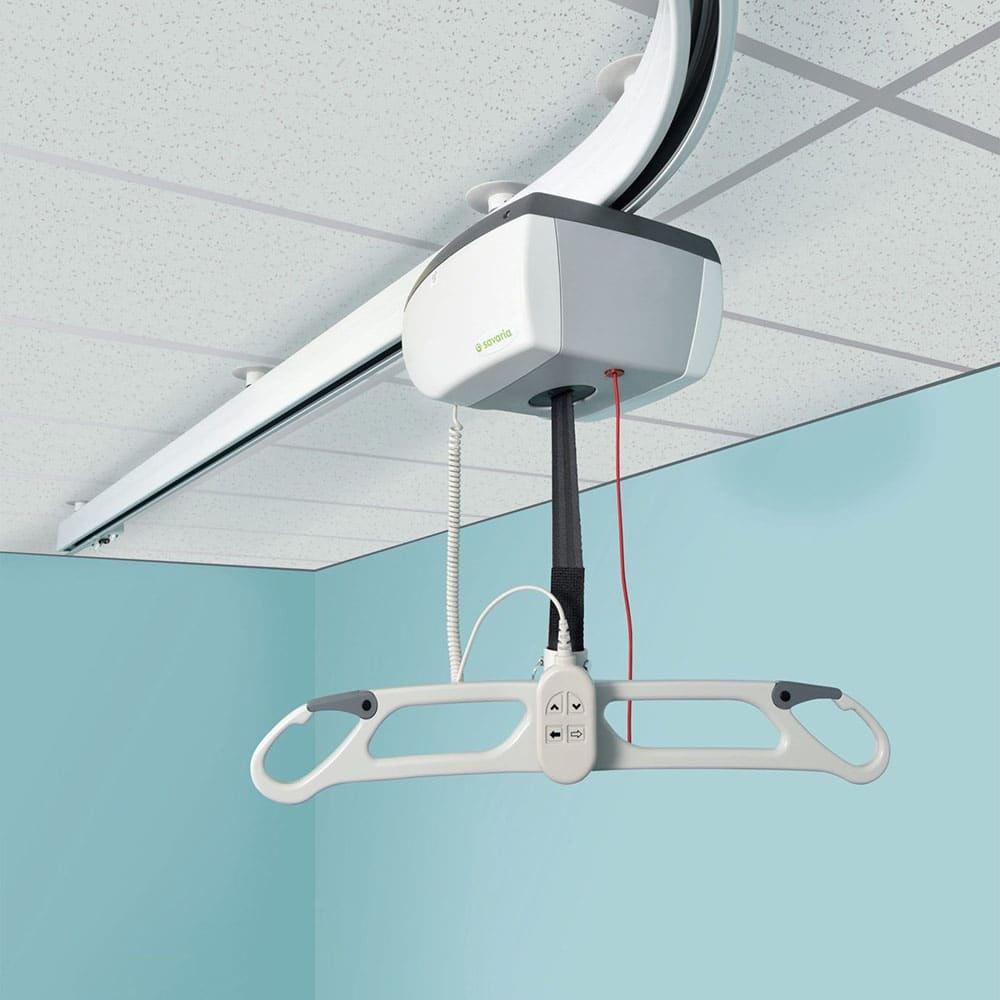

The Savaria Monarch FL, item M929101, is a fixed ceiling lift motor that runs on a ceiling track and lifts a person in a sling. It suits a bedroom, bathroom or care room where a track can cross the ceiling.

Who is it for, and who should choose something else?

• For a person who needs help moving between bed, chair, toilet or bath in an indoor care setting.
• Choose a floor lift if the room cannot take a track or the person moves between buildings.

How does a transfer work?

• Sling straps sit in the support hooks on the carry bar, with the spring-loaded safety latches closed over them.
• Press UP to raise the person until the sling clears the bed or chair, move along the track, then press DOWN to lower.
• A motorized trolley adds LEFT and RIGHT buttons; with a manual trolley the carer guides the carry bar along the track.
• Never leave the person unattended during a transfer.

Can your ceiling take a track?

• The lift must run in a track rated at least as high as its load: 286, 440 or 600 lb (130, 200 or 272 kg) by model.
• We confirm the safe working load for your unit before you order.
• Mobility installs ceiling track lifts across Toronto and the GTA, and the free home assessment looks at the room and the route.
• The track is a separate system installed with the lift.

Which sling fits?

• The carry bar takes looped straps on its support hooks; short loops at the back and long loops at the front suit a seated transfer, and the reverse suits a reclined one.
• A sling is not included and must be rated for the person's weight.

Battery, charging and care

• The lithium ion battery is 25.2 V, 2500 mAh; a full charge takes about 2 hours and gives about 30 lifts of 24 in (61 cm) at 600 lb, 45 at 440 lb or 70 at 286 lb.
• Park the lift under its charging station when not in use, and charge it at least monthly.
• Before each use check the strap, sling, carry bar, hand control, track and end stops; clean the track every 4 months and have the lift serviced yearly.

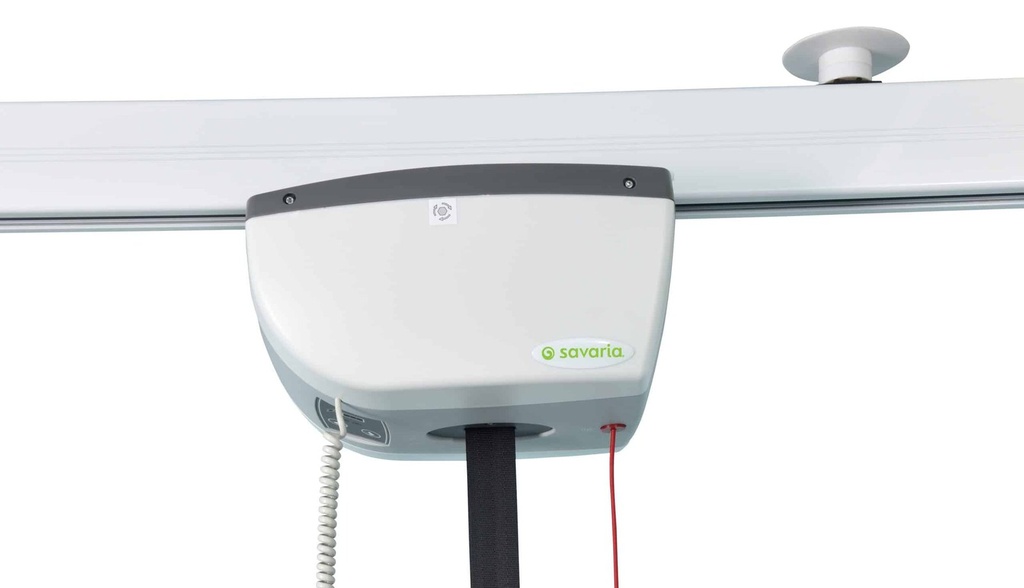

• Emergency lowering uses a 6 mm Allen key (4 mm on some models); the red cord is the emergency stop. If the automatic emergency brake engages, do not release it or use the lowering device; call for service.

How does it compare?

The Handicare C450 is another fixed ceiling lift, rated 450 lb (204 kg). More fixed models are under fixed ceiling lifts, and the range under ceiling lifts. Where a track cannot go, see patient lifts.

What funding may help with

Funding may help: see who may help pay.
