Description

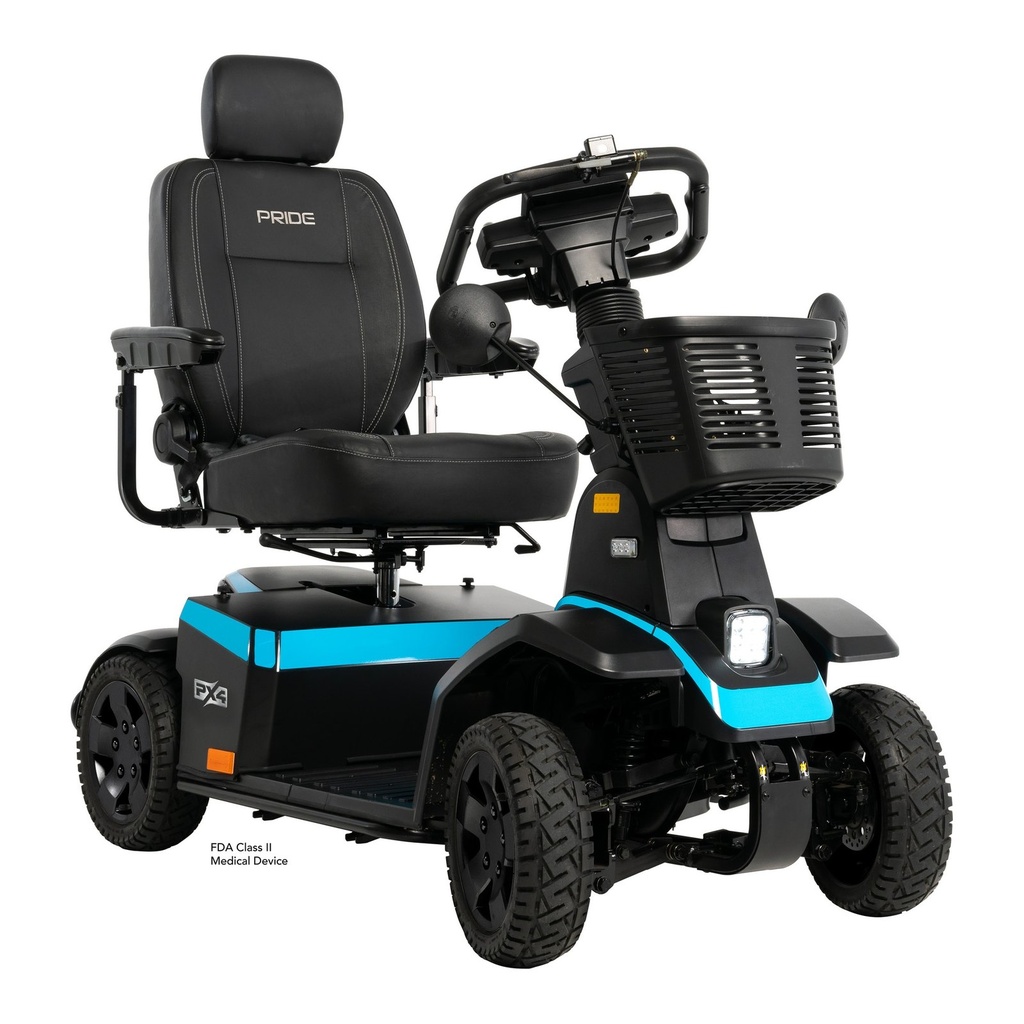

The Pride PX4, model SC134, is a four-wheel heavy-duty outdoor scooter rated 500 lb (226.8 kg), with full suspension, a memory foam seat and NFC key-fob ignition.
What does it do and how does it work?
- A 24-volt DC motor drives the rear wheels through a sealed transaxle at up to 14.97 km/h (9.3 mph).
- Two 12-volt 75 Ah batteries give up to 38 km (23.6 mi) per charge, less on hills or with a heavier rider.
- Full suspension and 13 in pneumatic tires on split rims smooth asphalt, gravel and hard-packed paths.
- A water-resistant LCD console sits on the delta steering wheel, and an NFC key fob starts the scooter.
- Nine colours, including four camo patterns, are made; the seat comes in 18 in (457 mm), 20 in and 22 in widths, and a hardtop canopy is optional.
Who is it for, and who should choose something else?
- It suits a heavier rider who rides outdoors from home.
- Choose a travel scooter if you must lift it into a car; the PX4 does not disassemble and weighs 351.4 lb (159.4 kg).
- Choose a power wheelchair if you need postural support or pressure relief.
Will it fit?
- Length 55.9 in (1420 mm), width 27.05 in (687 mm), turning radius 82.28 in (2090 mm).
- Ground clearance is 3.5 in (89 mm) at the motor and 4.4 in (112 mm) at mid-deck.
- It does not fold or come apart, so plan a ramp, a lift or a van.
- A free home assessment can measure your doorway against 27.05 in (687 mm).
Using it day to day
- Charge 8-14 hours before the first ride, and 8-14 hours after each day of use, plus 4 more after the charger shows complete.
- Used weekly or less, charge at least 24 hours a week, with 48 continuous hours once a month.
- Plug the charger into a wall outlet, never an extension cord; the scooter cannot be driven while charging.
- Squeeze the handbrake 5-7 times before a ride, and use the freewheel lever to push it on level ground.
What does it work with, and what are its limits?
- The batteries are two 12-volt 75 Ah sealed lead-acid units, 48.8 lb (22.1 kg) each; replace both together.
- Use only the supplied 8 amp off-board charger.
- It is rated IPX4 for splashes. It does not meet ISO 7176-19 and is not a seat in a moving vehicle.
- The frame is covered for life, the drivetrain and electronics for 2 years, and the batteries for 6 months; upholstery, tires, brake pads and labour are excluded.
How does it compare?
- The Pride Pursuit XL carries 400 lb (181 kg), turns in 82 in (208 cm) and also does not come apart.
- The Pride Victory 10.2 splits for a car but tops out at 8.4 km/h (5.2 mph).
Frequently asked questions
Can I leave the charger plugged in after it shows complete?
Yes. Pride recommends 4 more hours; the charger maintains the charge without overcharging.
How do I push it when the battery is flat?
Pull the freewheel lever and push it on level ground, never on a slope.
Can I charge a phone from the scooter?
Yes. A USB charger port is built into the tiller console.
Funding may help: see who may help pay. Pride's Canadian terms are in the Warranty tab.
Specifications
- Weight capacity
- 500 lb (226.8 kg)
- Product weight
- 351.4 lb (159.4 kg) with seat and batteries
- Folding or disassembly
- Does not fold or disassemble for a car
- Seat width
- 18 in (457 mm) standard; 20 in and 22 in seats optional
- Seat depth
- 18 in (457 mm) standard
- Seat height
- 24.2-25.6 in (615-650 mm) to the ground
- Seat type
- High-back black vinyl memory foam, 52.6 lb (23.9 kg), with a 6 in slider
- Tiller
- Delta steering wheel with a water-resistant LCD console and USB port
- Tires
- 13 in pneumatic on split rims, front and rear
- Suspension
- Full front and rear suspension
- Overall width
- 27.05 in (687 mm)
- Overall length
- 55.9 in (1420 mm)
- Ground clearance
- 3.5 in (89 mm) at the motor; 4.4 in (112 mm) at mid-deck
- Turning radius
- 82.28 in (2090 mm)
- Driving range
- Up to 38 km (23.6 mi); varies with rider weight, terrain and battery condition
- Top speed
- Up to 14.97 km/h (9.3 mph)
- Brakes
- Regenerative and electromechanical, plus a supplemental hand brake
- Lights
- Full LED package
- Motor
- Rear-wheel drive, sealed transaxle, 24-volt DC
- Batteries
- Two 12-volt 75 Ah sealed lead-acid deep-cycle, 48.8 lb (22.1 kg) each
- Available colours
- Black Camo, Dark Violet, Desert Camo, Jungle Camo, Peacock Blue, Satin Aluminum, Sunflower, White Camo, Red
- Battery charger
- 8 amp, off-board
- Warranty
- Lifetime limited: frame; 2 years: drivetrain and electronics; 13 months: Pride batteries
- Product type
- Heavy Duty Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Pride Mobility warrants the PX4 sold in Canada to the original purchaser against defects in material and workmanship.
- Structural frame (main frame, fork, seat post, tiller frame): limited lifetime.
- Transaxle, motor brake (electronic function), brake, bearings and bushings: 2 years.
- Controller, charger, harnesses and other electrical parts: 2 years.
- Pride batteries: 13 months from purchase.
- Excludes wear items (shrouds, motor brushes, upholstery and seating, brake pads, tires and tubes, fuses and bulbs), abuse, misuse and non-Pride parts.
- Labour, service calls and shipping are not covered unless Pride authorizes them in advance. Service is by an authorized Pride provider.
