Description
The Quickie QS5 X is Sunrise Medical's folding ultralight wheelchair: a 7000 series aluminium frame with an ovalized four-arm crossbrace, from 22.3 lbs (10.1 kg) on the swing away frame.
Who is the QS5 X for?
It suits a rider who needs a chair that folds for a car but still rolls with little effort. The frame carries up to 300 lbs (136 kg), and it is rated for use in a vehicle with the transit system fitted.
Which seat size do I order?
Seat width and depth each run 13" to 20". Frame angle, inset and centre of gravity are set on the order form. Measure the seated hip width and the hips to the back of the knee, or book a free home assessment.

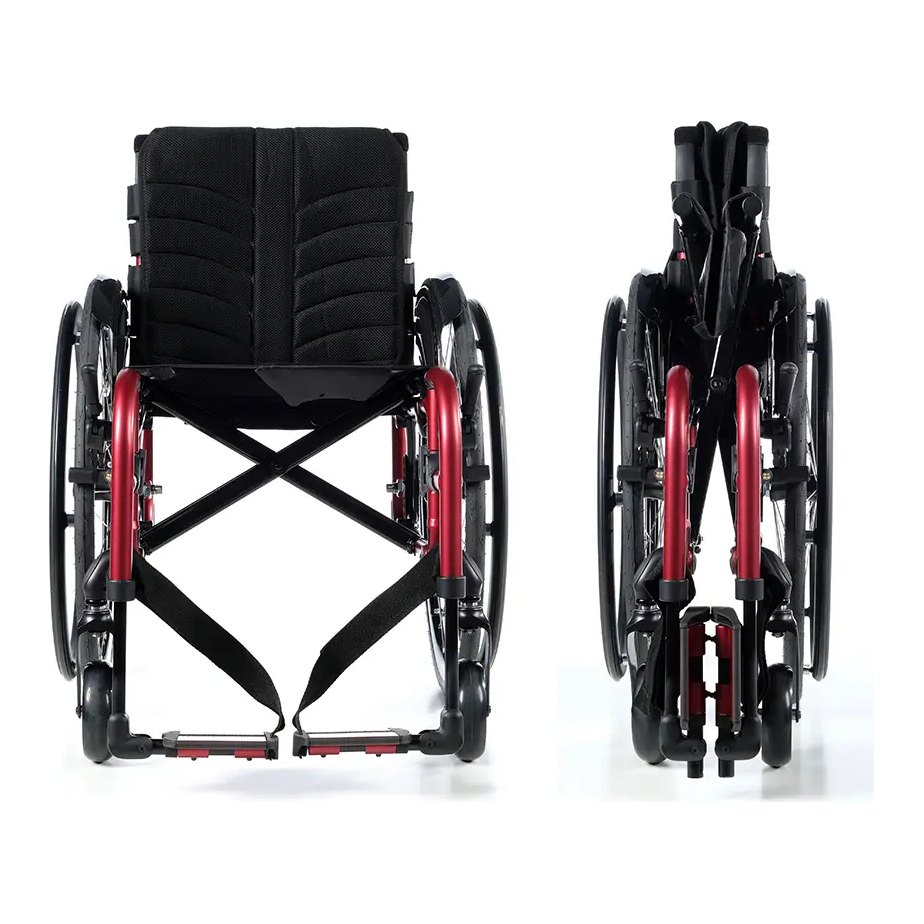

How does it fold, and how heavy is it to lift?
The crossbrace folds the frame side to side, and FreeFold geometry cuts the force of each fold. Fold-n-Lock holds the chair closed while you lift it. With the wheels, armrests and footrests off, the chair starts at 16.5 lbs (7.5 kg).
How is it set up and adjusted?
The back adjusts from 80 to 105 degrees, the rear axle preset moves the centre of gravity 1" to 3", and the caster link adjusts three ways for straight tracking. Armrests are padded swing away, height adjustable or flip back.
Which options, colours and accessories are there?
Choose 24 frame colours, 4 caster fork and 4 wheel colours. Rear wheels run 20" to 26". JAY cushions and backs fit the frame.
Funding help for a folding ultralight wheelchair in Ontario
Depending on the person's needs and assessment, funding may be available for mobility equipment in Ontario. Our team works with funding programs and can point you to the right route before you buy. See our funding guide or call (905) 798-1853.
Delivery, service and warranty
The owner's manual and brochure are on our documents page.
How does it compare?
The Quickie QXi and the Helio A7 are the other folding ultralight chairs we carry. See folding wheelchairs.
Frequently asked questions
Does the QS5 X fold flat?
The crossbrace folds the frame side to side, and Fold-n-Lock holds it closed.
How light is it without the wheels?
From 16.5 lbs (7.5 kg) with the wheels, armrests and footrests off.
Which footrest setup should I choose?
Swing away hangers come at 60, 70 or 80 degrees, and elevating and articulating hangers are also available.
Can the rider stay in the chair in a vehicle?
Yes, with the transit system fitted, which conforms to ISO 7176-19.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- From 22.3 lbs (10.1 kg) on the swing away frame, before options
- Transport weight
- From 16.5 lbs (7.5 kg) with the wheels, footrests and armrests off
- Seat width
- 13" to 20"
- Seat depth
- 13" to 20"
- Back height
- 10" to 20"
- Back angle
- 80 to 105 degrees on the angle adjustable back
- Armrests
- Padded swing away, height adjustable single post or flip back; desk length, full length or ergo armpads
- Legrests
- Swing away hangers at 60, 70 or 80 degrees, or elevating and articulating hangers
- Seat height
- Front seat to floor 14" to 22"; rear seat to floor 14" to 20"
- Rear wheel size
- 20" to 26" in mag, spoke or Spinergy
- Caster size
- 4" to 8" in polyurethane, semi pneumatic, pneumatic or aluminium soft roll
- Folding
- The crossbrace folds the frame side to side; the optional Fold-n-Lock holds it closed and the rear wheels are quick release
- Frame material
- 7000 series aluminium with an ovalized four-arm crossbrace
- Available colours
- 24 frame colours, 4 caster fork colours and 4 wheel colours
- Compatible with
- JAY J3 back, JAY X2 cushion, Empulse R90 and M90 power assist, twin LED lights and side guards
- Transit
- Conforms to ISO 7176-19 with the transit system fitted
- Frame angle
- Swing away 60, 70 or 80 degrees
- Centre of gravity
- 1" to 3"
- Wheel locks
- High mount push or pull, ergo scissor, knee lever, compact or none
- Product type
- Folding ultralight manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Sunrise Medical Quickie QS5 X brochure
- User Manual Sunrise Medical Quickie QS5 X owner's manual
- Parts Manual Sunrise Medical Quickie QS5 X parts manual
- Other Sunrise Medical Quickie and Zippie ISO transit securement supplement
- Other Sunrise Medical Quickie and Zippie colour palette
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
Lifetime on frame, 2 years on backs and cushions, 1 year on parts. Warranty is non-transferable.
Read the warranty and service policy for the full terms.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
