Description
The Pride Revo 2.0 four-wheel (S67) is a 400 lb (181 kg) scooter with CTS suspension that comes apart by hand.
Who it suits, and who should choose something else
- A rider up to 400 lbs (181 kg) who wants suspension and a take-apart frame, and can lift a 57 lb (25.9 kg) front section or have help.
- Ground clearance is 1.25 in (32 mm) at the transaxle and 3.5 in (89 mm) at mid-frame. The slope limit is 6 degrees and the obstacle limit 2.5 in (65 mm). Steep grass and gravel are a poor match.
- If you want a lighter lift, see travel scooters.
- If you need a cushion or back support for posture, ask your therapist about a power wheelchair.
Check the pieces

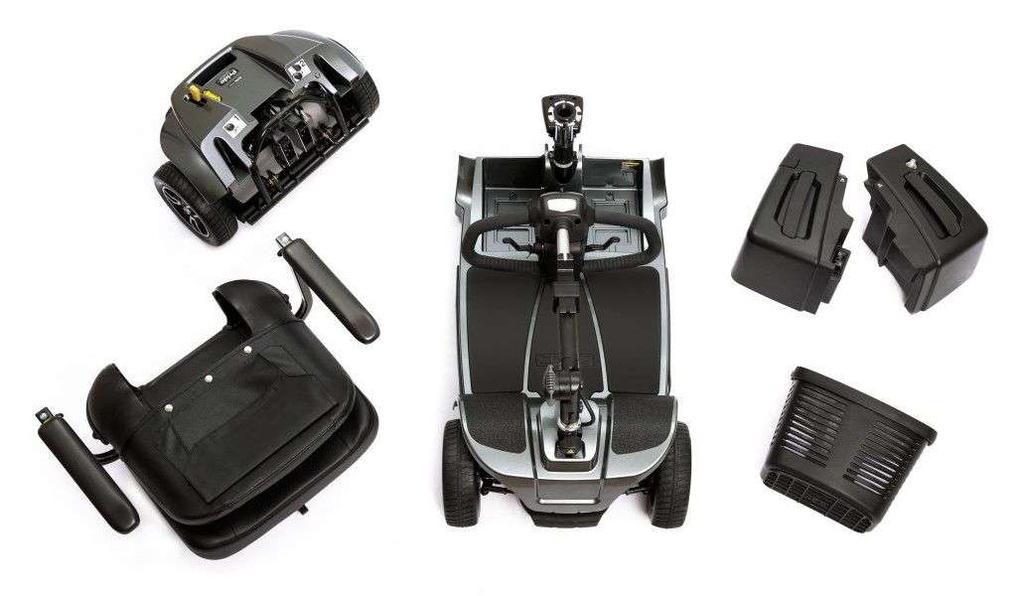

- It does not fold. Pieces, no tools: seat, basket, two battery boxes, front section and rear section. Keep about 5 ft (1.5 m) of level, dry floor to work on.
- Length 47 in (119 cm). Width 20.75 in (53 cm). Turning radius 52 in (132 cm). A three-point turn needs about 61.25 in (156 cm) of corridor.
- Without batteries it weighs 131.5 lbs (59.8 kg). Each U1 battery box adds 25 lbs (11.3 kg); the seat is 27.25 lb (12.4 kg).
- Top speed up to 8 km/h (5 mph), with an ECO switch that halves the set speed. A freewheel lever lets you push it on level ground with the key out.
- The 20 by 18 in vinyl seat folds, swivels through 8 positions, and has flip-up armrests; seat height is 22 to 23.5 in (56 to 60 cm).
Batteries and tires
- Two 12 V U1 batteries are included, in removable boxes that clip together for charging. Range up to 28.8 km (17.8 mi) at 200 lbs, or 20 km (12.4 mi) at 400 lbs.

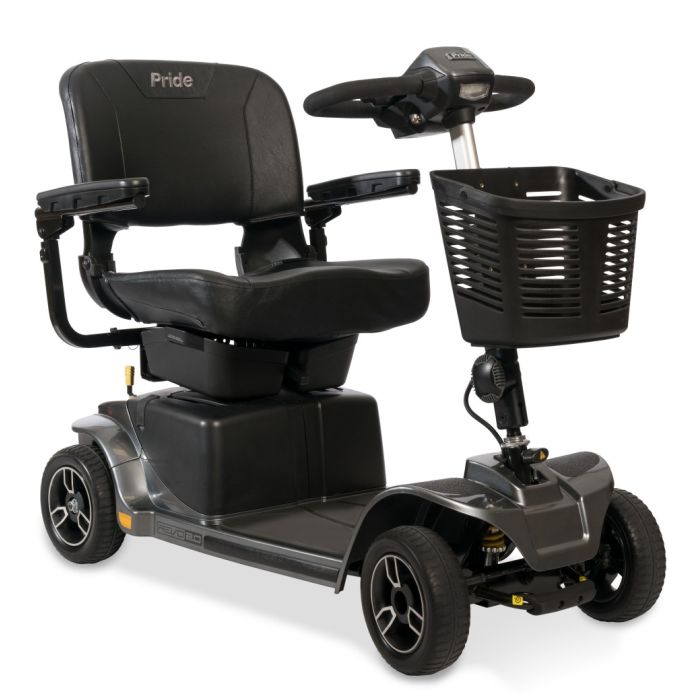

- Solid flat-free tires are standard. Pneumatic tires are optional. The 3.5 A charger works on or off the scooter.
- Allow 8 to 14 hours for a full charge; top up 24 hours weekly if you ride rarely, and 48 hours monthly.
- Rated IPX4 for spray. Wipe it with a damp cloth, never a hose, and keep the console dry. Ride between -25 and 50 degrees C; never charge a frozen battery.

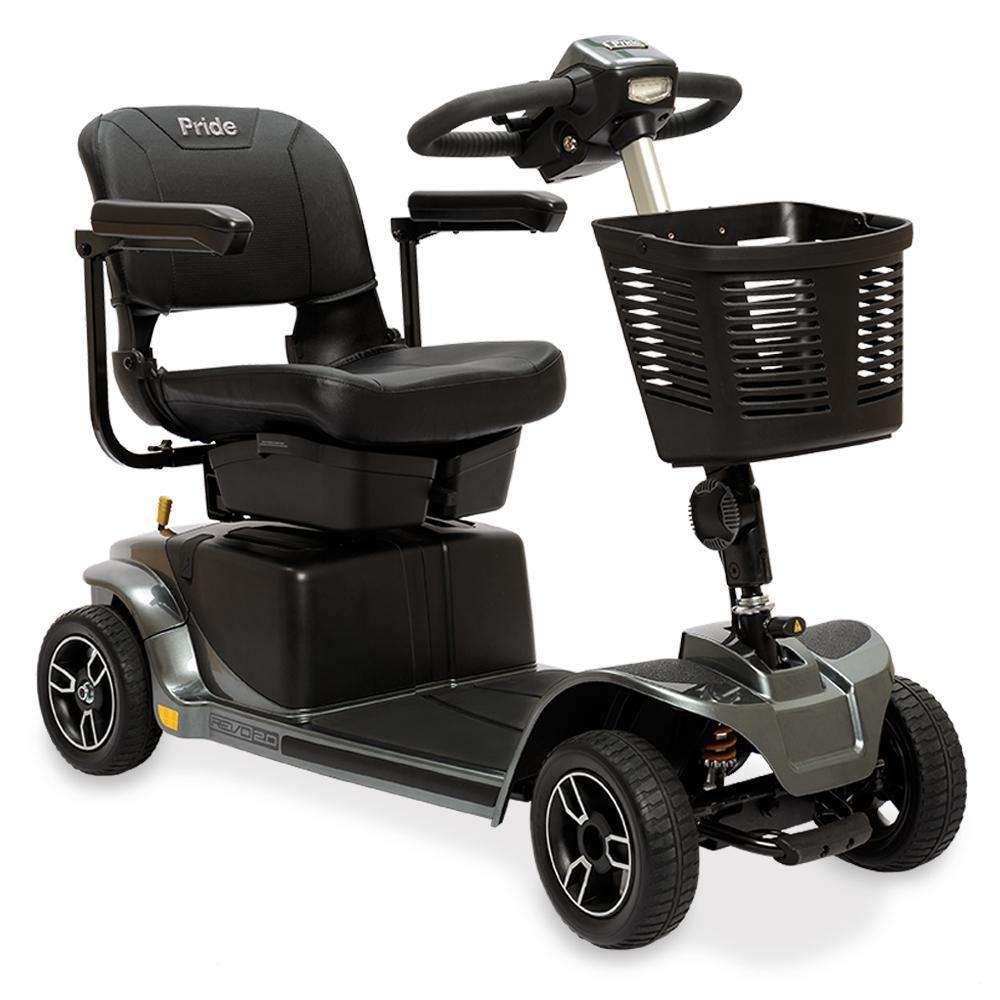

- Under-seat storage is an optional upcharge. The front basket is standard. We replace worn batteries.
Care and transport
- It does not meet ISO 7176-19 and is not a seat in a moving vehicle. Tie it down at the four points, facing forward, never by the armrests, shrouds or wheels.
- Never lift it by the armrests, and release the tiller lock before you ride.
- Pride covers the frame for life, the drivetrain, drive motor and electronics for 2 years, and Pride batteries for 13 months. See the Warranty tab.
Compare
- Victory 10.2: the same 400 lb rating, no suspension, a similar take-apart.
- Go-Go LX: CTS suspension too, rated 300 lbs, with a lighter front section.
Frequently asked questions
Do the batteries come out as one pack?
No. They sit in two removable boxes, one battery each, about 25 lbs per box. The boxes clip together for charging.
Which range should I plan around?
At the full 400 lb rating, plan around 20 km (12.4 mi).
Is under-seat storage included?
No. It is an optional upcharge. The front basket is standard.
Can I sit on it in a van?
No. It does not meet ISO 7176-19; travel with it empty and secured at the four tie-down points.
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Specifications
- Weight capacity
- 400 lbs (181 kg)
- Product weight
- 131.5 lbs (59.75 kg) without batteries, standard seat included; each U1 battery box adds 25 lbs (11.25 kg); seat 27.25 lbs (12.4 kg)
- Folding or disassembly
- Does not fold; comes apart by hand, no tools: seat, basket, 2 battery boxes, front and rear sections
- Heaviest piece
- Front section, 57 lbs (25.9 kg)
- Seat width
- 20" (51 cm)
- Seat depth
- 18" (46 cm)
- Seat height
- 22" to 23.5" (56 to 60 cm) from the ground
- Seat type
- Folding molded seat in black vinyl with a pinchless hinge; 8-position swivel; flip-up armrests adjust in width
- Tiller
- Delta tiller with wraparound handles and angle knob; speed dial, ECO (Hi-Lo) switch, thumb throttle, USB port
- Tires
- 3" x 9" (229 mm) front and rear; solid flat-free standard, pneumatic optional
- Suspension
- Comfort-Trac (CTS) suspension, front and rear
- Overall width
- 20.75" (53 cm)
- Overall length
- 47" (119 cm)
- Ground clearance
- 1.25" (32 mm) at the transaxle; 3.5" (89 mm) at mid-frame
- Turning radius
- 52" (132 cm); 61.25" (156 cm) wide corridor for a three-point turn
- Maximum slope
- 6 degrees (10.5%)
- Driving range
- Up to 28.8 km (17.8 mi) at 200 lbs (91 kg); up to 20 km (12.4 mi) at 400 lbs (181 kg); two U1 batteries
- Top speed
- Up to 8 km/h (5 mph); ECO switch halves the set speed
- Brakes
- Regenerative braking with an electromechanical brake that holds the scooter when you release the throttle
- Lights

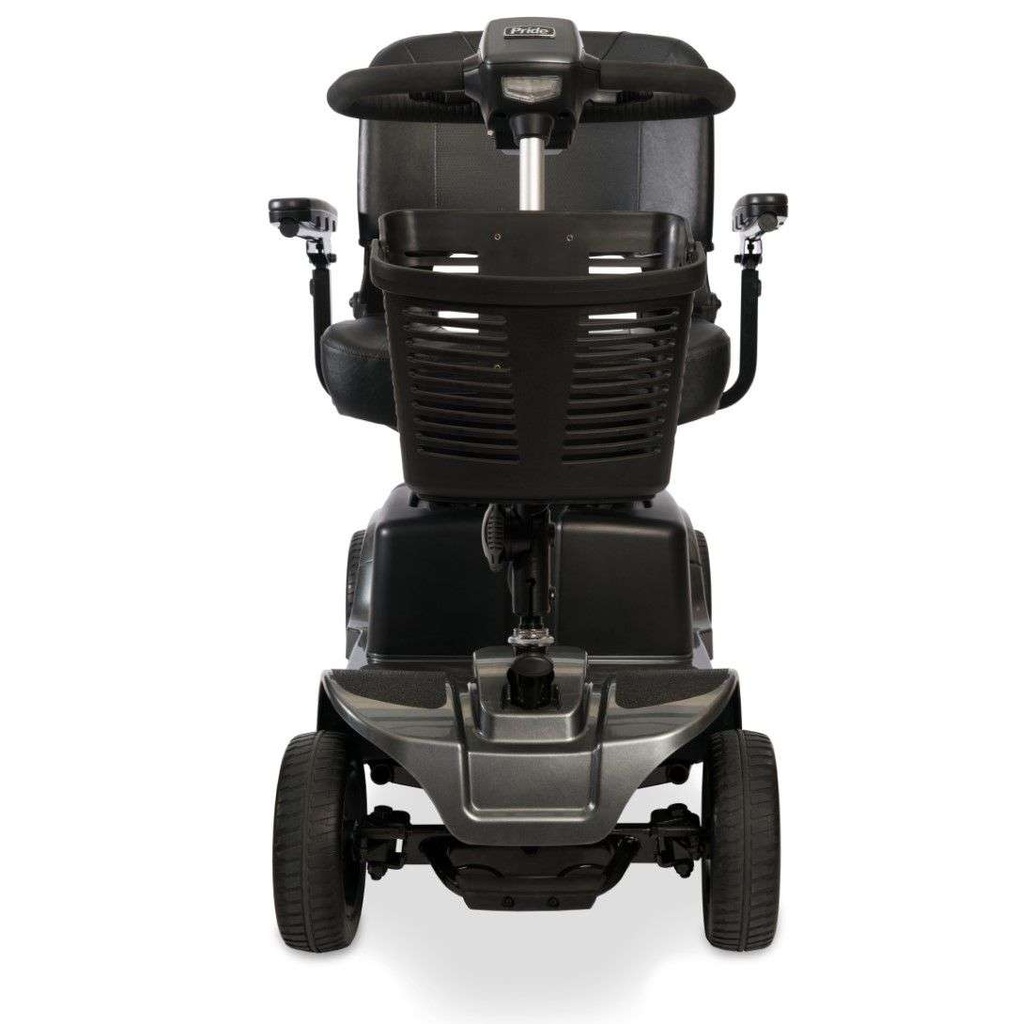

- LED headlight in the tiller and a puddle light
- Motor
- 24 V DC motor, rear-wheel drive, sealed transaxle, 70 amp controller
- Batteries
- Two 12 V U1 sealed deep-cycle batteries (AGM or gel), included, in two removable boxes
- Available colours
- True Blue, Grey Street
- Charging time
- 8 to 14 hours for a full charge; 24 hours weekly if rarely used; 48 hours monthly
- Battery charger
- 3.5 amp off-board charger; charges the batteries on or off the scooter; the two boxes clip together for charging
- Warranty
- Lifetime limited on the frame; 2 years on drivetrain, drive motor and electronics; 13 months on Pride batteries; wear items excluded
- Product type
- Mid-Size Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Pride Mobility warrants the Revo 2.0 (4-wheel) sold in Canada to the original purchaser against defects in material and workmanship.
- Structural frame (main frame, fork, seat post, tiller frame): limited lifetime.
- Transaxle, motor brake (electronic function), brake, bearings and bushings: 2 years.
- Controller, charger, harnesses and other electrical parts: 2 years.
- Pride batteries: 13 months from purchase.
- Excludes wear items (shrouds, motor brushes, upholstery and seating, brake pads, tires and tubes, fuses and bulbs), abuse, misuse and non-Pride parts.
- Labour, service calls and shipping are not covered unless Pride authorizes them in advance. Service is by an authorized Pride provider.
