Description

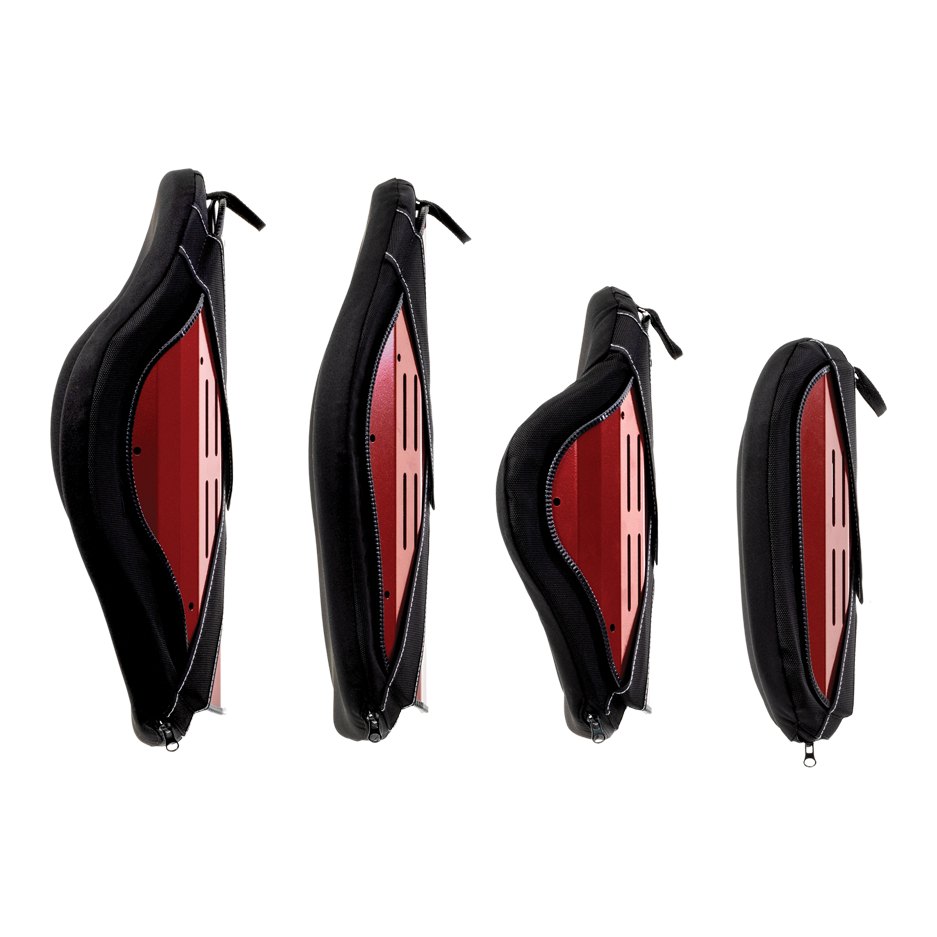

The Ki Mobility Axiom Lateral Back is a lightweight aluminium wheelchair back, shaped to 3.7 in (9.3 cm) of lateral profile, with no lumbar pad.
What does it do and how does it work?
- Contour: the same 3.65 in curve as the Posterior Lateral, without the lumbar pad, so the shell centre is flatter.
- Shell: aluminium formed by Ki Mobility's Fulcrum bending, which the maker says is stiffer than roll forming.
- Adjustments: 2 in (5.1 cm) of width, 3.3 in (8.3 cm) of height, 1.5 in (3.8 cm) of depth and 20 degrees of angle, on dual mounting slots.
- Foam and cover: 1.3 in (3.3 cm) of high-resiliency foam under a nylon-spandex cover with a waterproof membrane.
Who is it for, and who should choose something else?
- Moderate lateral positioning: for a rider who needs side support without a lumbar pad.
- Lumbar support needed: the Posterior Lateral carries the same curve with an adjustable lumbar pad.
- Assessment first: an occupational therapist or physiotherapist settles the contour and hardware.
Will it fit?
- Widths: 12 to 22 in (30.5 to 55.9 cm) in 2 in steps.
- Heights: Low 8 to 12 in (20.3 to 30.5 cm), Mid 14 to 18 in and Tall 20 to 22 in.
- Not a full grid: the 12 in wide shell comes 8, 12, 16 and 20 in high; the 18 in wide shell in every height; the 22 in wide shell only 10, 14, 18 and 22 in.
- Order codes: AXLB plus the width and height, for example AXLB1618 for 16 in wide by 18 in high.
- Capacity: 300 lb (136 kg) on DEX or FXT hardware and 400 lb (181 kg) on BTX.
Using it day to day
- Cleaning: remove the foam, zip the cover closed and machine wash hot at 60 C (140 F).
- Drying: line dry or tumble with no heat; never bleach, dry clean or steam the cover.
- Warranty: 24 months on the shell and foam, 6 months on the removable covers.
What does it work with, and what are its limits?
- No lumbar pad: the shell is supplied without one.
- Low heights: the Low sizes are not available with headrests or posture supports.
- LWX hardware: it fits 12 to 18 in widths and 8 to 16 in heights only.
Which version should I choose?
- Size: width from 12 to 22 in, and height from the Low, Mid or Tall group.
- Hardware: DEX, BTX, FXT or LWX, within the LWX limits above.
How does it compare?
The Axiom Posterior Lateral has the same curve with a lumbar pad. A Prism Ultra Back is a fixed-shape foam back, and an Invacare Matrx E2 is a foam back with a standard 3 in contour. See all wheelchair backrests.
Frequently asked questions
How does it differ from the Posterior Lateral?
Both are shaped to the same curve. The Lateral Back has no lumbar pad, so the shell centre stays flatter.
Which hardware should I choose?
DEX for a quick release, BTX for the 400 lb rating, FXT or LWX where the back stays fixed; LWX has size limits.
Which height do I order?
Low covers 8 to 12 in, Mid 14 to 18 in and Tall 20 to 22 in; Low sizes take no headrest or posture supports.
Can the shell colour be matched?
Yes. There are 21 finishes and paint-to-match is offered at no extra charge.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lb (136 kg) with DEX or FXT hardware, 400 lb (181 kg) with BTX hardware
- Sizes
- The item number is AXLB plus the width and height, for example AXLB1618 for 16 in wide by 18 in high
- Construction
- Lightweight aluminium shell formed by the maker's Fulcrum bending process, with 1.3 in (3.3 cm) of high resiliency foam
- Cover
- Removable cover: nylon spandex fabric over a waterproof elastic membrane layer, and a 6 month cover warranty
- Cover care
- Remove the foam and zip the cover closed, machine wash hot at 60 C, then line dry or tumble with no heat; never bleach, dry clean or steam it
- Adjustments
- 2 in (5.1 cm) of width adjustment from the chair width, 3.3 in (8.3 cm) of height, 1.5 in (3.8 cm) of depth and 20 degrees of angle, with dual mounting slots
- Back width
- 12 in to 22 in (30.5 to 55.9 cm), in 2 in steps
- Back height
- Low 8 in to 12 in, Mid 14 in to 18 in, Tall 20 in to 22 in
- Contour depth
- 3.7 in (9.3 cm) of lateral profile, with no lumbar pad
- Mounting hardware
- DEX, BTX, FXT or LWX hardware, included with the back; LWX fits 12 to 18 in widths and 8 to 16 in heights
- Available colours
- 21 gloss and matte finishes, including Gloss Black, Tactical Green and White; paint-to-match at no extra charge
- Warranty
- 24 months on the Axiom Back shell and foam, 6 months on the removable covers
- Product type
- Wheelchair back support with a shaped lateral contour, the Ki Mobility Axiom Lateral Back (LB)
- Use category
- Back support with moderate lateral positioning, as the maker describes it
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Axiom LB back to be free from defects in materials and workmanship from the date of purchase, under normal use.
- Back shell and foam: 24 months.
- Removable covers: 6 months.
- Defective parts are repaired or replaced at Ki Mobility's option, without charge.
- Excludes punctures, tears and burns; damage from neglect, accident, misuse, or improper installation or repair; products modified without Ki Mobility's written consent; and damage from exceeding the weight limit.
- Applies in North America to the first consumer purchase through an authorized Ki Mobility supplier, and is not transferable.
