Description

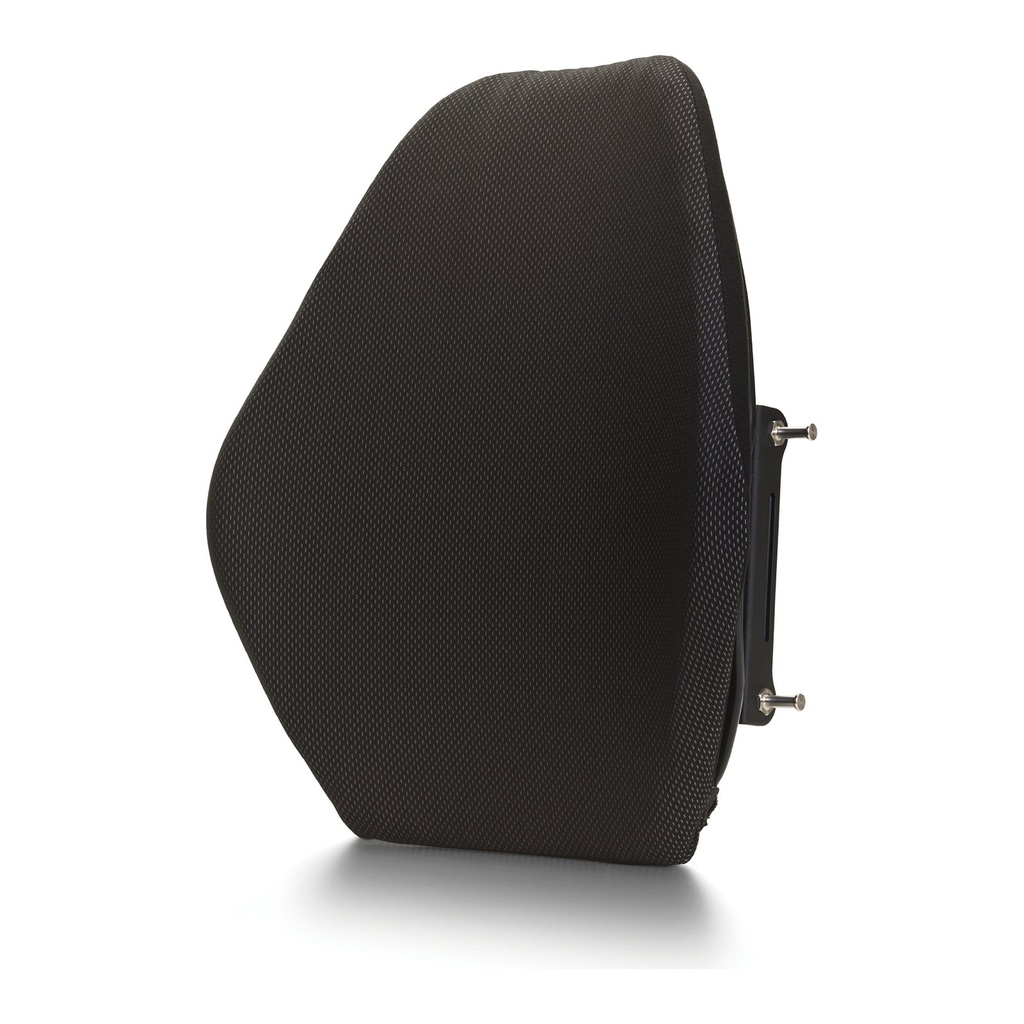

The Invacare Matrx E2 backrest is Motion Concepts' second-generation Matrx Elite back: a contoured wheelchair backrest built from a shaped shell, a 1.25 inch (32 mm) layer of Ripple foam and a Meshtex cover.
Browse wheelchair backrests.
Who is it for?
- The 3-inch Matrx E2 suits users up to 300 lbs (136 kg) who need a rigid back adjustable in height, depth and angle.
- Choose the right back in a seating assessment with an occupational therapist or physiotherapist.
Will it fit?
- Pick the E2 width from the distance across your wheelchair's back posts: each width fits posts from 1 inch narrower to 2 inches wider than the back itself.
- The back comes 14, 16, 18 or 20 in wide and 6 to 16 in high in 2 in steps; 15, 17 and 19 in widths are special order.
- The model number is E2S plus width and height, so E2S1612 is 16 in wide by 12 in high.
How does it work?

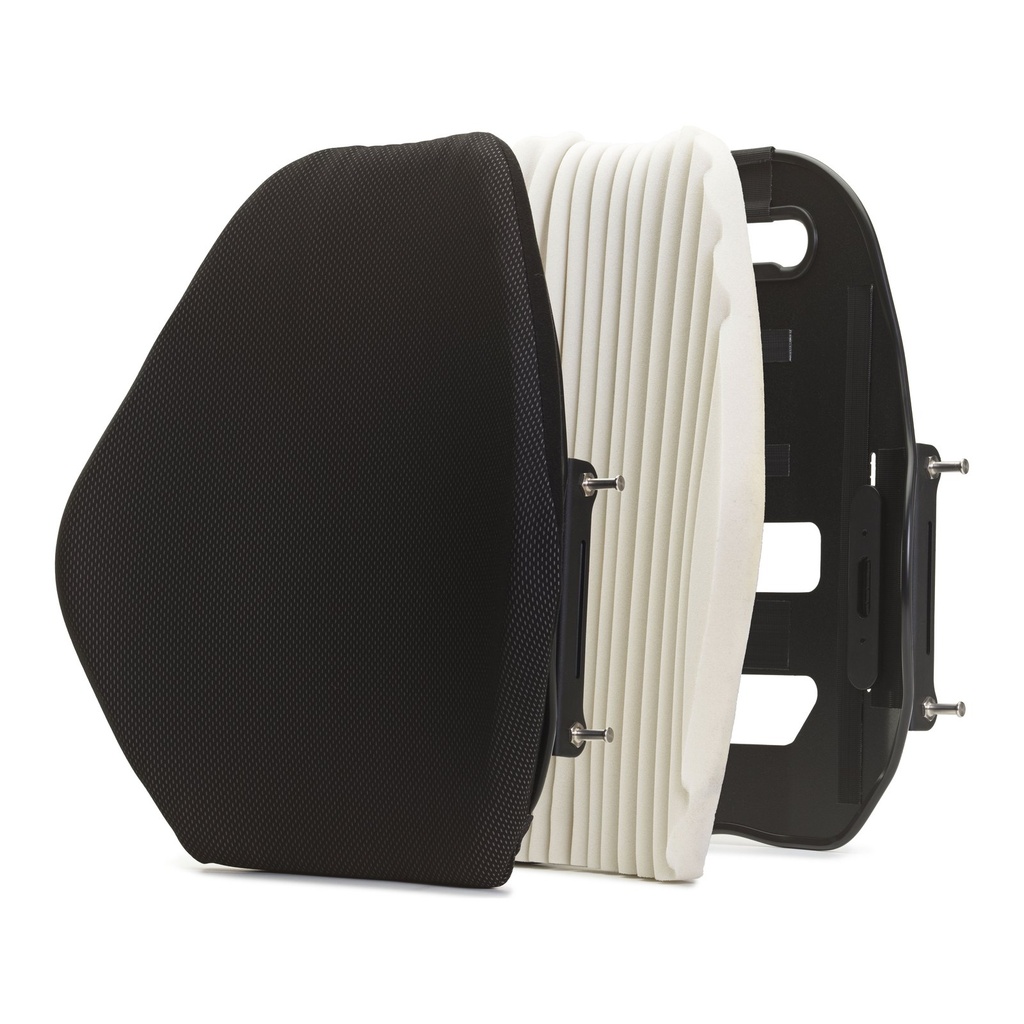

- The E2 has three layers: a contoured back shell, a 1.25 inch (32 mm) layer of Ripple foam, and a Meshtex cover that fastens to the shell with hook-and-loop strips.

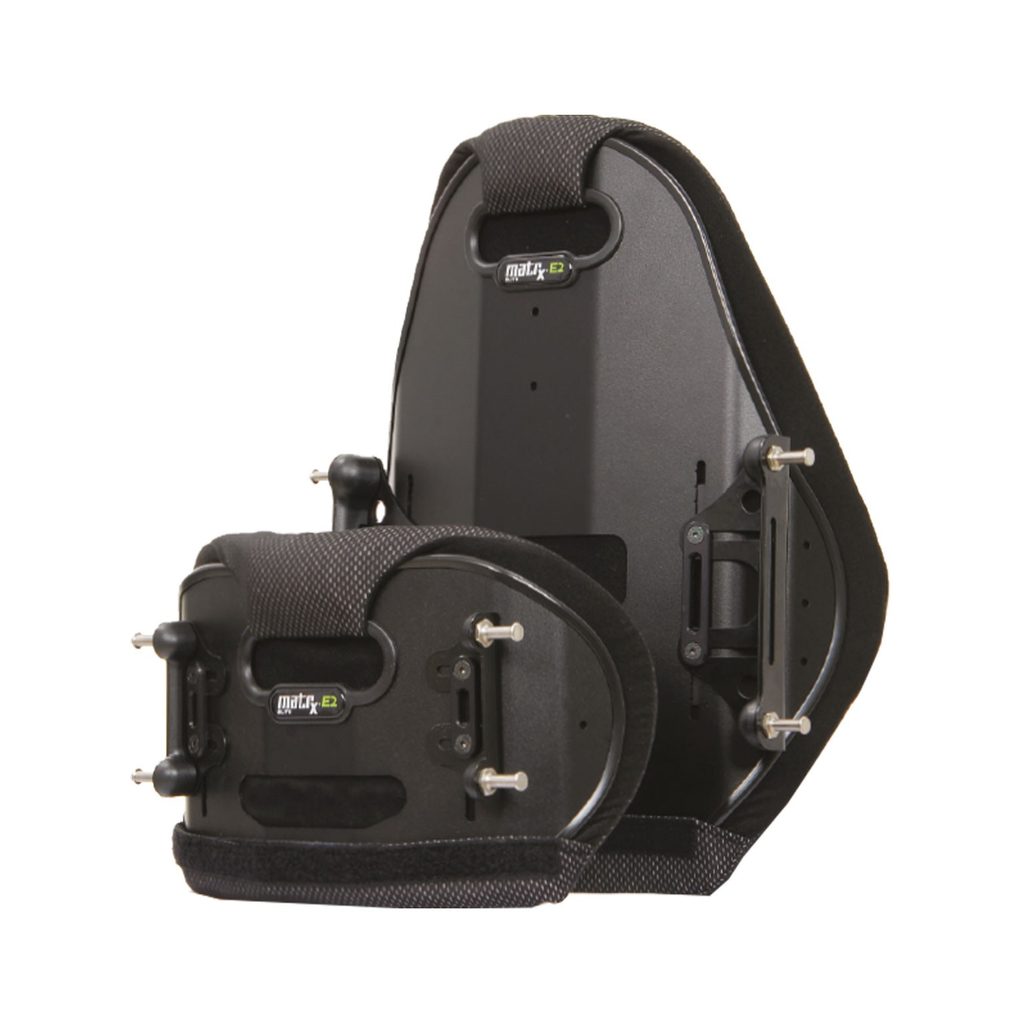

- The standard MiniSet hardware is quick-release: brackets clamp to the wheelchair's back posts, and the back lifts off them without tools when you fold the chair or load it into a car.
- The brackets set height and width, angle 20 degrees forward or back, and depth 2 inches (51 mm) either side of the posts; a lumbar pad slips inside the cover, and backs 14 and 16 in high add a headrest interface plate.
What are the care limits?
- Take the cover off the foam and wash it warm, no hotter than 60°C (140°F), on a delicate cycle with a neutral detergent, by hand or by machine.
- Do not bleach it, dry clean it, wring it or iron it.
How does it compare?
- The Invacare Matrx Elite Deep backrest is a rigid back with a 6-inch contour.
- The Prism TrueFitt back uses cube foam that can be shaped for the user.
- The Prism Basic is a rigid foam-padded back with a mild contour.
Frequently asked questions
Can I ride in a vehicle while sitting against the Matrx E2?
The E2 with a Matrx Elan headrest was crash-tested to ISO 16840-4 and RESNA WC-4 Section 20.
What is the difference between the Matrx E2 and the Matrx E2 Deep?
The standard Matrx E2 curves 3 inches (8 cm) around the sides of the trunk, and the E2 Deep curves 6 inches (15 cm).
Does the Matrx E2 work on a tilt or power wheelchair?
Yes, with the right hardware. Fixed MiniSet hardware is recommended on tilt and recline chairs and required on power wheelchairs with power seating.
What should you know?
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Custom and specially ordered backs are non-returnable; see our return policy.
The warranty is two years on materials and workmanship for the original purchaser; the removable cover is excluded. See the Warranty tab and our warranty service.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Construction
- Contoured shell with shoulder blade and hip cut-outs; 1.25" (32 mm) Ripple foam with air channels; lumbar pad included
- Cover
- Breathable, moisture-resistant Meshtex fabric with hook-and-loop closures; Protect slipcover optional
- Cover care
- Remove from foam; hand or machine wash warm, up to 60°C (140°F), delicate cycle; no bleach or dry cleaning; air dry or tumble low
- Adjustments
- Height and width at the brackets; angle 20 degrees forward or back; depth 2" (51 mm) either side of the posts; offset for rotation
- Back width
- 14", 16", 18" or 20" (356, 406, 457 or 508 mm); 15", 17" and 19" on special order
- Back height
- 6" to 16" (152 to 406 mm) shell height in 2" steps; foam and cover add 1.5" (38 mm)
- Contour depth

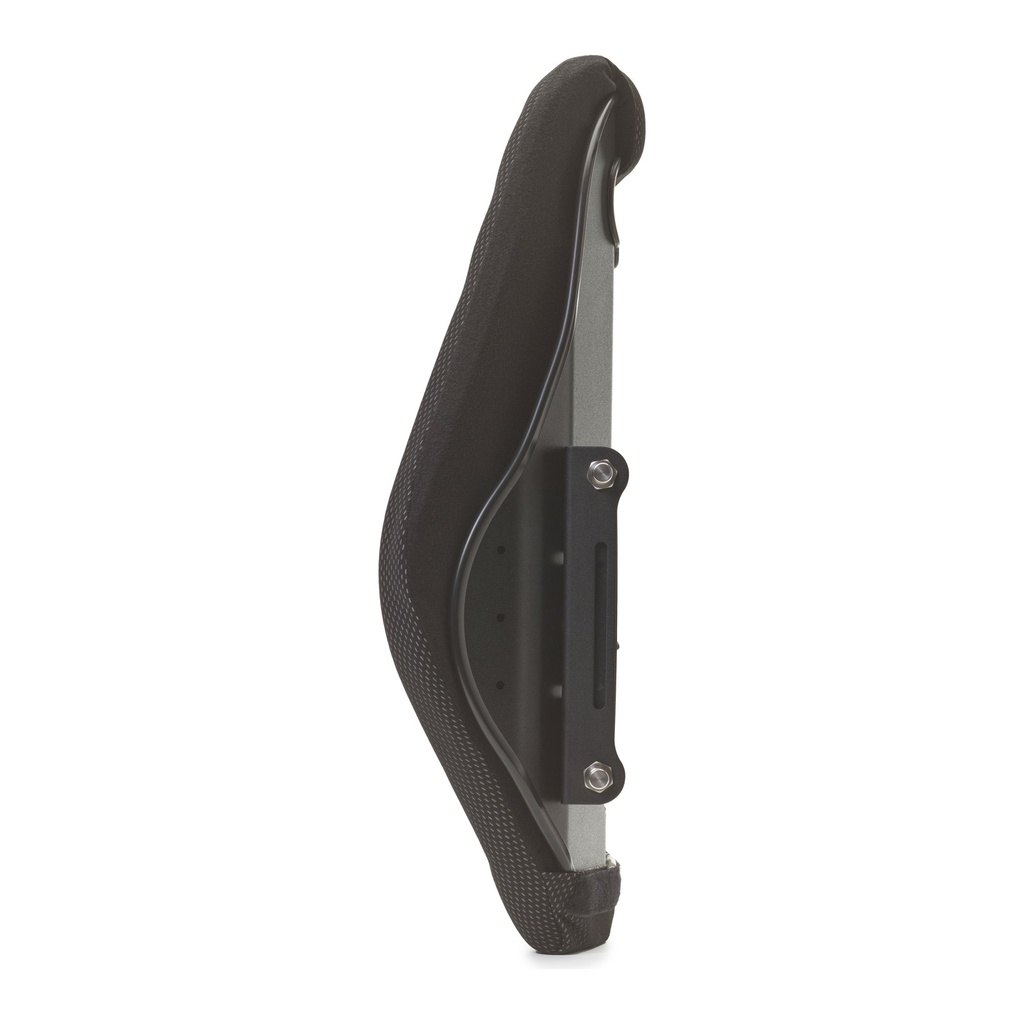

- 3" (8 cm), the standard E2 contour; shell 3.5" (89 mm) deep
- Lateral support
- Contoured sides, no lateral pads; EasyFix or swing-away laterals fit backs 10" and taller (sold separately)
- Mounting hardware
- MiniSet quick-release brackets for 1" posts, inserts for 3/4" and 7/8"; fixed, heavy-duty and EasySet options
- Fits wheelchair widths
- Back posts 1" narrower to 2" wider than the back (a 16" back fits 15" to 18")
- Warranty
- 2 years on materials and workmanship, original purchaser; removable cover excluded; Matrx accessories 3 months
- Product type
- Rigid contoured wheelchair back: shaped shell, Ripple foam and Meshtex cover
- Use category
- Back support for postural support and positioning
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Motion Concepts, maker of Invacare Matrx seating, warrants the Matrx E2 back to be free from defects in materials and workmanship for two years of use by the original purchaser.
- The back: 2 years. Matrx accessories: 3 months.
- Covers the original purchaser only.
- Excludes punctures, tears and burns, the removable cover, normal wear, and damage from negligence, accident, improper use or storage, unauthorized parts or modification, or repairs by anyone other than a Motion Concepts dealer.
- Defective parts are repaired or replaced at Motion Concepts' option. Labour and shipping are not included, and a repair does not extend the warranty.
- Claims go through the dealer that sold the back.
