Description
The Drive Sentra EC 30 inch is an extra-wide wheelchair for a rider up to 700 lb (318 kg), built with a carbon steel frame and a chrome finish.
What does it do and how does it work?
- Carbon steel frame with a triple-coated chrome finish, gussets and dual cross bars, at 66 lb (29.9 kg).
- Steel spoke rear wheels carry the hand rims; a companion can also push from the handles.
- 8 in (20 cm) flat-free front casters in two fork positions.
- Push-to-lock wheel locks on both rear wheels.
- Two arm builds on the same frame: detachable desk-length arms (STD30ECDDA) or full-length arms (STD30ECDFA).
- Reinforced nylon upholstery over the 30 by 20 in seat.
Who is it for, and who should choose something else?
- A larger adult up to 700 lb (318 kg) who needs a 30 in seat and propels the chair.
- A companion pushes: a transport chair. A narrower heavy-duty chair: the Sentra 20 in model.
- A 26 or 28 in seat: those are separate chairs with their own weight and width.
Will it fit?
- Seat 30 in wide by 20 in deep (76 by 51 cm), 19.5 in (50 cm) from the floor; back 18 in (46 cm).
- Open 43 in long with riggings, 39 in (99 cm) wide and 35 in (89 cm) high; measure the doorways on the route.

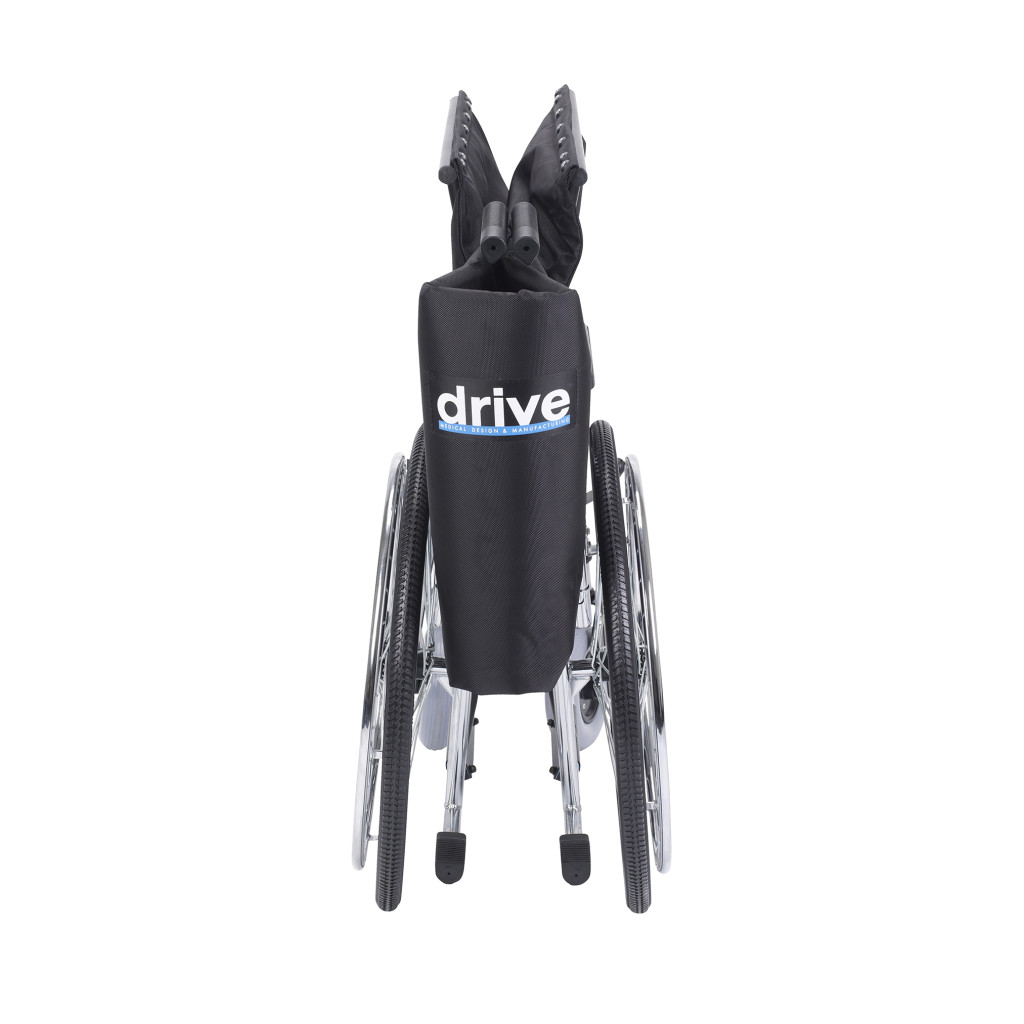

- Folds to 15 in (38 cm) wide, 43 by 15 by 35 in (109 by 38 by 89 cm).
- Measure hip width, hips to knee, and knee to heel in shoes.
Using it day to day
- Folds side to side, and the arms detach for a side transfer.
- Fit swing-away footrests (PH-SF) or elevating legrests (PHELR), sold separately; keep the lowest point at least 2.5 in (6.4 cm) off the floor.
- Set both push-to-lock wheel locks before a transfer.
- The chair weighs 66 lb (29.9 kg); the shipping carton weighs 72 lb (32.7 kg).
What does it work with, and what are its limits?
- The rider and anything carried must total no more than 700 lb (318 kg).
- Never use it as a seat in a vehicle, and do not use it on roads.
- Footrests and a cushion are not included; choose the arm build and the footrest type when you order.
- Warranty: limited lifetime for the original purchaser, excluding misuse, normal wear and casters, grips and rubber parts. See the Warranty tab.
Which version should I choose?
- Arm style: desk length (STD30ECDDA) or full length (STD30ECDFA); the seat, frame and weight are the same.
- Footrests: swing-away PH-SF or elevating PHELR, ordered separately.
How does it compare?
- Sentra 20 in: a narrower heavy-duty chair.
- Bariatric transport chair: for a rider who is pushed.
- Bariatric wheelchairs: the full range.
Frequently asked questions
What size are the rear wheels?
The rear wheels are steel spoke; the 8 in (20 cm) figure is the front caster size.
Is a cushion included?
No; choose a 30 by 20 in cushion separately.
Do both arm styles share this size?
Yes. The 66 lb (29.9 kg) chair and the 30 by 20 in seat are the same for both; only the arm differs.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 700 lb (318 kg)
- Product weight
- 66 lb (29.9 kg)
- Seat width
- 30" (76 cm)
- Seat depth
- 20" (51 cm)
- Back height
- 18" (46 cm)
- Legrests
- Not included. Order PH-SF or PHELR separately
- Seat height
- 19.5" (50 cm) from the floor
- Caster size
- 8" (20 cm) flat-free, two positions
- Overall width
- 39" (99 cm) open
- Overall length
- 43" (109 cm) with riggings
- Folded dimensions
- 43" L x 15" W x 35" H (109 x 38 x 89 cm)
- Brakes
- Push-to-lock wheel locks on both rear wheels
- Folding
- Folds side to side to 15" (38 cm) wide
- Frame material
- Carbon steel, triple-coated chrome
- Warranty
- Limited lifetime for the original purchaser
- Product type
- Bariatric extra-wide wheelchair, self-propelled
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Sentra EC extra-wide wheelchair (30 inch) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser. Drive will repair or replace a defective device at its option.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
