Description
The Harmony 8199 is a full-electric homecare bed for an adult at home or in a nursing home. Half or full rails are packages on one deck, not two widths.
Who it suits, and who should look elsewhere
- It suits an adult up to 400 lb (180 kg) who needs a deck that rises.
- It is not for a child under 12.
- For a furniture-style base, see the Harmony Hi-Low.
Will this deck fit the room?
- The deck is 36 in by 80 in, with an extender to 84 in. Height is 10 in to 25 in, floor to the top of the deck.
- Safe working load is 440 lb (200 kg). The frame splits in two, so a free home assessment should check the doorway.
Rails, mattress and power limits
- Half-length rails are APC-8199 HSR and full-length rails are APC-8199 FSR. We confirm the rail package before you order. The mattress and the backup battery are separate.
- A mattress for this deck is about 36 in by 80 in by 6 in. Check a therapeutic mattress against the rails first.
- Leave at least 220 mm (about 8.7 in) from the uncompressed mattress to the top of the rail. See Health Canada's hospital bed safety note.
- Back travel is 0 to 72 degrees and the knee break is 0 to 25 degrees. Trendelenburg and reverse tilt each go to 12 degrees.
- Do not run the actuators more than about 2 minutes, then rest them about 18 minutes, and do not run more than two at once.
How it compares
- See hospital beds and homecare beds. Renting is separate, and this model is not in the rental fleet.
Frequently asked questions
How is the calf section set?
Lift the calf by hand to the angle you want. To lower it, lift it fully, then let it down and use the knee button.

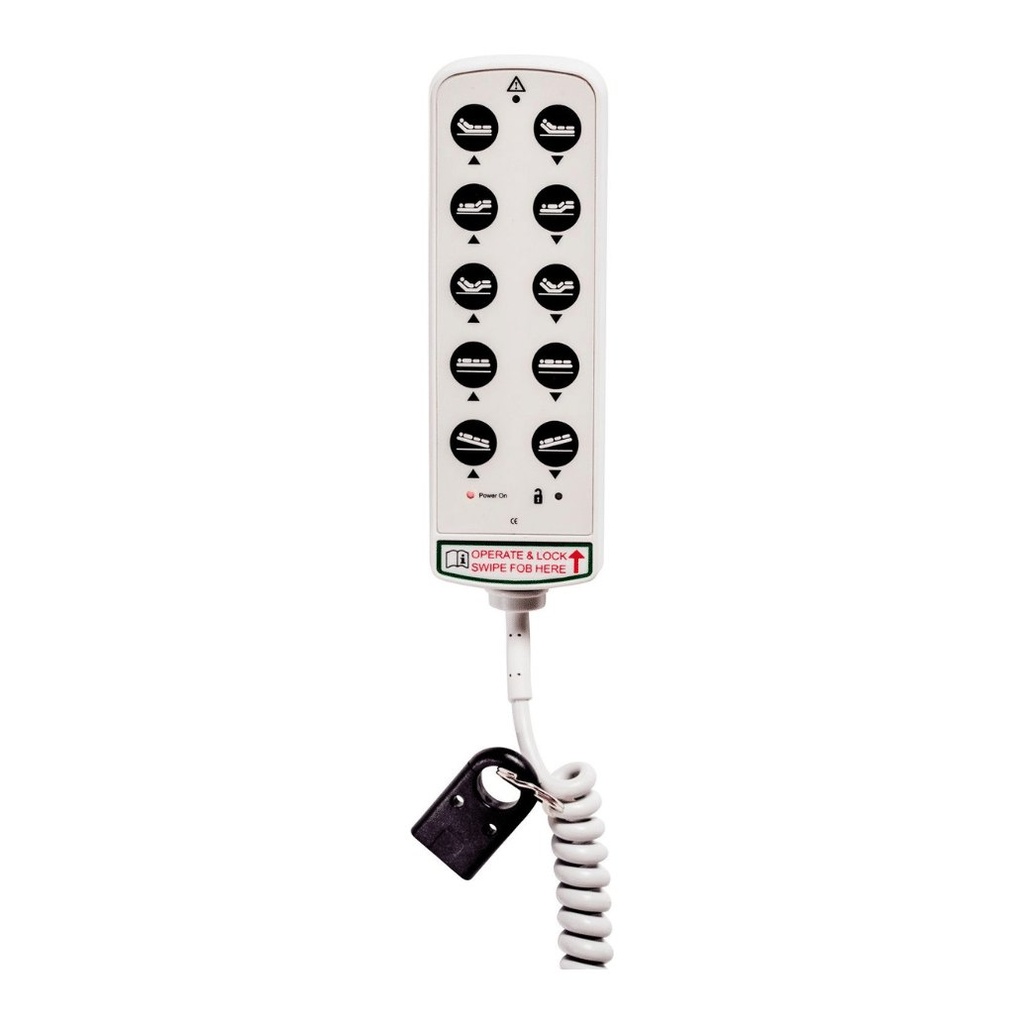

How does the handset lock?
Pass the magnetic fob over the padlock. One pass unlocks the usual moves. A second pass unlocks tilt. It locks again after about 45 seconds.
Will the bed move in a power cut?
Not unless the optional backup battery has been fitted by a service agent. That kit is not in the standard bed.
Does this bed have one-touch flat?
No. The current collection sheet marks one-touch flat as not included. Flatten the sections with the handset buttons.
Limited lifetime on the frame. Motors and electronics: 4 years, parts and labour, for the original purchaser.
The Harmony warranty covers the frame for life and the motors and electronics for 4 years.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 440 lb (200 kg) safe working load
- Maximum user weight
- 400 lb (180 kg)
- Product weight
- 86 kg (189 lb) for the whole bed
- Assembly
- Two-piece frame for delivery. Assembly is described as tool-free
- Safety standard
- Built to EN 60601-2-52. Control pack IPX6, actuators IPX4
- Heaviest section
- Head or foot platform, 25 kg (55 lb) each. Each bed end is 18 kg (40 lb)
- Caster size
- 4 in (10 cm) locking casters
- Caster locks
- Foot-operated brakes on all four casters
- Mattress fit
- Hospital mattress about 36 in by 80 in. Match the length if the deck is extended to 84 in
- Package contents
- Head and foot boards, wired handset, four casters, transport brackets and the extender. Mattress and battery are separate
- Compatible rails
- Harmony half-length APC-8199 HSR or full-length APC-8199 FSR
- Motors
- Electric actuators. Run them at most 2 minutes, then rest about 18 minutes
- Battery backup
- Optional kit, not included. A service agent retrofits it
- Hand pendant
- Wired 10-button handset with a magnetic fob lock. It locks again after about 45 seconds
- Bed width
- 36 in (91 cm) hospital deck
- Bed length
- 80 in (203 cm), with a built-in extender to 84 in (213 cm)
- Size options
- One hospital deck. Half-length and full-length rails are packages, not widths
- Minimum bed height
- 10 in (25 cm) from the floor to the top of the deck
- Maximum bed height
- 25 in (64 cm) from the floor to the top of the deck
- Deck sections
- 4-section electric platform. The frame splits into two sections
- Bed positions
- Head, knee and height, plus Trendelenburg and reverse Trendelenburg tilt
- Section angles
- Back 0 to 72 degrees, knee 0 to 25 degrees, calf 0 to 18 degrees, tilt 12 degrees
- Bed accessories
- Optional backup battery, retrofitted by a service agent. Mattress sold separately
- Head and footboards
- Headboard and footboard are both included
- Sold as
- One homecare bed in a half-rail or full-rail package
- Heat and massage
- None
- Compatible with
- Indoor use in a home or a nursing home. Not for a child under 12
- Warranty
- Limited lifetime on the frame. 4 years on motors and electronics, parts and labour, for the original purchaser
- Product type
- Full-electric homecare bed with a hospital-size deck
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Harmony Products warrants the Harmony 8199 home care bed against faulty materials or workmanship under normal use, and repairs or replaces a defective product, parts and labour included, at its discretion.
- Frame: limited lifetime.
- Motors and electronics: 4 years.
- Covers the original registered purchaser; proof of the purchase date is required, and Harmony or its authorized agent carries out inspections and repairs.
- Excludes use other than domestic, deliberate damage, neglect, not following the care instructions, repairs attempted by the owner, modification, cosmetic damage such as scratches and rust, and fair wear and tear.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
