Description

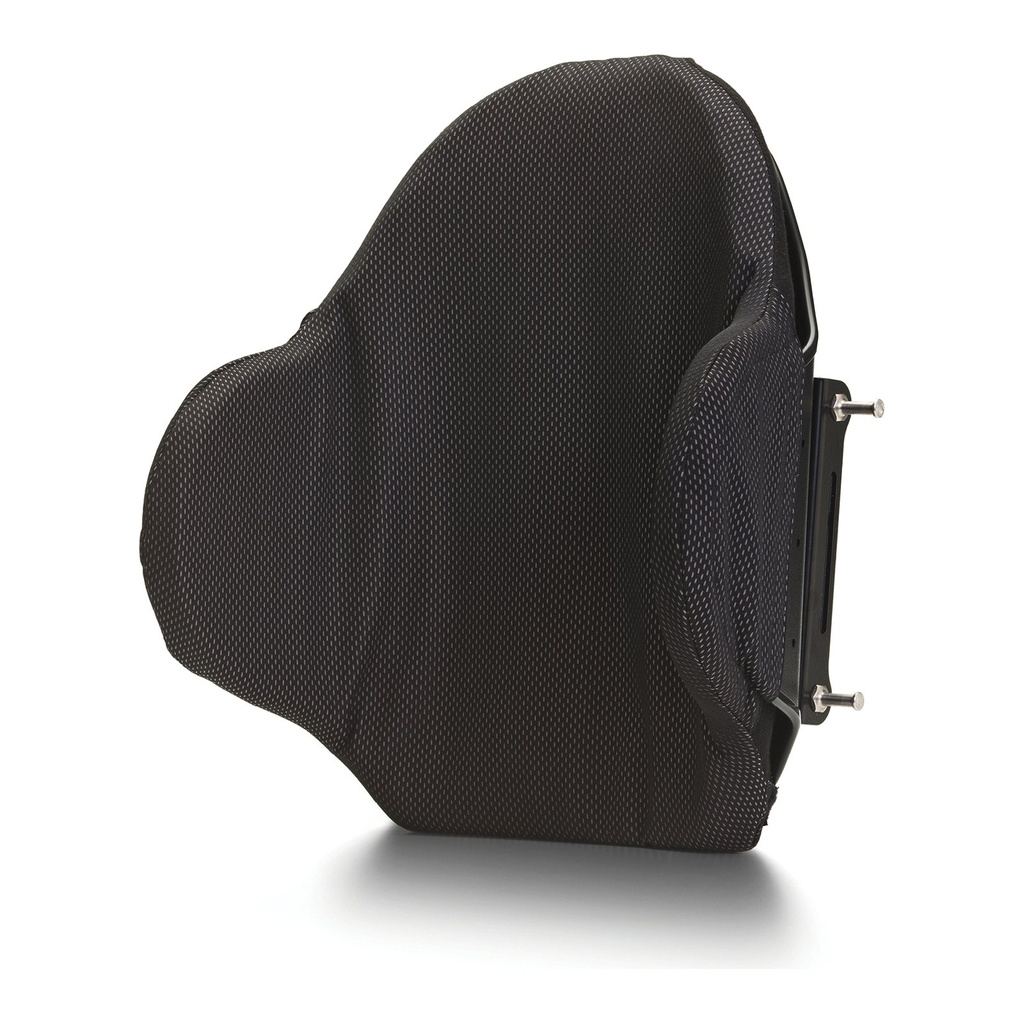

The Invacare Matrx E2 Deep Back (model E2D) is a rigid wheelchair back whose shell curves 6 inches (152 mm) forward around the trunk. Motion Concepts builds it 14 to 20 inches wide and 6 to 20 inches high.
What does it do and how does it work?

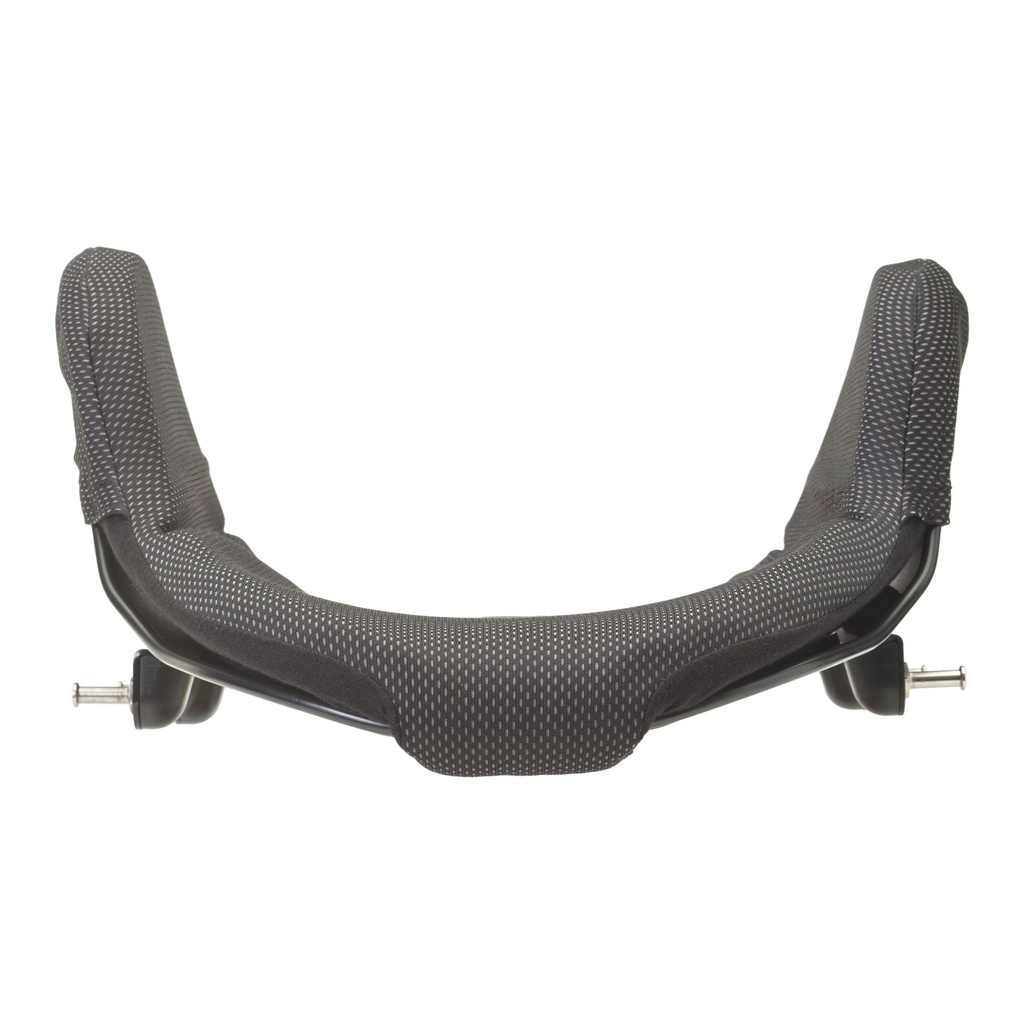

- The moulded shell forms the 6 inch (152 mm) contour, so the back wraps around the trunk instead of stopping behind the shoulder blades.

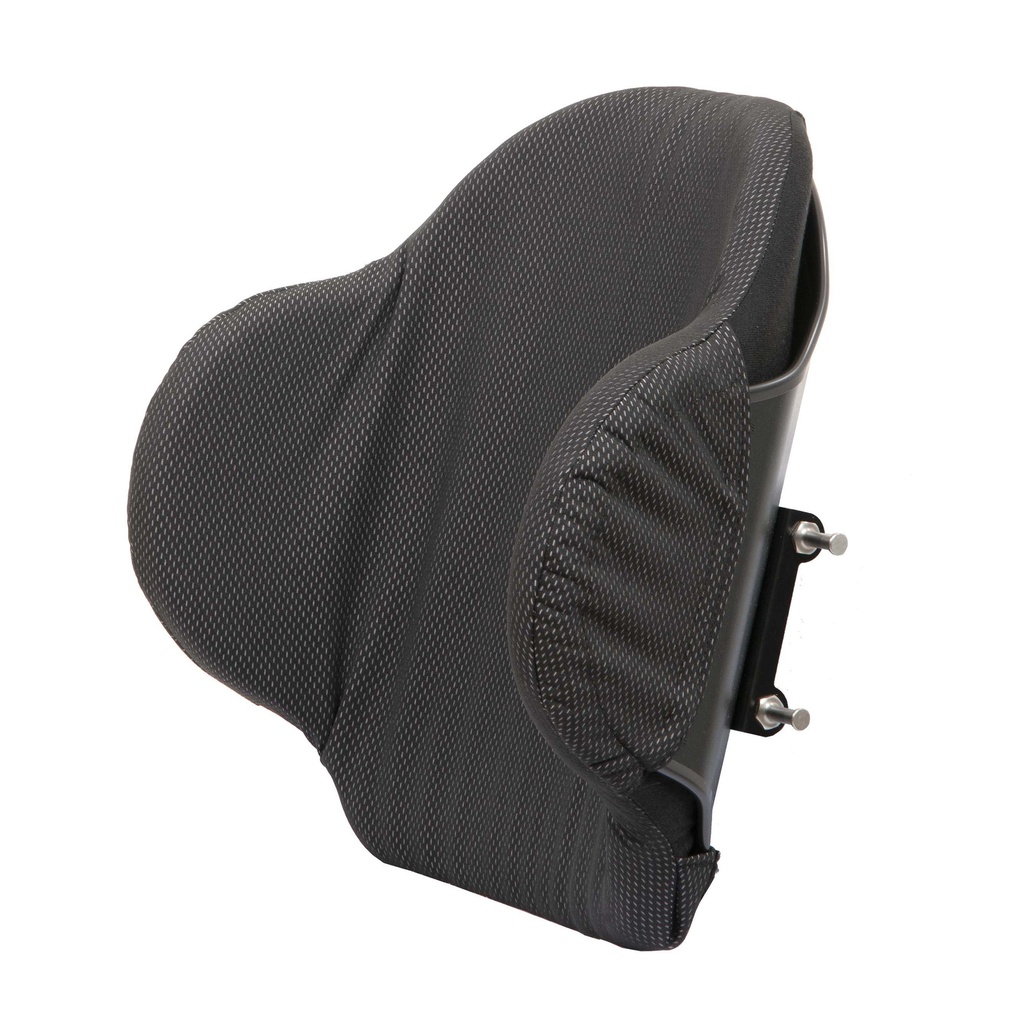

- Ripple foam with airflow channels covers the shell, with a lumbar positioning pad at the lower back.
- MiniSet quick-release hardware is standard on 6 to 16 inch backs; EasySet on 18 and 20 inch backs.
- The plates set 40 degrees of angle (20 each way) and 2 inches (51 mm) of depth at the canes.
Who is it for, and who should choose something else?
- It suits a wheelchair user whose prescription calls for a deep, wrapping back.
- Choose the standard Matrx E2 back for a 3 inch (76 mm) contour.
- Choose another back if side laterals are planned; Matrx does not offer them on the E2 Deep.
- An occupational therapist or physiotherapist sets the size and contour in a seating assessment.
Will it fit?
- A 14 inch back fits chairs 13 to 16 inches wide; a 20 inch back fits chairs 19 to 22 inches wide.
- Widths run 14 to 20 inches in 1 inch steps, so odd widths are standard; heights run 6 to 20 inches in 2 inch steps.
- The hardware fits 1 inch canes, with inserts for 7/8 and 3/4 inch canes; nothing outside that range.
Using it day to day
- Set-up must be done by a qualified technician or healthcare provider, using only the supplied hardware.
- Check fasteners weekly and inspect hardware, foam and cover monthly for wear or compression.
- The Meshtex cover unclips and can be hand or machine washed at 60°C (140°F) or less on a delicate cycle; do not bleach or dry clean, and air dry.
- Motion Concepts warrants the back for two years to the original purchaser; the removable cover, punctures, tears and burns are excluded.
What does it work with, and what are its limits?
- Matrx accessories include BackBone sacrolumbar support, PostureFlex abdominal support, privacy flaps, a chest harness interface and a Protect slipcover.
- Laterals are not available, and other makers' accessories are not recommended.
- Power tilt or recline needs fixed mounting hardware.
- For vehicle travel, move the person to a seat where possible; crash testing covers the E2S, not the E2 Deep, and transport needs a head support.
- The weight limit is 300 lbs (136 kg).
How does it compare?

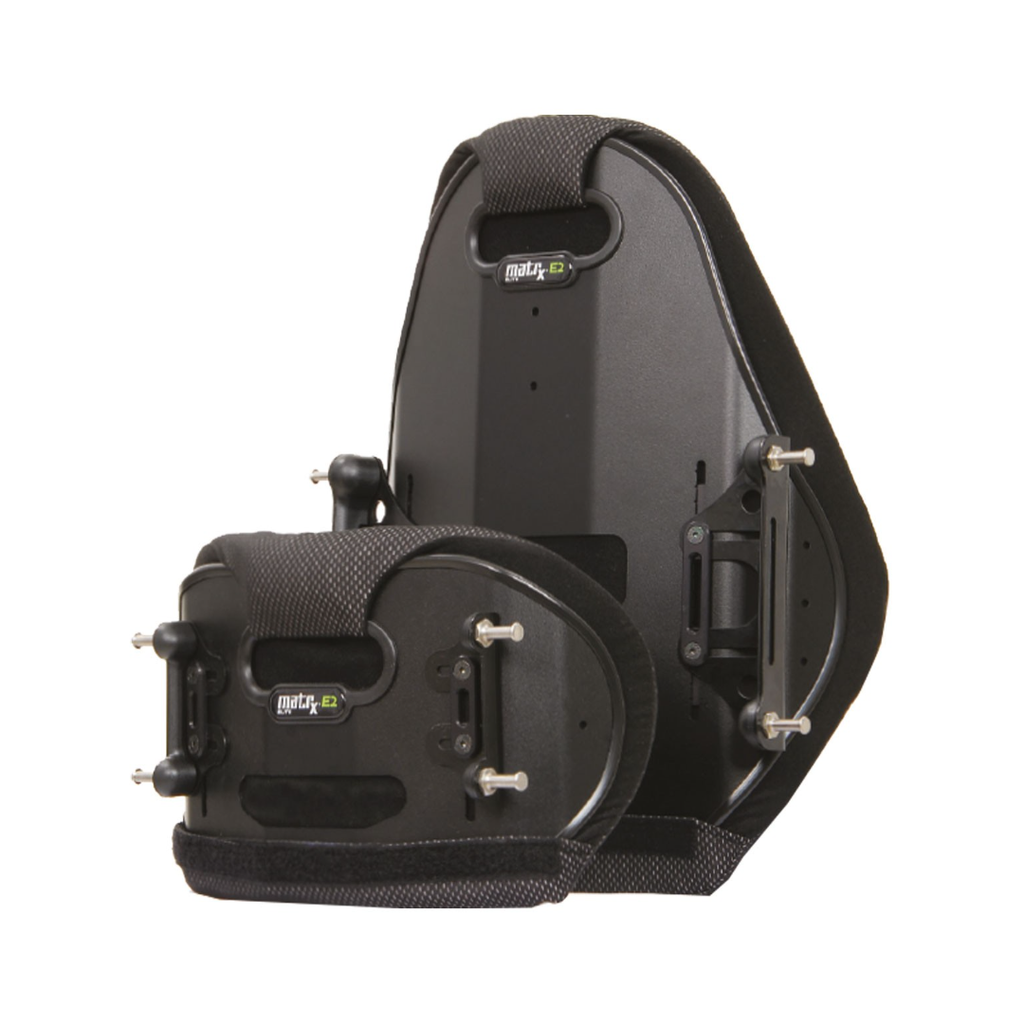

- Matrx E2 backrest: the same shell with a 3 inch (76 mm) contour.
- Matrx Elite Deep backrest: a 6 inch contour on the Elite shell.
See all wheelchair backrests.
Frequently asked questions
Does a 6 inch contour make the back 6 inches thick?
No. Contour depth is how far the edges curve forward; the shell and foam stay thin.
Can the back be adjusted after the first fitting?
Yes. A technician can reset the angle, depth and height at the plates and pins.
Is a posture belt or chest harness a seatbelt?
No. They position the body only. Use the vehicle's belt and a head support.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Sizes
- Model E2D plus width and height, from E2D1406 to E2D2020; widths 14" to 20" by heights 6" to 20"
- Construction
- Moulded 6" contour shell with a Ripple foam pad that has airflow channels; lumbar positioning pad included
- Cover
- Meshtex fabric standard; wipeable Protect slipcover optional
- Cover care
- Machine or hand wash at 60°C (140°F) or less on a delicate cycle; no bleach or dry cleaning; air dry
- Adjustments

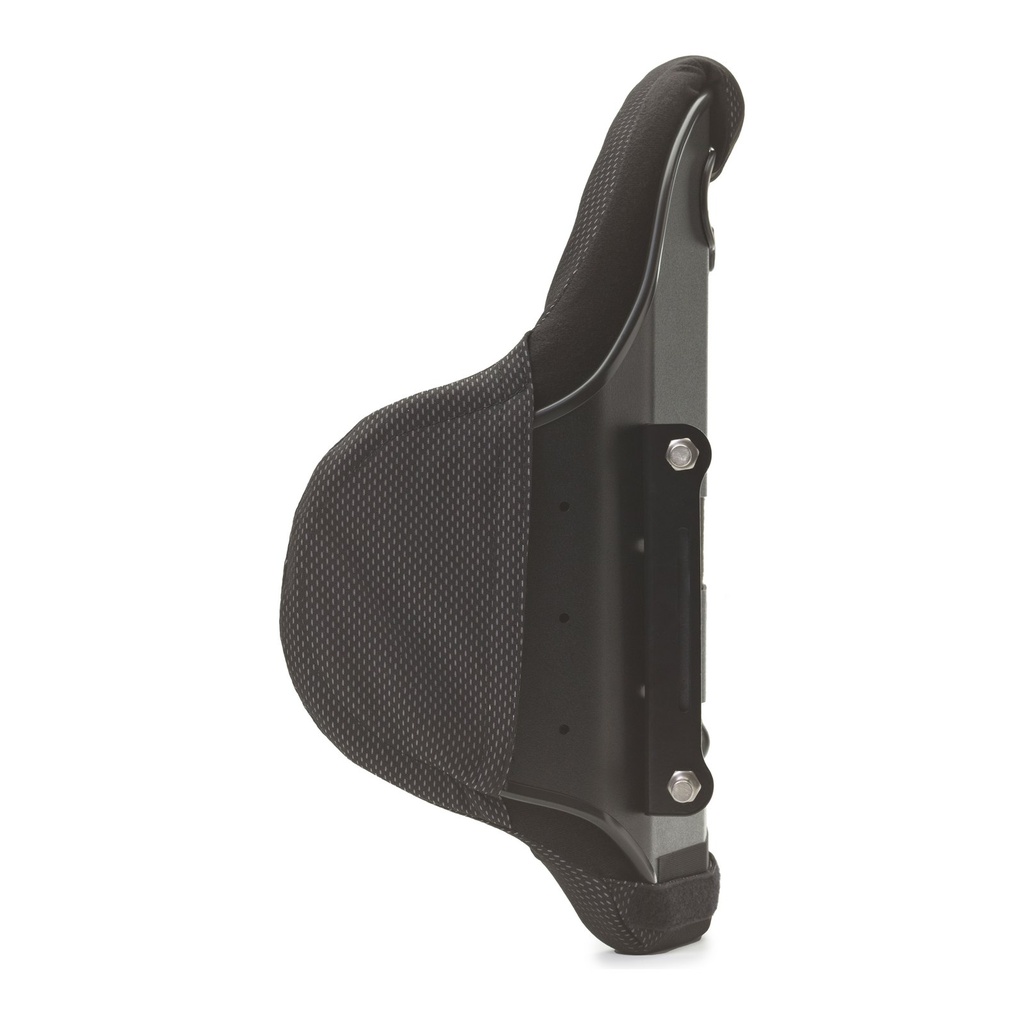

- 40 degree angle (20 each way), 2" (51 mm) depth in front of or behind the canes, height on the pins, and rotation by offsetting the plates
- Custom sizes
- No custom build needed: widths 14" to 20" (356 to 508 mm) in 1" steps, heights 6" to 20" (152 to 508 mm) in 2" steps
- Back width
- 14" to 20" (356 to 508 mm), ordered in 1" steps
- Back height
- 6" to 20" (152 to 508 mm) in 2" steps; every width is built in every height
- Contour depth
- 6" (152 mm), the deep E2 contour
- Lateral support
- Built into the 6" contour; separate laterals are not available on E2 Deep backs
- Mounting hardware

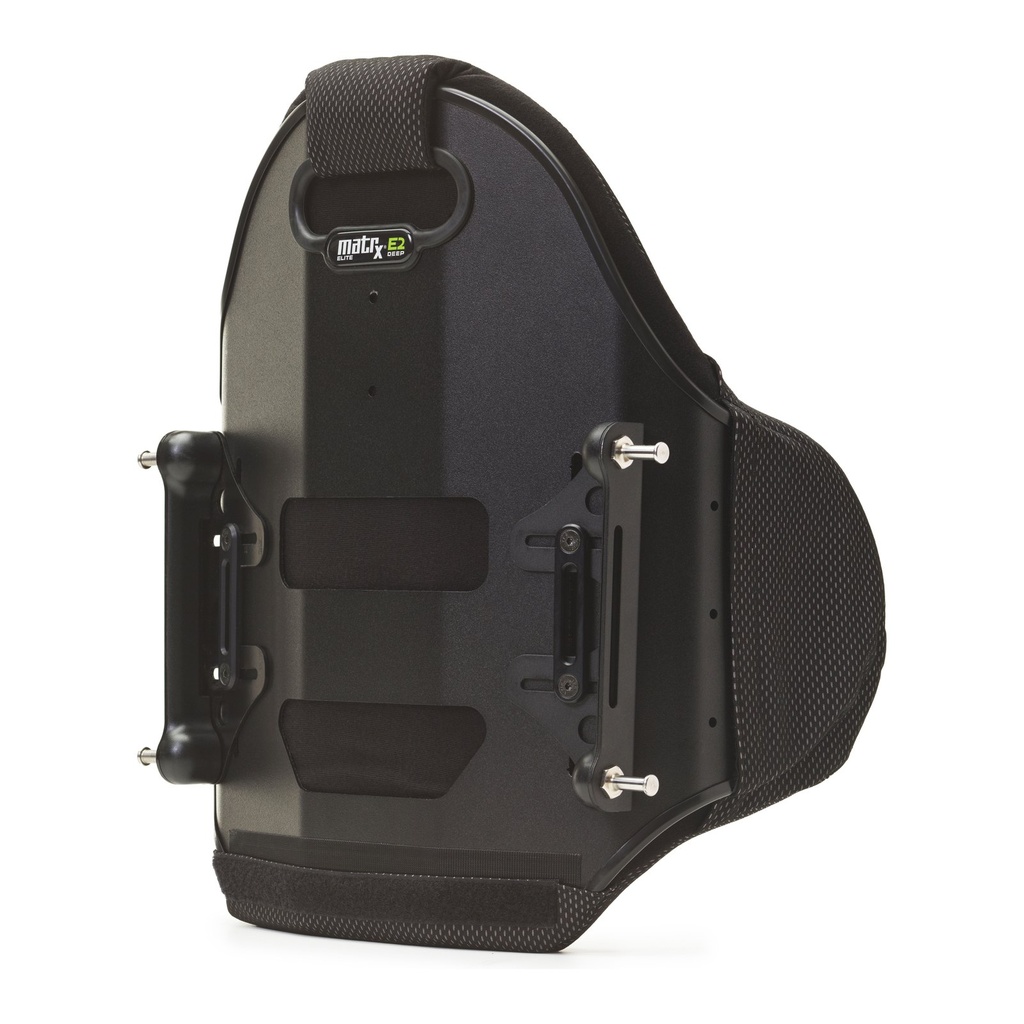

- MiniSet quick release on 6" to 16" backs; EasySet on 18" and 20"; fits 1" (25 mm) back canes, inserts for 7/8" (22 mm) and 3/4" (19 mm)
- Fits wheelchair widths
- A 14" back fits chairs 13" to 16" wide and a 20" back fits chairs 19" to 22" wide; the maker prints a range for every width
- Warranty
- Two years on materials and workmanship; removable outer cover, punctures, tears and burns excluded
- Product type
- Rigid wheelchair back: a moulded shell with a 6" deep contour, Ripple foam and a removable cover
- Use category
- Positioning back support; the maker groups the E2 series as deep contour positioning backs
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
