Description

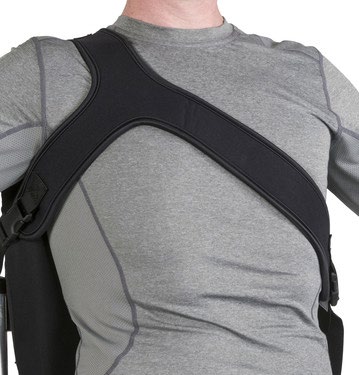

The JAY Y-Style Anterior Trunk Support is a Y-shaped chest support from Sunrise Medical for a wheelchair rider whose one shoulder rolls forward.
What does it do and how does it work?
The Y straddles the rotated shoulder and a single band crosses the chest to the back of the backrest.
- One arm of the Y sits above the shoulder and one below, anchored to the back of the backrest.
- The lower strap runs diagonally across the trunk, and tension straps pull the shoulder back.
- The opposite shoulder has no strap, so that arm reaches freely.
- Neoprene contact surface.
Who is it for, and who should choose something else?
- A rider who needs trunk rotation controlled and one shoulder held back while the other arm works.
- If both shoulders roll forward or the sternum needs a firm pad, a four-point chest support suits better.
Will it fit?
- Needs a solid backrest at about shoulder height and an installed pelvic belt, which is not included; a sling back needs a rigid backrest first.
- Long band A by short arm B: Early Intervention 15 x 7 in (38 x 18 cm), Small 19 x 8 in (48 x 20 cm), Medium 22 x 9 in (56 x 23 cm), Large 25 x 11 in (64 x 28 cm).
- A runs from the top of the shoulder across the chest; B is the short arm below it. A clinician measures with the rider seated; other sizes are made to order.
- Tell us which shoulder rotates forward so the Y is set to that side.
Using it day to day
- A qualified clinician or Sunrise Medical supplier fits it seated.
- Check the buckles, straps, comfort, height, neck clearance and hardware clashes.
- The rider must not slide down and no strap may restrict breathing; check the skin of anyone at risk of breakdown.
- It may be used in transit but is not crash tested; in a vehicle use restraints tested to SAE J2249 or ANSI/RESNA WC/20.
What does it work with, and what are its limits?
- Maximum user weight equals the maximum user weight of the wheelchair it is fitted to. Intended lifetime is 5 years.
- Never use it without stabilizing the pelvis.
- It is not a seat belt or a transit-tested restraint.
Which version should I choose?
- Dynamic: high tone or involuntary movement.
- Structured: firm support through a day when positioning declines.
- Made to order: measurements outside the four standard sizes.
How does it compare?
- Bodypoint Stayflex: holds both shoulders with a firm sternal pad.
- Power Plus Relax headrest: supports the head rather than the trunk.
Frequently asked questions
Will it press on a feeding tube?
The Y shape limits interference, but the lower band crosses the chest; check the site at fitting.
How long is it meant to last?
The intended lifetime is 5 years. That figure is not the warranty term.
Will it work on a tilt chair?
Yes, if the chair has a solid back at about shoulder height and an installed pelvic belt.
Can it go in a car?
Only with transit-tested restraints. It is not crash tested and is not a seat belt.
Funding may help: see who may help pay.
Warranty: ask us for the Ontario terms. See the Warranty tab.
Specifications
- Weight capacity
- Same as the maximum user weight of the wheelchair it is fitted to
- Construction
- Dynamic (ATS916 series) or Structured (ATS936 series), in the same sizes
- Positioning support
- Anterior Trunk Supports
- Material
- Neoprene contact surface
- Size
- Long band x short arm: EI 15" x 7" (38 x 18 cm), S 19" x 8" (48 x 20 cm), M 22" x 9" (56 x 23 cm), L 25" x 11" (64 x 28 cm); made to order
- Mounting
- Top anchors and lower strap fasten to the back face of a solid backrest; positioners for the top straps sold separately
- Compatible with
- Wheelchairs with a solid back set at about shoulder height and an installed pelvic positioning belt
- Vehicle use
- Positioning only, not crash tested; in a vehicle, use with a transit-tested occupant restraint
- Intended lifetime
- 5 years
- Warranty
- Sunrise Medical Canada warranty; coverage varies by province, ask us for the Ontario terms before ordering
- Product type
- Anterior trunk support: Y-shaped shoulder and chest strap for wheelchairs
- Part number
- Dynamic ATS9167, ATS9161, ATS9162, ATS9163; Structured ATS9367, ATS9361, ATS9362, ATS9363 (EI, S, M, L); made to order ATS9169, ATS9369S
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
