Description

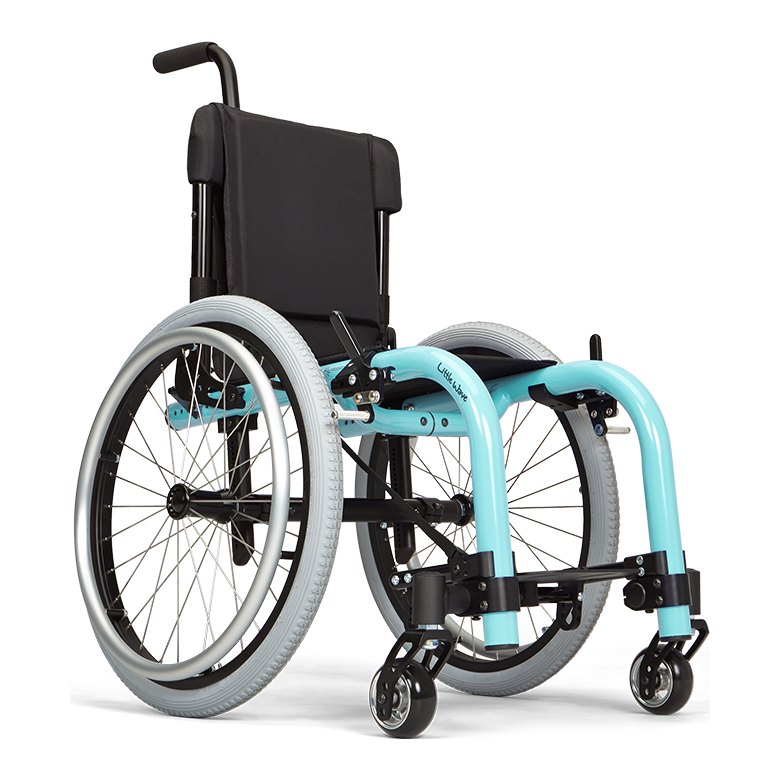

Ki Mobility builds the Little Wave XP as a rigid paediatric wheelchair, set to your child's measurements and made to grow with them.
What does it do, and how does it work?
- The rigid 7000 series frame keeps the rear wheels within the child's reach, so it is lighter and more efficient to push than a folder.
- Frame Xpanders widen the frame as the child grows, and up to 3 in (8 cm) of seat depth can be ordered at no extra charge.
- Seat height, centre of gravity and back angle adjust on the Crescent tower.
- 16 lbs (7.3 kg) standard; transport 12.5 lbs (5.67 kg) on a 12 by 12 in frame with the armrest and rear wheels off.
- 165 lbs (74.8 kg) capacity.
Who is it for, and who should choose something else?
- A child ready to push a rigid frame, with the rear wheels where their hands reach.
- A folding paediatric chair with tilt: the Little Wave Arc.
- An adult rigid chair: the Ki Ethos. Over 165 lbs (74.8 kg): bariatric wheelchairs.
Will it fit?
- Seat 10 to 16 in (25.4 to 40.6 cm) wide and 10 to 16 in deep.
- Front seat height 11.5 to 20.5 in (29.2 to 52.1 cm); rear 11.5 to 20 in, set by the caster and wheel size.
- Book a free home assessment; your child's measurements and your therapist's plan set the order.
Using it day to day
- The chair is rigid and does not fold; the rear wheels come off for transport.
- The tower sets the seat height, centre of gravity and back angle, and the therapist resets them as the child grows.

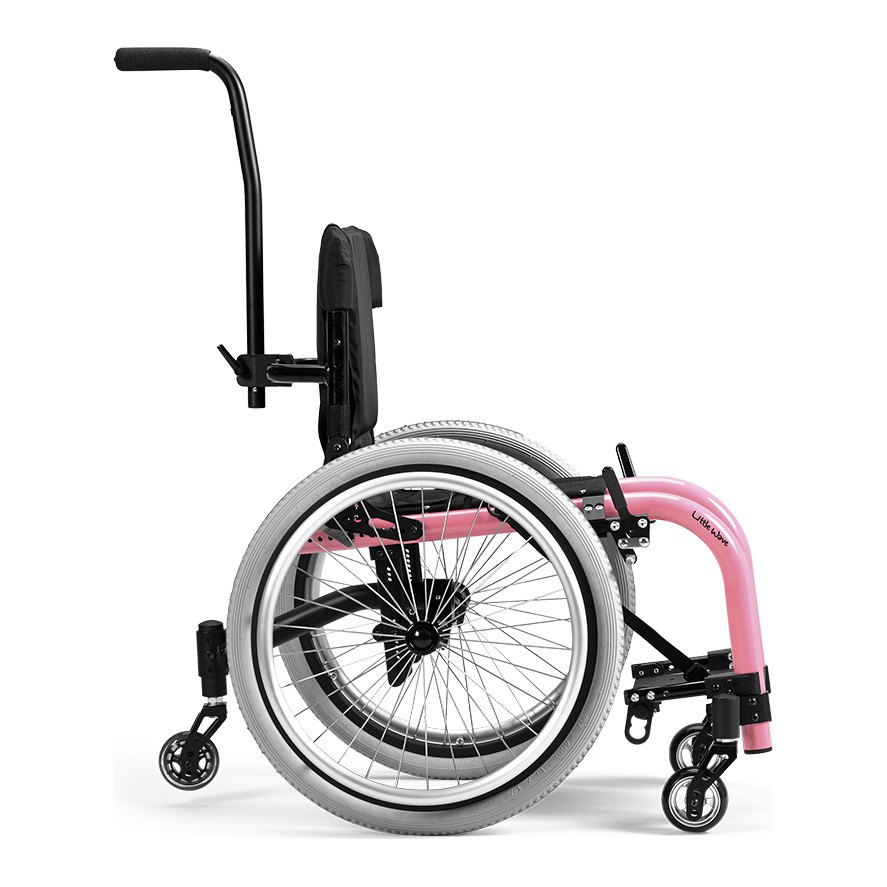

- Removable stroller handles let a parent push on longer days.

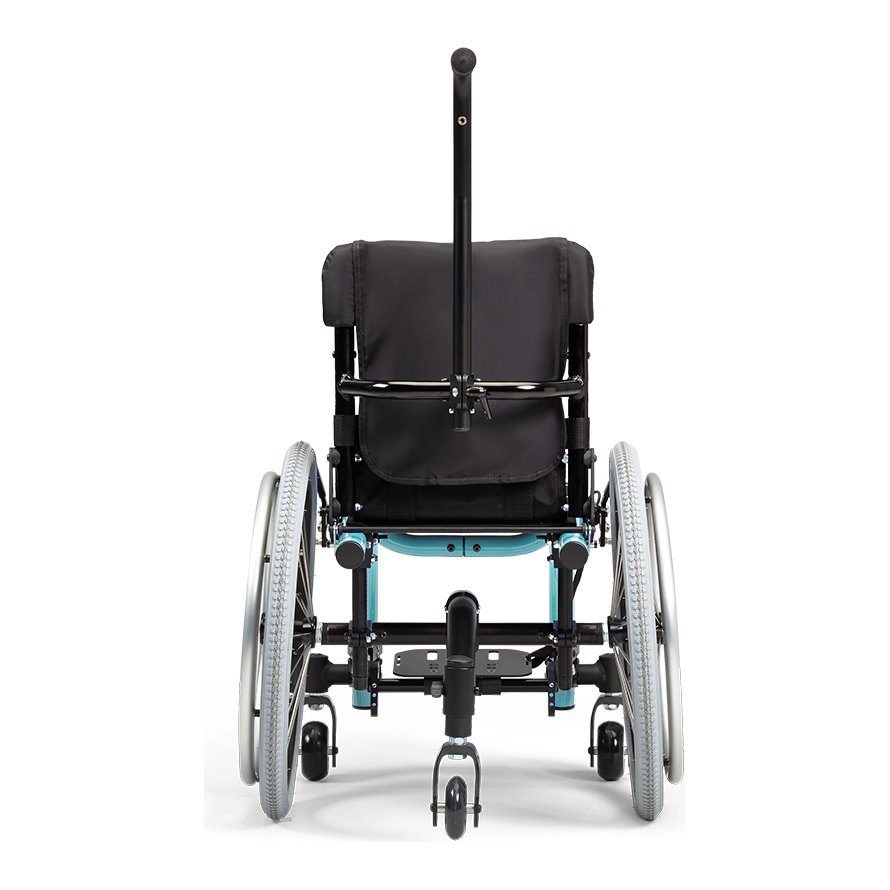

- A rotating 5th wheel can be added to help a child learn balance and wheeling.
- Built to order; measurements and options are set with you and timing is given.
What does it work with, and what are its limits?
- 165 lbs (74.8 kg) is the maximum.
- WC-19 transit approval applies only when the chair is built with the transit system, and the seating must be removed for transport.
- Ki's Axiom for Kids cushions and backs are ordered with the chair; the base has its upholstery.
Which version should I choose?
- Armrests: height-adjustable T-arms, paediatric desk arms, tubular flip-up, swing-away, or none.
- Rear wheels 18 to 24 in with 0 to 8 degrees of camber; casters 3 to 6 in; gloss and matte colours.
How does it compare?
- The Little Wave Arc is the folding paediatric chair with tilt, for a child who needs both.
- The Ki Ethos is an adult rigid chair with a 275 lbs (125 kg) capacity.
Frequently asked questions
How does the Little Wave XP grow with my child?
Frame Xpanders widen it, up to 3 in of growth can be ordered into the seat depth, and the therapist resets the seat height, centre of gravity and back angle.
Can the Little Wave XP be used in a vehicle?
Only when it is built with the transit system, and the seating must be removed for transport.
What is the rotating 5th wheel for?
It is a small wheel behind the rear axle that rotates out of the way; it lets the rear wheels sit further forward and helps a child learn balance.
Funding
Mobility Specialties is an ADP registered vendor. Talk to your child's occupational therapist or physiotherapist before you order, and see who may help pay.
Ki covers the frame and quick-release axles for as long as you own the chair; other parts 1 year.
Specifications
- Weight capacity
- 165 lb (74.8 kg)
- Product weight
- 16 lb (7.3 kg) standard weight
- Transport weight
- 12.5 lb (5.67 kg) on a 12 by 12 frame with the armrest and rear wheels removed
- Seat width
- 10 in to 16 in (25.4 to 40.6 cm), on a width-growable frame
- Seat depth
- 10 in to 16 in (25.4 to 40.6 cm), with up to 3 in of growth ordered at no extra charge
- Armrests
- Height adjustable T-arms in three heights, height adjustable paediatric desk arms, tubular flip up, swing away, or omitted
- Legrests
- Tubular open footplate, tubular footplate with an ABS cover, or an aluminium angle adjustable footplate with a riser, high mount or flip under
- Seat height
- Front 11.5 in to 20.5 in and rear 11.5 in to 20 in (29.2 to 52.1 cm and 29.2 to 50.8 cm), set by the caster and wheel size
- Rear wheel size
- 18 in, 20 in, 22 in or 24 in, in MAXX spoke, mag or Spinergy Spox, with 0, 2, 4, 6 or 8 degrees of camber
- Caster size
- 3 in, 4 in, 5 in or 6 in, with a standard or single sided fork
- Brakes
- Push to lock, pull to lock or low profile scissor lock, with extension handles and drum brakes offered
- Frame material
- 7000 series 1 3/8 in (3.5 cm) aluminium frame with a Crescent centre of gravity tower and frame Xpanders for width growth
- Available colours
- Gloss and matte colour families for the frame and the accents, plus painted mag wheels and designer spoke guards
- Positioning support
- Ki's Axiom for Kids cushions and backs are ordered with the chair
- Compatible with
- WC-19 transit approved when it is built with the transit system option; a rotating 5th wheel and removable stroller handles are offered
- Warranty
- Frame and quick release axles for as long as you own the chair; one year on every other Ki Mobility part
- Product type
- Paediatric rigid manual wheelchair on a 7000 series aluminium frame, built to order
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Ki Mobility Little Wave XP brochure (features and specifications)
- User Manual Ki Mobility Little Wave user instruction manual and warranty (fitting, adjustment, safety)
- Parts Manual Ki Mobility Rogue ALX and Little Wave technical manual (parts, adjustments and torque values)
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Little Wave XP paediatric wheelchair against defects in materials and workmanship, in North America. Ki Mobility repairs or replaces covered parts at its discretion; claims go through an authorized supplier.
- Frame and quick-release axles: life of the original purchaser.
- All other Ki Mobility-made parts: 1 year from the first consumer purchase.
- Labour to repair or install parts is paid by the owner.
- Not covered: upholstery, tires, tubes, armrests, armrest pads and push-handle grips, and damage from neglect, misuse, improper installation or repair, or exceeding the weight limit.
- Void if the serial number tag is removed or altered.
