Description
The Ki Mobility Catalyst 5Ti is a titanium folding ultralight for self-propelling.
What does it do and how does it work?
It folds side to side on a dual interlocking cross brace.
- Ti3AL/2.5V frame. A titanium cross brace saves 0.5 lb (0.23 kg).
- Seat height moves in 0.5 in (1.27 cm) steps.
- Camber is 0, 2 or 4 degrees. The heavy duty build skips 2 and 4.
- Rear wheels are 20 to 26 in, spoke, Maxx spoke or mag. Casters are 4 to 8 in.
- Hangers are 70 or 80 degrees, with push-to-lock, pull-to-lock, flush, hemi or drum locks.
Who is it for, and who should choose something else?
It suits a rider on the rear wheels. A 16 x 16 in frame lifts at 10.8 lb (4.9 kg) with the wheels, footrest and arm receivers off.
Capacity is 300 lb (136 kg), or 350 lb (159 kg) heavy duty with a caster of at least 5 in.
The Rogue 2 does not fold. The Cruiser X4 is a ready-made folder.
The Catalyst 5Ti is on ADP's product list as an Adult Lightweight Performance Manual Wheelchair (device code WMA3KI010).
Will it fit?
Width and depth are built to order. We confirm both before you order.
- Width is 14 to 22 in (35.6 to 55.9 cm). A 21 or 22 in seat cannot take Klaxon Twist.
- Depth is 14 to 20 in (35.6 to 50.8 cm). A 14 in depth cannot take 24 to 26 in wheels.
- Front height is 15 to 21 in (38.1 to 53.3 cm). Rear height is 11.5 to 19.5 in (29.2 to 49.5 cm).
- Back posts are 8.5 to 19.5 in (21.6 to 49.5 cm), or 14 to 20 in (35.6 to 50.8 cm) with a push handle.
Using it day to day

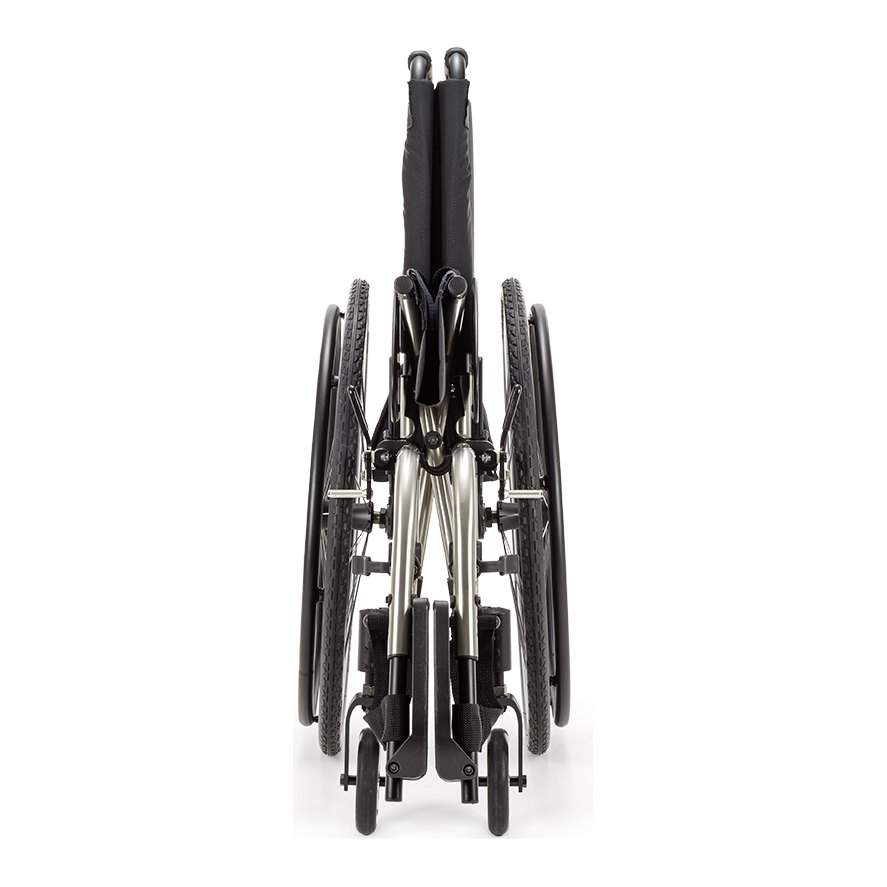

Lift the seat-sling strap to fold. Press each axle button and slide the rear wheel out.
Lock both wheels, swing the footrests away and turn the casters forward before a transfer.
Wipe the axles weekly, clear caster hair, and hand-wash the upholstery. Anti-tips stay down except over a curb.
What does it work with, and what are its limits?
Klaxon Twist needs its mounts, and is off heavy duty, a 21 or 22 in seat, and 4 degree camber.
Vehicle-seat use needs transit: 300 lb (136 kg), four tie-downs, not on heavy duty.
No weight training, no bags above the rider, and no more than one or two steps. Some builds exceed 28.5 in (724 mm).
A seating professional should train the rider first.
Which version should I choose?
Accents are gloss, matte or anodized. Arms are T-arms, flip-back, swing-away, or none.
How does it compare?
The Helio A6 is a carbon fibre folder. The Quickie 2 is an aluminium folder. See type 3 wheelchairs and folding wheelchairs.
Frequently asked questions
Can one hand propel both wheels?
Yes. One-arm drive fits 20, 22 or 24 in spoke wheels, and the shaft comes off to fold.
Can I add elevating leg rests?
Yes. They fit the swing-away front, and not with Twist or a one-piece flip-up footplate.
Does a positioning belt come fitted?
No. Order a pelvic belt with the chair, auto-buckle or airline buckle, if the rider needs one.
Mobility Specialties is an ADP registered vendor; see how ADP works with us. Warranty terms are in the Warranty tab.
Specifications
- Weight capacity
- 300 lb (136 kg); 350 lb (159 kg) with the heavy duty option
- Product weight
- 18.8 lb (8.5 kg) standard build
- Transport weight
- 10.8 lb (4.9 kg) on a 16 x 16 frame with the rear wheels, footrest and arm receivers off
- Seat width
- 14 in to 22 in (35.6 to 55.9 cm), built to order
- Seat depth
- 14 in to 20 in (35.6 to 50.8 cm)
- Back height
- 8.5 in to 19.5 in (21.6 to 49.5 cm) on standard posts; 14 in to 20 in (35.6 to 50.8 cm) on angle-adjustable posts with a push handle
- Back angle
- Standard back posts, or angle adjustable back posts with a push handle
- Armrests
- Height adjustable T-arms, height adjustable flip back T-arms, flip back or swing away armrests; the arms can be left off
- Legrests
- Swing-away hangers at 70 or 80 degrees; elevating leg rests or a fixed front are options
- Seat height
- Front 15 in to 21 in (38.1 to 53.3 cm), set by the caster size; rear 11.5 in to 19.5 in (29.2 to 49.5 cm); centre of gravity range 3 in (7.6 cm)
- Rear wheel size
- 20 in, 22 in, 24 in, 25 in or 26 in, in spoke, Maxx spoke or mag
- Caster size
- 4 in, 5 in, 6 in, 7 in or 8 in
- Brakes
- Wheel locks; push to lock, pull to lock, flush mount and hemi wheel locks, and drum brakes, are offered
- Folding
- Folds side to side on a dual interlocking cross brace frame
- Frame material
- Ti3AL/2.5V titanium alloy; titanium cross braces available
- Available colours
- Bare titanium frame with accent colours in gloss, matte or anodized finishes
- Compatible with
- Twist by Klaxon power assist, ordered with the mounting hardware fitted
- Warranty
- Frame, cross braces, hangers and quick-release axles for the life of the original purchaser; one year on other parts; expected frame life five years
- Product type
- Folding ultralight manual wheelchair with a titanium frame, built to order
- ADP device type
- Adult Lightweight Performance Manual Wheelchair (WMA3KI010)
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Catalyst 5Ti folding wheelchair against defects in materials and workmanship, in North America. Ki Mobility repairs or replaces covered parts at its discretion; claims go through an authorized supplier.
- Frame, cross braces, hangers and quick-release axles: life of the original purchaser.
- All other parts and components: 1 year from the first consumer purchase.
- Labour to repair or install parts is paid by the owner.
- Not covered: upholstery, tires, tubes, armrests, armrest pads and push-handle grips, and damage from neglect, misuse, improper installation or repair, or exceeding the weight limit.
- Void if the serial number tag is removed or altered.
