Description
The Ki Mobility Catalyst 5Vx is a folding ultralight manual wheelchair built to order from 7000 series aluminium tubing, with a 300 lb (136 kg) standard capacity. It is on ADP's product list as an Adult Lightweight Performance Manual Wheelchair (WMA3KI015).
What does it do, and how does it work?
- The frame folds side to side on a cross brace; the rear wheels release without tools.
- 7000 series aluminium frame with 1 in (2.54 cm) top tubing and 1 1/8 in (2.86 cm) bottom tubing.
- The axle plate gives 2 in (5 cm) of centre-of-gravity adjustment in 0.5 in steps; seven rear axle positions set rear seat height.
- Camber adjusts from 0 to 4 degrees in 1 degree steps.
- 24 lbs (10.9 kg) standard; transport 13.9 lbs (6.3 kg) on a 16 by 16 in frame with 5 x 1 casters and T-arm receivers, footrest and rear wheels off.
Who is it for, and who should choose something else?
- An active rider who wants a light folding chair for daily use that still packs into a car.
- A rigid chair: the Rogue 2. Titanium: the Catalyst 5Ti.
- Over 350 lbs (159 kg): bariatric wheelchairs. Needs tilt: tilt-in-space wheelchairs.
Will it fit?
- Seat 14 to 22 in (35.6 to 55.9 cm) wide and 14 to 20 in (35.6 to 50.8 cm) deep.
- Front seat height 13.5 to 21 in, set by the caster; rear 11.5 to 21 in over seven axle positions.
- The reference build is 28.7 in (730 mm) wide; folded, 30.5 x 12.8 x 28 in (775 x 325 x 711 mm).
- Book a free home assessment; your measurements and your therapist's plan set the order.
Using it day to day

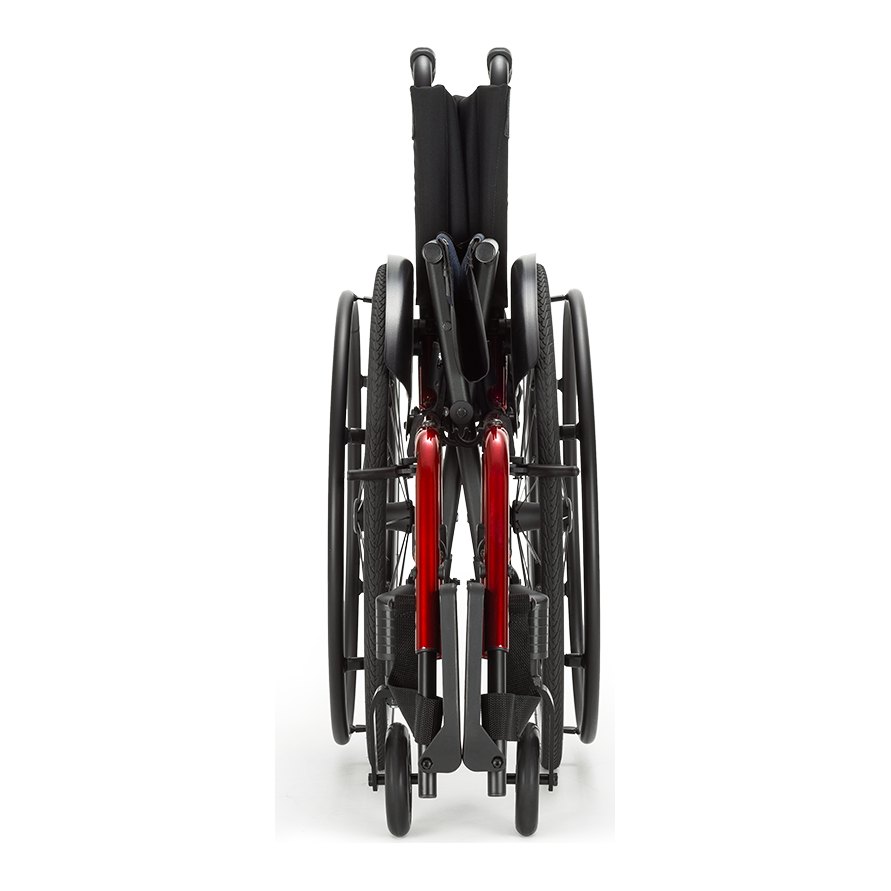

- Fold it side to side and release the rear wheels to load it.
- The axle plate sets the centre of gravity, and the rear axle positions set the rear seat height.
- Choose 4 to 8 in casters and 20 to 26 in rear wheels; a fixed 70 or 80 degree front is also available.
- Built to order; options are set with you and timing given.
What does it work with, and what are its limits?
- 300 lbs (136 kg) standard; 350 lbs (159 kg) heavy duty.
- The 13.9 lb figure is the transport lift; the standard build is 24 lbs (10.9 kg).
- The overall and folded sizes change with the seat width, caster and front end ordered.
- Twist by Klaxon power assist is ordered with the chair, with hardware fitted and settings programmed.
Which version should I choose?
- Swing-away or fixed 70 or 80 degree front; 60 to 90 degree hangers.
- Gloss and matte finishes, colour anodizing and hydrographic patterns; the Colour Accent package paints the forks and axle plate.
How does it compare?
- The Rogue 2 is a rigid chair for a rider who does not need side-to-side folding.
- The Catalyst 5Ti is the titanium folding frame in the same family.
Frequently asked questions
How heavy is it to lift into a car?
Transport weight is 13.9 lbs (6.3 kg) with the footrest and rear wheels off; standard build 24 lbs (10.9 kg).
Will it fit through my doorway?
The reference build is 28.7 in (730 mm) wide; a wider seat measures more, so check the size you order against your doorway.
Can power assist be added?
Yes; Twist by Klaxon power assist is ordered with the chair so its hardware and drive settings arrive ready.
Funding
Mobility Specialties is an ADP registered vendor; see how ADP works with us. Talk to your therapist before you order. See the warranty.
Specifications
- Weight capacity
- 300 lb (136 kg); 350 lb (159 kg) with the heavy duty option
- Product weight
- 24 lb (10.9 kg) standard build
- Transport weight
- 13.9 lb (6.3 kg): 16 x 16 frame, 5 x 1 poly casters, height-adjustable T-arm receivers included; footrest and rear wheels removed
- Seat width
- 14 in to 22 in (35.6 to 55.9 cm), built to order
- Seat depth
- 14 in to 20 in (35.6 to 50.8 cm)
- Armrests
- Height adjustable T-arms in three heights or height adjustable flip back T-arms; flip back, swing away or swing away with side guard armrests, or omit the arms
- Legrests
- Swing away hangers in 60, 70, 80 and 90 degree bends, or a fixed 70 or 80 degree front frame
- Seat height
- Front 13.5 in to 21 in (34.3 to 53.3 cm), set by the caster size; rear 11.5 in to 21 in (29.2 to 53.3 cm) over seven axle positions
- Rear wheel size
- 20 in, 22 in, 24 in, 25 in or 26 in, in spoke, Maxx spoke, Maxx Mag or pneumatic tyre builds
- Caster size
- 4 in, 5 in, 6 in, 7 in or 8 in, with poly, pneumatic and suspension fork options
- Overall width
- 28.7 in (730 mm) on the maker's reference build
- Overall length
- 41.1 in (1045 mm) with the legrest, on the maker's reference build
- Folded dimensions
- 30.5 in long by 12.8 in wide by 28.0 in high on the maker's reference build
- Brakes
- Wheel locks; push to lock, pull to lock, flush mount and caster pin locks are offered
- Folding
- Folds side to side onto a cross brace, and the rear wheels release without tools
- Frame material
- 7000 series aluminium; top tubing 1 in (2.54 cm), bottom tubing 1 1/8 in (2.86 cm)
- Available colours
- Gloss and matte frame finishes, colour anodizing and hydrographic patterns; the Colour Accent package paints the forks and axle plate
- Compatible with
- Twist by Klaxon power assist, ordered with the mounting hardware fitted and the drive settings programmed
- Warranty
- Frame, cross braces, hangers and quick-release axles for the life of the original purchaser; other parts 1 year; wear items excluded
- Product type
- Folding ultralight manual wheelchair with a 7000 series aluminium frame, built to order
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Catalyst 5Vx folding wheelchair against defects in materials and workmanship, in North America. Ki Mobility repairs or replaces covered parts at its discretion; claims go through an authorized supplier.
- Frame, cross braces, hangers and quick-release axles: life of the original purchaser.
- All other parts and components: 1 year from the first consumer purchase.
- Labour to repair or install parts is paid by the owner.
- Not covered: upholstery, tires, tubes, armrests, armrest pads and push-handle grips, and damage from neglect, misuse, improper installation or repair, or exceeding the weight limit.
- Void if the serial number tag is removed or altered.
